Vlan questiion

RouterOS General
1

Hi there,

a customer of mine have done me a question that i cannot reply.

It’s possible to mark all traffic passing for an interface that don’t have a VLAN tag with a new VLAN tag?

Regards.

2

Yes you can do it by adding vlan interface.

3

…, and then bridging it with ethernet interface, if you do not need routing

4

Hi there;

sorry for reopen the POST but my customer haven’t find a solution and with the informacion that you have give me also i’m in doubt.

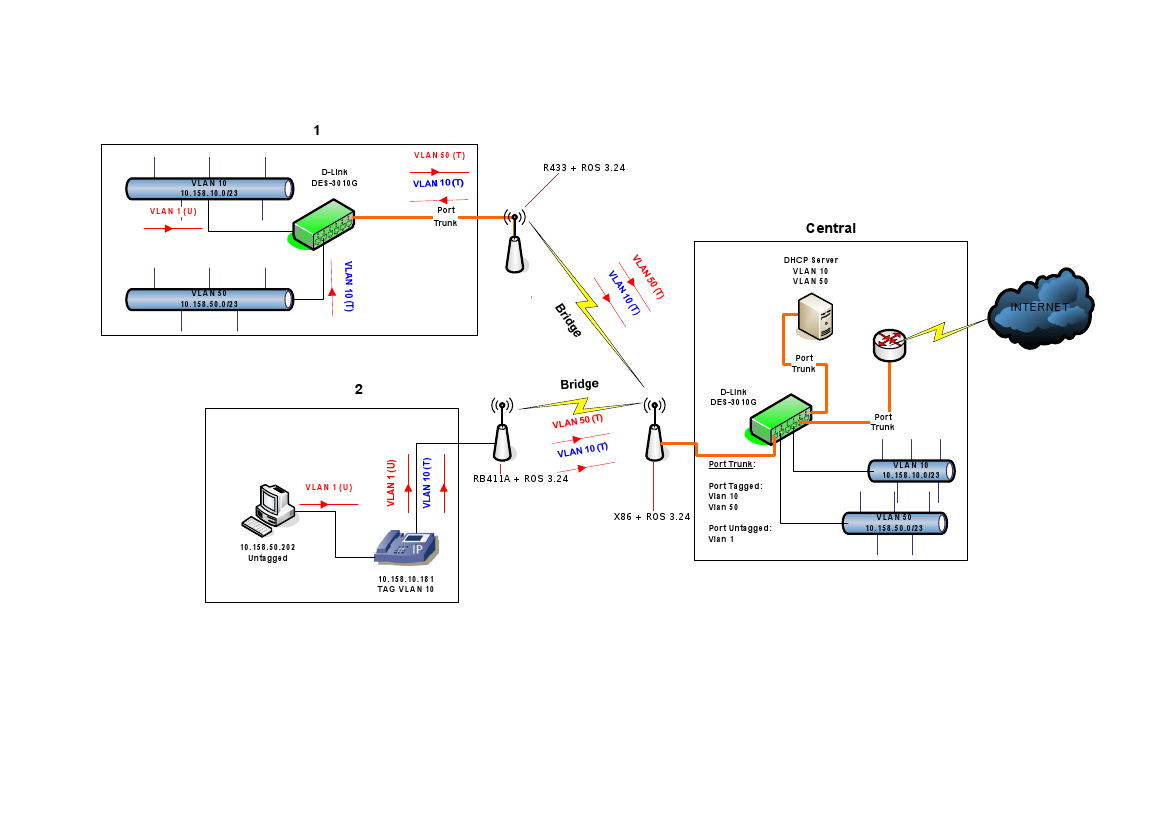

The problem is from 2 to Central.

With RB411A i want to tag traffic untagged that generate the pc with ip 10.158.50.202/24. Traffic from the telephone is already tagged from the same IPTel [VLAN10].

With RB411A i want to “translate” untagged traffic [VLAN1] in VLAN50. This is my configuracion:
RB411A

/interface bridge
add name="VCA-Cementerio" protocol-mode=rstp

/interface vlan
add interface=ether1 name="VLAN Usuarios" vlan-id=50


/interface wireless
set wlan1 adaptive-noise-immunity=client-mode band=5ghz country=spain \
	scan-list=5500,5700 mode=station-wds ssid=W-ENLACE-VCA

/interface bridge port
add bridge="VCA-Cementerio" interface=wlan1
add bridge="VCA-Cementerio" interface=ether1
add bridge="VCA-Cementerio" interface="VLAN Usuarios"

/interface bridge settings
set use-ip-firewall=yes use-ip-firewall-for-vlan=yes

/ip address
add address=10.158.3.244/23 interface="VCA-Cementerio"

X86

/interface bridge
add name=bridge1 protocol-mode=rstp


/interface wireless
set 0 adaptive-noise-immunity=ap-and-client-mode band=5ghz country=spain \
	frequency=5500 mode=ap-bridge ssid=W-ENLACE-VCA \
	wds-mode=dynamic wds-default-bridge=bridge1
set 1 adaptive-noise-immunity=ap-and-client-mode band=5ghz country=spain \
	frequency=5700 mode=ap-bridge ssid=W-ENLACE-VCA \
	wds-mode=dynamic wds-default-bridge=bridge1
/interface bridge port
add bridge=bridge1 interface=ether1

/interface bridge settings
set use-ip-firewall=yes use-ip-firewall-for-vlan=yes

/ip address
add address=10.158.3.248/23 interface=bridge1

But traffic arrive to the switch D-link DES-3010G untagged [traffic from VLAN10 is OK].

Thank you in advanced,

Best Regards.

5
/interface bridge port
add bridge="VCA-Cementerio" interface=wlan1
add bridge="VCA-Cementerio" interface=ether1
add bridge="VCA-Cementerio" interface="VLAN Usuarios"

bridging vlan interface with physical interface where vlan is added will not work.

6

It doesn’t work. VLAN 50 doesn’t arrive to central. Anyone can tell me how can i do it?

Thank you in advance.

Best Regards.

7

Just create Virtual AP interface instead WLAN interface and put it int the bridge :
instead:
add bridge=“VCA-Cementerio” interface=wlan1
put:
add bridge=“VCA-Cementerio” interface=virtualAP-wlan1

Regards,
Ilija
