Hi there!

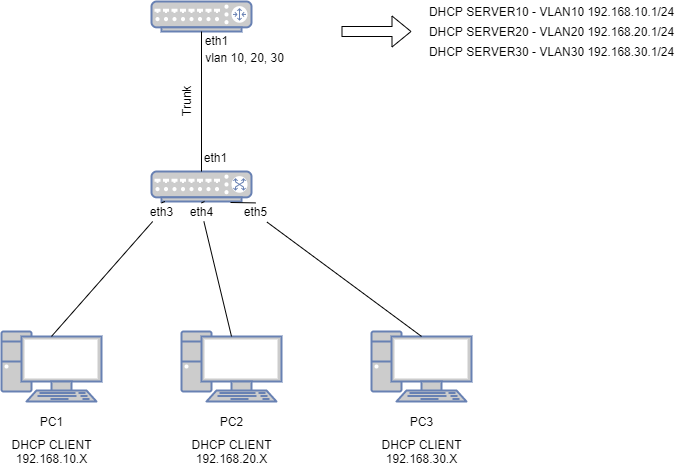

i have the following scenario (see attachment)
simple. I use 2 Routerboard RB750Gr3, my first one have one ethernet in trunk (vlan 10,20,30), each vlan has an IP address and one DHCP Server on it.
i would like to configure my second RB as a switch to give tag or untag on some ethernet ports.
in my case, eth1 is my trunk, and on eth3 wonna connect a PC1 (in DHCP) and expect to have something 192.168.10.x on eth4 something with 192.168.20.x
very linear. I follow this: RouterOS - RouterOS - MikroTik Documentation but without success
this is my both RB configuration:
R1
[admin@1] > export
jan/02/1970 03:41:50 by RouterOS 6.47.1
software id = XXXXX
model = RB750Gr3
serial number = XXXXX
/interface bridge
add name=bridge1
/interface ethernet
set [ find default-name=ether1 ] comment="vs 2"
/interface vlan
add interface=bridge1 name=vlan10 vlan-id=10
add interface=bridge1 name=vlan20 vlan-id=20
add interface=bridge1 name=vlan30 vlan-id=30
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip pool
add name=dhcp_pool0 ranges=192.168.10.20-192.168.10.200
add name=dhcp_pool1 ranges=192.168.20.20-192.168.20.200
add name=dhcp_pool2 ranges=192.168.30.20-192.168.30.200
/ip dhcp-server
add address-pool=dhcp_pool0 disabled=no interface=vlan10 name=dhcp1
add address-pool=dhcp_pool1 disabled=no interface=vlan20 name=dhcp2
add address-pool=dhcp_pool2 disabled=no interface=vlan30 name=dhcp3
/user group
set full policy="local,telnet,ssh,ftp,reboot,read,write,policy,test,winbox,passw
ord,web,sniff,sensitive,api,romon,dude,tikapp"
/interface bridge port
add bridge=bridge1 interface=ether1
/ip address
add address=192.168.10.1/24 interface=vlan10 network=192.168.10.0
add address=192.168.20.1/24 interface=vlan20 network=192.168.20.0
add address=192.168.30.1/24 interface=vlan30 network=192.168.30.0
/ip dhcp-server network
add address=192.168.10.0/24 gateway=192.168.10.1
add address=192.168.20.0/24 gateway=192.168.20.1
add address=192.168.30.0/24 gateway=192.168.30.1
/ip dns
set servers=8.8.8.8,1.1.1.1
/system identity
set name=1
R2
[admin@2] > export
jan/02/1970 03:33:02 by RouterOS 6.47.1
software id = YYYYY
model = RB750Gr3
serial number = YYYYYYY
/interface bridge
add name=bridge1
/interface ethernet switch port
set 0 vlan-mode=secure
set 2 default-vlan-id=10 vlan-mode=secure
set 3 default-vlan-id=20 vlan-mode=secure
set 4 default-vlan-id=30 vlan-mode=secure
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/user group
set full policy=local,telnet,ssh,ftp,reboot,read,write,policy,test,winbox,password,web,sniff,sensitive,api,romon,dude,tikapp
/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=ether5
/interface ethernet switch vlan
add independent-learning=yes ports=ether1,ether3 switch=switch1 vlan-id=10
add independent-learning=yes ports=ether1,ether4 switch=switch1 vlan-id=20
add independent-learning=yes ports=ether1,ether5 switch=switch1 vlan-id=30
/system identity
set name=2
