Vlan Trunk / Access port configuration

SwOS
1

Routerboard 250GS
Software v1.2

Hi,

I am having problems implementing a basic vlan configuration in swos. I am looking to configure a dot1q trunk on Eth5 to carry VLANs 1 and 755, and to also create a VLAN access port for VLAN 755 on Eth1. Packets on Eth1 are to be tagged with 755 on ingress and stripped on egress.

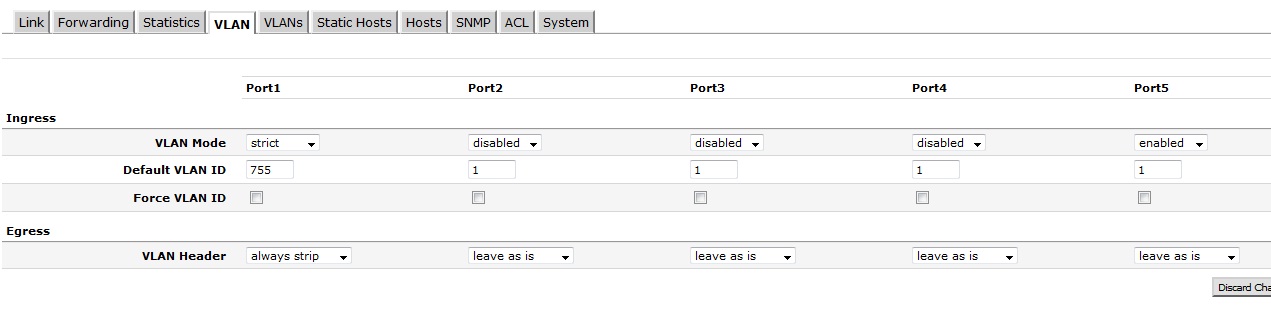

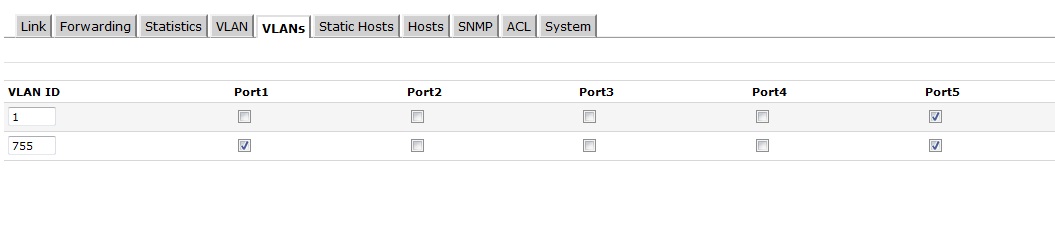

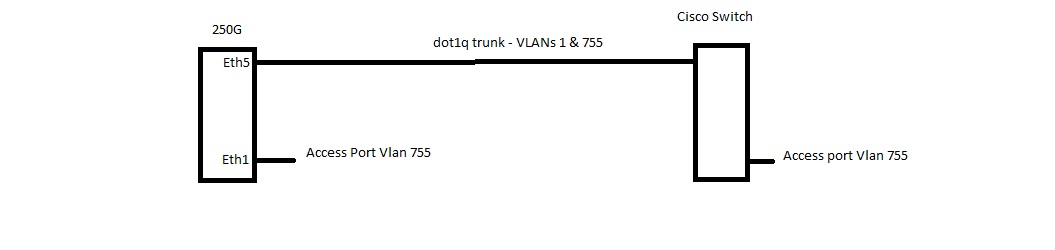

Please see below my configuration and basic network diagram - any assistance you can provide in correcting the config would be greatly appreciated.

VLAN Trunk
2

Set VLAN Header = add if missing for port5. Everything else looks fine.

3

Jasta-
Did you get this to work?
The reason I am asking is that I am having a similar problem and I will post it in another thread.
I tried what kirshteins said here, but wasn’t able to get it to work.

Ralph

4

worked exactly as intended rwf,

the only change to my initial config i posted was that advised by krishteins.
