Vlan

RouterOS Beginner Basics
1

Hello friends, I hope you can help me.

I have an Internet service and data transport with my ISP.

For the transport of data the ISP gives me a Vlan, this is the one that I must use to connect my branches, all with mikrotik.

There are 5 branches that I want to connect through the VLAN, each branch with a different network segment.

Branch 1: LAN LAN IP 192.168.1.0/24
Branch 2: LAN LAN IP 192.168.2.0/24
Branch 3: LAN LAN IP 192.168.3.0/24
Branch 4: LAN LAN IP 192.168.4.0/24
Branch 5: LAN LAN IP 192.168.5.0/24

On the VLAN interface that I created in each mikrotik of each branch, I created another subnet, example:

Branch 1: Vlan 600 IP 192.168.100.1/24
Branch 2: Vlan 600 IP 192.168.100.2/24
Branch 3: Vlan 600 IP 192.168.100.3/24
Branch 4: Vlan 600 IP 192.168.100.4/24
Branch 5: Vlan 600 IP 192.168.100.5/24

What I want is that each branch can have connection with the others through the Vlan. Pinging there is a response between 3 of the branches, but the remaining 2 do not receive a response, even when one of them I ping towards a branch, the connection of another falls.

Why does that happen? Do I have to declare something additional on the routes other than the default routes that are created?

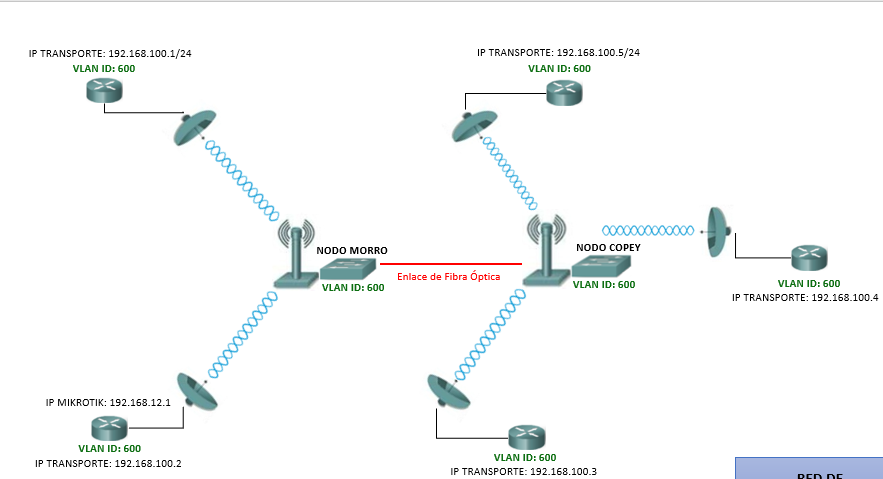

I attach an outline

2

Are the device across the fiber the ones that can not communicate by chance?

3

Can you export the relevant part of your config (switch vlan or bridge vlan) so it’ll be easier to see? what i understand is that you have vlan600 which is for managment with range 192.168.100.0/24 and another 5 vlans and you can ping 3 of the branches, can you ping from the mgmt vlan, from office vlans, which branches? all trunk ports tagged with correct vlans?

4

We need your export
