I'm really struggling to configure a VLAN for an RB951G-2HnD.
I'm trying to VLAN off ports ether3, ether4 and ether5 into VLAN-ID 2.
So far I have the following Switch Port config:
0 ether1-gateway switch1 disabled leave-as-is auto
and the following Ethernet config:
0 ether1-gateway 1500 00:0C:42:B7:AC:D6 enabled none switch1
What I now want to do is create a DHCP server and address for VLAN 2 but I need to apply it to an interface which I don't currently have. Where am I going wrong?
Many thanks
tws101
June 21, 2013, 3:31pm
2
While Mikrotik has a switch chip… It is no substitute for an actual managed switch.
Add your VLAN Interface in INTERFACE
Your switch will need to have default vlan set to 2 for those ports change mode to fall back. Leave as always strip.
Now head to dhcp server and you will see the VLAN interface you created as an option.
Thanks TWS101
When I create the VLAN Interface it wants to be attached to another Interface. Which one should I choose? And do I need to do anything with bridging?
tws101
June 21, 2013, 4:10pm
4
Attach to the master port (Physical Port) you will be using the VLAN on. Based on your setup it looks like Port 3 “ether3-master-local”
No bridging..
Thanks TWS101, I’ll try that and see what happens.
Ok I’ve got this config so far. I think it’s right but I’m not able to ping the vlan address. Maybe firewall rules?
[admin@MikroTik] /interface ethernet switch> port print
Flags: I - invalid
# NAME SWITCH VLAN-MODE VLAN-HEADER DEFAULT-VLAN-ID
0 ether1-gateway switch1 disabled leave-as-is auto
1 ether2-trunk switch1 disabled leave-as-is auto
2 ether3-master-local switch1 fallback always-strip 2
3 ether4-slave-local switch1 fallback always-strip 2
4 ether5-slave-local switch1 fallback always-strip 2
5 switch1_cpu switch1 disabled leave-as-is auto
[admin@MikroTik] /interface ethernet switch> vlan print
Flags: X - disabled, I - invalid
# SWITCH VLAN-ID PORTS
0 switch1 2 ether3-master-local
ether4-slave-local
ether5-slave-local
[admin@MikroTik] /interface> ether print
Flags: X - disabled, R - running, S - slave
# NAME MTU MAC-ADDRESS ARP MASTER-PORT SWITCH
0 ether1-gateway 1500 00:0C:42:B7:AC:D6 enabled none switch1
1 ether2-trunk 1500 00:0C:42:B7:AC:D7 enabled none switch1
2 ether3-master-local 1500 00:0C:42:B7:AC:D8 enabled none switch1
3 S ether4-slave-local 1500 00:0C:42:B7:AC:D9 enabled ether3-master-local switch1
4 S ether5-slave-local 1500 00:0C:42:B7:AC:DA enabled ether3-master-local switch1
[admin@MikroTik] /interface> vlan print
Flags: X - disabled, R - running, S - slave
# NAME MTU ARP VLAN-ID INTERFACE
0 vlan-home 1500 enabled 2 ether3-master-local
[admin@MikroTik] /ip> add print
Flags: X - disabled, I - invalid, D - dynamic
# ADDRESS NETWORK INTERFACE
0 ;;; home address
172.16.0.1/24 172.16.0.0 bridge-local
1 172.16.1.1/24 172.16.1.0 vlan-home
[admin@MikroTik] /ip> dhcp-server print
Flags: X - disabled, I - invalid
# NAME INTERFACE RELAY ADDRESS-POOL LEASE-TIME ADD-ARP
1 dhcp1 vlan-home vlan1 3d
tws101
June 24, 2013, 3:20pm
7
By default in Mikrotik you can route between VLANs unless you added a firewall rule to prevent you from doing so.
And yes your configuration looks good. I assume you are getting The correct IP addresses from the vlan assigned Ethernet ports?
Digging into this I came across this which I assume will tag the packets on the way in through the ports which is what I’m looking for.
/interface ethernet switch rule add switch=switch1 ports=ether3,ether4,ether5 new-vlan-id=2
Only my 8327 switch chip doesn’t support new-vlan-id.
Any ideas?
tws101
June 27, 2013, 2:51pm
9
If you are setting the port to have a default vlan ID then you are fine. Untagged packets will be accepted into the default.
If you need to tag them later like on your trunk port.. You would tag them on egress. Also the trunk port would need to be part of the same switch.
I eventually gave up on this last year as I didn’t have a switch. I’m now attempting to give it a go again but with a different setup.

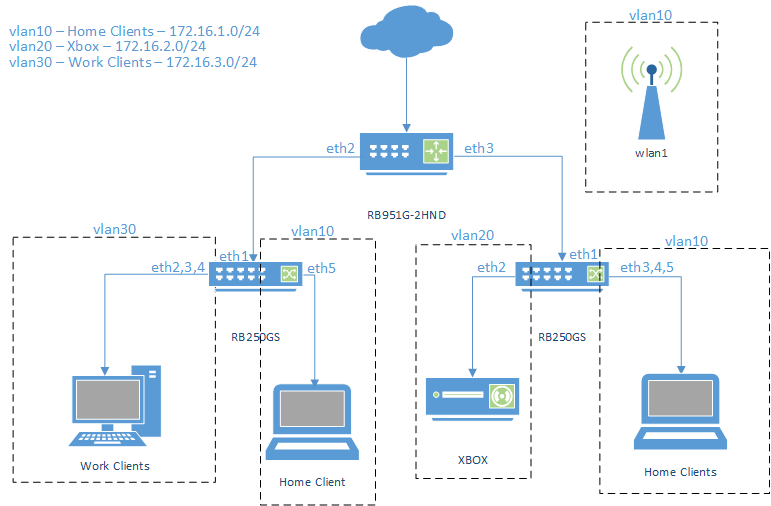

So I’ve got an RB951G-2hnd and an RB250GS (planning on getting another one if I get this working) - to keep it simple I’ve left the default configuration in place, but changed the IP config (currently 172.16.0.0/24). Please ignore the information that precedes this post.
This is going to be a multi stage process. I’d like to get vlan30 sorted. From there I’m hoping to sort vlan10 and then vlan20.
Thanks
