Hello guys,

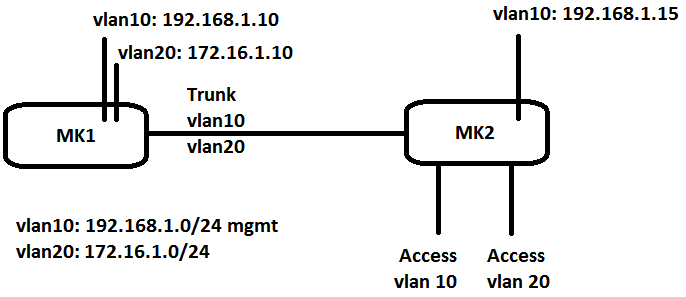

I have already read some articles and posts about this topic. Also I have read the manual of mikrotik. But Im unable to run this simple topology. I also put here the config files. Maybe I just missing something. When I configure Vlan interfaces to every MK then it works fine, but I dont need interface VLAN20 on second MK2. I just want to make vlan interfaces only on MK1. MK2 would serve as L2 switch without any routed interface except mgmt intervace vlan10.
So when I dont have vlan20 interface on MK2 and I plug PC to Ether5 which is access vlan 20 the PC doesnt have connectivity to VLAN20 interface on MK1. When I configure vlan interface on MK2 then it has connectivity to vlan interface 20 on MK1.
config of MK1:
/interface ethernet
set [ find default-name=ether1 ] name=ether1-master
set [ find default-name=ether2 ] master-port=ether1-master
set [ find default-name=ether3 ] master-port=ether1-master
set [ find default-name=ether4 ] master-port=ether1-master
set [ find default-name=ether5 ] master-port=ether1-master
set [ find default-name=ether6 ] master-port=ether1-master
set [ find default-name=ether7 ] master-port=ether1-master
set [ find default-name=ether8 ] master-port=ether1-master
set [ find default-name=sfp-sfpplus1 ] master-port=ether1-master
set [ find default-name=sfpplus2 ] master-port=ether1-master
/interface vlan
add interface=ether1-master name=vlan10 vlan-id=10
add interface=ether1-master name=vlan20 vlan-id=20
/interface ethernet switch egress-vlan-tag
add tagged-ports=ether2 vlan-id=20
/interface ethernet switch vlan
add ports=ether2 vlan-id=20
add ports=switch1-cpu,ether2 vlan-id=10
/ip address
add address=192.168.1.10/24 interface=vlan10 network=192.168.1.0
add address=172.16.1.10/24 interface=vlan20 network=172.16.1.0
config of MK2:
/interface ethernet
set [ find default-name=ether1 ] name=ether1-master
set [ find default-name=ether2 ] master-port=ether1-master
set [ find default-name=ether3 ] master-port=ether1-master
set [ find default-name=ether4 ] master-port=ether1-master
set [ find default-name=ether5 ] master-port=ether1-master
set [ find default-name=ether6 ] master-port=ether1-master
set [ find default-name=ether7 ] master-port=ether1-master
set [ find default-name=ether8 ] master-port=ether1-master
set [ find default-name=sfp-sfpplus1 ] master-port=ether1-master
set [ find default-name=sfpplus2 ] master-port=ether1-master
/interface vlan
add interface=ether1-master name=vlan10 vlan-id=10
add interface=ether1-master name=vlan20 vlan-id=20
/interface ethernet switch egress-vlan-tag
add tagged-ports=ether2 vlan-id=20
/interface ethernet switch ingress-vlan-translation
add new-customer-vid=10 ports=ether3
add new-customer-vid=20 ports=ether5
/interface ethernet switch vlan
add ports=ether2,ether5 vlan-id=20
add ports=switch1-cpu,ether2 vlan-id=10
/ip address
add address=192.168.1.15/24 interface=vlan10 network=192.168.1.0
I want to use switch-cpu and I would like to bypass any bridge configuration.
