VLANs to gigabit port

RouterOS Beginner Basics
1

Newb question: Using an RB2011U and setting up a couple VLANs. Can get everything working as planned on port 6 (master-local) but would much prefer a Gigabit connection to my switch (Prosafe GS728TP) from one of the ports 2-5. I’ve tried a number of different things but can’t figure it out.

Thanks.

2

It should be the same process. If it isn’t working as expected on the Gigabit ports check whether the relevant interface is slaved to another.

3

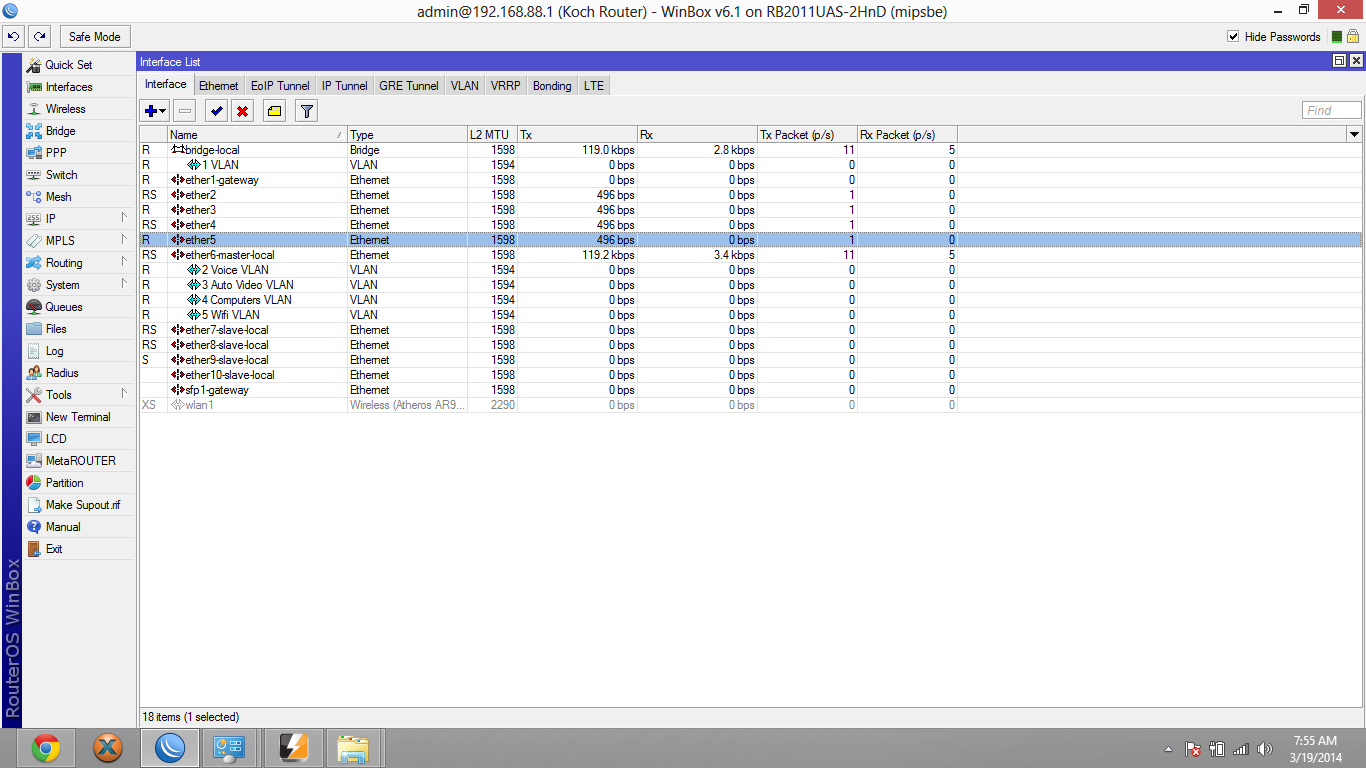

Screenshot is attached (can’t tell if it’s working or not…)

I’ve tried various ports, but looking specifically at 5 under ‘Master Port’ it says ‘None’. I’m thinking this has something to do with ‘Bridge-local’ but I can’t figure it out.

If Port 6 was gigabit I wouldn’t have an issue, but 6-10 are fast ethernet.
