Hello, I have the following problem.
When i stress a VPLS link with traffic, it fails for a few seconds while none of the underlying wireless and wired links fail.

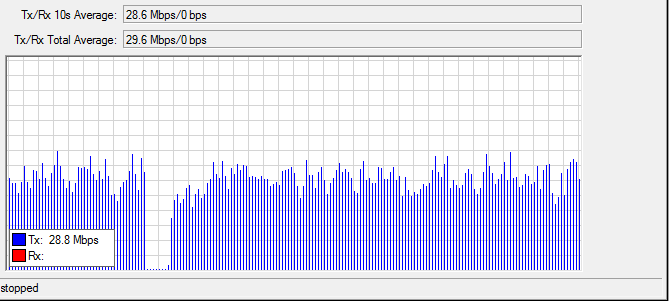

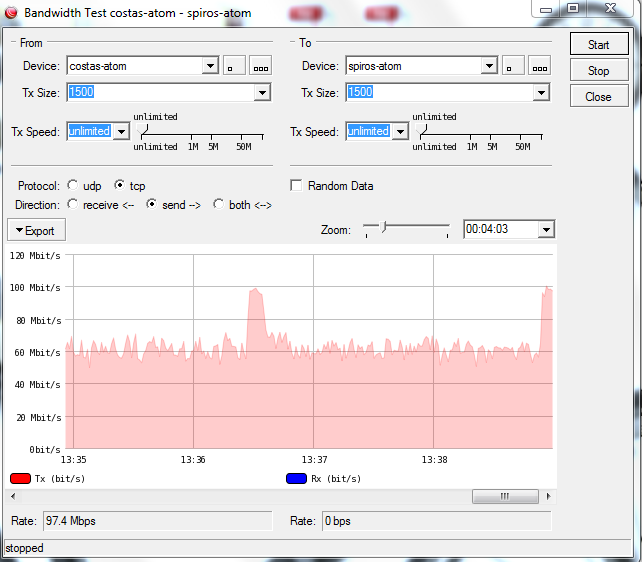

You can see this from the attached screenshots, while i was running two bandwidth tests at the same time, one over the VPLS link and one over MPLS.
I believe this started when i inserted the RB711GA-5HnD into my network.

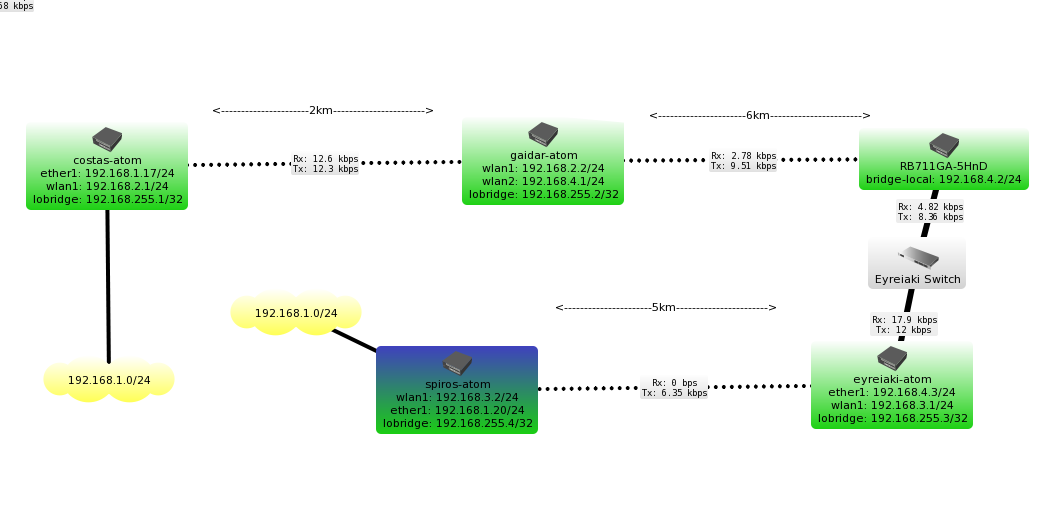

my network was created according to this example http://wiki.mikrotik.com/wiki/Manual:MPLSVPLS
ROS is 5.7 for the atoms and 5.8 for the RB711
[admin@costas] > mpls forwarding-table print
Flags: L - ldp, V - vpls, T - traffic-eng
# IN-LABEL OUT-LABELS DESTINATION I NEXTHOP
0 expl-null
1 L 1457 16 192.168.255.3/32 c 192.168.
2 L 1459 192.168.255.2/32 c 192.168.
3 L 1460 192.168.4.0/24 c 192.168.
4 L 1461 21 192.168.255.4/32 c 192.168.
5 L 1462 20 192.168.3.0/24 c 192.168.
6 V 1463 costas-spigias
[admin@costas] > mpls remote-bindings print
Flags: X - disabled, A - active, D - dynamic
# DST-ADDRESS NEXTHOP LABEL PEER
0 D 192.168.255.3/32 16 192.168.255.4:0
1 D 192.168.3.0/24 impl-null 192.168.255.4:0
2 D 192.168.1.0/24 impl-null 192.168.255.4:0
3 D 192.168.255.4/32 impl-null 192.168.255.4:0
4 D 192.168.255.2/32 19 192.168.255.4:0
5 D 192.168.4.0/24 20 192.168.255.4:0
6 D 192.168.2.0/24 17 192.168.255.4:0
7 D 192.168.255.1/32 18 192.168.255.4:0
8 AD 192.168.255.3/32 192.168.2.2 16 192.168.255.2:0
9 D 192.168.1.0/24 18 192.168.255.2:0
10 AD 192.168.3.0/24 192.168.2.2 20 192.168.255.2:0
11 D 192.168.2.0/24 impl-null 192.168.255.2:0
12 AD 192.168.255.4/32 192.168.2.2 21 192.168.255.2:0
13 D 192.168.255.1/32 19 192.168.255.2:0
14 AD 192.168.255.2/32 192.168.2.2 impl-null 192.168.255.2:0
15 AD 192.168.4.0/24 192.168.2.2 impl-null 192.168.255.2:0
MTU everywhere is at default (1500 for the wireless and wired interfaces and mpls-mtu is 1508)
I can provide with supout.rip files and whatever else is needed to help solve this problem
