Hello,

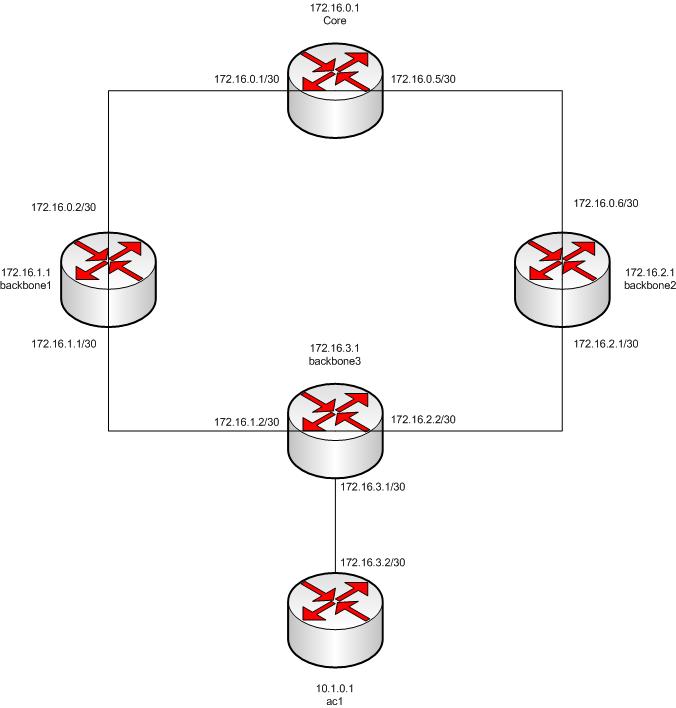

i build a test environment with 5 Mikrotik RB433.
core:
/ip address
add address=172.16.0.1/30 broadcast=172.16.0.3 comment="" disabled=no \
interface=ether1 network=172.16.0.0
add address=172.16.0.5/30 broadcast=172.16.0.7 comment="" disabled=no \
interface=ether2 network=172.16.0.4
add address=172.16.0.1/32 broadcast=172.16.0.1 comment="" disabled=no \
interface=lo network=172.16.0.1
add address=192.168.1.1/24 broadcast=192.168.1.255 comment="" disabled=no \
interface=ether3 network=192.168.1.0
add address=192.168.2.1/30 broadcast=192.168.2.3 comment="" disabled=no \
interface=vpls1 network=192.168.2.0
/mpls ldp
set distribute-for-default-route=no enabled=yes hop-limit=255 loop-detect=no \
lsr-id=172.16.0.1 path-vector-limit=255 transport-address=172.16.0.1 \
use-explicit-null=no
/mpls ldp interface
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether1 transport-address=172.16.0.1
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether2 transport-address=172.16.0.5
/interface vpls
add advertised-l2mtu=1500 arp=enabled cisco-style=no cisco-style-id=0 comment="" \
disable-running-check=no disabled=no l2mtu=1500 mac-address=00:00:00:01:01:01 \
mtu=1500 name=vpls1 pw-type=raw-ethernet remote-peer=172.16.3.2 vpls-id=\
172.16.0.1:1
/routing ospf instance
set default comment="" disabled=no distribute-default=never in-filter=ospf-in \
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=auto \
metric-rip=20 metric-static=20 name=default out-filter=ospf-out \
redistribute-bgp=as-type-1 redistribute-connected=as-type-1 \
redistribute-other-ospf=as-type-1 redistribute-rip=as-type-1 \
redistribute-static=as-type-1 router-id=0.0.0.1
/routing ospf area
set backbone area-id=0.0.0.0 comment="" disabled=no instance=default name=\
backbone type=default
/routing ospf interface
add authentication=none authentication-key="" authentication-key-id=1 comment="" \
cost=10 dead-interval=40s disabled=no hello-interval=10s instance-id=0 \
interface=all network-type=point-to-point passive=no priority=1 \
retransmit-interval=5s transmit-delay=1s use-bfd=no
/routing ospf network
add area=backbone comment="" disabled=no network=172.16.0.0/18
backbone1
/ip address
add address=172.16.0.2/30 broadcast=172.16.0.3 comment="" disabled=no \
interface=ether1 network=172.16.0.0
add address=172.16.1.1/30 broadcast=172.16.1.3 comment="" disabled=no \
interface=ether2 network=172.16.1.0
add address=172.16.1.1/32 broadcast=172.16.1.1 comment="" disabled=no \
interface=lo network=172.16.1.1
/mpls ldp
set distribute-for-default-route=no enabled=yes hop-limit=255 loop-detect=no \
lsr-id=172.16.1.1 path-vector-limit=255 transport-address=0.0.0.0 \
use-explicit-null=no
/mpls ldp interface
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether1 transport-address=172.16.0.2
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether2 transport-address=172.16.1.1
/routing ospf instance
set default comment="" disabled=no distribute-default=never in-filter=ospf-in \
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=auto \
metric-rip=20 metric-static=20 name=default out-filter=ospf-out \
redistribute-bgp=as-type-1 redistribute-connected=as-type-1 \
redistribute-other-ospf=as-type-1 redistribute-rip=as-type-1 \
redistribute-static=as-type-1 router-id=0.0.0.2
/routing ospf area
set backbone area-id=0.0.0.0 comment="" disabled=no instance=default name=\
backbone type=default
/routing ospf interface
add authentication=none authentication-key="" authentication-key-id=1 comment="" \
cost=10 dead-interval=40s disabled=no hello-interval=10s instance-id=0 \
interface=all network-type=point-to-point passive=no priority=1 \
retransmit-interval=5s transmit-delay=1s use-bfd=no
/routing ospf network
add area=backbone comment="" disabled=no network=172.16.0.0/18
backbone2
/ip address
add address=172.16.0.6/30 broadcast=172.16.0.7 comment="" disabled=no interface=\
ether2 network=172.16.0.4
add address=172.16.2.1/30 broadcast=172.16.2.3 comment="" disabled=no interface=\
ether1 network=172.16.2.0
add address=172.16.2.1/32 broadcast=172.16.2.1 comment="" disabled=no interface=\
lo network=172.16.2.1
/mpls ldp
set distribute-for-default-route=no enabled=yes hop-limit=255 loop-detect=no \
lsr-id=172.16.2.1 path-vector-limit=255 transport-address=0.0.0.0 \
use-explicit-null=no
/mpls ldp interface
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether1 transport-address=172.16.2.1
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether2 transport-address=172.16.0.6
/routing ospf instance
set default comment="" disabled=no distribute-default=never in-filter=ospf-in \
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=auto \
metric-rip=20 metric-static=20 name=default out-filter=ospf-out \
redistribute-bgp=as-type-1 redistribute-connected=as-type-1 \
redistribute-other-ospf=as-type-1 redistribute-rip=as-type-1 \
redistribute-static=as-type-1 router-id=0.0.0.3
/routing ospf area
set backbone area-id=0.0.0.0 comment="" disabled=no instance=default name=\
backbone type=default
/routing ospf interface
add authentication=none authentication-key="" authentication-key-id=1 comment="" \
cost=10 dead-interval=40s disabled=no hello-interval=10s instance-id=0 \
interface=all network-type=point-to-point passive=no priority=1 \
retransmit-interval=5s transmit-delay=1s use-bfd=no
/routing ospf network
add area=backbone comment="" disabled=no network=172.16.0.0/18
backbone3
/ip address
add address=172.16.1.2/30 broadcast=172.16.1.3 comment="" disabled=no interface=\
ether2 network=172.16.1.0
add address=172.16.2.2/30 broadcast=172.16.2.3 comment="" disabled=no interface=\
ether1 network=172.16.2.0
add address=172.16.3.1/32 broadcast=172.16.3.1 comment="" disabled=no interface=\
lo network=172.16.3.1
add address=172.16.3.1/30 broadcast=172.16.3.3 comment="" disabled=no interface=\
ether3 network=172.16.3.0
/mpls ldp
set distribute-for-default-route=no enabled=yes hop-limit=255 loop-detect=no \
lsr-id=172.16.3.1 path-vector-limit=255 transport-address=0.0.0.0 \
use-explicit-null=no
/mpls ldp interface
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether1 transport-address=172.16.2.2
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether2 transport-address=172.16.1.2
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether3 transport-address=172.16.3.1
/routing ospf instance
set default comment="" disabled=no distribute-default=never in-filter=ospf-in \
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=auto \
metric-rip=20 metric-static=20 name=default out-filter=ospf-out \
redistribute-bgp=as-type-1 redistribute-connected=as-type-1 \
redistribute-other-ospf=no redistribute-rip=as-type-1 redistribute-static=\
as-type-1 router-id=0.0.0.4
/routing ospf area
set backbone area-id=0.0.0.0 comment="" disabled=no instance=default name=\
backbone type=default
/routing ospf interface
add authentication=none authentication-key="" authentication-key-id=1 comment="" \
cost=10 dead-interval=40s disabled=no hello-interval=10s instance-id=0 \
interface=all network-type=point-to-point passive=no priority=1 \
retransmit-interval=5s transmit-delay=1s use-bfd=no
/routing ospf network
add area=backbone comment="" disabled=no network=172.16.0.0/18
/routing bgp instance
set default as=65530 client-to-client-reflection=yes comment="" disabled=no \
ignore-as-path-len=no name=default out-filter="" redistribute-connected=no \
redistribute-ospf=no redistribute-other-bgp=no redistribute-rip=no \
redistribute-static=no router-id=0.0.0.0 routing-table=""
add as=64530 client-to-client-reflection=no comment="" disabled=no \
ignore-as-path-len=no name=bbas out-filter="" redistribute-connected=yes \
redistribute-ospf=yes redistribute-other-bgp=yes redistribute-rip=yes \
redistribute-static=yes router-id=0.0.0.4 routing-table=""
/routing bgp peer
add address-families=ip as-override=no comment="" default-originate=if-installed \
disabled=no hold-time=3m in-filter="" instance=bbas multihop=no name=peer1 \
nexthop-choice=default out-filter="" passive=no remote-address=172.16.3.2 \
remote-as=64531 remove-private-as=no route-reflect=no tcp-md5-key="" ttl=\
default use-bfd=no
ac1
/ip address
add address=172.16.3.2/30 broadcast=172.16.3.3 comment="" disabled=no interface=\
ether1 network=172.16.3.0
add address=192.168.2.2/30 broadcast=192.168.2.3 comment="" disabled=no \
interface=vpls1 network=192.168.2.0
add address=10.1.0.1/32 broadcast=10.1.0.1 comment="" disabled=no interface=lo \
network=10.1.0.1
/routing bgp instance
set default as=65530 client-to-client-reflection=yes comment="" disabled=no \
ignore-as-path-len=no name=default out-filter="" redistribute-connected=no \
redistribute-ospf=no redistribute-other-bgp=no redistribute-rip=no \
redistribute-static=no router-id=0.0.0.0 routing-table=""
add as=64531 client-to-client-reflection=no comment="" disabled=no \
ignore-as-path-len=no name=ac1as out-filter="" redistribute-connected=yes \
redistribute-ospf=yes redistribute-other-bgp=yes redistribute-rip=yes \
redistribute-static=yes router-id=10.1.0.1 routing-table=""
/routing bgp peer
add address-families=ip as-override=no comment="" default-originate=never \
disabled=no hold-time=3m in-filter="" instance=ac1as multihop=no name=peer1 \
nexthop-choice=default out-filter="" passive=no remote-address=172.16.3.1 \
remote-as=64530 remove-private-as=no route-reflect=no tcp-md5-key="" ttl=\
default use-bfd=no
/mpls ldp
set distribute-for-default-route=no enabled=yes hop-limit=255 loop-detect=no \
lsr-id=10.1.0.1 path-vector-limit=255 transport-address=172.16.3.2 \
use-explicit-null=no
/mpls ldp interface
add accept-dynamic-neighbors=yes comment="" disabled=no hello-interval=1s \
hold-time=3s interface=ether1 transport-address=172.16.3.2
/interface vpls
add advertised-l2mtu=1500 arp=enabled cisco-style=no cisco-style-id=0 comment="" \
disable-running-check=no disabled=no l2mtu=1500 mac-address=00:00:00:02:01:01 \
mtu=1500 name=vpls1 pw-type=raw-ethernet remote-peer=172.16.0.1 vpls-id=\
172.16.0.1:1
I set up a vpls tunnel from AC1 to Core, but only on Core, the vpls interface is running.
Nothing happens on AC1, not running, no traffic over vpls.
I already tried different peer settings in VPLS (lsr-id, interface ip)
Is there any configuration issue in my network?
Greetings
