Hello,
have the following problem:
2 x WAP60G-AP (L4) with ROS 6.43.8
one configured as ap-bridge, the other as station-bridge.
Both wlan60-1 remain “inactive”, i. you wont get the status “running” under wireless-table / w60g.
In the bridge the wlan60-1 is also marked as disabled-port (wlan60-1 is of course disabled = no)
Just dont get the interface active.
With my Omnitik5 this was not a problem … but with the WAP60G-AP I am somehow at loggerheads.
I hope someone can help …
lg,
w60g in wireless tab, set security, channel 64800 on AP, and Auto mode on Station
Maybe please change ROS to 6.42.11 - the best at this time
Hello,

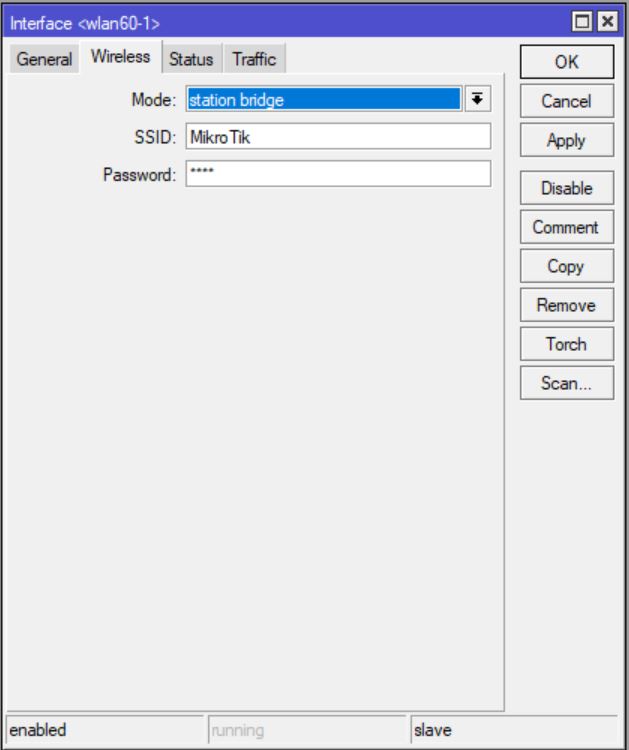

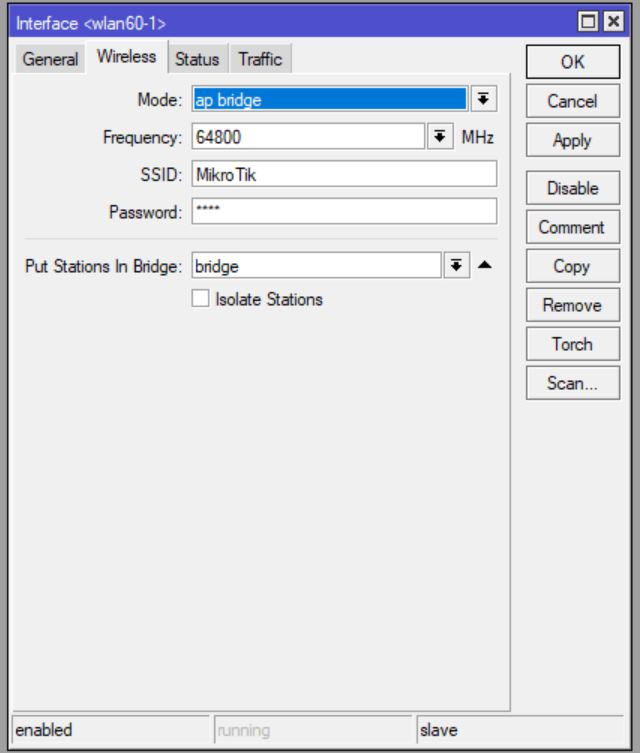

here 2 pics from my wap60g-ap (i changed to ROS 6.42.11),
one configured as station-bridge, one as ap-bridge.
When i do a scan…no wlan is reported…the interfaces seem to be disabled/inactive…
What do i wrong?
If w60g interface is still inactive i think you have broken one piece
The waps schould connect after around 2-5s after changed the frequency…
Reset AP To Factory an begin from scratch
You mean reset Configuration?
I do this many times…no success.
@djvolt
I exchanged the AP and Station…same thing on both waps…
I cant believe that i bought 2 broken wap60G-AP…
Export your config and Show us
[admin@MikroTik] > export
# jan/31/2019 10:20:41 by RouterOS 6.42.11
# software id = WCLR-K3G8
#
# model = RBwAPG-60ad-A
# serial number = XXXXXXXXXXXX
/interface bridge
add admin-mac=CC:2D:E0:D7:3E:C8 auto-mac=no comment=defconf name=bridgeLocal
/interface w60g
set [ find ] disabled=no mode=station-bridge name=wlan60-1 password=test ssid=\
Test-60G
/interface list
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/interface bridge port
add bridge=bridgeLocal comment=defconf interface=ether1
add bridge=bridgeLocal interface=wlan60-1
/interface list member
add interface=bridgeLocal list=LAN
/ip dhcp-client
add comment=defconf dhcp-options=hostname,clientid disabled=no interface=\
bridgeLocal
/system clock
set time-zone-name=Europe/Berlin
/system package update
set channel=long-term
[admin@MikroTik] > export
# jan/31/2019 10:12:18 by RouterOS 6.42.11
# software id = XQH1-U7RB
#
# model = RBwAPG-60ad-A
# serial number = XXXXXXXXXX
/interface bridge
add admin-mac=CC:2D:E0:CB:45:87 auto-mac=no comment=defconf name=bridge
/interface w60g
set [ find ] disabled=no frequency=64800 isolate-stations=no name=wlan60-1 password=test \
put-stations-in-bridge=bridge ssid=Test-60G
/interface list
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/interface bridge port
add bridge=bridge comment=defconf interface=ether1
add bridge=bridge interface=wlan60-1
/interface list member
add interface=bridge list=LAN
/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=bridge
/system clock
set time-zone-name=Europe/Berlin
/system package update
set channel=long-term
Here my export…hope you can find something…
please send supout.rif files from both of the devices to support@mikrotik.com
email is out…

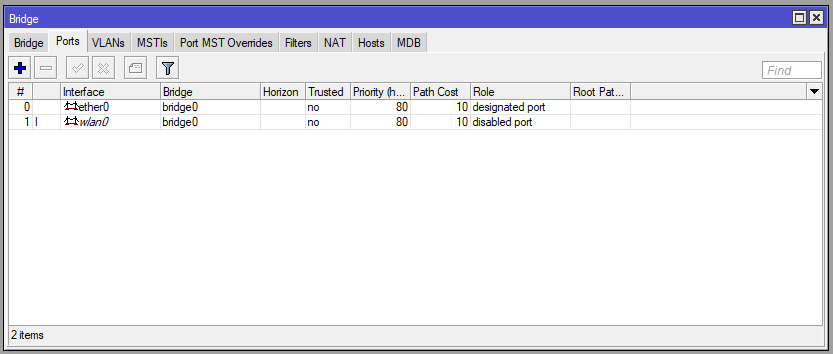

Same issue here. WLAN-port "w60g" (wlan60-1 OR wlan0) on AP (RBwAPG-60ad-A) is always disabled. In this case, the devices are connected to each other, but there is no traffic.
/interface bridge
add mtu=1500 name=bridge0 protocol-mode=none vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] name=ether0 speed=100Mbps
/interface w60g
set [ find ] disabled=no isolate-stations=no mode=bridge name=wlan0 password=password ssid=w60g-90
/interface vlan
add interface=bridge0 name=bridge0.297 vlan-id=297
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa-psk,wpa2-psk eap-methods=""
mode=dynamic-keys supplicant-identity=MikroTik wpa-pre-shared-key=password wpa2-pre-shared-key=password
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/snmp community
set [ find default=yes ] addresses=192.168.111.0/24 name=password
/system logging action
set 3 bsd-syslog=yes remote=192.168.111.114
/interface bridge port
add bridge=bridge0 ingress-filtering=yes interface=ether0
add bridge=bridge0 ingress-filtering=yes interface=wlan0
/interface bridge vlan
add bridge=bridge0 tagged=ether0,wlan0,bridge0 vlan-ids=297
/ip address
add address=192.168.197.253/24 interface=ether0 network=192.168.197.0
add address=192.168.197.90/24 interface=bridge0.297 network=192.168.197.0
/ip dhcp-client
add dhcp-options=hostname,clientid interface=bridge0
/ip dns
set servers=192.168.111.1,192.168.111.3
/ip route
add distance=1 gateway=192.168.197.1
/ip service
set ftp disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/snmp
set contact=none enabled=yes location=password trap-generators=interfaces trap-interfaces=all trap-version=2
/system clock
set time-zone-autodetect=no
/system clock manual
set time-zone=+05:00
/system identity
set name=password
/system logging
set 1 action=echo
set 2 action=echo
set 3 action=disk
add action=remote topics=!debug,!snmp
/system ntp client
set enabled=yes primary-ntp=192.168.111.102
Station:
/interface bridge
add comment=MANAGEMENT mtu=1500 name=bridge0 protocol-mode=none vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full name=ether0
/interface w60g
set [ find ] disabled=no isolate-stations=no mode=station-bridge name=wlan0 password=password ssid=w60g-90
/interface vlan
add interface=bridge0 name=bridge0.297 vlan-id=297
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa-psk,wpa2-psk eap-methods=""
mode=dynamic-keys supplicant-identity=MikroTik wpa-pre-shared-key=password wpa2-pre-shared-key=password
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/snmp community
set [ find default=yes ] addresses=192.168.111.0/24 name=password
/system logging action
set 3 bsd-syslog=yes remote=192.168.111.114
/interface bridge port
add bridge=bridge0 ingress-filtering=yes interface=ether0
add bridge=bridge0 frame-types=admit-only-vlan-tagged ingress-filtering=yes interface=wlan0
/interface bridge vlan
add bridge=bridge0 tagged=wlan0,bridge0 vlan-ids=297
/ip address
add address=192.168.197.91/24 comment=MANAGEMENT interface=bridge0.297 network=192.168.197.0
add address=192.168.1.200/24 comment=Client interface=ether0 network=192.168.1.0
/ip dhcp-client
add dhcp-options=hostname,clientid interface=bridge0
add dhcp-options=hostname,clientid interface=bridge0
/ip dns
set servers=192.168.111.1,192.168.111.3
/ip route
add distance=1 gateway=192.168.197.1
/ip service
set ftp disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/snmp
set contact=none enabled=yes location=password trap-generators=interfaces trap-interfaces=all trap-version=2
/system clock
set time-zone-autodetect=no
/system clock manual
set time-zone=+05:00
/system identity
set name=password
/system logging
set 0 action=disk
set 1 action=echo
set 2 action=echo
set 3 action=disk
add action=remote topics=!debug,!snmp
add action=remote topics=!debug,!snmp
/system ntp client
set enabled=yes primary-ntp=192.168.111.102
Because of this, VLAN-forwarding (Wireless VLAN Trunk) between the AP and Station does not work. Configured according to the instructions RouterOS - RouterOS - MikroTik Documentation -- no ping.
I hope someone can help me too.
192.168.197.90 - AP
192.168.197.91 - STATION

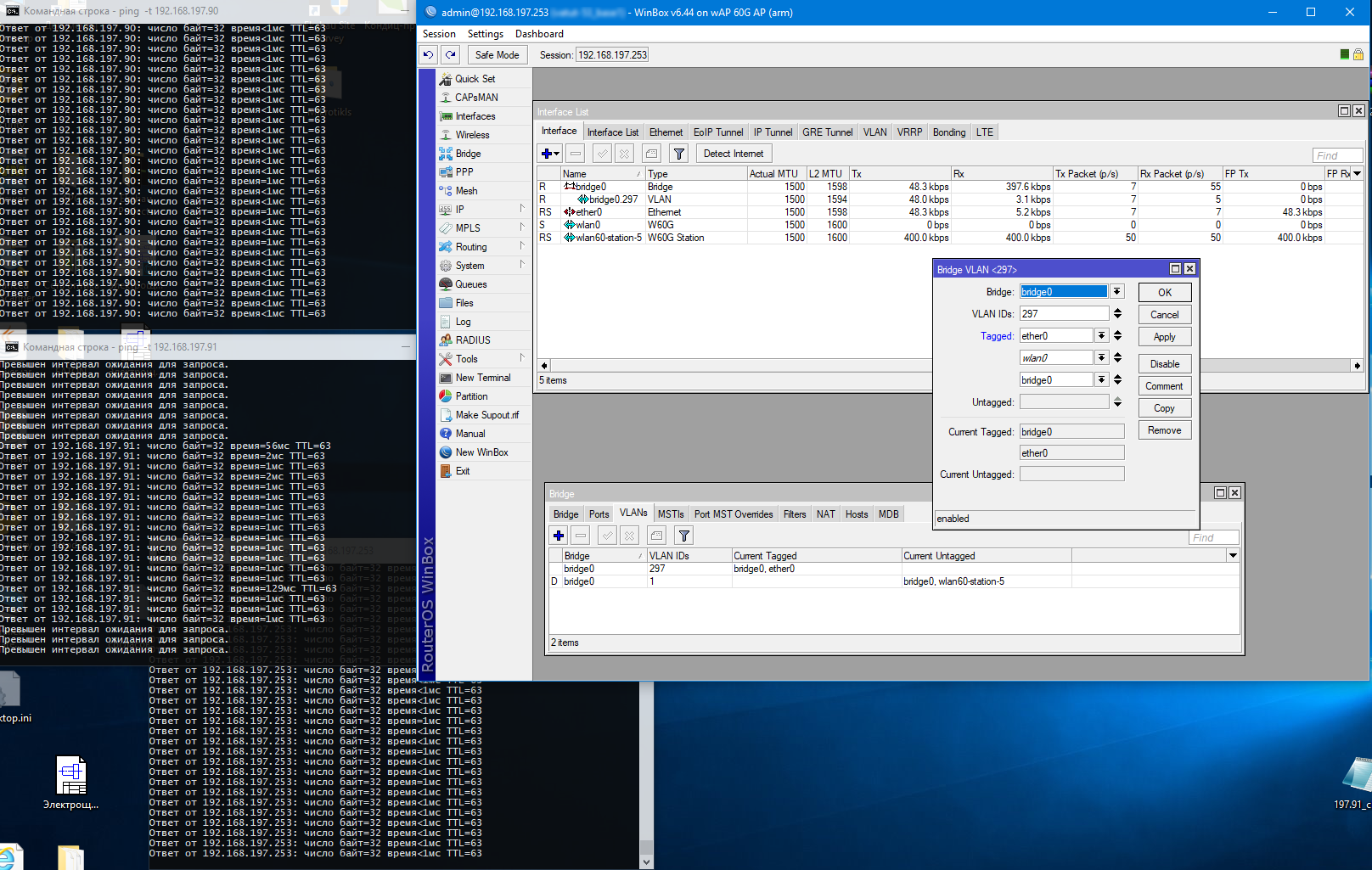

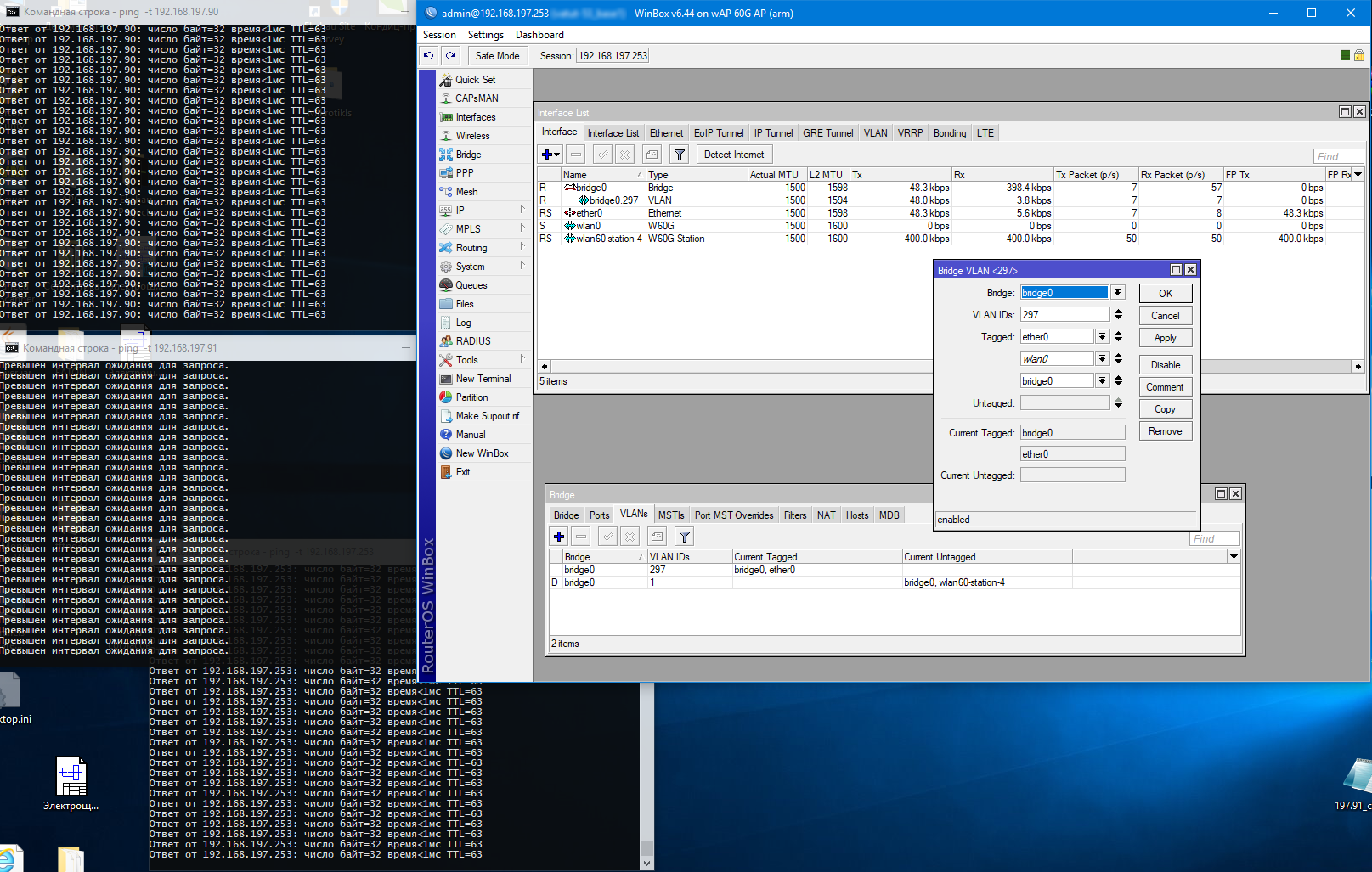

I will also add that the traffic does not pass into the MANAGEMENT VLAN (Vlan ID 297), if the settings are:
/interface bridge vlan
add bridge=bridge tagged=ether0,wlan0,bridge0 vlan-ids=297

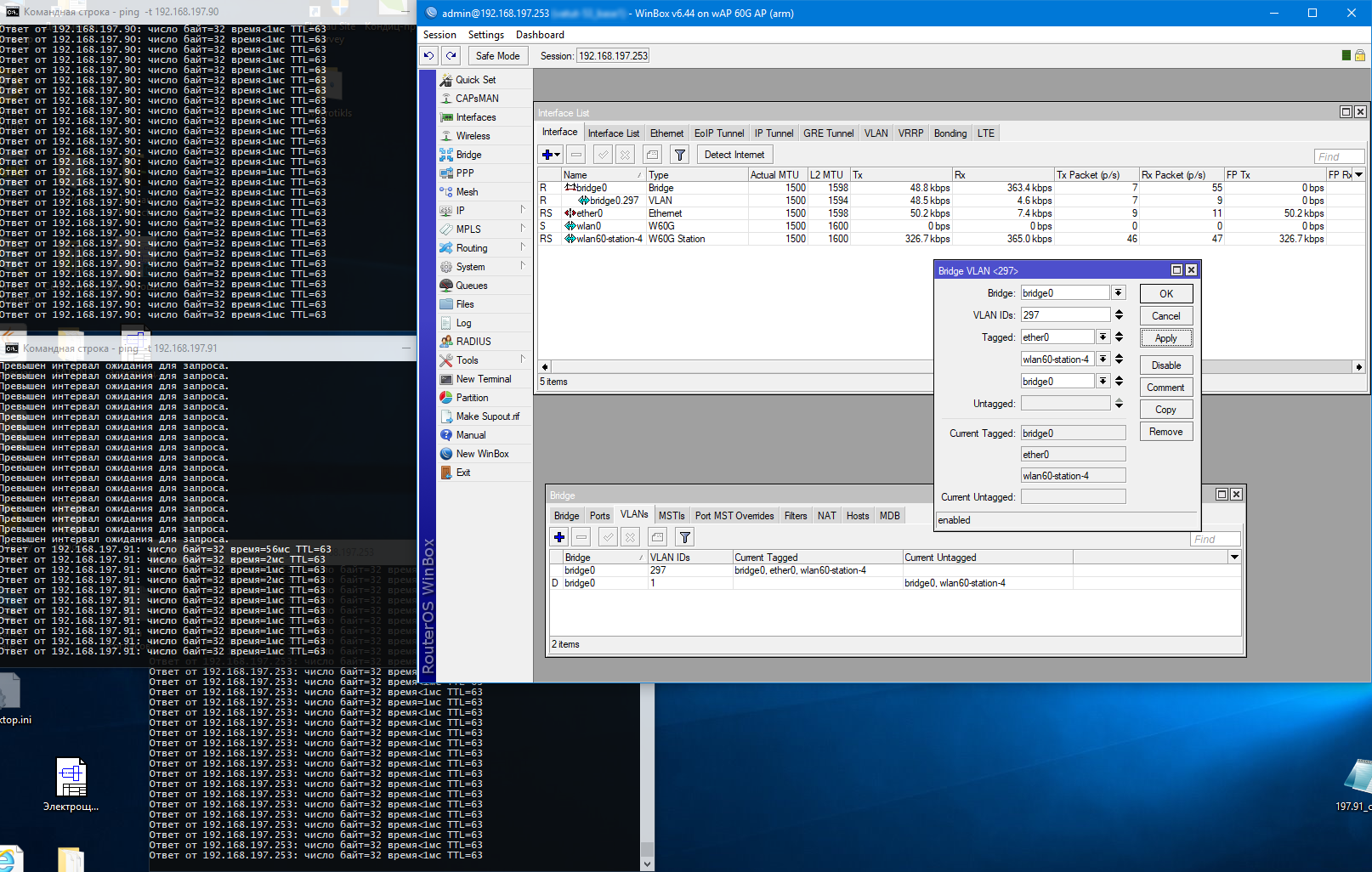

If configured like this, the traffic goes fine:
/interface bridge vlan
add bridge=bridge tagged=ether0,wlan60-station-4,bridge0 vlan-ids=297
However, if STATION reconnects, then the traffic stops flowing because the interface changes from wlan60-station-4 to non-working wlan0:
Anybody?
I figured it out myself. The correct configs are:
AP:
:delay 15s
/interface bridge
add comment=MANAGEMENT name=bridge0.297
add comment=Client name=bridge1.200
/interface w60g
set [ find ] disabled=no name=wlan60-1 password=password ssid=w60g-90
/interface w60g station
add mac-address=24:88:7D:23:D3:FF name=wlan60-1-STA parent=wlan60-1 put-in-bridge=none remote-address=24:88:1D:2E:7F:68
/interface vlan
add interface=ether1 mtu=1508 name=ether1.200 vlan-id=200
add interface=ether1 mtu=1508 name=ether1.297 vlan-id=297
add interface=wlan60-1-STA name=wlan60-1-STA.200 vlan-id=200
add interface=wlan60-1-STA name=wlan60-1-STA.297 vlan-id=297
/snmp community
set [ find default=yes ] addresses=192.168.111.0/24 name=public
/interface bridge port
add bridge=bridge1.200 interface=ether1.200
add bridge=bridge1.200 interface=wlan60-1-STA.200
add bridge=bridge0.297 interface=ether1.297
add bridge=bridge0.297 interface=wlan60-1-STA.297
/ip address
add address=192.168.197.90/24 comment=MANAGEMENT interface=ether1.297 network=192.168.197.0
/ip dns
set servers=192.168.111.1,192.168.111.3
/ip route
add distance=1 gateway=192.168.197.1
/ip service
set ftp disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/snmp
set contact=none enabled=yes location=AP trap-generators=interfaces trap-interfaces=all trap-version=2
/system clock
set time-zone-autodetect=no
/system clock manual
set time-zone=+05:00
/system logging
set 0 action=disk
set 1 action=echo
set 2 action=echo
set 3 action=disk
add action=remote topics=!debug,!snmp
/system ntp client
set enabled=yes primary-ntp=192.168.111.102
STA:
:delay 15s
/interface bridge
add comment=MANAGEMENT mtu=1500 name=bridge0.297 protocol-mode=none vlan-filtering=yes
add comment=Client name=bridge1.200
/interface ethernet
set [ find default-name=ether1 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full name=ether0
/interface w60g
set [ find ] disabled=no isolate-stations=no mode=station-bridge name=wlan0 password=password scan-list=58320,60480,62640,64800,66000 ssid=w60g-90
/interface vlan
add interface=wlan0 mtu=1508 name=wlan0.200 vlan-id=200
add interface=wlan0 mtu=1508 name=wlan0.297 vlan-id=297
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/snmp community
set [ find default=yes ] addresses=192.168.111.0/24 name=public
/system logging action
set 3 bsd-syslog=yes remote=192.168.111.114
/interface bridge port
add bridge=bridge1.200 hw=no ingress-filtering=yes interface=ether0
add bridge=bridge1.200 interface=wlan0.200
add bridge=bridge0.297 interface=wlan0.297
/ip address
add address=192.168.1.200/24 comment=Client interface=ether0 network=192.168.1.0
add address=192.168.197.91/24 interface=wlan0.297 network=192.168.197.0
/ip dns
set servers=192.168.111.1,192.168.111.3
/ip route
add distance=1 gateway=192.168.197.1
/ip service
set ftp disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/snmp
set contact=none enabled=yes location=STA trap-generators=interfaces trap-interfaces=all trap-version=2
/system clock
set time-zone-autodetect=no
/system clock manual
set time-zone=+05:00
/system identity
set name=STA
/system leds
set 0 leds=led1,led2,led3,led4,led5
/system logging
set 0 action=disk
set 1 action=echo
set 2 action=echo
set 3 action=disk
add action=remote topics=!debug,!snmp
/system ntp client
set enabled=yes primary-ntp=192.168.111.102
Completely inconsistent with the wiki, but working.
