Weird.
It has way less output power that the WAP60/WAP60SXT and more than the LHG60. But name suggests WAP60 form factor. No Idea where they going with this, what is the M for
WAP60SXT - 363 mW
WAP60G - 146 mW
LHG60 - 17 mW
WAPG60ADM - 30 mW
The ‘ad’ in the name may refer to the “real 802.11ad”, not the proprietary protocol stuff like the current 60GHz product line. Hence the wall-mountable (indoor) AP form-factor with limited power. Just guessing.
They all actually have AD in the name. I was being lazy
M = mesh ?
Multiband…

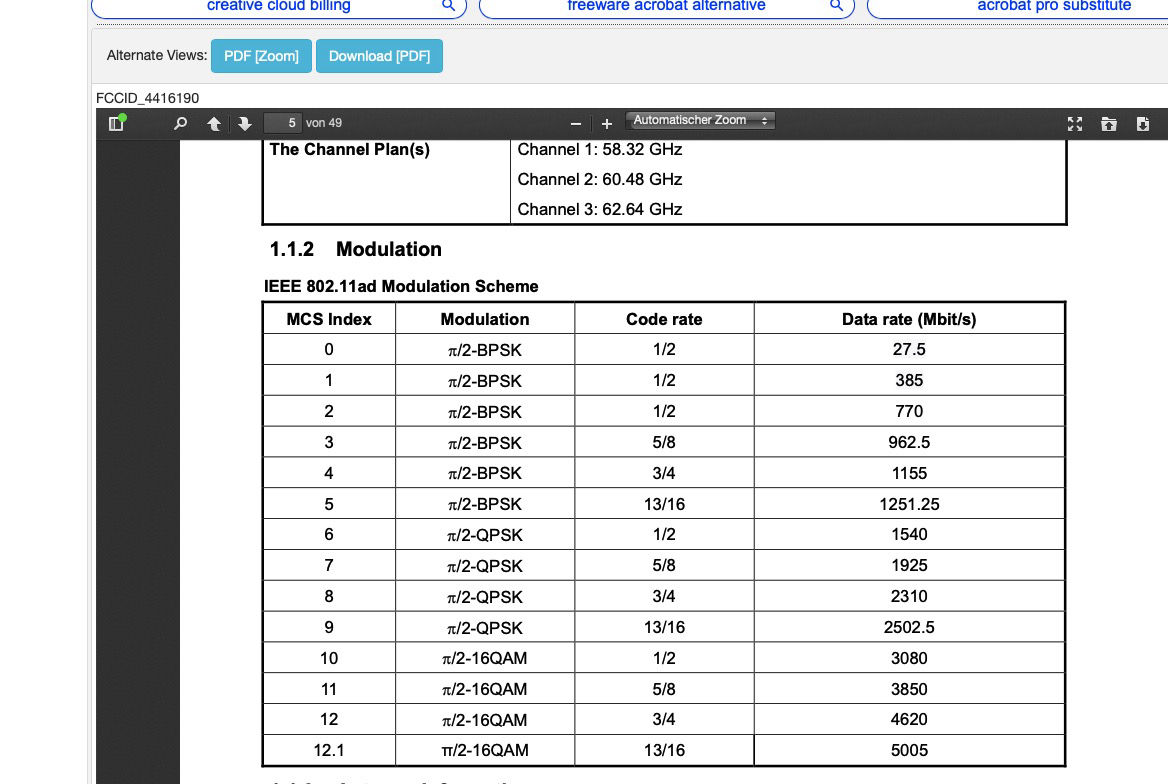

And the FCC PDF show that this Device would be an Wireless Upgrade with 5 Gbit speed
Possible for the 5ghz Interface, But not for 60ghz
The output power is irrelevant for usage. What matters is the EIRP (output power times antenna gain).
It is a bit strange that the FCC explicitly lists the output power in such applications, while in the actual regulations for the usage of the spectrum it is the EIRP that is limited.
But always good to know that the employees are not on drugs… they sure know what is relevant, those US lawmakers!
Yes, M could be for Mesh possibly. Could it be for Terragraph?
Sure. But I guess that was my point. Generally the WAP (if we consider the form factor of all other WAPs) has much lower gain than the LHG series
terragraph depends on the QCA64xx baseband from qualcomm and most features it is essentially part of the .11ay standard. the current terragraph has modified MAC&PHY layers, frame structure, basically everything - so it is absolutely not compatible with .11ad
i put my bets on multiband. if you saw the internal photos of both LHG60 and wAP60 units, there were solder pads for RF stage and MMCX connectors unpopulated. check out the block diagram for the IPQ4019 SoC that powers wAP - it has a complete .11ac baseband in the complex (and a 2.4GHz .11n one too). http://linuxgizmos.com/files/qualcomm_ipq40x_block.jpg
so i guess those signs point to the same direction.
all the 60GHz units made by MikroTik have the ‘ad’ letters in their product code
RBwAPG-60ad-SA (wAP 60Gx3 AP)
RBwAPG-60ad (wAP 60G)
RBSXTsq-60ad (SXTsq Lite60)
RBLHG-60ad (LHG Lite60)
RBLHGG-60ad (LHG 60G)
Imho 60GHz needs a fallback to 5GHz to be effective. You could take the risk to do much longer links. But the failover has to be well done.
M for Module
per this doc:
https://apps.fcc.gov/eas/GetApplicationAttachment.html?id=4416192
The requirement for stand-alone test configuration: The module cannot stand-alone during test. This module is intended for OEM integration only and limited to host with brand: Mikrotik and model: RBwAPG-60ad-SA, RBwAPG-60ad.
Ok so it is something like the mini-PCI modules used for LTE (and, mainly in the past, also for WiFi)?
And this:
i doubt. Mikrotik calls their modules as R11e-xxxx.
3 months has passed any news?
