Hello
I dont see on the forum opinions and test on wave2 7.1.1 on HAP AC3.
I use it on some of our routers (upgraded from latest long-term), and we have positive feedback from our users.
The new features:
WPA3 authentication and OWE (opportunistic wireless encryption)
802.11w standard management frame protection
MU-MIMO and beamforming
400Mb/s maximum data rate in the 2.4GHz band for IPQ4019 interfaces
If I enable WPA3, a lot of old devices stops working, I need to enable WPA-PSK and WPA2-PSK to let them work. The other settings are default.
I have good speeds, better than 6.48.6, expecially on 5ghz.
Till now I am satisfied.
Any other feedbacks?
…all my 2.4GHz Smart-plugs and older gear works flawlessly with WPA2 + WPA3 enabled.
What I am really pleased with is the Speed at 5GHz…at least double, compared to default wifi drivers.
I am still in need to fine-tune, running on default ATM…as the range is also greatly increased, I notice that client roaming is not as fast as with the normal drivers, as clients don’t really see a need for handover, I think.
Lack of capsman sucks..also the feature to add a device from registration list to access list, but this is maybe a winbox flaw atm.
I’ve been using 5Ghz wave 2 on RB4011. started using an old hAP I had gathering dust as my 2.4Ghz AP. seems to work really well. only old devices unable to join 5ghz ac network get linked to the hAP
Configure bridge with vlan filtering and add wifi interface with PVID set. You don’t have to configure anything regarding VLANs on wireless interface. One should do VLANs on RB4011 this way even if wireless is not in the mix, it is not possible to do it differrently …
BTW, this method works for traditional wireless driver as well …

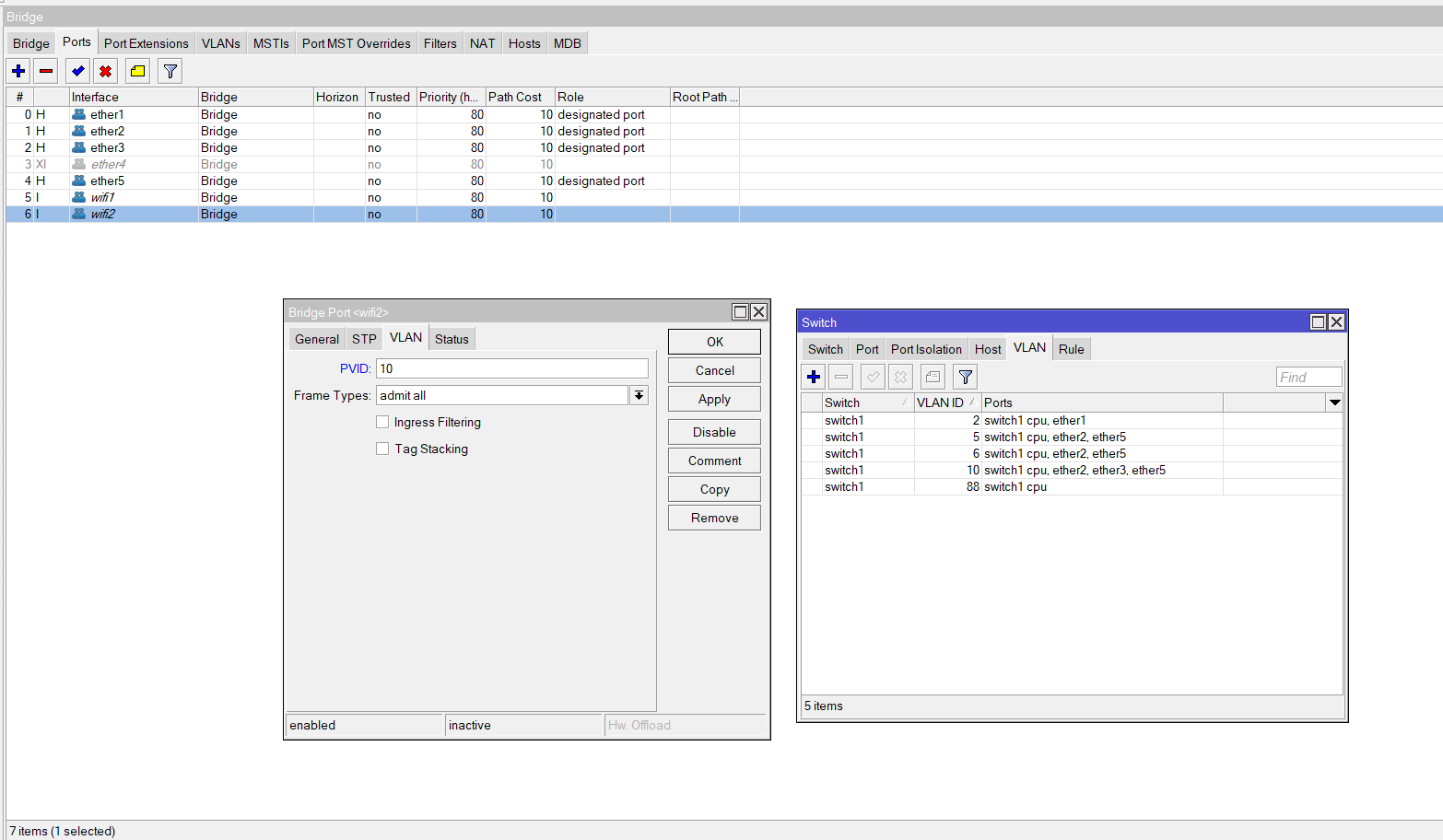

my hap ac3 configured vlan with switch menu, if i configure with bridge vlan filtering, hardware offloading won’t work
i need hardware offloading to reduce cpu usage
Unless you enable vlan-filtering on bridge, all of VLAN settings on bridge ports (pvid included) are ignored.
Do you use your hAP ac3 as a full-blown ethernet switch? As already mentioned, l2hw offlload doesn’t do much unless you have considerable traffic between members of same VLAN connected to different ethernet ports (e.g. members of VLAN 6 connected to ports ether2 and ether5). If traffic is routed (between different VLANs or towards internet) l2hw offload doesn’t help.
And in case device isn’t really a VLAN switch, you can configure your device only in bridge configuration subtree and leave ethernet subtree empty. In this case wave2 wireless interfaces will work as normal access ports.
As already said, you need to use vlan-filtering=yes for the wifi interfaces to work with VLANs…but only these.
You maybe could combine things.
Use one ethX as trunk for the wifi traffic…add this ethX to the bridge only (add wifi interfaces of course).
Configure all other ports in switch menu…add a second switch, of you do not have a spare port.
I understand you need it. The question is about actual throughput between these two ports. My experience with hAP ac2 (which features a similar SoC using same CPU) is that device is fully capable of bridging all ether ports with VLAN configured at full speed using bridge configuration. However, it does consume a large part of CPU which would mean reducing wifi performance. However, if realistic throughput between said two ports is not that high (on average), then device should be able to perform wirespeed and have decent wireless performance at the same time while being configured with bridge vlan-filtering.
N.B.: @Hominidae suggested “hybrid” approach of using both /interface/ethernet/switch config and/interface/bridge with vlan-filtering enabled. This kind of setup is not very common (and AFAIK is not supported by Mikrotik at all), is not very well tested and might cause some unexplicable problems. So if you do go that way and things misbehave ever so slightly, this might be the problem.
Thank you for all of your inputs. We too noticed an increase of performance on the 5Ghz part on HAP AC3.
We dont find a changelog of wave2 improvementes and fixes.
…maybe it is not a fix but the lack thereof ?
Hoenstly, I configured everything in defaults and only set the regulatory domain…but how do I know that these things are being followed?
IMHO we have seen a decrease in speed with standard wifi drivers over the years, as more and more regulatory restrictions and other vulnerability fixes had been introduced.
Other vendors seem to do much better but maybe because they are stretching the allowed a bit more?
…just sayin’…still happy with my wifiwave2 setup…did not replace the order for the tp-link EAPs (yet).
I concur…I am also not using it and did not test.
As you said above, the standard method with bridge filtering gives enough throughput without sending the hap-ac3 CPU to hickup.
But I am using these as APs, not Routers nor switches.
i use your suggestion, and i had a problem, devices can’t connect to ap after change configuration on interface wave2, needed to disable vlan-filtering before change configuration on interface wave2
