WifiWave2 Provisioning not receviced byCAP

hofi76 · October 11, 2023, 10:59am

I Configured a WifiWave2 with Capsman
The CAP-s show they are configured by CapsMan, but the provisionings are not received on the CAP-s (or not sent by CapsMan)

/interface wifiwave2 provisioning
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH24_1 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH50_36 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH24_11 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH50_44 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n

I realised the Devices appear in “CapsMan server” interfaces pane so I did a try and I configured them in this pane This worked as expected

/interface wifiwave2
add configuration=CH50_44 configuration.mode=ap disabled=no name=AX-Halo-5G
add configuration=CH24_11 configuration.mode=ap disabled=no name=AX-Halo2G
add configuration=CH24_1 configuration.mode=ap disabled=no name=AX-Nappali-2G
add configuration=CH50_36 configuration.mode=ap disabled=no name=AX-Nappali-5G

What could be the reason of provisioning not apprear on CAP-s.

holvoetn · October 15, 2023, 7:47am

What’s in between cap and controller ?
I’ve seen similar issues with some older switches in between.
Try to add controller ip directly on cap.

Also, what interface is controller listening to ?
If you show config, please show complete config since it may be some other things are responsible for this behavior.

hofi76 · October 15, 2023, 8:36am

Hi holvoetn,

Capsman (RB4011) provide POE for CAPs directly on eth8 so no extra device, only the two Caps are joined one after the other via their ethernet ports.

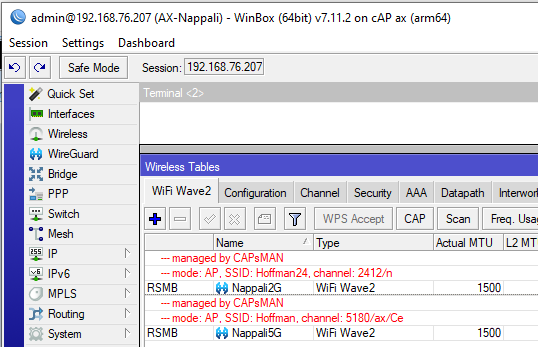

The Capsman IP-s added to the CAP-s. They show the are controlled by Capsman.

The Capsman config:

/interface ethernet
set [ find default-name=ether1 ] loop-protect=on loop-protect-disable-time=1m  name=WAN
/interface wifiwave2 channel
add band=2ghz-n disabled=no frequency=2412 name=CH24_1 skip-dfs-channels=all width=20mhz
add band=2ghz-n disabled=no frequency=2437 name=CH24_6 skip-dfs-channels=all width=20mhz
add band=2ghz-n disabled=no frequency=2462 name=CH24_11 skip-dfs-channels=all width=20mhz
add band=5ghz-ax disabled=no frequency=5180 name=CH50_36 skip-dfs-channels=all width=20/40mhz
add band=5ghz-ax disabled=no frequency=5200 name=CH50_40 skip-dfs-channels=all width=20/40mhz
add band=5ghz-ax disabled=no frequency=5220 name=CH50_44 skip-dfs-channels=all width=20/40mhz
/interface wifiwave2 datapath
add bridge=LAN disabled=no name=datapath1
/interface wifiwave2 security
add authentication-types=wpa2-psk,wpa3-psk disable-pmkid=yes disabled=no ft=yes group-encryption=ccmp group-key-update=1h name=HofiSec passphrase=XXXXX
/interface wifiwave2 configuration
add channel=CH24_1 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_1 security=HofiSec ssid=Hoffman24 tx-power=8
add channel=CH24_6 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_6 security=HofiSec ssid=Hoffman24 tx-power=10
add channel=CH24_11 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_11 security=HofiSec ssid=Hoffman24 tx-power=8
add channel=CH50_36 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_36 security=HofiSec security.ft=yes ssid=Hoffman tx-power=18
add channel=CH50_40 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_40 security=HofiSec security.ft=yes ssid=Hoffman tx-power=16
add channel=CH50_44 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_44 security=HofiSec security.ft=yes ssid=Hoffman tx-power=18
/interface wifiwave2
add configuration=CH50_44 configuration.mode=ap disabled=no name=AX-Halo-5G
add configuration=CH24_11 configuration.mode=ap disabled=no name=AX-Halo2G
add configuration=CH24_1 configuration.mode=ap disabled=no name=AX-Nappali-2G
add configuration=CH50_36 configuration.mode=ap disabled=no name=AX-Nappali-5G
/ip pool
add name=dhcp-pool ranges=192.168.76.1-192.168.76.80
add name=vpn_pool ranges=192.168.76.81-192.168.76.100
/ip dhcp-server
add address-pool=dhcp-pool interface=LAN lease-time=8h name=DHCP_server
/interface bridge port
add bridge=LAN ingress-filtering=no interface=ether2
.......
.......
add bridge=LAN ingress-filtering=no interface=ether10
/interface wifiwave2 access-list
add action=accept allow-signal-out-of-range=10s disabled=no interface=all signal-range=-80..120 ssid-regexp=""
add action=reject allow-signal-out-of-range=always disabled=no interface=all signal-range=-120..-81 ssid-regexp=""
/interface wifiwave2 capsman
# failed to create CA certificate: name must be unique! (6)
set ca-certificate=CAPsMAN-CA-48A98A377747 certificate=CAPsMAN-48A98A377747 enabled=yes interfaces=LAN package-path="" require-peer-certificate=yes upgrade-policy=none
/interface wifiwave2 provisioning
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH24_1 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH50_36 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH24_11 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH50_44 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n
/ip address
add address=192.168.76.254/24 interface=LAN network=192.168.76.0

/ip firewall filter
add action=drop chain=input connection-state=invalid log-prefix=elsosor
add action=drop chain=input connection-state=new in-interface=WAN log-prefix= tamadas src-address-list=!CountryIPAllows
add action=accept chain=input src-address=192.168.76.0/24
add action=accept chain=input protocol=icmp
add action=accept chain=input dst-port=22 in-interface=LAN protocol=tcp src-address=192.168.76.0/24
add action=accept chain=input dst-port=67-68 in-interface=LAN protocol=udp
add action=accept chain=input dst-port=500 protocol=udp
add action=accept chain=input dst-port=1701 protocol=udp
add action=accept chain=input dst-port=4500 protocol=udp
add action=accept chain=input protocol=ipsec-esp
add action=drop chain=input connection-state=new,untracked in-interface=WAN
add action=drop chain=input connection-state=new,untracked in-interface=LAN log=yes log-prefix=input
add action=accept chain=forward connection-state=established,related
add action=drop chain=forward connection-state=invalid
add action=drop chain=forward dst-port=25 protocol=tcp
add action=drop chain=forward src-address=!192.168.76.0/24

CAP config

/interface bridge
add admin-mac=CA:D7:EC:B6:EC:B2 auto-mac=no name=AP_Bridge
/interface wifiwave2
# managed by CAPsMAN
# mode: AP, SSID: Hoffman24, channel: 2462/n
set [ find default-name=wifi2 ] configuration.manager=capsman .mode=ap disabled=no name=Halo2G
# managed by CAPsMAN
# mode: AP, SSID: Hoffman, channel: 5220/ax/Ce
set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap disabled=no name=Halo5G
/interface bridge port
add bridge=AP_Bridge interface=ether1 trusted=yes
add bridge=AP_Bridge interface=ether2 trusted=yes
add bridge=AP_Bridge interface=Halo5G
add bridge=AP_Bridge interface=Halo2G
/interface wifiwave2 cap
set caps-man-addresses=192.168.76.254 caps-man-names=Hofi4011 certificate=request discovery-interfaces=AP_Bridge enabled=yes lock-to-caps-man=yes
/ip firewall filter
add action=accept chain=input protocol=icmp
add action=accept chain=input dst-port=8291 protocol=tcp src-port=""
add action=accept chain=input log-prefix=CapsMan src-address=192.168.76.254
add action=accept chain=input dst-port=5678 protocol=udp src-port=5678
add action=drop chain=input log-prefix=eldob

holvoetn · October 15, 2023, 9:41am

Still not full config…

What ROS versions are both running ?

hofi76 · October 15, 2023, 10:39am

The router OS on all devices are RouterOS 7.11.2

These are the full congifs, I Just shortened the address list

Capsman

# 2023-10-15 09:58:30 by RouterOS 7.11.2
# model = RB4011iGS+
/interface bridge
add arp=proxy-arp name=LAN protocol-mode=none
/interface ethernet
set [ find default-name=ether1 ] loop-protect=on loop-protect-disable-time=1m name=WAN
set [ find default-name=ether2 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether3 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether4 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether5 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether6 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether7 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether8 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether9 ] loop-protect=on loop-protect-disable-time=1m
set [ find default-name=ether10 ] loop-protect=on loop-protect-disable-time=1m
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wifiwave2 channel
add band=2ghz-n disabled=no frequency=2412 name=CH24_1 skip-dfs-channels=all width=20mhz
add band=2ghz-n disabled=no frequency=2437 name=CH24_6 skip-dfs-channels=all width=20mhz
add band=2ghz-n disabled=no frequency=2462 name=CH24_11 skip-dfs-channels=all width=20mhz
add band=5ghz-ax disabled=no frequency=5180 name=CH50_36 skip-dfs-channels=all width=20/40mhz
add band=5ghz-ax disabled=no frequency=5200 name=CH50_40 skip-dfs-channels=all width=20/40mhz
add band=5ghz-ax disabled=no frequency=5220 name=CH50_44 skip-dfs-channels=all width=20/40mhz
/interface wifiwave2 datapath
add bridge=LAN disabled=no name=datapath1
/interface wifiwave2 security
add authentication-types=wpa2-psk,wpa3-psk disable-pmkid=yes disabled=no ft=yes group-encryption=ccmp group-key-update=1h name=HofiSec passphrase=XXXXXXX
/interface wifiwave2 configuration
add channel=CH24_1 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_1 security=HofiSec ssid=Hoffman24 tx-power=8
add channel=CH24_6 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_6 security=HofiSec ssid=Hoffman24 tx-power=10
add channel=CH24_11 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH24_11 security=HofiSec ssid=Hoffman24 tx-power=8
add channel=CH50_36 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_36 security=HofiSec security.ft=yes ssid=Hoffman tx-power=18
add channel=CH50_40 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_40 security=HofiSec security.ft=yes ssid=Hoffman tx-power=16
add channel=CH50_44 country=Hungary datapath=datapath1 disabled=no mode=ap name=CH50_44 security=HofiSec security.ft=yes ssid=Hoffman tx-power=18
/interface wifiwave2
add configuration=CH50_44 configuration.mode=ap disabled=no name=AX-Halo-5G
add configuration=CH24_11 configuration.mode=ap disabled=no name=AX-Halo2G
add configuration=CH24_1 configuration.mode=ap disabled=no name=AX-Nappali-2G
add configuration=CH50_36 configuration.mode=ap disabled=no name=AX-Nappali-5G
/ip pool
add name=dhcp-pool ranges=192.168.76.1-192.168.76.80
add name=vpn_pool ranges=192.168.76.81-192.168.76.100
/ip dhcp-server
add address-pool=dhcp-pool interface=LAN lease-time=8h name=DHCP_server
/port
set 0 name=serial0
set 1 name=serial1
/ppp profile
add change-tcp-mss=yes local-address=192.168.76.254 name=PPTP_profile remote-address=vpn_pool use-encryption=yes
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/interface bridge port
add bridge=LAN ingress-filtering=no interface=ether2
add bridge=LAN ingress-filtering=no interface=ether3
add bridge=LAN ingress-filtering=no interface=ether4
add bridge=LAN ingress-filtering=no interface=ether5
add bridge=LAN ingress-filtering=no interface=ether6
add bridge=LAN ingress-filtering=no interface=ether7
add bridge=LAN ingress-filtering=no interface=ether8
add bridge=LAN ingress-filtering=no interface=ether9
add bridge=LAN ingress-filtering=no interface=ether10
/ip neighbor discovery-settings
set discover-interface-list=!dynamic
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface detect-internet
set detect-interface-list=all
/interface l2tp-server server
set authentication=mschap2 default-profile=PPTP_profile enabled=yes ipsec-secret=XXXXXXX use-ipsec=yes
/interface ovpn-server server
set auth=sha1,md5
/interface wifiwave2 access-list
add action=accept allow-signal-out-of-range=10s disabled=no interface=all signal-range=-80..120 ssid-regexp=""
add action=reject allow-signal-out-of-range=always disabled=no interface=all signal-range=-120..-81 ssid-regexp=""
/interface wifiwave2 capsman
# failed to create CA certificate: name must be unique! (6)
set ca-certificate=CAPsMAN-CA-48A98A377747 certificate=CAPsMAN-48A98A377747 enabled=yes interfaces=LAN package-path="" require-peer-certificate=yes \
    upgrade-policy=none
/interface wifiwave2 provisioning
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH24_1 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-N master-configuration=CH50_36 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH24_11 radio-mac=00:00:00:00:00:00 supported-bands=2ghz-n
add action=create-dynamic-enabled disabled=no identity-regexp=^AX-H master-configuration=CH50_44 radio-mac=00:00:00:00:00:00 supported-bands=5ghz-n
/ip address
add address=192.168.76.254/24 interface=LAN network=192.168.76.0
/ip cloud
set ddns-enabled=yes ddns-update-interval=12h
/ip dhcp-client
add interface=WAN
/ip dhcp-server lease
add address=192.168.76.201 client-id=1:f4:92:bf:10:18:73 mac-address=F4:92:BF:10:18:73 server=DHCP_server
add address=192.168.76.202 client-id=1:0:84:ed:b4:6a:ba mac-address=00:84:ED:B4:6A:BA server=DHCP_server
add address=192.168.76.203 mac-address=02:58:04:C0:F1:1D server=DHCP_server
add address=192.168.76.204 client-id=1:70:a7:41:92:cd:b5 mac-address=70:A7:41:92:CD:B5 server=DHCP_server
add address=192.168.76.205 client-id=1:dc:2c:6e:b8:6d:da mac-address=DC:2C:6E:B8:6D:DA server=DHCP_server
add address=192.168.76.206 client-id=1:dc:2c:6e:b8:6d:b6 mac-address=DC:2C:6E:B8:6D:B6 server=DHCP_server
add address=192.168.76.207 client-id=1:48:a9:8a:c5:3b:c1 mac-address=48:A9:8A:C5:3B:C1 server=DHCP_server
add address=192.168.76.208 client-id=1:ca:d7:ec:b6:ec:b2 mac-address=CA:D7:EC:B6:EC:B2 server=DHCP_server
/ip dhcp-server network
add address=192.168.76.0/24 caps-manager=192.168.76.254 dns-server=192.168.76.254 gateway=192.168.76.254 netmask=24
/ip dns
set allow-remote-requests=yes servers=1.1.1.1,8.8.8.8,8.8.4.4
/ip dns static
add address=192.168.76.201 name=wifi.hp
add address=192.168.76.203 name=cubietruck
add address=192.168.76.203 name=fileserver.hp
add address=192.168.76.202 name=konica.hp
add address=192.168.76.254 name=mikrotik.hp
/ip firewall address-list
add address=2.58.168.0/22 comment=HUNGARY list=CountryIPAllows
add address=2.59.196.0/22 comment=HUNGARY list=CountryIPAllows
add address=195.250.39.0/24 comment=HUNGARY list=CountryIPAllows
/ip firewall filter
add action=drop chain=input connection-state=invalid log-prefix=elsosor
add action=drop chain=input connection-state=new in-interface=WAN log-prefix=tamadas src-address-list=!CountryIPAllows
add action=accept chain=input src-address=192.168.76.0/24
add action=accept chain=input protocol=icmp
add action=accept chain=input dst-port=22 in-interface=LAN protocol=tcp src-address=192.168.76.0/24
add action=accept chain=input dst-port=67-68 in-interface=LAN protocol=udp
add action=accept chain=input dst-port=500 protocol=udp
add action=accept chain=input dst-port=1701 protocol=udp
add action=accept chain=input dst-port=4500 protocol=udp
add action=accept chain=input protocol=ipsec-esp
add action=drop chain=input connection-state=new,untracked in-interface=WAN
add action=drop chain=input connection-state=new,untracked in-interface=LAN log=yes log-prefix=input
add action=accept chain=forward connection-state=established,related
add action=drop chain=forward connection-state=invalid
add action=drop chain=forward dst-port=25 protocol=tcp
add action=drop chain=forward src-address=!192.168.76.0/24
/ip firewall nat
add action=masquerade chain=srcnat out-interface=WAN src-address=192.168.76.0/24
/ip service
set telnet disabled=yes
set ftp address=192.168.76.0/24 disabled=yes
set www disabled=yes
set ssh disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ip smb
set domain=WORKGROUP interfaces=LAN
/ppp secret
add name=hofi password=XXXXXXXXX profile=PPTP_profile
/system clock
set time-zone-name=Europe/Budapest
/system identity
set name=Hofi4011
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=hu.pool.ntp.org
/system routerboard settings
set enter-setup-on=delete-key

CAP

# 2023-10-15 05:18:30 by RouterOS 7.11.2
# model = cAPGi-5HaxD2HaxD
/interface bridge
add admin-mac=CA:D7:EC:B6:EC:B2 auto-mac=no name=AP_Bridge
/interface wifiwave2
# managed by CAPsMAN
# mode: AP, SSID: Hoffman24, channel: 2462/n
set [ find default-name=wifi2 ] configuration.manager=capsman .mode=ap disabled=no name=Halo2G
# managed by CAPsMAN
# mode: AP, SSID: Hoffman, channel: 5220/ax/Ce
set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap disabled=no name=Halo5G
/interface bridge port
add bridge=AP_Bridge interface=ether1 trusted=yes
add bridge=AP_Bridge interface=ether2 trusted=yes
add bridge=AP_Bridge interface=Halo5G
add bridge=AP_Bridge interface=Halo2G
/interface wifiwave2 cap
set caps-man-addresses=192.168.76.254 caps-man-names=Hofi4011 certificate=\
    request discovery-interfaces=AP_Bridge enabled=yes lock-to-caps-man=yes
/ip dhcp-client
add interface=AP_Bridge
/ip firewall filter
add action=accept chain=input protocol=icmp
add action=accept chain=input dst-port=8291 protocol=tcp src-port=""
add action=accept chain=input log-prefix=CapsMan src-address=192.168.76.254
add action=accept chain=input dst-port=5678 protocol=udp src-port=5678
add action=drop chain=input log-prefix=eldob
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www disabled=yes
set ssh disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/system identity
set name=AX-Halo
/system leds settings
set all-leds-off=after-1min
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=hu.pool.ntp.org
/tool mac-server
set allowed-interface-list=none
