WinBox 4.4 released!

Announcements
1

What's new in 4.4 (2026-09-14):

  • app: add ROS gui file caching support;
    • downloaded to standard OS cache directory;
    • cached for 30 days;
    • rechecked on startup if 24h passed;
  • app: remember previously used file selector dialog path;
    • for upload/download/addresses separate context/path;
  • combobox: fix refreshing items with filtered lists;
  • fix crash when disabling interface and then disconnecting;
  • form,table: fix some advanced lookup fields, when there is no value;
  • form: add support to reset configuration for some objects;
  • form: fix crash when fast pressing Start/Stop in some action panels;
  • form: improve inherited value ux to not show set value if field is closed;
  • form: improve qr code rendering;
  • form: prevent calling multiple parallel add/set commands in same form;
  • graphs: show y labels and values in same scale;
  • login,neighbors: use mac address if IP not valid when clicking any cell;
  • table: improve performance when many rows selected and changes are happening;
    • e.g. select all rows and remove;
  • ui: add Clear cache button in settings panel;
  • ui: add confirmation dialog when removing table items (with opt-out feature);
    • except Login Saved table always ask for confirmation;
  • ui: add downloading gui files progress information;
  • ui: add option to auto follow system theme (auto/dark/light);
  • ui: add option to configure terminal scrollback buffer size;
  • ui: add spacers in Shortcuts info popup panel;
  • ui: add support for opening multiple internal instances for table windows without tabs;
    • e.g. Log,Radius;
  • ui: allow opening relevant sections when clicking on Resources bottom panel;
  • ui: change color of .npk icons in Files menu to differ from directories;
  • ui: left menu: rework submenu closing logic for better UX;
    • also set minimal width of submenu;
  • ui: login panel change Remember -> remember (lower case) for consistency;
  • ui: make default scrollbar width/height a few px larger;
  • ui: make sysnote popup display in monospace font;
  • ui: optimize event list performance;
  • ui: pause event list message auto removal while list is mouse hovered;
  • ui: shortcuts panel: add info about Shift+Click for multi column sort and multi tab open;
  • ui: store OS window position in workspace files and restore when connecting with "open in new";
  • ui: table: add shortcut tooltip info for Find widget and make it a little wider;
  • winbox-api: add support for new field types for future use;
  • winbox-api: fix some advanced fields used in ros6 routing;

WinBox files for Windows, Linux and macOS are available here:

https://download.mikrotik.com/routeros/winbox/4.4/WinBox_Windows_arm64.zip
https://download.mikrotik.com/routeros/winbox/4.4/WinBox_Windows.zip
https://download.mikrotik.com/routeros/winbox/4.4/WinBox_Linux.zip
https://download.mikrotik.com/routeros/winbox/4.4/WinBox.dmg

3

Do we submit the feedback again from the RC thread?
Or just hope it was read and a decision was made, because the release notes match what was proposed in the 4.4rc

4

I need drag and drop feature in "Files" for better download experience. (Like old winbox)

5

A way to freeze the process os Winbox on Windows.

On a router with SEVERAL active connections.

  1. Open /ip firewall connection
  2. Click to load all
  3. Select all the connections
  4. Delete all the connetions

Tho UNnecessary messages notifying that the connections where delete, one per each connection, starts to pop...
The RAM consume of the process go to the moon, it freezes.

6

Feature Request :
When opening a CDB located in a "non standard" path ; workspaces definitions are still stored in the standard path.

Is it possible to store the workspaces defintions in the CDB file directly OR in the folder containing the currently opened CDB file ???

7

There is still an issue with romon.
When you connect to romon and chose/click open in new window, it will not connect to romon neighbors prompting that credentials are wrong. If you connect to same romon neighbor with open in new not checked, then you can connect to it.

8

Another issue with rommon:

If you open sobre screen with several informations, ex:

  • IP Routes (when big)
  • IP Firewall Connections (when big)
  • Bridge Hosts (when big)

The Rommon connection drops... And you need to manuanlly reconect.

9

I tried to replicate that and failed. Ram consumption sat at 200MB.
How many connections are you talking about? I only have 1500 ish.

Bug report
A report that I would make is that those "removing connection" messages don't automatically clear them selves.
I would also argue they are not needed.

10
/ip firewall connection print count-only
67718
12

Just an idea that came up related to something I'm doing in Winbox right now: This may be related to the undo cache, as I don't know how big/long it is and there's no way to check/edit it as far as I know.

13

Given that number, try deleting 64k, 32k etc. See if there is a number it works at.

14

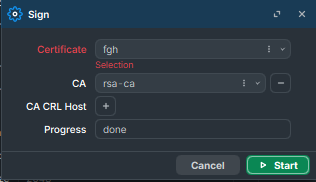

cert
cert316Ɨ182 7.6 KB

This happens every time the certificate is signed; afterwards, it becomes impossible to proceed until you log out and log back in. However, the same issue recurs. I have tried using different routers, and the problem is identical in every case.

15

3 windows:

  • interfaces window open (device has 5 ports)

  • window with Traffic for interface ether 1 open

  • window with Traffic for interface ether 2 open

  • at peak - 3,3GB of memory used - after ~10 minutes of running, Winbox becomes unresponsive

Update :megaphone: memory leak and crash happens when 3D acceleration for VBoxSVGA driver is enabled. After disabling it problem did not occur.

16

It's not reproducible for me. Did you make sure that your GPU driver is up-to-date?

17

Yes.

Is latest QT used for Winbox?

Update :megaphone: memory leak and crash happens when 3D acceleration for VBoxSVGA driver is enabled. After disabling it problem did not occur.

18

Probably that driver implementation doesn't properly free texture memory.

19

The contents of WiFi => Steering => Neighbor Group window (a list of BSSIDs in a dynamic group to be more specific) is not refreshed automatically. To see the updates, reopen the window or toggle Live/Paused button.

20

whats this monitoring tool?

21

it is Process Explorer from Sysinternals suite (Microsoft)

22

I wanted to see how Winbox 4 defaults look like by switching to root user. Did rm -rf .local/share/MikroTik/WinBox instead of rm -rf ~/.local/share/MikroTik/WinBox. What a pity. But now, without backups of .local folder, I am customizing WB4 from scratch. What a pain! I already forgot how painful this is. Scaling, font, etc. I can't recall my settings exactly. Adjusting column widths in all kind of windows because the default column widths are too narrow, re-arranging windows without auto-snap, etc. I feel with all of you, opening WB4 the first time and needing to adjust it to your needs/eyes. This is really a lot of work. While WB3 looked great out of the box. What a waste of time.
