Winbox disconnect in radio

Hello. Pls help to solve one thing. Have link 2 mikrotik rb 912 . Firmware is 6.7 when enter to mikrotik via winbox - have disconnect in radio in 2 sec. When enter to mikrotik via web - everything well. This problem only at Station . AP work well with winbox.
Any idea?

Give you pc an fix IP-adress in the same IP-range.
disable firewall on pc

Hm. I have not only this link!
I have another link with mikrotik sxt - enter to each device without bags

you can try if you then stay connect

Look - enter via winbox
2014-09-09 15-24-22 Скриншот экрана.png

Yes, now i understand you :slight_smile:

Maby helps this to see what going on.
http://wiki.mikrotik.com/wiki/Wireless_Debug_Logs
This site let you see what the reason why you loose connection.

Thanks will try. But really when enter with help of winbox and look at the same at the interface transmitting stop for few seconds between mikrotiks

Hm. I added AT in mikrotik ST in Connect List - worked 2 days goods but have the same problem when enter via winbox - the same logs - lost connect in Wifi few seconds

What say the log by wireless?

Pls

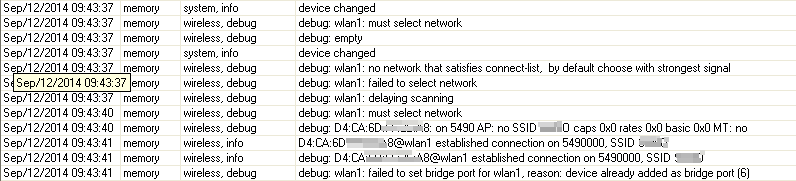

2014-09-12 12-34-59 Скриншот экрана (2).png

Have you wlan1 connect with pptp ore something like that.
It looks that you have the wlan interface in a bridge twice
Can you post

interface wireless export

first ST
second AP

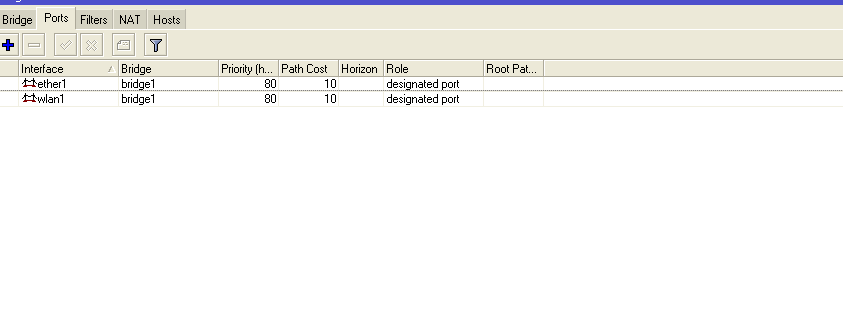

2014-09-12 12-57-58 Скриншот экрана.png

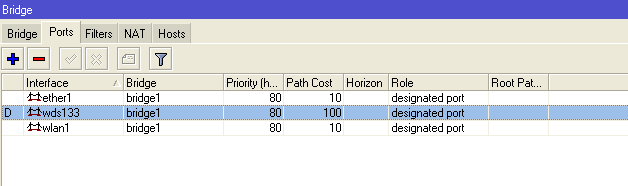

2014-09-12 12-57-36 Скриншот экрана.png

The WDS number change +1 every reconnect

Try with remove wlan1 from bridge please

From AP or ST?

Tried. The connection was lost.
Strange via web works fine - user logged in from … via web

go to new terminal

type export
remove sensitive data example paswords and copy paste this on this forum

Than can i see whats wrong

/interface bridge
add l2mtu=1600 name=bridge1
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-a/n basic-rates-a/g=“” channel-width=
20/40mhz-ht-below disabled=no disconnect-timeout=15s frequency=5490
frequency-mode=superchannel ht-basic-mcs=
mcs-12,mcs-13,mcs-14,mcs-15,mcs-16,mcs-17 ht-guard-interval=long
ht-rxchains=0,1 ht-supported-mcs=mcs-12,mcs-13,mcs-14,mcs-15,mcs-16,mcs-17
ht-txchains=0,1 hw-protection-mode=rts-cts hw-retries=15 l2mtu=2290 mode=
station-wds periodic-calibration-interval=10 radio-name=“” rate-set=
configured scan-list=5490 ssid=XXX supported-rates-a/g=“” tx-power=20
tx-power-mode=all-rates-fixed wds-default-bridge=bridge1 wds-mode=dynamic
/interface wireless nstreme
set wlan1 enable-nstreme=yes
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=wlan1
/interface wireless connect-list
add interface=wlan1 mac-address=XXXXXXXXXXXXXXXXXX security-profile=default
ssid=XXX
/ip address
add address=11.90.2.2/16 interface=ether1 network=11.90.0.0
/ip route
add distance=1 gateway=11.90.254.254
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www port=99
set ssh disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/system clock
set time-zone-name=Europe/Kiev
/system identity
set name=S-CL
/system leds
set 0 interface=wlan1
/system logging
add prefix=debug topics=wireless
/system ntp client
set enabled=yes mode=unicast primary-ntp=195.13.23.5
/system routerboard settings
set cpu-frequency=600MHz
/tool graphing interface
add in

update first to routeros 6.18 and update bios

sorry for many questions but i try to help you.

Can you make a schematic diagram from your network?

What connection you loose? between laptop and routerboard ore between both routerboards.

Can you export also the ap site pleace

i try it out and let you now.

I use never super channel and set Always country settings.
