Wireguard dual wan setup– traffic not routing via wireguard on wan 2

[Dan5r]

Hi everyone, i’m having issue with routing traffic via wireguard on wan-2, I have followed previous post’s but still encountering issues, I have provided the configuration and screenshots and hopefully someone can help me.

Site A (server static wan ip)
Site B (client)
WAN-1 – Default route for all traffic (static -ip)
WAN-2 – Failover route (LTE)
WG between sites A & B is up,

Goal:
1: Only to use WAN-2 for wg handshake and tunnel
2: No failover to WAN-1 if WAN-2 dropps
3: route a subnet over wg to use site A’s wan for internet purposes

Things done so far:

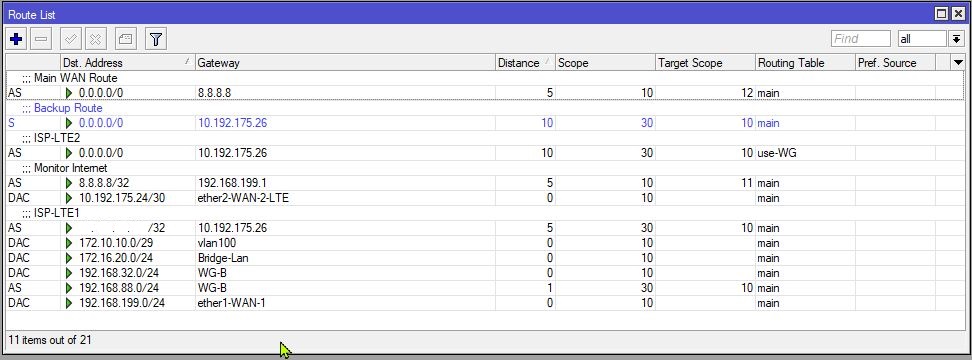

1: ISP-LTE1 - Dst Address = Site A WAN IP - Gateway = LTE gateway
2: ISP-LTE2 - Dst Address = 0.0.0.0/0 - Gateway = LTE gateway

3: Route /Rule

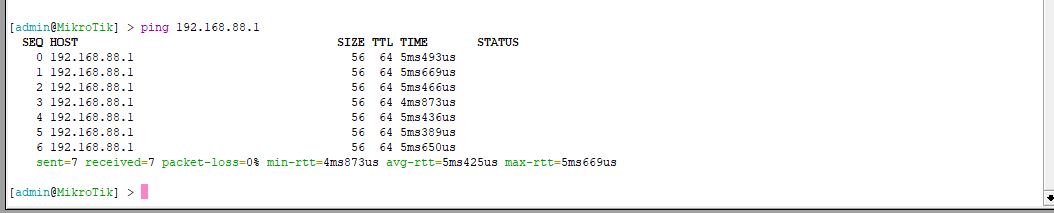

4: I can ping across wg

There are not firewall rules on this test router
Site B export.txt (3.69 KB)

[anav]

any reason why you dont provide site A configuration?

[Dan5r]

Thanks for getting back to me, after going back through your excellent post viewtopic.php?t=182340, I was able to get it working, I didn’t add the correct firewall rules on site-A
