I just recently got a small little map lite that i would like to use whenever im traveling or working just with the intention to quicly either log into network i set up tunnels with or to route all my traffic over it. I have been able to establish a tunnel but now im having an issue routing all my traffic over it using my office PFsense router I believe i have everything set up right on the pfsense side since ive done this before. Would anyone be able to check out my config and maybe let me know what im doing wrong.
MMM MMM KKK TTTTTTTTTTT KKK
MMMM MMMM KKK TTTTTTTTTTT KKK
MMM MMMM MMM III KKK KKK RRRRRR OOOOOO TTT III KKK KKK
MMM MM MMM III KKKKK RRR RRR OOO OOO TTT III KKKKK
MMM MMM III KKK KKK RRRRRR OOO OOO TTT III KKK KKK
MMM MMM III KKK KKK RRR RRR OOOOOO TTT III KKK KKK
MikroTik RouterOS 7.1.5 (c) 1999-2022 https://www.mikrotik.com/
Press F1 for help
[admin@MikroTik] > export hide-sensitive
# apr/04/2022 15:45:48 by RouterOS 7.1.5
# software id = FTHJ-YLS5
#
# model = RBmAP2nD
# serial number = DE500F5EF7D9
/interface bridge
add admin-mac=DC:2C:6E:39:54:CE auto-mac=no comment=defconf name=bridge
add name=bridge1
/interface wireless
set [ find default-name=wlan1 ] band=2ghz-b/g/n country="united states" \
disabled=no distance=indoors frequency=2462 installation=indoor mode=\
ap-bridge ssid=JoshMikro-Tik vlan-id=200 vlan-mode=use-tag
/interface wireguard
add listen-port=13231 mtu=1420 name=wireguard1
/interface vlan
add interface=wlan1 name=VLAN200 vlan-id=200
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk eap-methods="" mode=\
dynamic-keys supplicant-identity=MikroTik
/ip pool
add name=dhcp ranges=192.168.88.10-192.168.88.254
add name=dhcp_pool1 ranges=10.200.1.2-10.200.1.50
add name=dhcp_pool2 ranges=10.200.1.2-10.200.1.254
/ip dhcp-server
add address-pool=dhcp interface=bridge name=defconf
add address-pool=dhcp_pool2 interface=bridge1 name=dhcp1
/routing table
add disabled=no fib name=Wireguard
/interface bridge port
add bridge=bridge comment=defconf ingress-filtering=no interface=ether2
add bridge=bridge comment=defconf ingress-filtering=no interface=pwr-line1
add bridge=bridge1 comment=defconf ingress-filtering=no interface=wlan1
add bridge=bridge1 interface=VLAN200
/ip neighbor discovery-settings
set discover-interface-list=all
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wireguard peers
add allowed-address=10.55.124.0/24 endpoint-address=12.x.,X.CC:45785 \
endpoint-port=45785 interface=wireguard1 persistent-keepalive=25s \
public-key="4nEOvxvvsisboidoifniwerjfp23je9fj2oeipfj923jopfp2jk8="
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=\
192.168.88.0
add address=10.200.1.1/24 interface=VLAN200 network=10.200.1.0
add address=10.55.124.2/24 interface=wireguard1 network=10.55.124.0
/ip dhcp-client
add comment=defconf interface=ether1
/ip dhcp-server network
add address=10.200.1.0/24 dns-server=8.8.8.8,4.2.2.2 gateway=10.200.1.1
add address=192.168.88.0/24 comment=defconf gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=accept chain=input comment=AllowFromWifi src-address=10.200.1.0/24
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=\
invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" \
connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=accept chain=srcnat out-interface=wireguard1 realm=1024 src-address=\
10.200.1.0/24
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=\
out,none out-interface-list=WAN
/ip route
add disabled=no distance=1 dst-address=0.0.0.0/0 gateway=10.55.124.1 pref-src=\
0.0.0.0 routing-table=Wireguard scope=30 suppress-hw-offload=no \
target-scope=10
/system clock
set time-zone-name=America/New_York
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
/tool romon
set enabled=yes
[admin@MikroTik] >
You got me, I stopped at the first obvious mistake and didn’t notice that you were missing additional stuff. You can also use routing rule instead of mangle rule:
Sorry but I am going to go a completely different direction from SOB, his approach sucks! :-0 ;-PP
I need to understand the config and requirements better before attempting to fix the mess.
So let me get this straight, you use this device when you travel away from home. So its mobile?
Presumably you connect via WIFI wherever you are staying to connect to the internet via
Why do you assign vlan200 to the WAN side… reason?
Why is there powerline for a mobile setup?
No clue as to why you do this. add name=dhcp_pool1 ranges=10.200.1.2-10.200.1.50 {get rid of this one serves no purpose}
add name=dhcp_pool2 ranges=10.200.1.2-10.200.1.254
Not sure why you have two bridges either!
This is not correct, vlans are not bridge ports. add bridge=bridge1 comment=defconf ingress-filtering=no interface=wlan1 add bridge=bridge1 interface=VLAN200
You seem to have two primary subnets.
192.168.88.0/24 for which I presume you want to use the regular internet whenever you are connected at a location.
10.200..1/0/24 for which I presume you want to use or send over wireguard to your office PF sense device (THE WG SERVER) for the initial connection.
What is the WIreguard Interface address on the PFS server?
Last questions
what subnet will you be reaching at the office
did you want to access internet through the wireguard connection (aka use the internet at the office location).
Yeah blindly following things is not the way to go. Far more important to learn what the config means and what the commands do, in the long run.
As for power line,I saw that on your config on the bridge ports?? add bridge=bridge comment=defconf ingress-filtering=no interface=pwr-line1
As for vlan200 to the wan side, how could you not know you did this?
I am starting to think you didnt originally configure this device, so good idea to start fresh!!
Okay the difficulty on this requirement is that you have split your internet access requirements at the mikrotik.
However this is a solvable thing!
The allowed IPs between set on the Mikrotik will have to be 0.0.0.0/0 which will include the subnet at the pFSENSE.
At the PFSENSE you will need firewall rules allowing the incoming mikrotik traffic to reach the server ( with source address of the right subnet from MT) and traffic to reach the internet (with source address of the right subnet on the MT ). Cannot help you with pfsense settings though.
0.0.0.0/1 ???
half internet… from 1.0.0.0 to 126.255.255.255… (useless 0.x , 10.x, 127.x , and the others)
and the rest from 128.0.0.0 to 223.255.255.255?
Set your IP address for the wireguard interface as so…
/ip address
add address=10.101.121.122**/24** interface=wireguard-inet network=10.101.121.122
(Assuming the allowed IP at the pfsense or server site for your mobile device is 10.101.121.122/32)
Not sure on your IP route… you do need internet first
Not sure how you do this but lets assume you have a default route from the provider in IP DHCP…
Thus need an additional route to force users out WG.
( if you dont want to be able to access normal internet through the provider your mobile device is using, if WG is down, then use action=lookup-only-in-table )
Depending upon firewall rule structure you may need a forward chain rule
add chain=forward action=accept in-interface-list=LAN (or src-address=subnet) out-interface=wireguard-inet

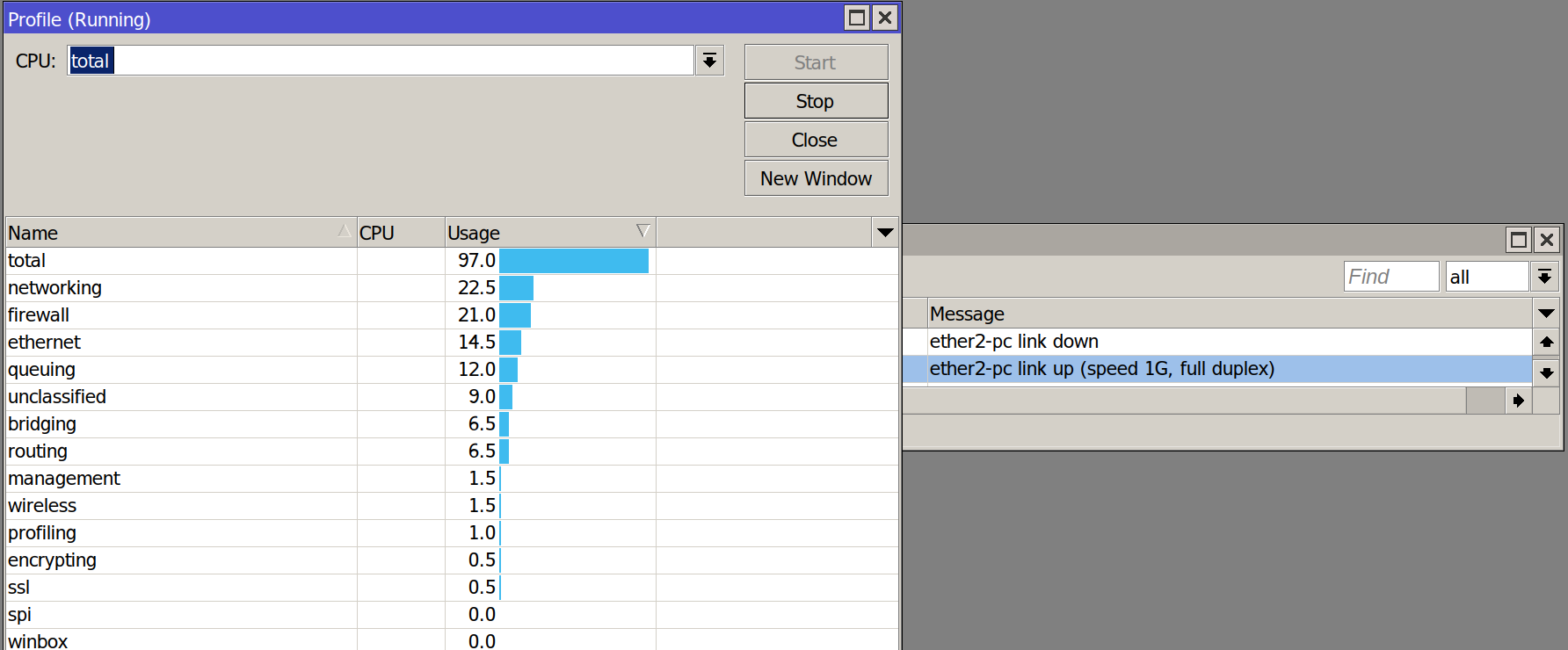

it’s because I have a lot of syn traffic and CPU load is 100%, and I have lags and logouts from winbox(ethernet port connected to PC link down → link up restart)
with speed limitations, CPU load is around 97-99% without internet lags(Internet works mostly correct)
;-PP
