Hi,
I have had a working Brigde Vlan Setup with my Hex for years now and am trying to set up wireguard now. The connections from the roadwarrior clients are working and I can access the router via https and ssh on all interface IPs (not just the one in the wireguard network).

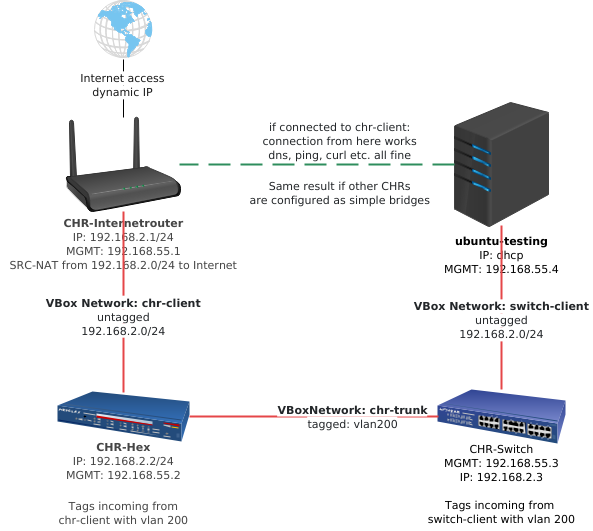

Quick rundown of my setup (config and rough diagram attached): External Router that connects to the Internet. This is connected at the Hex on eth5 and tagged as vlan 200. The other vlans are in part associated to ports and go as trunks to other switches. 2 are also natted to the 200 vlan for internet access, the guest vlan is completely separate. That part is working fine since basically forever
.
VLAN 200: 192.168.2.0/24, Router is 192.168.2.1, Hex 192.168.2.2
VLAN 800/900 are 192.168.8.0/24 and .9.0/24 respectively, Hex has .x.2 on each network.
Now I am adding wireguard for vpn access. Connections from 2 roadwarrior peers is working to the hex, what is missing is access to the computers beyond the hex. In future I might also want to add internet access via wireguard, for now access to the other 3 192.168.x.0 networks is enough.
Wireguard uses 192.168.253.0/24 network. Hex has 192.168.253.2, clients use .100/101. Firewall is configured to accept and forward packets from the wg interface to the all vlans interface group:
[admin@Hex] /ip/firewall/filter> print
Flags: X - disabled, I - invalid; D - dynamic
0 D ;;; special dummy rule to show fasttrack counters
chain=forward action=passthrough
1 ;;; accept wireguard
chain=input action=accept protocol=udp dst-port=51820 log=no log-prefix=""
2 ;;; allow WireGuard traffic
chain=input action=accept src-address=192.168.253.0/24 in-interface=wg-all log=no
log-prefix=""
3 ;;; defconf: accept established,related,untracked
chain=input action=accept connection-state=established,related,untracked
4 ;;; defconf: drop invalid
chain=input action=drop connection-state=invalid
5 ;;; defconf: accept ICMP
chain=input action=accept protocol=icmp log=yes log-prefix="PING"
6 ;;; forward WireGuard Traffic to all VLans
chain=forward action=accept in-interface=wg-all out-interface-list=VLAN log=no
log-prefix="wg_forward"
7 ;;; defconf: accept in ipsec policy
chain=forward action=accept ipsec-policy=in,ipsec
8 ;;; defconf: accept out ipsec policy
chain=forward action=accept ipsec-policy=out,ipsec
9 ;;; defconf: fasttrack
chain=forward action=fasttrack-connection hw-offload=yes
connection-state=established,related
10 ;;; defconf: accept established,related, untracked
chain=forward action=accept connection-state=established,related,untracked
11 ;;; defconf: drop invalid
chain=forward action=drop connection-state=invalid
12 X ;;; defconf: drop all from WAN not DSTNATed
chain=forward action=drop connection-state=new connection-nat-state=!dstnat
in-interface-list=WAN log=no log-prefix=""
Ping to the addresses of the Hex directly works, however ping to other ip’s does not, neither does it using the routerOS ping utility from the wireguard ip:
[admin@Hex] > /ping address=192.168.2.2 src-address=192.168.253.2
SEQ HOST SIZE TTL TIME STATUS
0 192.168.2.2 56 64 508us
1 192.168.2.2 56 64 498us
2 192.168.2.2 56 64 489us
sent=3 received=3 packet-loss=0% min-rtt=489us avg-rtt=498us max-rtt=508us
[admin@Hex] > /ping address=192.168.2.1 src-address=192.168.253.2
SEQ HOST SIZE TTL TIME STATUS
0 192.168.2.1 timeout
1 192.168.2.1 timeout
2 192.168.2.1 timeout
sent=3 received=0 packet-loss=100%
So what am I doing wrong?
Thanks for your advice
hex.conf.rsc (8.59 KB)
.
