Wireguard roadwarrior to IPsec S2S

RouterOS General
1

Hi all

because I spent lots of time to solve my problem, and no succes I am asking for help in MK community.
We have two office branch which is interconnectd by IPsec S2S (tunneled) connection, this works well. I am able ping from any host fom Office1 to any other host in Office2. (10.10.10.12 <----> 192.168.100.10)
Also we have some people on HomeOffices which are (will be) connected as wireguard client (10.10.30.2). Wireguard server (10.10.30.1) works on Mikrotik (10.10.10.1) installed in Office1.

I sef lots of combination of ip firewall filter and NATs, but I am able ping only from WG client (10.10.30.2) to network 10.10.10.x .
No ping from this WG client to Office2 (192.168.100.x).

May you somebody help me ?

MK Office1 config

/ip firewall filter add action=accept chain=input in-interface=vpn-wg log=yes
/ip firewall filter add action=accept chain=output out-interface=vpn-wg
/ip firewall filter add action=accept chain=forward in-interface=vpn-wg
/ip firewall filter add action=accept chain=forward out-interface=vpn-wg
/ip firewall filter add action=accept chain=forward connection-state=established,related dst-address=10.10.10.0/24
/ip firewall filter add action=accept chain=forward src-address=10.10.10.0/24
/ip firewall filter add action=accept chain=input dst-port=53 protocol=udp src-address=10.10.10.0/24
/ip firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=es
tablished,related,untracked
/ip firewall filter add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
/ip firewall filter add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
/ip firewall filter add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
/ip firewall filter add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,r
elated hw-offload=yes
/ip firewall filter add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state
=established,related,untracked
/ip firewall filter add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dst
nat connection-state=new in-interface-list=WAN
/ip firewall filter add action=drop chain=forward

/ip firewall nat add action=masquerade chain=srcnat dst-address=192.168.100.1 log=yes log-prefix=nat:: src-address=10.10.30.1
/ip firewall nat add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN

[admin@mk] > ip route/print
Flags: D - DYNAMIC; A - ACTIVE; c, s, y - COPY
Columns: DST-ADDRESS, GATEWAY, DISTANCE
#     DST-ADDRESS       GATEWAY       DISTANCE
0  As 0.0.0.0/0         xx.xx.xx.xx         1
  DAc 10.10.10.0/24     bridge               0
  DAc 10.10.30.0/24     rsys-vpn-wg          0
  DAc xx.xx.xx.xx   ether1               0
1  As 192.168.1.0/24    bridge               1
2  As 192.168.100.0/24  rsys-vpn-wg          2

MK Office 2 config

/ip firewall filter add action=accept chain=forward dst-address=192.168.100.0/24 log=yes src-address=10.10.10.0/24
/ip firewall filter add action=accept chain=forward src-address=10.10.30.0/24
/ip firewall filter add action=accept chain=input dst-port=1194 protocol=tcp
/ip firewall filter add action=drop chain=input dst-port=53 in-interface=ether1 protocol=tcp
/ip firewall filter add action=drop chain=input dst-port=53 in-interface=ether1 protocol=udp
/ip firewall filter add action=drop chain=forward dst-port=2000 in-interface=ether1 protocol=tcp
/ip firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
/ip firewall filter add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
/ip firewall filter add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
/ip firewall filter add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
/ip firewall filter add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related
/ip firewall filter add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
/ip firewall filter add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
/ip firewall filter add action=drop chain=forward comment="defconf:  drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN


/ip firewall nat add action=accept chain=srcnat dst-address=192.168.1.0/24 src-address=192.168.100.0/24 to-addresses=10.10.10.1
/ip firewall nat add action=accept chain=dstnat dst-address=192.168.100.0/24 src-address=10.10.30.0/24 to-addresses=10.10.10.1
/ip firewall nat add action=log chain=dstnat in-interface=bridge src-address=10.10.30.0/24
/ip firewall nat add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN

[admin@MikroTik-01] > ip route print
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit
 #      DST-ADDRESS        PREF-SRC        GATEWAY            DISTANCE
 0 A S  0.0.0.0/0                          xx.xx.xx.xx              1
 1 X S  10.10.10.0/24                      bridge                    1
 2 A S  10.10.30.0/24      192.168.100.1   bridge                    1
 3 X S  10.10.100.0/22                     bridge                    1
 4 ADC  172.20.1.0/24      172.20.1.1      bridge                    0
 5 ADC  xx.xx.xx.xx/20    xx.xx.xx.xx    ether1                    0
 6 A S  192.168.1.0/24     192.168.100.1   bridge                    1
 7 ADC  192.168.100.0/24   192.168.100.1   bridge                    0




c:\>tracert 10.10.10.12
Tracing route to NPI25AD57 [10.10.10.12]
over a maximum of 30 hops:
  1    13 ms    15 ms    15 ms  10.10.30.1
  2    13 ms    13 ms    13 ms  NPI25AD57 [10.10.10.12]
Trace complete.




c:\>tracert 192.168.100.10
Tracing route to SERVER01 [192.168.100.10]
over a maximum of 30 hops:
  1    15 ms    15 ms    13 ms  10.10.30.1
  2     *        *        *     Request timed out.
  3     *


2

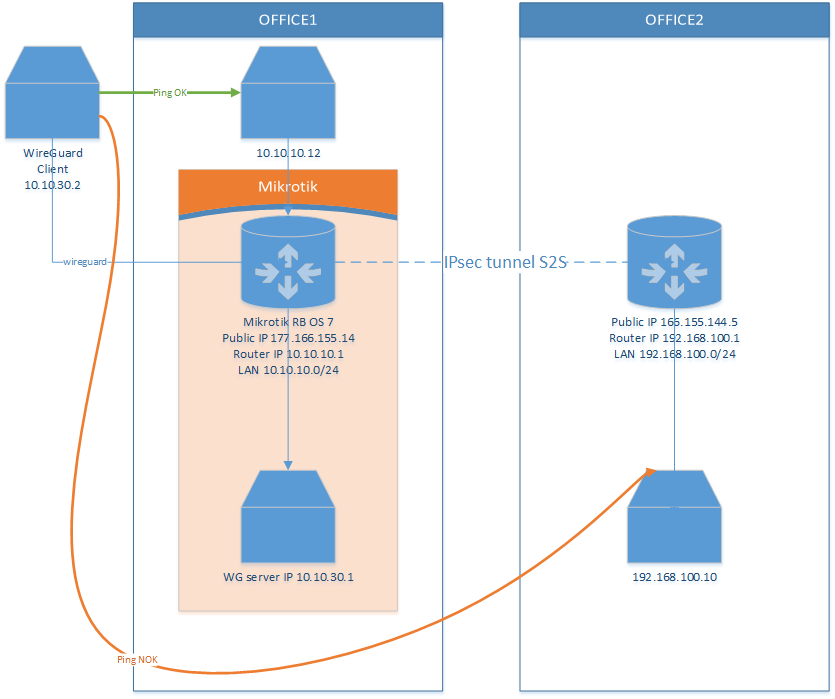

The diagram is very helpful, the requirements not so much.

Let me try to understand.

(1) The wireguard home clients will be given single IPs…
10.10.30.2/32 , 10.10.30.3/32 , 10.10.30.4/32, etc…

(2) The wg server is in Office 1, with IP address of 10.10.30.1/24

(3) You desire the home clients to access WHAT exactly? I don’t care about pinging I care about user requirements, pinging is not something users do, thats an admin tool :slight_smile:
So, what do the home units require access to
office 1 and if so which subnets and which devices within the subnet if specific
office 2 and if so which subnets and which devices within the subnet if specific,

(4) Assuming accessing the internet through either office 1 or office 2 is NOT a requirement.

(5) What are the home clients, IPADS/IPHONEs or Desktops/Laptops

(6) It is easy to get wireguard clients to reach Office 1 MIKROTIK, however the IPSEC part to transfer those clients to Office 2, is not my problem nor my area of expertise.
HOwever, if you wish, an easy solution is to create a tunnel from Office 2 Mikrotik (client) as well to the Office 1 Server and then the home units have a more direct type of link to Office 2.
(assumes Office 2 is also a mikrotik and thus has built in WG).

3

(1) - yes, right
(2) - yes, right
(3) clients needs IPv4 connectivity, because they will use lots of services in office1, office2… I know that ping is tool, but via ping I check IP connectivity between clients and PC’s in office1,2
(4) yes, internet connection out of VPN
(5) PC, desktops, laptops
(6) Today I created IPsec tunnel between 10.10.30.0 and 192.168.100.0…some progress… I am able reach 10.10.30.1 (WG server) from office 2 (192.168.100.0).But connection between WG clients and office2 still not works

Additional info - I tried trace to wg server and client 10.10.30.2 from 192.168.100.10

acs@server01 ~ $ tracepath 10.10.30.1
 1?: [LOCALHOST]                      pmtu 1500
 1:  192.168.100.1                                         0.401ms
 1:  192.168.100.1                                         0.336ms
 2:  192.168.100.1                                         0.331ms pmtu 1438
 2:  10.10.30.1                                           10.922ms reached
     Resume: pmtu 1438 hops 2 back 2




acs@server01 ~ $ tracepath 10.10.30.2
 1?: [LOCALHOST]                      pmtu 1500
 1:  192.168.100.1                                         0.452ms
 1:  192.168.100.1                                         0.261ms
 2:  192.168.100.1                                         0.321ms pmtu 1438
 2:  10.10.10.1                                           12.604ms
 3:  10.10.10.1                                           12.724ms pmtu 1420
 3:  no reply
 4:  no reply
 5:  no reply
 6:  no reply
4

Please, show

/interface wireguard peers add allowed-address=

Server:
Allowed Address - here you should specify 0.0.0.0/0.
Client
AllowedIPs = 0.0.0.0/0

5

no, it does not work :frowning:

6

I tried ping from 192.168.100.10 to 10.10.30.2 , some packets are missing

acs@server01 ~ $ ping 10.10.30.2
PING 10.10.30.2 (10.10.30.2) 56(84) bytes of data.
64 bytes from 10.10.30.2: icmp_seq=5 ttl=126 time=34.8 ms
64 bytes from 10.10.30.2: icmp_seq=12 ttl=126 time=26.2 ms
64 bytes from 10.10.30.2: icmp_seq=17 ttl=126 time=23.8 ms
64 bytes from 10.10.30.2: icmp_seq=20 ttl=126 time=27.9 ms
64 bytes from 10.10.30.2: icmp_seq=23 ttl=126 time=28.0 ms
64 bytes from 10.10.30.2: icmp_seq=25 ttl=126 time=25.9 ms
64 bytes from 10.10.30.2: icmp_seq=34 ttl=126 time=41.2 ms
64 bytes from 10.10.30.2: icmp_seq=35 ttl=126 time=28.1 ms
64 bytes from 10.10.30.2: icmp_seq=36 ttl=126 time=27.9 ms
64 bytes from 10.10.30.2: icmp_seq=37 ttl=126 time=28.0 ms
64 bytes from 10.10.30.2: icmp_seq=38 ttl=126 time=29.7 ms
64 bytes from 10.10.30.2: icmp_seq=42 ttl=126 time=28.1 ms
64 bytes from 10.10.30.2: icmp_seq=52 ttl=126 time=24.7 ms
64 bytes from 10.10.30.2: icmp_seq=59 ttl=126 time=26.2 ms
^C
--- 10.10.30.2 ping statistics ---
64 packets transmitted, 14 received, 78.125% packet loss, time 63792ms
rtt min/avg/max/mdev = 23.829/28.606/41.182/4.288 ms

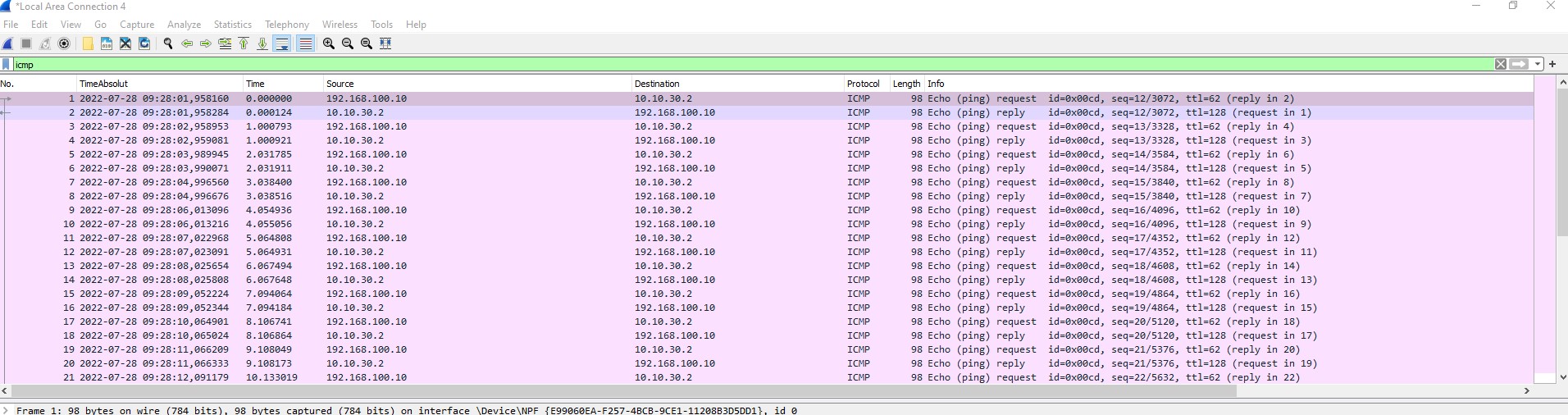

And also I catched data on 10.10.3.2 on wireshark…no lost packets…

7

now I changed opevpn instead of wireguard and its works perfectly…
neverless I will be investigate why wireguard does not works

8

Okay your answers for 5., 6. need more information/clarity.

Will incoming wg clients be going out internet of office 1?
Will incoming wg clients be going out internet of office 2?
What router is at office 2 (capable of wireguard)? Is is also a mikrotik?

9

wg clients will use only tunneled traffic (internet trafic will not be tunneled via offices 1,2)
router at office2 is also mikrotik

10

Okay so basically, the clients using the tunnel will not be going to another mickrotik to access internet in any direction just subnets on the other side.

Question:
Why is Office 1 MT, the server - has public IP?
Does Office 2 MT have a public IP.

Thinking clients could go to either 1 but I see that its easier to have one tunnel for clients TO a server and be able to reach both office 1 and office 2 subnets with one tunnel.
So the thinking is

wg clients to MT Office1 Server ( on wireguard tunnel x.x.x.0/24)
MT Office 2 Client (also on wireguard tunnel x.x.x.0/24)

Does this establish the requirements…
wg clients To Office 1 subnets (if so to which ones)
wg clients To Office 2 subnets (if so to which ones)
Office1 clients to Office 2 subnets (if so from which ones to which ones)
Office 2 clients to Office 1 subnets (if so from which ones to which ones)

Admin requirements
a. test connectivity
b. configure routers
FROM WHERE, wg client? (working from home for example)
