Hi,
We have the new N-Type wireless adapter (Atheros 11N) installed into a RB800 with licence level 6. We have reports that some older pc’s are having issues connecting to the unit even though we have it set to b/g/n.

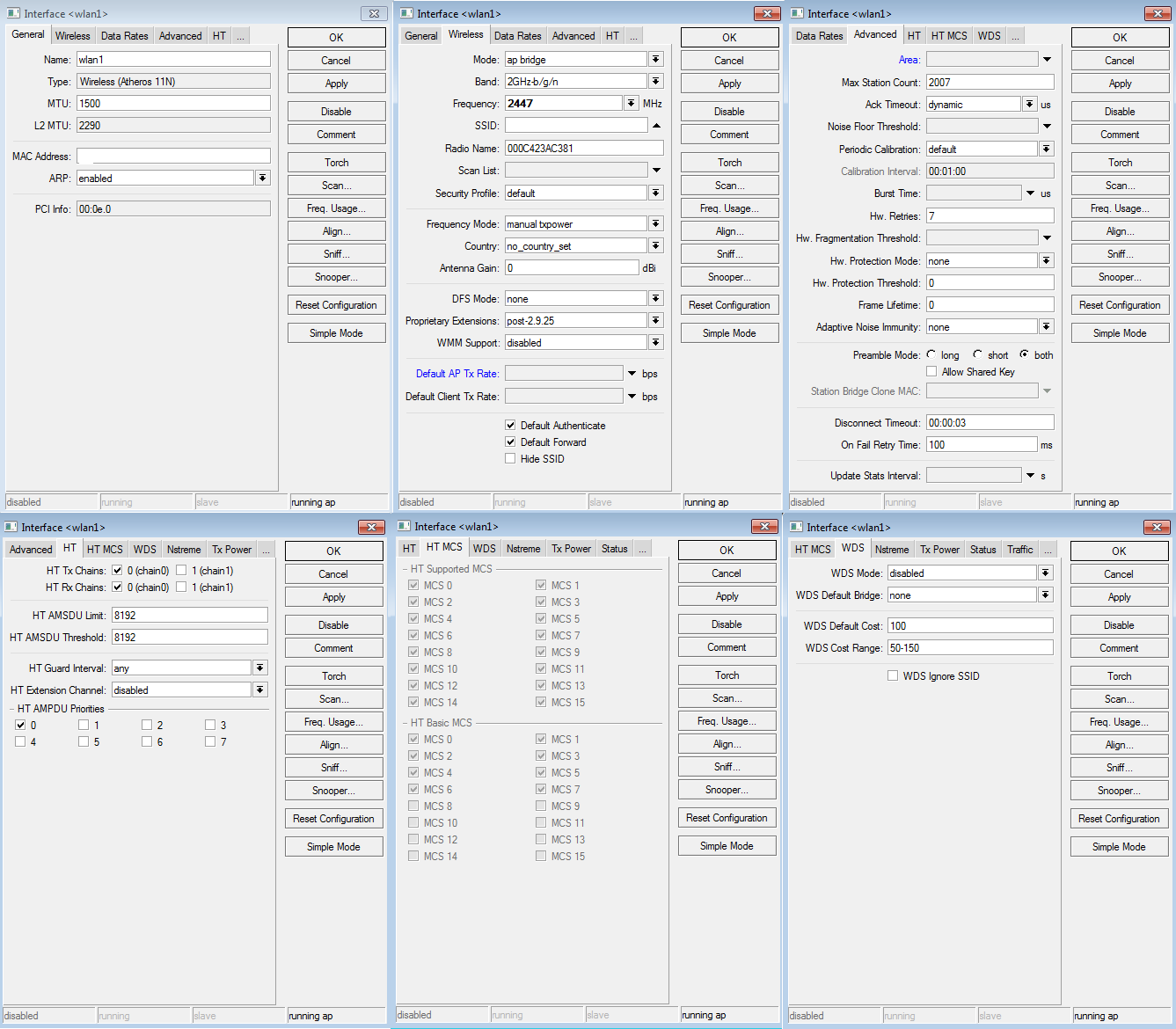

Here are the settings in the wireless:
[admin@MikroTik] /interface wireless> print
Flags: X - disabled, R - running
0 name=“wlan1” mtu=1500 mac-address=00:0C:42:3A:C3:81 arp=enabled
interface-type=Atheros 11N mode=ap-bridge ssid=“Wireless”
frequency=2447 band=2ghz-b/g/n scan-list=default wds-mode=disabled
wds-default-bridge=none wds-ignore-ssid=no default-authentication=yes
default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0
hide-ssid=no security-profile=default compression=no
[admin@MikroTik] /interface wireless>
[admin@MikroTik] /interface wireless nstreme> print
0 name=“wlan1” enable-nstreme=no enable-polling=yes disable-csma=no
framer-policy=none framer-limit=3200
[admin@MikroTik] /interface wireless info> print
0 interface-type=Atheros 11N
chip-info=“mac:0x80/0x2, phy:0xd0, a5:0xc0, a2:0x0, eeprom:0x0”
pci-info=“00:0e.0” capabilities=tx-power-control,ack-timeout-control,
virtual-ap,alignment-mode,scanning,nstreme,
sniffing,power-channel,ht40-g,wmm,spectral-
scan
default-periodic-calibration=enabled
supported-bands=2ghz-b,2ghz-g,2ghz-10mhz,2ghz-5mhz,2ghz-11n
2ghz-b-channels=2412:0,2417:0,2422:0,2427:0,2432:0,2437:0,2442:0,2447:0,
2452:0,2457:0,2462:0
2ghz-g-channels=2412:0,2417:0,2422:0,2427:0,2432:0,2437:0,2442:0,2447:0,
2452:0,2457:0,2462:0
2ghz-10mhz-power-channels=2412:0,2417:0,2422:0,2427:0,2432:0,2437:0,2442:0,
2447:0,2452:0,2457:0,2462:0
2ghz-5mhz-power-channels=2412:0,2417:0,2422:0,2427:0,2432:0,2437:0,2442:0,
2447:0,2452:0,2457:0,2462:0
2ghz-11n-channels=2412:0,2417:0,2422:0,2427:0,2432:0,2437:0,2442:0,2447:0,
2452:0,2457:0,2462:0
ht-chains=0:chain0,1:chain1
I have read about the new N-type adapter and there are still a few things that confuse me.
- Should i set up Nstreme? I have read that you can have disconnecting issues with this.
- I have only 1 antenna connected. HT TX/RX chain set to 0.
- What are the HT AMPDU Priorities?
- If i set to N-only will the other b/g PC’s still be able to connect as its backward compatable? Cant find explination for this.
- Should we have 2 antennas in use when there is ‘N’ involved?
Any information is greatly appreciated.
-Mark
