X86 Server performance

Hardware MikroTik hardware general
1

As there isn’t a lot of success stories of X86 plataforms and their connectivity, I’m going to share our experiencie, that’s very successfully!

DELL R220 -
CPU : Intel(R) Xeon(R) CPU E3-1240 V2 @ 3.40GHz
Intel Ethernet i350 QuadPort 1GB
2xNetXtreme II BCM5716 Gigabit Ethernet (rev: 32)
2 GB DDR
RouterOS 6.12

(this valors were taken during an ICMP and UDP53 attack)

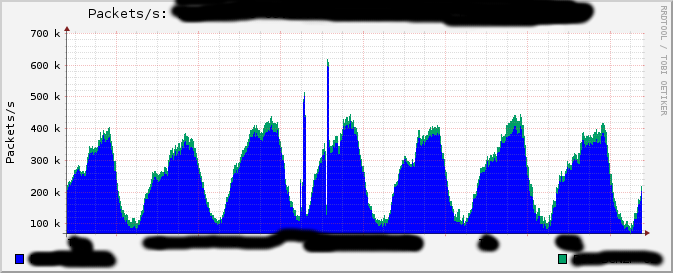

Peak ppks = 600k/s

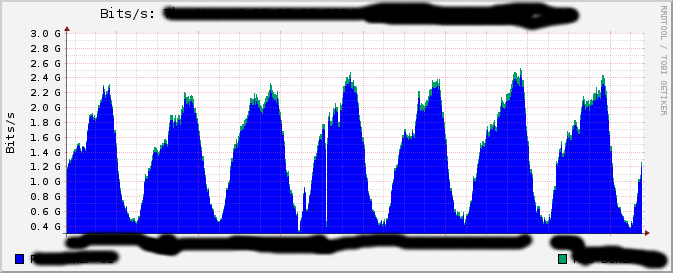

Peak traffic = 2,6Gb/s ( forwarding)

2 BGP peers V4 moving 500k routes by each.
2 BGP peers V6 moving 25K total routes.
Total connectivity ( with outside providers ) up to 6G/s
Very approx data: 5K+ end customers

There was a drop in traffic but it was the fault of the server generating the graphics since it was out of control by mentioned attack

2

Is it just my idea or is 2,5 Gb/s of peak forwarding traffic a little low for such a machine? I mean, what would it take to forward 10Mb/s? Edgerouter PRO claims 8Mb/s with much less horsepower.

3

OK! I’m going to edit my post adding more information that I think it’s important and I have not posted:
-2 BGP peers V4 moving 500k routes by each.
-2 BGP peers V6 moving 25K total routes by each
-Total potencially connectivity ( with outside providers ) up to 6G/s


And now, do you think the same?

4

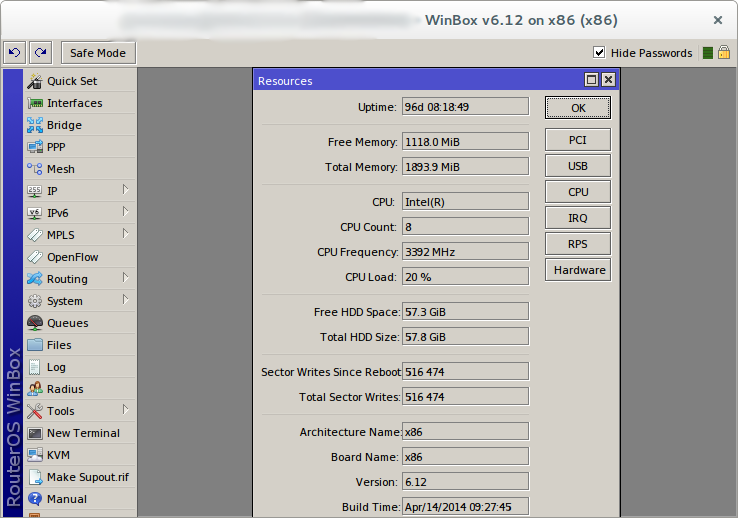

What kind of load did you have at 20% CPU load? How does CPU load scale with forwarding load?

5

I add another image, I can’t attach more than 3 files.

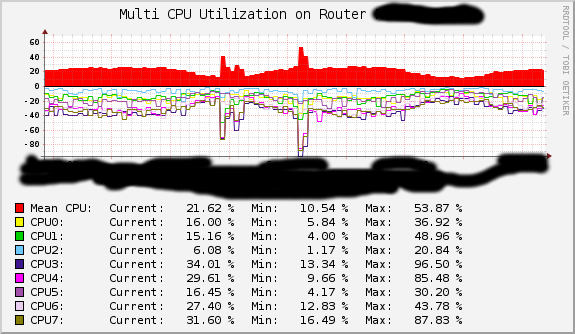

The multi-CPU graph at this moment.
Of course, one cpu catch 100% use, but is a 8 core server and the CPU supports VMDq and SRO-IV and the network card too., Each port have more than 1 CPU working for it ( Intel Ethernet i350 QuadPort 1GB has 8 queues for each port) .
The attack doesn’t bring down de server :slight_smile:

Now we are going to buy a dual processor, total 16 cores. I will share our experience.




PD: this graph has more zoom. It lasts 3 days. The other graph represents more days.
