Re: Usage GPON module SFP in Spain

Posted: Thu Nov 28, 2019 6:51 pm
by hugomon
Hi, I have problems with my ONT Alcatel-Lucent O-010S-P, I can't even connect by SSH. I have tried 192.168.1.10, among others, but there is no ping.
Does anyone know this model, and if it is compatible?
hugomon

My model ONT G-010S-P responds to pings in Mikrotik. Please check my steps.

1. Assign sfp1 as WAN interface (it will remove sfp1 from the bridge)

2. G-010S-P and other models will not expose ethernet interface unless fiber cable is connected (link-ok, rate 1Gbps)
[admin@MikroTik] > interface ethernet monitor sfp1
                      name: sfp1
                    status: link-ok
          auto-negotiation: done
                      rate: 1Gbps
               full-duplex: yes
           tx-flow-control: no
           rx-flow-control: no
               advertising:
  link-partner-advertising:
        sfp-module-present: yes
               sfp-rx-loss: no
                  sfp-type: SFP-or-SFP+
        sfp-connector-type: SC
       sfp-link-length-9um: 20000m
           sfp-vendor-name: ALCATELLUCENT

3. Add IP address to the sfp1 interface
[admin@MikroTik] > ip address add address=192.168.1.15/24 interface=sfp1

4. [admin@MikroTik] > ping 192.168.1.10
SEQ HOST SIZE TTL TIME STATUS
0 192.168.1.10 56 64 0ms
1 192.168.1.10 56 64 0ms
2 192.168.1.10 56 64 1ms
3 192.168.1.10 56 64 3ms

5. telnet or ssh
[admin@MikroTik] > system telnet 192.168.1.10
[admin@MikroTik] > system ssh user=ONTUSER address=192.168.1.10
Thank you for your reply JeanPierre!; I will try this week and report here with the result.

Re: Usage GPON module SFP in Spain

Posted: Thu Nov 28, 2019 9:03 pm
by AndreHro
Hi, is there someone out there selling Zisa's or Carlitos SFP?

I tried contacting Zisa but they wouldn't sell me one.
Hi there,

I have the ZISA one. It won't work with my provider so I don't need it. Interested?

Best Regards.
Which provide do you use?
I’m interested if it’s not Movistar in Madrid.

Re: Usage GPON module SFP in Spain

Posted: Thu Nov 28, 2019 9:44 pm
by spaxton


Hi there,

I have the ZISA one. It won't work with my provider so I don't need it. Interested?

Best Regards.
Which provide do you use?
I’m interested if it’s not Movistar in Madrid.
[/quote]

Hi,

My provider is outside of Spain. It is Telekom (T-Com) in Montenegro. A part of Deutsche Telekom. Do You know anything about the modules I asked in a few previous posts? Nobody is willing to reply about.

Best Regards.

Re: Usage GPON module SFP in Spain

Posted: Thu Nov 28, 2019 10:01 pm
by AndreHro
No, I only saw here that some people successfully running the Modul in Spain by modifying the PON LOID and Serial number to the values used from the provider. Since my provider is Movistar I ask about your provider.
I had contact to hilink they want technical details and after that no reply.
I also had contact to usourcetech about the Modul UGP-N1S
http://www.usourcetech.com/web/userfile ... _Rev01.pdf . But I not really sure if it will work.

Re: Usage GPON module SFP in Spain

Posted: Thu Nov 28, 2019 10:46 pm
by spaxton
No, I only saw here that some people successfully running the Modul in Spain by modifying the PON LOID and Serial number to the values used from the provider. Since my provider is Movistar I ask about your provider.
I had contact to hilink they want technical details and after that no reply.
I also had contact to usourcetech about the Modul UGP-N1S
http://www.usourcetech.com/web/userfile ... _Rev01.pdf . But I not really sure if it will work.
Ok, I want to get rid of my zisa. In order to make it work here I would need to use its command line interface and I don't want to learn anymore how to do that. I need almost a plug n play option. What is Your offer?

Re: Usage GPON module SFP in Spain

Posted: Fri Nov 29, 2019 2:09 am
by zlobster
Hola Friends
friend in Valencia asked for me help. he got good SFP stick. lot of options to modify serial\vendor\part number\ and more. sticks have open source openwrt
login web 192.168.1.57 or telnet to sfp

OEM company\\ dipperoptics\dpoptics stick numero D23446
Licensee company \\ hilinktech\ stick number HL23446

Hello friend,

I am trying to replace my huawei router for a long time. I own ZISA OP151s but it doesnt work for me. Can You, please, let me know if the module You showed here works for You? Can You attach some web interface photos?

Best Regards.
Did you tinker with your Zisa? If so, what is changed?

Is your Zisa working?

Best I can do is 25€ + something reasonable for shipping.

Re: Usage GPON module SFP in Spain

Posted: Fri Nov 29, 2019 9:52 am
by hugomon
Hi, I have problems with my ONT Alcatel-Lucent O-010S-P, I can't even connect by SSH. I have tried 192.168.1.10, among others, but there is no ping.
Does anyone know this model, and if it is compatible?
hugomon

My model ONT G-010S-P responds to pings in Mikrotik. Please check my steps.

1. Assign sfp1 as WAN interface (it will remove sfp1 from the bridge)

2. G-010S-P and other models will not expose ethernet interface unless fiber cable is connected (link-ok, rate 1Gbps)
[admin@MikroTik] > interface ethernet monitor sfp1
                      name: sfp1
                    status: link-ok
          auto-negotiation: done
                      rate: 1Gbps
               full-duplex: yes
           tx-flow-control: no
           rx-flow-control: no
               advertising:
  link-partner-advertising:
        sfp-module-present: yes
               sfp-rx-loss: no
                  sfp-type: SFP-or-SFP+
        sfp-connector-type: SC
       sfp-link-length-9um: 20000m
           sfp-vendor-name: ALCATELLUCENT

3. Add IP address to the sfp1 interface
[admin@MikroTik] > ip address add address=192.168.1.15/24 interface=sfp1

4. [admin@MikroTik] > ping 192.168.1.10
SEQ HOST SIZE TTL TIME STATUS
0 192.168.1.10 56 64 0ms
1 192.168.1.10 56 64 0ms
2 192.168.1.10 56 64 1ms
3 192.168.1.10 56 64 3ms

5. telnet or ssh
[admin@MikroTik] > system telnet 192.168.1.10
[admin@MikroTik] > system ssh user=ONTUSER address=192.168.1.10
Thank you for your reply JeanPierre!; I will try this week and report here with the result.
Bad news, it doesn't work, I can obtain a link ok in the module only if I disable speed auto-negotiation, and still can't ping or ssh to the GPON.



Re: Usage GPON module SFP in Spain

Posted: Fri Nov 29, 2019 10:41 am
by spaxton
Hola Friends
friend in Valencia asked for me help. he got good SFP stick. lot of options to modify serial\vendor\part number\ and more. sticks have open source openwrt
login web 192.168.1.57 or telnet to sfp

OEM company\\ dipperoptics\dpoptics stick numero D23446
Licensee company \\ hilinktech\ stick number HL23446

Hello friend,

I am trying to replace my huawei router for a long time. I own ZISA OP151s but it doesnt work for me. Can You, please, let me know if the module You showed here works for You? Can You attach some web interface photos?

Best Regards.
Did you tinker with your Zisa? If so, what is changed?

Is your Zisa working?

Best I can do is 25€ + something reasonable for shipping.
Hello,

The ZIsa is working. Total work hours about 6. Nothing changed, not even the firmware. The factory firmware is in it. However, the best I can do is 40 + 17 shipping to Spain. If You want the same brand new module like ZISA, please find it here https://www.aliexpress.com/item/33014127133.html. For what I could investigate with my chinese friends, this module is absolutely the same as zisa and is was also produced and designed by the same factory T&W.

Best Regards.

Re: Usage GPON module SFP in Spain

Posted: Fri Nov 29, 2019 11:59 am
by AndreHro
So for me 60 Euro including shipping would be ok.
Can you send me a message in the forum?

Re: Usage GPON module SFP in Spain

Posted: Fri Nov 29, 2019 12:12 pm
by spaxton
So for me 60 Euro including shipping would be ok.
Can you send me a message in the forum?
HI,

I don't see an option to send You the message via forum. Please use email address spaxton.ligiston@yahoo.com . From there we can exchange details.

Best Regards.

Re: Usage GPON module SFP in Spain

Posted: Sat Nov 30, 2019 2:04 am
by JeanPierre


Bad news, it doesn't work, I can obtain a link ok in the module only if I disable speed auto-negotiation, and still can't ping or ssh to the GPON.
hugomon
Try ip-scan to see if anything responds...

[admin@MikroTik] > tool ip-scan interface=sfp1 address-range=192.168.1.0/24
Flags: D - dhcp
  ADDRESS         MAC-ADDRESS        TIME DNS                                       SNMP                                       NETBIOS
  192.168.1.10    00:06:B5:BE:11:EF   1ms
  192.168.1.15                        0ms

Change the sfp1 interface to 192.168.0.15 and scan 192.168.0.0/24. Repeat for 192.168.2.0/24, 192.168.3.0/24, 192.168.4.0/24 networks. I've have seen document claiming 192.168.4.254, 192.168.3.10, 192.168.1.251 to be ONT's configuration IP

Re: Usage GPON module SFP in Spain

Posted: Mon Dec 02, 2019 6:08 pm
by jondavy
note that many customers and operators use GPON
Normis, have you planned to launch any solution in the GPON? Branch, as we need OLT and ONUs from MikroTik urgent

Re: Usage GPON module SFP in Spain

Posted: Tue Dec 03, 2019 11:23 am
by hugomon


Bad news, it doesn't work, I can obtain a link ok in the module only if I disable speed auto-negotiation, and still can't ping or ssh to the GPON.
hugomon
Try ip-scan to see if anything responds...

[admin@MikroTik] > tool ip-scan interface=sfp1 address-range=192.168.1.0/24
Flags: D - dhcp
  ADDRESS         MAC-ADDRESS        TIME DNS                                       SNMP                                       NETBIOS
  192.168.1.10    00:06:B5:BE:11:EF   1ms
  192.168.1.15                        0ms

Change the sfp1 interface to 192.168.0.15 and scan 192.168.0.0/24. Repeat for 192.168.2.0/24, 192.168.3.0/24, 192.168.4.0/24 networks. I've have seen document claiming 192.168.4.254, 192.168.3.10, 192.168.1.251 to be ONT's configuration IP
You was rigth @JeanPierre, the correct IP was 192.168.2.2. After configure NAT masquerade for sfp1 I can login with user: ONTUSER and password: SUGAR2A041


That's the good news, the bad news is I can't configure anything once logged in. Nothing is displayed about the busybox and commands like onu gtcpg don't work.
Also it runs extremely slow, even when writing, becoming apparently frozen.
In any case, it's a progress, thank you.

Re: Usage GPON module SFP in Spain

Posted: Tue Dec 03, 2019 3:11 pm
by Petronas
It seems from his images this user does not have "administrator privileges".

run cd /
run uci show

use the help commands

can you upload?  to pastebin.com

Re: Usage GPON module SFP in Spain

Posted: Thu Dec 05, 2019 10:01 am
by minhng99
Hi, I have a uboot repo here that appears to work with the Alcatel-Lucent/Nokia GPON SFP, also the Huawei MA5671A
https://github.com/minhng99/u-boot_lantiq_falcon

more about this being discussed here: https://forum.openwrt.org/t/support-ma5 ... n/48042/21

It's not fully working yet and don't appear to work correctly with the G-010S-P (kernel panic, root= not found) but if we managed to fix this then we might be able to have a netconsole uboot working and it will be much easier to test firmware

Re: Usage GPON module SFP in Spain

Posted: Tue Dec 31, 2019 5:52 pm
by spaxton
I managed to burn the integrated with the "sfp_i2c" commands shown above


Antonio's commands make more sense to me. He's on 14.07_ltq. I am on 12.09_ltq

** remove 12.09 variables **
fw_setenv nPassword
fw_setenv nSerial


** use 14.07 (Antonio post #210) **
fw_setenv ont_serial HWTN12345678
convert password to hex in rapidtables https://www.rapidtables.com/convert/num ... o-hex.html ---->> 0123456789 hex=30 31 32 33 34 35 36 37 38 39
uci set gpon.ploam.nPassword='0x30 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39'
uci commit
reboot


** verify after reboot **
root@SFP:/# onu gtcsng
root@SFP:/# onu gtcpg

I write these commands and write correctly, then I check and they have not been written
Hello friend,

Have You managed to change the values and how?

Best Regards.

Re: Usage GPON module SFP in Spain

Posted: Fri Jan 03, 2020 1:03 pm
by BackON
I have more ifo from of DFP-34G-2C2

The chipset is a ZTE ZX279125
flash memory winbond 25q128fsg
other chip is atheros but i cant see the model
in the back have a chip k24c06 1546cdx and 25l95 1707 22649

i created on openwrt forum a post about it to suppport it if is posibble

https://forum.openwrt.org/t/dfp-34g-2c2-sfp/51641

Re: Usage GPON module SFP in Spain

Posted: Wed Jan 08, 2020 2:48 am
by 88zz88
Salute comrades

to your collection of GPON images working with Mikrotik SFP routers.

DASAN H650SFP - same hardware as SPS3424THPTDFO, MA5671A, G-010S-P
image login - ssh 192.168.1.10 ONTUSER/password unknown unless decoded from
ONTUSER:$6$mYQnmn3MLtYla6rV$DIlnn6XmGATG4RGr8U1O7mw8UQ/sZqOp4kPkSY672KmTjS4gvPIz1l3aLtQrPIxoe2q10pX4d.zmuzHtlrYux1:16934:0:99999:7:::
H650SFP image0 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 9384744300
H650SFP image1 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 6685759864

G-010S-P
image login - ssh 192.168.1.10 ONTUSER/SUGAR2A041
G-010S-P image0 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 6227675874
G-010S-P image1 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 1873659888

HL23446
image login - telnet 192.168.1.57 no password
HL23446 image0 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 4338451129
HL23446 image1 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 3576121597

Re: Usage GPON module SFP in Spain

Posted: Sat Jan 25, 2020 6:00 pm
by Newtman
Hello,

I'm from Uruguay and our ISP use similar tecnology to Spain, in consecuence I guess I can use some GPON module.

What module are working now?

Is impossible to find Zisa module, but I read few post upper, CM5671A is equivalent... But is very expensive only for an experiment, because I can't found information online about it.
Carlitoxx's module is out of stock since an year now.

Thanks!

Re: Usage GPON module SFP in Spain

Posted: Mon Jan 27, 2020 3:15 am
by JeanPierre
Hi, I have compiled a list of popular GPON modules. Let me know if I missed something or made a mistake.



=-=-=-=-=-=-=-= Chipset: Intel/Lantiq PEB98036 =-=-=-=-=-=-=-=-=-=-=-=
FGS202
Flash 8MB, RAM 1MB, System RTOS eCos
Pros- Quick start
Cons - Flash programming/soldering required for SN/Password change. It may overheat. No graphical web interface.


=-=-=-=-=-=-=-= Chipset: Intel/Lantiq PEB98035 =-=-=-=-=-=-=-=-=-=-=-=
MA5671A
Flash 16MB, RAM 64MB, System OpenWRT
Pros - Good compatibility with Huawei and third-party vendors. Highly configurable through commands.
Cons - Hardware adapter and soldering required for full shell. No graphical web interface. Change SN/Password via command line.
G-010S-P
Flash 16MB, RAM 64MB, System OpenWRT
Pros - Good compability with Alcatel/Nokia. Web interface. Highly configurable through commands
Cons - IPTV may not work with third-party vendors.
CarlitoxxPro CPGOS03-0490 / HL23446
Flash 16MB, RAM 64MB, System OpenWRT
Pros - Good web interface. Several vendor profiles. Highly configurable through commands. Supports LOID

The firmware is interchangeable between: Source Photonics SPS-34-24T-HP-TDFO, Huawei MA5671, Alcatel G-010S-P, Hilink HL23446, CarlitoxxPro CPGOS03-0490, Dasan H650SFP, DpOptics D23446
LAN interface can be switched from 1 Gbps to 2.5 Gbps(sgmii_mode variable is set to 5)



=-=-=-=-=-=-=-= Chipset: Intel/Lantiq PEB98035 =-=-=-=-=-=-=-=-=-=-=-=-=
Zisa OP151S
Flash 8MB, RAM 64MB, System T&W Linux atop of OpenWRT 10_03 or 12_09
Pros - Good web interface. A lot of commands.
Cons - It may overheat. Security considerations - some firmware is pre-filled with TR-069 servers.

The firmware interchangeable beetween: T&W TW2362H-CDEL, Zisa OP151S, D-LINK DPN-100, Zyxel PMG3000-D20B, Eltex NTU-SFP-100, Calix 100-03903


=-=-=-=-=-=-=-=-=-=-=-= Chipset: ZTE ZX279125 =-=-=-=-=-=-=-=-=-=-=-=-=-=
ZTE DFP-34G-2C2
Flash 16MB, RAM 32MB, System ZTE Linux
Pros - Extensive graphical network interface (GUI). Supports HGU(Router mode) and LOID.
Cons - Security considerations. Limited number of commands.


=-=-=-=-=-=-=-=-=-=-=-= Chipset: Realtek RTL8672 =-=-=-=-=-=-=-=-=-=-=-=-=-=
Sold under name PON STICK ONU, SN:GPONC6B13xxx, MAC: 6CEFC6xxxxxx
Flash 16MB, System Realtek Linux, kernel version 2.6.30
Pros - Extensive graphical network interface (GUI), supports LOID, HGU(Router mode), SN, password, MAC change. Low ambient temperature.

Re: Usage GPON module SFP in Spain

Posted: Wed Jan 29, 2020 5:08 pm
by Newtman
Thanks JeanPierre!!! Nice compilation of information.

MA5671A is very affordable and I understand work well. Isn't problem for my solder the EEPROM and read it. I have got a R809F with the correct sockets.

Any advice?

Thanks!

Re: Usage GPON module SFP in Spain

Posted: Thu Jan 30, 2020 8:43 pm
by JeanPierre
My advice?
Intel/Lantiq 98035 if you are not afraid of programming and, for some modules, soldering. They sometimes appear on Canadian(ebay.ca) or Italian(ebay.it) national ebay websites.
I forgot to add that Intel chip 98035 has LAN interface that can be switched from 1 Gbps to 2.5 Gbps. Important for users whose ISPs offer higher speeds than 1Gbps. This applies only to modules with OpenWRT(sgmii_mode variable is set to 5)
The best Intel/langiq module was sold by CarlitoxxPro and Hilink. Unfortunately, they don't have them in stock. Since HL23446 firmware is available I will try to load it on my g-010s-p sfp module and see how it works!

For the rest, probably DFP-34G-2C2. It has a rich web interface. The module is available under different names but the casing has a distinctive appearance. Just look at the photos from previous posts. It says "PON STICK V01" on the board. A large number of these modules are available on aliexpress in the "anddear" shop
A few users here have these modules but we have not enough reports on how they work. The modules may not work with ISP's who check software versions.

Re: Usage GPON module SFP in Spain

Posted: Sun Feb 23, 2020 12:00 pm
by kapook007
device MA5671A
isp1 use SN+password authentication > working for MA5671A / use fw_setenv ont_serial and uci set gpon.ploam.nPassword
isp2 use LOID+CHECKCODE authentication > not working for MA5671A

how to change LOID+CHECKCODE for MA5671A ?

Re: Usage GPON module SFP in Spain

Posted: Tue Feb 25, 2020 2:54 am
by JeanPierre
how to change LOID+CHECKCODE for MA5671A ?
LOID - 1-24 characters
CHECKCODE(LOID PASSWORD) - 1-12 characters

If the firmware supports LOID authentication LOID+CHECKCODE parameters can be updated by changing two variables: omci_loid and omci_lpwd
fw_setenv omci_loid xxxxxxxxxxxxx
fw_setenv omci_lpwd xxxxxxxxxxxx
If LOID is disabled in the firmware try alternative software from CarlitoxxPro CPGOS03-0490

Re: Usage GPON module SFP in Spain

Posted: Wed Feb 26, 2020 6:31 am
by kapook007
fw_setenv omci_loid xxxxxxxxxxxxx not working
fw_setenv omci_lpwd xxxxxxxxxxxx not working

Need backup firmware CPGOS03-0490
mtd0-mtd5
T T

Re: Usage GPON module SFP in Spain

Posted: Thu Feb 27, 2020 6:51 am
by JeanPierre
Need backup firmware CPGOS03-0490
HL23446 shared above should be the same as CPGOS03-0490

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 03, 2020 7:47 am
by xh116
Salute comrades

to your collection of GPON images working with Mikrotik SFP routers.

DASAN H650SFP - same hardware as SPS3424THPTDFO, MA5671A, G-010S-P
image login - ssh 192.168.1.10 ONTUSER/password unknown unless decoded from
ONTUSER:$6$mYQnmn3MLtYla6rV$DIlnn6XmGATG4RGr8U1O7mw8UQ/sZqOp4kPkSY672KmTjS4gvPIz1l3aLtQrPIxoe2q10pX4d.zmuzHtlrYux1:16934:0:99999:7:::
H650SFP image0 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 9384744300
H650SFP image1 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 6685759864

G-010S-P
image login - ssh 192.168.1.10 ONTUSER/SUGAR2A041
G-010S-P image0 rev. 14_07
http://s000.tinyupload.com/index.php?fi ... 6227675874
G-010S-P image1 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 1873659888

HL23446
image login - telnet 192.168.1.57 no password
HL23446 image0 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 4338451129
HL23446 image1 rev.14_07
http://s000.tinyupload.com/index.php?fi ... 3576121597
Hi
Do you have hl23446 firmware to download, My module is brick by mistake without backup...
Thanks in advance

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 03, 2020 7:52 am
by piku
Hi everyone,
I'm a GPON SFP ONU user in China, which is the country of most SFP hardware producing country.
According to what I know, most SFP use TW2312 as master chip (like Zisa OP151s,TW2312H-CDEL), which is manufacted by T&W, Shenzhen, China.
I have Zisa OP151s, TW2312H-CDEL and I believe CM5671A they all have same hardware.
Unfortunately most of them are end of life and the developer group was dismissed.

The problem I have is my SFP don't support some OMCI command. This makes it available to some ISPs, but not others.
I'd like to try your firmwares to workout a solution.

By the way, a former engineer of T&W create a new SFP ONU which use Realtek master chip, support GPON, EPON, SN, snid, loid, MAC, with only $38.

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 03, 2020 8:27 am
by piku
I have more ifo from of DFP-34G-2C2

The chipset is a ZTE ZX279125
flash memory winbond 25q128fsg
other chip is atheros but i cant see the model
in the back have a chip k24c06 1546cdx and 25l95 1707 22649

i created on openwrt forum a post about it to suppport it if is posibble

https://forum.openwrt.org/t/dfp-34g-2c2-sfp/51641
As mentioned above,ZTE is another manufacturers in China. As far as I am concerned, The framwork of ZX279125 is not same as lantiq.
What are your specific problems?

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 03, 2020 4:07 pm
by JeanPierre
Do you have hl23446 firmware to download, My module is brick by mistake without backup...

It looks that modules SPS3424THPTDFO, MA5671A, G-010S-P, CPGOS03-0490, H650SFP, HL23446 share the same MTD partition mapping.

root@SFP:/# cat /proc/mtd
dev: size erasesize name
mtd0: 00040000 00010000 "uboot"
mtd1: 00080000 00010000 "uboot_env"
mtd2: 00740000 00010000 "linux"
mtd3: 0061eedc 00010000 "rootfs"
mtd4: 00370000 00010000 "rootfs_data"
mtd5: 00800000 00010000 "image1"

Combine MTD parts from different modules to create the firmware
root@ubuntu:/# cat mtd0.bin mtd1.bin mtd2.bin mtd5.bin > firmware.bin

root@ubuntu:/# ls -l
-rw-r--r-- 1 root root 16777216 Nov 12 09:51 firmware.bin

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 03, 2020 4:10 pm
by JeanPierre
By the way, a former engineer of T&W create a new SFP ONU which use Realtek master chip, support GPON, EPON, SN, snid, loid, MAC, with only $38.

Can you share a photo or name of the new SFP ONU with Realtek chip?

Re: Usage GPON module SFP in Spain

Posted: Wed Mar 04, 2020 7:38 am
by piku
By the way, a former engineer of T&W create a new SFP ONU which use Realtek master chip, support GPON, EPON, SN, snid, loid, MAC, with only $38.

Can you share a photo or name of the new SFP ONU with Realtek chip?
As your wish.

Left: G/Epon sfp with Realtek master chip
Right: TW2362H
I'll dismante it later because it is in use.

Re: Usage GPON module SFP in Spain

Posted: Wed Mar 04, 2020 6:05 pm
by JeanPierre
Left: G/Epon sfp with Realtek master chip
Right: TW2362H
I'll dismante it later because it is in use.
Thanks.
I'm intrigued by what model of chip is used to make this SFP module. Is it possible that RTL9601C was used?

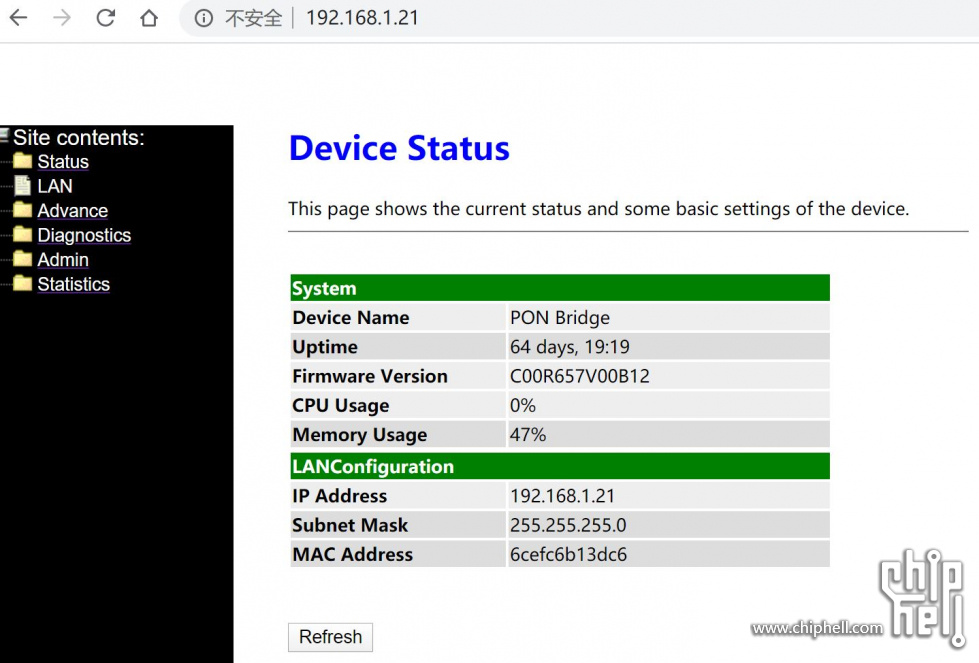

I found more pictures and setup screens
https://www.chiphell.com/thread-2184048-1-1.html

Can you recommend a place to buy this Realtek SFP.

Re: Usage GPON module SFP in Spain

Posted: Thu Mar 05, 2020 4:07 am
by piku
Thanks.
I'm intrigued by what model of chip is used to make this SFP module. Is it possible that RTL9601C was used?
I found more pictures and setup screens
https://www.chiphell.com/thread-2184048-1-1.html

Can you recommend a place to buy this Realtek SFP.
Yes the thread of chiphell is correct.
# cat /proc/cpuinfo
system type             : RTL8672
processor               : 0
cpu model               : 56322
BogoMIPS                : 112.23
tlb_entries             : 64
mips16 implemented      : yes
# cat /proc/version
Linux version 2.6.30.9 (root@ubuntu12) (gcc version 4.4.6 (Realtek RSDK-1.5.6p2) ) #9 Thu Oct 24 20:18:35 CST 2019 [luna SDK V1.9.0]
# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 00040000 00001000 "boot"
mtd1: 00002000 00001000 "env"
mtd2: 00002000 00001000 "env2"
mtd3: 0003c000 00001000 "config"
mtd4: 00300000 00001000 "k0"
mtd5: 004c0000 00001000 "r0"
mtd6: 00300000 00001000 "k1"
mtd7: 004c0000 00001000 "r1"
mtd8: 00001000 00001000 "Partition_008"
mtd9: 00001000 00001000 "Partition_009"
mtd10: 00001000 00001000 "Partition_010"
mtd11: 00001000 00001000 "Partition_011"
mtd12: 00300000 00001000 "linux"
mtd13: 004c0000 00001000 "rootfs"
# cat /proc/meminfo
MemTotal:          16944 kB
MemFree:            5352 kB
......
# dmesg
/bin/sh: dmesg: not found

Unfortunately it is only sold in mainland of China and the price goes up recently. Please refer here (interest irrelevant)
It is incompatible with CCR's SFP+. Only a few PCIe card tested and compatible, too.
So it is about $52+$32 postage with Universal Postal Union if you really want.
By the way, I really don't think it's worth it. A S/EPON modem with gigabytes port only $40 with shipping.

Re: Usage GPON module SFP in Spain

Posted: Sat Mar 07, 2020 11:54 am
by kapook007
Bad news for DFP-34G-2C2


route mode only
how change to bridge mode with vlan support ?



Re: Usage GPON module SFP in Spain

Posted: Mon Mar 09, 2020 2:12 pm
by piku
Bad news for DFP-34G-2C2
....(sorry for reduce)
route mode only
how change to bridge mode with vlan support ?
....(sorry for reduce)
ODI said bridge mode is not allowed by ZTE's warrant. Sorry.
[delete]But the function of bridge mode exists, maybe just need to complement some webpage files. ODI said they're trying.[/delete]
update 13 Mar:
A friend send me one of this sfp and I did some dig.
IT IS BRIDGED BY DEFAULT like a SFU, just don't create any connect in WAN Connection page.
It works with one of my ISP but not another, same like Lantiq.
It is not work with CCR1009's SFP+, only SFP works.

Re: Usage GPON module SFP in Spain

Posted: Fri Mar 13, 2020 3:37 pm
by Newtman
Hello!

I finally receive my first Mikrotik and SFP, a RB960PGS and MA5671A.
I'm fully noob with Mikrotik but after a couple of hours I logged in to the SFP via SSH.
My SFP need the fibber connected, the default IP is 192.168.1.10, credentials are root / admin123
After this I tried set my serial number and password without luck. The commands fw_setenv didn't work... But I found the command "set" work, but I don't know the name of the variables (I tried with "print" and other words like this)
I don't find manual or similar, commands like help or man are disable too... But I found this log.

root@192.168.1.10's password:
Welcome Visiting Huawei Home Gateway
Copyright by Huawei Technologies Co., Ltd.
# display_log
2018-04-30 21:18:21 Software successfully upgraded. Source version: V8R017C00S201. Target version: V8R017C00S206

If necessary I can read the EEPROM with my R809F, but I prefer not solder.

Anyone have experience with this dongle?

Thanks!!

Re: Usage GPON module SFP in Spain

Posted: Fri Mar 13, 2020 5:23 pm
by piku
Hello!

I finally receive my first Mikrotik and SFP, a RB960PGS and MA5671A.
I'm fully noob with Mikrotik but after a couple of hours I logged in to the SFP via SSH.
My SFP need the fibber connected, the default IP is 192.168.1.10, credentials are root / admin123
After this I tried set my serial number and password without luck. The commands fw_setenv didn't work... But I found the command "set" work, but I don't know the name of the variables (I tried with "print" and other words like this)
I don't find manual or similar, commands like help or man are disable too... But I found this log.

root@192.168.1.10's password:
Welcome Visiting Huawei Home Gateway
Copyright by Huawei Technologies Co., Ltd.
# display_log
2018-04-30 21:18:21 Software successfully upgraded. Source version: V8R017C00S201. Target version: V8R017C00S206

If necessary I can read the EEPROM with my R809F, but I prefer not solder.

Anyone have experience with this dongle?

Thanks!!
Yes. It's almost same as SmartAX MA5671. try
set sn snid 5CA858829BE1

Re: Usage GPON module SFP in Spain

Posted: Fri Mar 13, 2020 5:42 pm
by Newtman
Hello!

I finally receive my first Mikrotik and SFP, a RB960PGS and MA5671A.
I'm fully noob with Mikrotik but after a couple of hours I logged in to the SFP via SSH.
My SFP need the fibber connected, the default IP is 192.168.1.10, credentials are root / admin123
After this I tried set my serial number and password without luck. The commands fw_setenv didn't work... But I found the command "set" work, but I don't know the name of the variables (I tried with "print" and other words like this)
I don't find manual or similar, commands like help or man are disable too... But I found this log.

root@192.168.1.10's password:
Welcome Visiting Huawei Home Gateway
Copyright by Huawei Technologies Co., Ltd.
# display_log
2018-04-30 21:18:21 Software successfully upgraded. Source version: V8R017C00S201. Target version: V8R017C00S206

If necessary I can read the EEPROM with my R809F, but I prefer not solder.

Anyone have experience with this dongle?

Thanks!!
Yes. It's almost same as SmartAX MA5671. try
set sn snid 5CA858829BE1
Thanks piku, I will try tomorrow.
Have you got a full manual of this sfp?

Thanks!!!

Re: Usage GPON module SFP in Spain

Posted: Sat Mar 14, 2020 7:05 am
by piku
Thanks piku, I will try tomorrow.
Have you got a full manual of this sfp?

Thanks!!!
Sorry.
Huawei design it is to configurate from olt, not for separate work. So there is no official manual for commands.

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 17, 2020 9:46 pm
by JeanPierre
... But I found the command "set" work, but I don't know the name of the variables (I tried with "print" and other words like this)

I believe the "set" command only works with DyingGasp variable
# set nDyingGaspEnable enable
Result:Success
# set nDyingGaspEnable disable
Result:Success

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 24, 2020 5:13 pm
by kapook007
i try firmware
i have some problem about firmware for ma5671a

H650SFP image0 rev. 14_07
-working same ont
root@SFP:/# onu ploamsg
errorcode=0 curr_state=5


HL23446 notworking
-not found gpon signal

root@SFP:/# onu ploamsg
errorcode=0 curr_state=1

anyone have problem with me ?

Re: Usage GPON module SFP in Spain

Posted: Tue Mar 24, 2020 7:11 pm
by JeanPierre
i try firmware
HL23446 notworking
-not found gpon signal
anyone have problem with me ?

@kapook007
Try this. It works for me
root@SFP:/# fw_setenv ont_serial HWTC1122334455
root@SFP:/# fw_setenv target oem-generic
root@SFP:/# uci set gpon.ploam.nPassword="0x31 0x30 0x30 0x30 0x30 0x30 0x30 0x30 0x30 0x39"
root@SFP:/# uci commit
root@SFP:/# reboot
It should keep the login 192.168.1.10 from MA5671A (telnet and http)

If you require more changes like model number, firmware version, MAC address, LOID have a look at Antonio's post
viewtopic.php?f=3&t=116364#p751330

Re: Usage GPON module SFP in Spain

Posted: Wed Mar 25, 2020 2:50 pm
by piku
i try firmware
i have some problem about firmware for ma5671a

H650SFP image0 rev. 14_07
-working same ont
root@SFP:/# onu ploamsg
errorcode=0 curr_state=5


HL23446 notworking
-not found gpon signal

root@SFP:/# onu ploamsg
errorcode=0 curr_state=1

anyone have problem with me ?
O1 means not receive light. I doubt there is physical connection problem.
Dasan H650SFP is a product form Koera and SC/APC connecter is widely used in Korea, which is different from HL23446.
BTW, I'm not familiar with Korea. Just for your reference.

Re: Usage GPON module SFP in Spain

Posted: Thu Mar 26, 2020 3:13 am
by kapook007
i try firmware
i have some problem about firmware for ma5671a

H650SFP image0 rev. 14_07
-working same ont
root@SFP:/# onu ploamsg
errorcode=0 curr_state=5


HL23446 notworking
-not found gpon signal

root@SFP:/# onu ploamsg
errorcode=0 curr_state=1

anyone have problem with me ?
O1 means not receive light. I doubt there is physical connection problem.
Dasan H650SFP is a product form Koera and SC/APC connecter is widely used in Korea, which is different from HL23446.
BTW, I'm not familiar with Korea. Just for your reference.
i already check physical connection
my device is ma5671a 1pc install 2 firmware
1.firmware H650SFP is working
2.firmware HL23446 not found gpon signal
i try in my home

Re: Usage GPON module SFP in Spain

Posted: Thu Mar 26, 2020 2:38 pm
by piku
i already check physical connection
my device is ma5671a 1pc install 2 firmware
1.firmware H650SFP is working
2.firmware HL23446 not found gpon signal
i try in my home
my misunderstanding, sorry.

Re: Usage GPON module SFP in Spain

Posted: Thu Mar 26, 2020 4:07 pm
by kapook007
Hi
HL23446 firmware not found gpon signal.
i test and got problem
HL23446 found gpon signal over -15dbm
But standart gpon signal is -20dbm to -28dbm HL23446 not found gpon signal

CarlitoxxPro CPGOS03-0490 can found gpon signal -20dbm to -28dbm ????
Anyone who can share CarlitoxxPro CPGOS03-0490 firmware.
mtd0 , mtd1 , mtd2
thanks

Re: Usage GPON module SFP in Spain

Posted: Sat Apr 04, 2020 1:38 am
by CarlitoxxPro
We are very happy :D by announce that we are currently on manufacturing process for the newest version of GPON ONU SFP CPGOS03-0490 V2.

New Architecture, more stability and a great interoperability between multiple OLT brands and Routers/Switches with SFP and SFP+ ports. Fully tested with TriplePlay Services (Data, VoIP, IPTV).

Its Time to replace that unreliable and limited HGU / ONT by a most advanced ONU SFP with a ultra low power compsumption and ready to work on the most faster FTTH networks.

More details very soon!! Please stay tuned. :wink:
Facebook
Twitter
Telegram


Re: Usage GPON module SFP in Spain

Posted: Sat Apr 04, 2020 2:04 am
by osquetar
Ya era hora!

Re: Usage GPON module SFP in Spain

Posted: Mon Apr 20, 2020 6:46 pm
by morishe
I have also a MA5671 flashed with HL23446 firmware.

I didn't tried with the original firmware but (like yours) PLOAM state is 1.

Did you solve your problem?

Regards
i try firmware
i have some problem about firmware for ma5671a

H650SFP image0 rev. 14_07
-working same ont
root@SFP:/# onu ploamsg
errorcode=0 curr_state=5


HL23446 notworking
-not found gpon signal

root@SFP:/# onu ploamsg
errorcode=0 curr_state=1

anyone have problem with me ?

Re: Usage GPON module SFP in Spain

Posted: Mon Apr 27, 2020 7:35 pm
by iperezandres
C'mon Carlitos, we are looking forward to receiving more information and availability of your product!!!! :D

Re: Usage GPON module SFP in Spain

Posted: Tue Apr 28, 2020 2:02 am
by Newtman
... But I found the command "set" work, but I don't know the name of the variables (I tried with "print" and other words like this)

I believe the "set" command only works with DyingGasp variable
# set nDyingGaspEnable enable
Result:Success
# set nDyingGaspEnable disable
Result:Success
I confirm my SFP accept set nDyingGaspEnable enable/disable.
Obvisly the problem is the firmware, I can't configure anything or modify the variables without documentation. Next month I will receive a new programmer to dump the EEPROM. Maybe change the firmware could be a solution for me.
I can't connect directly to the SFP from the LAN, buy I'm not Mikrotik expert, is my first time... I don't understand how to bridge the networks 192.168.1.0/24 and 192.168.88.0/24.

Re: Usage GPON module SFP in Spain

Posted: Wed Apr 29, 2020 6:05 pm
by jmj

Re: Usage GPON module SFP in Spain

Posted: Mon May 18, 2020 6:09 pm
by BackON


after checking that image in carlitoxx facebook looks like Dfp-34g-2c2 sfp module (the cage have the same screws and look the same.) this is a new chipset (ZTE) but the question is about the firmware... its going to be openwrt or custom firmware?

Re: Usage GPON module SFP in Spain

Posted: Tue May 19, 2020 1:42 pm
by almeiras
Hello guys, I have a Nokia g-010s-p (Alcatel-Lucent). I tried to update it from OpenWRT ltq 12 to 14 via web using a file (image 0) provided in this thread but it bricked.

Any guide on how to de-brick it? It looks like I should power it with 3.3V and reach the UART pins inside (probably while keeping the SC/APC connected since it wont power on otherwise)

Also, any cheap recommended GPON stick. Carlitoxxpro and Zisa sticks seem unavailable.

Thank you very much.

Re: Usage GPON module SFP in Spain

Posted: Tue May 19, 2020 4:11 pm
by JeanPierre
Hello guys, I have a Nokia g-010s-p (Alcatel-Lucent). I tried to update it from OpenWRT ltq 12 to 14 via web using a file (image 0) provided in this thread but it bricked.

Any guide on how to de-brick it? It looks like I should power it with 3.3V and reach the UART pins inside (probably while keeping the SC/APC connected since it wont power on otherwise)

Also, any cheap recommended GPON stick. Carlitoxxpro and Zisa sticks seem unavailable.

Thank you very much.
Hello almeiras
It's easy if you have a TTL adapter connected to pins 2 and 7. Look at the instructions how to make or buy one written for MA5671A in the openwrt forum. Most of them should apply in this scenario..

Re: Usage GPON module SFP in Spain

Posted: Wed May 20, 2020 11:34 pm
by almeiras
Thank you! And how would you upload and install the firmware? (Or even a custom one). I know I can connect via screen / cu but then what? I can’t find any tutorials...

EDIT: Sorry, I found this: https://openwrt.org/docs/techref/hardware/port.serial

Re: Usage GPON module SFP in Spain

Posted: Sat May 23, 2020 8:08 pm
by ivanmh
Hi guys, Ubiquiti have released a new SFP GPON ONU stick called "UFiber Instant (UF-Instant)".

According to its specifications, it has SGMII Ethernet LAN interface. Would this allow working with the SFP+ connection for RB4011? It would be great if someone confirms it. I am a happy owner of a RB4011iGS+5HacQ2HnD-IN, working in harmony with a UFiber Nano G, but I'm curious to know if this new UFiber Instant would work with my RB4011.

Also, if its has the same web interface as its brothers UFiber Nano G & Loco, it should work with Movistar and other ISPs that work nice with UFiber. Except of course, VLAN2 for IPTV on Movistar ....

EDIT: Sorry, I was wrong. Reading instructions for use, this UFiber Instant has no web interface and is configured from a Ubiquiti OLT. It will not work for any Spanish ISP. My fault for not read the instructions for use before...

Re: Usage GPON module SFP in Spain

Posted: Tue May 26, 2020 5:11 pm
by almeiras
Hello again!

So I managed to open my bricked (Nokia) Alcatel-Lucent G-010S-P. I found four empty pads on the board, hopefully the UART pins that I am looking for. Now, I have two questions:
  • Does anybody know the correct pinout? At least, can anybody confirm if these are the UART pins I am looking for?
  • Which soldering iron should I get for this kind of miniature soldering?
This image shows the possible UART pins and the opening procedure:
Thank you very much for your help!

Re: Usage GPON module SFP in Spain

Posted: Tue May 26, 2020 9:18 pm
by JeanPierre
Hello again!

So I managed to open my bricked (Nokia) Alcatel-Lucent G-010S-P. I found four empty pads on the board, hopefully the UART pins that I am looking for. Now, I have two questions:
  • Does anybody know the correct pinout? At least, can anybody confirm if these are the UART pins I am looking for?
  • Which soldering iron should I get for this kind of miniature soldering?
Thank you very much for your help!


Hello almeiras

The UART contacts I am aware of are connected to pins 2 and 7. On the openwrt forum, bmx39 and minhng99 shared photos of their adapters.
https://forum.openwrt.org/t/support-ma5 ... n/48042/24

Restoration of the G-010S-P module is simple. After connecting the adapter, just send the mtd2 and mtd5 firmware from the u-boot level. Our u-boot is factory unlocked. We don't have to jump over obstacles like the owners of the MA5671A module. Remember not to destroy the mtd1 partition that contains the u-boot variables calibrated for this module.

Original firmware 12.09
https://github.com/minhng99/alcatel_luc ... master/mtd

Restoration instructions I copied from here
https://forum.openwrt.org/t/support-ma5 ... n/48042/17
#transfer image mtd2 by Kermit into memory
FALCON => loadb
## Ready for binary (kermit) download to 0x80800000 at 115200 bps...

#to write mtd2(image0)
sf probe 0
sf erase C0000 740000
sf write 80800000 C0000 740000

#transfer image mtd5 by Kermit into memory
FALCON => loadb
## Ready for binary (kermit) download to 0x80800000 at 115200 bps...

#to write mtd5(image1)
sf probe 0
sf erase 800000 740000
sf write 80800000 800000 740000

Re: Usage GPON module SFP in Spain

Posted: Tue May 26, 2020 11:39 pm
by almeiras
Great, thank you so much JeanPierre!

I have already ordered a couple of SFP female connectors for the soldering. My Pi Zero and I are looking forward to some UART flashing!
