/ip firewall mangle
# Identify DNS on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS"
add chain=prerouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes
add chain=postrouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no
# Identify VoIP
add chain=prerouting action=mark-connection new-connection-mark=VOIP port=5060-5062,10000-10050 protocol=udp passthrough=yes comment="VOIP"
add chain=prerouting action=mark-packet connection-mark=VOIP new-packet-mark=VOIP passthrough=no
# Identify HTTP/3 and Google's QUIC
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC"
add chain=prerouting action=mark-packet connection-mark=QUIC new-packet-mark=QUIC passthrough=no
# Identify UPD. Useful for further analysis. Should it be considered high priority or put in the catchall? You decide.
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=UDP protocol=udp passthrough=yes comment="UDP"
add chain=prerouting action=mark-packet connection-mark=UDP new-packet-mark=UDP passthrough=no
# Identify PING on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP"
add chain=prerouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes
add chain=postrouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no

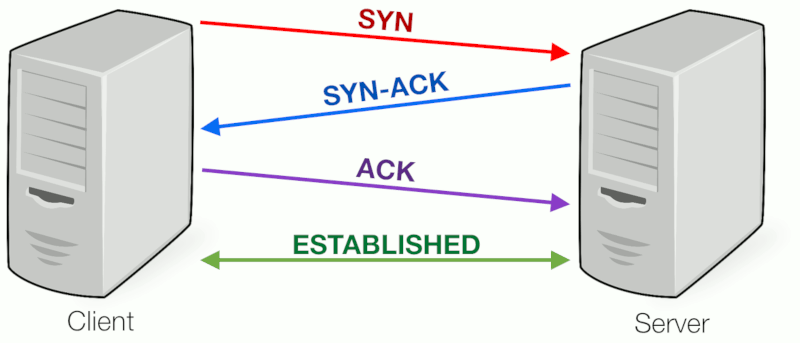

# Identify Acknowledgment packets
add chain=postrouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK"
add chain=prerouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no
# Identify HTTP traffic but move it to a Streaming mark if necessary.
add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP"
add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes
add chain=prerouting action=mark-packet connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add chain=prerouting action=mark-packet connection-mark=HTTP new-packet-mark=HTTP passthrough=no
# Email goes to the catchall
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=POP3 port=995,465,587 protocol=tcp passthrough=yes comment="OTHER"
add chain=prerouting action=mark-packet connection-mark=POP3 new-packet-mark=OTHER passthrough=no
# Unknown goes to the catchall
add chain=prerouting action=mark-connection connection-mark=no-mark new-connection-mark=OTHER passthrough=yes
add chain=prerouting action=mark-packet connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/queue tree
# DOWN
add name=DOWN max-limit=90M parent=LAN bucket-size=0.01 queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default
# UP
add name=UP max-limit=90M parent=WAN bucket-size=0.01 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
# Set protection on VOIP queue, both directions. Also some for HTTP_BIG.
/queue tree
add limit-at=60M max-limit=90M name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add limit-at=60M max-limit=90M name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add limit-at=10M max-limit=90M name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=default
add limit-at=10M max-limit=90M name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=default
/queue type
# default queue behavior
set default kind=sfq
# queue behavior for streaming type traffic
add kind=red red-avg-packet=1514 name=redCustom
# example of how to use red, optionally set for all bulky traffic types
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=redCustom
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=redCustom
Thank you. My intention was to perfect this post and then have it accepted by MikroTik after all the experts had confirmed it. Then, as you say, have it posted in the Wiki.great info, but it's better to use http://wiki.mikrotik.com for such articles - forum is more for questions, not for tutorials
Good idea. Waiting for next parts.Thank you. My intension was to perfect this post and then have it accepted by MikroTik after all the experts had confirmed it. Then, as you say, have it posted in the Wiki.great info, but it's better to use http://wiki.mikrotik.com for such articles - forum is more for questions, not for tutorials
just add two rules at the bottom of the script# HELP! I don't know how to mark what is left?
with connection byte ?Hello everyone. I've tested and updated the script. It now works correctly on RouterOS 6.1. Note that ether1 is WAN and ether2 is LAN. Adjust those as necessary for your environment.
I would appreciate if someone could tell me how to mark big downloads over HTTP traffic. Currently, the script marks port 80 so everything HTTP gets too much priority. The idea situation would be to let short bursts of HTTP traffic get high priority and the big long downloads get less.
Thank you, the answer is to use connection-bytes and connection-rate.>> how to mark big downloads over HTTP traffic?
With connection byte?
I don't think the 2011 talk was referring to v6, maybe it was. But Prerouting not = input + forward. Look at the 3rd image here. The reason I use pre and post on DNS traffic is because the forward chain is not able to mark traffic sourced from the router itself and also traffic coming into the router from LAN.Prerouting = input + forward
Postrouting = output + forward
In your Option 2 configuration You used prerouting and postrouting together. Will these two mangles come into conflict (because of 2 forwards)? If I’ve understood it correctly, in mangle postrouting we mark traffic that goes from the router (output) and through the router (forward). How will this affect the marked traffic from the prerouting and meant for forward? Will it be remarked?
You are correct to wonder, and indeed there is something at issue here. I'm still perfecting this script. Basically what is happening currently, and why this script works for small networks is that: since Queue A is never full (never exceeds capacity) nothing is ever prioritized (dropped) within it. Queue C will always be exceeding capacity and thus traffic marked to go there will indeed be dropped (prioritized) at times. But as you've correctly noticed only at 900k/4M. This means that Queue A gets a 10% window of head room before ISP equipment starts to buffer.Looking at OPTION 2 above....
In Queue A, you have voip = priority 1
In Queue B, you have ack = priority 1
In Queue C, you have http = priority 1
...
Or, if priority is the wrong term, the real question is: What keeps queue C from using up all the bandwidth and not leaving any for queue A, since they are both maxed at 900k/4M?
/ip firewall connection print count-only where protocol="udp" and dst-address~":50.."
Great question. You must understand that the best way to Qos a network is to have enough bandwidth to work with. People want everything ... but that is a tall order.Might there be a way to add anything to this configuration that would help prioritize streaming video for a home network? Looks as though some of the Netflix traffic for example gets lost in the fray when there is heavy traffic marked as HTTP and the quality tends to suffer. I have seen some stuff pointing to L7 pattern matching, but I can honestly say that I do not know how to implement.
There are a couple of people on the board here who you could pay: efaden, sdischer, or IPANetEngineer. They know what they're doing. I was hoping this post would bring out the VoIP experts but sadly they've not seen it yet. This is something we've all got to get nailed down.Great post and pretty much the only thing out there on VoIP QoS at this level that I can find for Router OS.
Have you progressed any yet? There seem to be some key issues still outstanding.
Any further reading recommendations ... other than who the best support person is to pay to do it at Mikrotik?
Make sure you understand how buffering works. Next, it all depends on how many active phone calls you want to support. A single VoIP call is 90kb both directions ... up and down.
Hi pcunite. I'm have 12M/12M. How to set the upload rates and download rates for Voip? Thanks.
add name="LEVEL_A_UP" parent=ether-WAN queue=default max-limit=10M add name="LEVEL_A_DOWN" parent=ether-LAN queue=default max-limit=10M add name="LEVEL_B_UP" parent=ether-WAN queue=default max-limit=10M add name="LEVEL_B_DOWN" parent=ether-LAN queue=default max-limit=10M add name="LEVEL_C_UP" parent=ether-WAN queue=default max-limit=10M add name="LEVEL_C_DOWN" parent=ether-LAN queue=default max-limit=10MJust so you know, my VoIP script is not perfect. It works, however. Until you really know how to master segmenting traffic you'll at least have VoIP calls working correctly.
The order of the rules is important somewhat ... but let me see what you have and I can hopefully spot the error.In testing your script using YouTube media, I am finding that instead of port 80 traffic getting marked with HTTP or HTTP_BIG mark it is ending up getting marked by the UDP rule in mangle. If I disable UDP in mangle then it correctly marks the traffic with HTTP or HTTP_BIG.
Nice find! Like you've said it's only in the comments.Hello! I've noticed something interesting in your rules. [...]
I. Reduce the number of Queue Trees to 2. One for download & one upload. Your goal is to create a unified hierarchy.another router setup using the same script and I am seeing HTTP_D traffic which is supposed to be priority 1 being dropped before the other traffic in Level C which is lower priority.

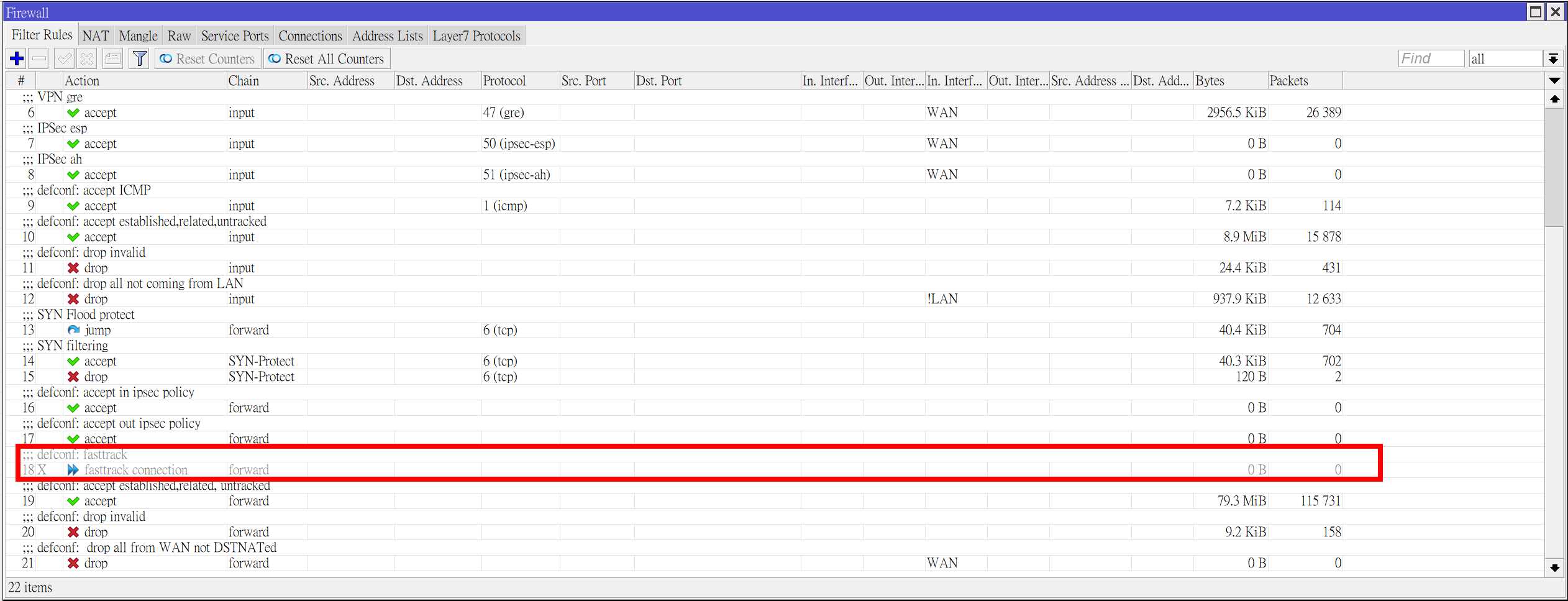

any thoughts? piccy attached.
The pcunite examples won't work well in Your case. You need to create another set of mangle and Queue Tree rules.another problem I can't work out yet is how to associate multiple interfaces to a queue, which I will need in this example since I have seperate LANs on seperate interfaces, but they need to use the same queue. I can't bridge the interfaces and apply it there, because two of the subnets have DHCP services and that all stops working when you add bridges in.
Notes:I am seeing HTTP_D traffic (which is priority 1) being dropped before other traffic in Level C, which has a lower priority.
add action=mark-connection chain=postrouting comment="P2P UP" new-connection-mark=p2pupconn out-interface=ether1 p2p=all-p2p add action=mark-packet chain=postrouting connection-mark=p2pupconn new-packet-mark=p2pup passthrough=no add action=mark-connection chain=prerouting comment="P2P DOWN" in-interface=ether1 new-connection-mark=p2pdownconn p2p=all-p2p add action=mark-packet chain=prerouting connection-mark=p2pdownconn new-packet-mark=p2pdown passthrough=no
/queue tree add max-limit=2800k name=LEVEL_A_UP parent=ether1 priority=7 queue=default add max-limit=2800k name=LEVEL_A_DOWN parent=ether2 priority=7 queue=default add max-limit=2800k name=LEVEL_B_UP parent=ether1 priority=7 queue=default add max-limit=2800k name=LEVEL_B_DOWN parent=ether2 priority=7 queue=default add max-limit=2800k name=LEVEL_C_UP parent=ether1 queue=default add max-limit=2800k name=LEVEL_C_DOWN parent=ether2 queue=default add name=ACK_U packet-mark=ACK parent=LEVEL_A_UP priority=1 queue=default add name=ACK_D packet-mark=ACK parent=LEVEL_A_DOWN priority=1 queue=default add name=DNS_U packet-mark=DNS parent=LEVEL_A_UP priority=2 queue=default add name=DNS_D packet-mark=DNS parent=LEVEL_A_DOWN priority=2 queue=default add name=ICMP_U packet-mark=ICMP parent=LEVEL_A_UP priority=3 queue=default add name=ICMP_D packet-mark=ICMP parent=LEVEL_A_DOWN priority=3 queue=default add name=UDP_U packet-mark=UDP parent=LEVEL_B_UP priority=1 queue=default add name=UDP_D packet-mark=UDP parent=LEVEL_B_DOWN priority=1 queue=default add name=OTHER_U packet-mark=OTHER parent=LEVEL_C_UP priority=1 queue=default add name=OTHER_D packet-mark=OTHER parent=LEVEL_C_DOWN priority=1 queue=default add name=HTTP_U packet-mark=HTTP parent=LEVEL_B_UP priority=3 queue=default add name=HTTP_D packet-mark=HTTP parent=LEVEL_B_DOWN priority=3 queue=default add name=HTTP_BIG_U packet-mark=HTTP_BIG parent=LEVEL_B_UP priority=3 queue=default add name=HTTP_BIG_D packet-mark=HTTP_BIG parent=LEVEL_B_DOWN priority=3 queue=default add name=E-MAIL_U packet-mark=E-MAIL parent=LEVEL_B_UP priority=2 queue=default add name=E-MAIL_D packet-mark=E-MAIL parent=LEVEL_B_DOWN priority=2 queue=default add name=TCP_TORRENT_U packet-mark=TCP_TORRENT parent=LEVEL_C_UP priority=2 queue=default add name=TCP_TORRENT_D packet-mark=TCP_TORRENT parent=LEVEL_C_DOWN priority=2 queue=default add name=UDP_TORRENT_U packet-mark=UDP_TORRENT parent=LEVEL_C_UP priority=2 queue=default add name=UDP_TORRENT_D packet-mark=UDP_TORRENT parent=LEVEL_C_DOWN priority=2 queue=default /ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS port=53 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS port=53 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=UDP_TORRENT connection-state=new new-connection-mark=UDP_TORRENT port=6881-6891 protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP_TORRENT new-packet-mark=UDP_TORRENT passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=E-MAIL connection-state=new new-connection-mark=E-MAIL port=110,995,143,993,25,465,587,2525 protocol=tcp add action=mark-packet chain=prerouting connection-mark=E-MAIL new-packet-mark=E-MAIL passthrough=no add action=mark-connection chain=prerouting comment=HTTP connection-mark=!HTTP_BIG connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=500000-0 connection-mark=HTTP connection-rate=200k-100M new-connection-mark=HTTP_BIG protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=TCP_TORRENT connection-state=new new-connection-mark=TCP_TORRENT port=6881-6891 protocol=tcp add action=mark-packet chain=prerouting connection-mark=TCP_TORRENT new-packet-mark=TCP_TORRENT passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-mark=no-mark new-connection-mark=OTHER add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/ip firewall mangle add chain=forward action=mark-connection protocol=udp src-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" comment="IP-PBX" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP" add chain=forward action=mark-connection protocol=udp dst-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP"You are marking packets twice based on the same options. In my opinion rule 2 can be removed.
0 ;;; VOIP - Voip traffic FROM PBX (5060-5061, 10000-20000 udp)
chain=forward action=mark-connection new-connection-mark=VOIP passthrough=yes connection-state=new protocol=udp
src-address=10.10.20.5 port=5060-5061,10000-20000
1 chain=forward action=mark-packet new-packet-mark=VOIP passthrough=no connection-mark=VOIP
2 ;;; VOIP - Voip traffic TO PBX (5060-5061, 10000-20000 udp)
chain=output action=mark-connection new-connection-mark=VOIP passthrough=yes connection-state=new protocol=udp
dst-address=10.10.20.5 port=5060-5061,10000-20000
3 chain=output action=mark-packet new-packet-mark=VOIP passthrough=no connection-mark=VOIP
4 ;;; V_GENERAL - other traffic FROM voice network
chain=forward action=mark-connection new-connection-mark=V_GENERAL passthrough=yes src-address-list=VoIP_Network
connection-mark=no-mark
5 chain=forward action=mark-packet new-packet-mark=V_GENERAL passthrough=no connection-mark=V_GENERAL
6 ;;; V_GENERAL - other traffic TO voice network
chain=output action=mark-connection new-connection-mark=V_GENERAL passthrough=yes dst-address-list=VoIP_Network
connection-mark=no-mark
7 chain=output action=mark-packet new-packet-mark=V_GENERAL passthrough=no connection-mark=V_GENERAL
8 ;;; DNS
chain=forward action=mark-connection new-connection-mark=DNS passthrough=yes connection-state=new protocol=udp port=53
9 chain=forward action=mark-packet new-packet-mark=DNS passthrough=no connection-mark=DNS
10 chain=output action=mark-connection new-connection-mark=DNS passthrough=yes connection-state=new protocol=udp port=53
11 chain=output action=mark-packet new-packet-mark=DNS passthrough=no connection-mark=DNS
12 ;;; UDP
chain=forward action=mark-connection new-connection-mark=UDP passthrough=yes connection-state=new protocol=udp
13 chain=forward action=mark-packet new-packet-mark=UDP passthrough=no connection-mark=UDP
14 ;;; ICMP
chain=forward action=mark-connection new-connection-mark=ICMP passthrough=yes connection-state=new protocol=icmp
15 chain=forward action=mark-packet new-packet-mark=ICMP passthrough=no connection-mark=ICMP
16 chain=output action=mark-connection new-connection-mark=ICMP passthrough=yes connection-state=new protocol=icmp
17 chain=output action=mark-packet new-packet-mark=ICMP passthrough=no connection-mark=ICMP
18 ;;; ACK
chain=output action=mark-packet new-packet-mark=ACK passthrough=no tcp-flags=ack protocol=tcp packet-size=0-123
19 chain=forward action=mark-packet new-packet-mark=ACK passthrough=no tcp-flags=ack protocol=tcp packet-size=0-123
20 X ;;; HTTP
chain=forward action=mark-connection new-connection-mark=HTTP passthrough=yes connection-state=new protocol=tcp
port=80,443 connection-mark=!HTTP_BIG
21 X chain=forward action=mark-connection new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp connection-mark=HTTP
connection-bytes=500000-0 connection-rate=200k-100M
22 X chain=forward action=mark-packet new-packet-mark=HTTP_BIG passthrough=no connection-mark=HTTP_BIG
23 X chain=forward action=mark-packet new-packet-mark=HTTP passthrough=no connection-mark=HTTP
24 X ;;; THE_REST
chain=forward action=mark-connection new-connection-mark=THE_REST passthrough=yes connection-mark=no-mark
25 X chain=forward action=mark-packet new-packet-mark=THE_REST passthrough=no connection-mark=THE_REST
This section is from Option 1. It is marking "src" and then "dst" to the same ip address. Also, unless MikroTik documentation has changed, one must mark the connection and then the packet for performance.I'm a little curious why you have some rules twice.ros code
/ip firewall mangle add chain=forward action=mark-connection protocol=udp src-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" comment="IP-PBX" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP" add chain=forward action=mark-connection protocol=udp dst-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP"You are marking packets twice based on the same options. In my opinion rule 2 can be removed.
Then first there are two rules marking the connection and setting connection-marks. Then use the connection-mark to mark the packets in one single rule.
add action=mark-connection chain=forward connection-state=new new-connection-mark=UDP protocol=udp
add action=mark-connection chain=forward connection-state=new new-connection-mark=UDP out-interface=ether1 protocol=udp
add action=mark-packet chain=forward connection-mark=UDP new-packet-mark=UDP passthrough=no
add action=mark-connection chain=forward connection-state=new new-connection-mark=VOIP out-interface=ether1 port=5060-5061,10000-20000 protocol=udp src-address=10.10.20.5
add action=mark-connection chain=forward connection-state=new dst-address=10.10.20.5 in-interface=ether1 new-connection-mark=VOIP port=5060-5061,10000-20000 protocol=udp
add action=mark-packet chain=forward connection-mark=HTTP_BIG new-packet-mark=ACK-HTTP-BIG packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=forward connection-mark=HTTP new-packet-mark=ACK-HTTP packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
Thank you for this great explanation!How Buffering and bufferbloat in ISP supplied equipment affects Qos and latency sensitive protocols ...
That is quite a variance! Yes, you are correct ... you can not use "static Qos" techniques to maintain your traffic integrity. There are "dynamic Qos" ways of doing things but that is beyond the scope of this thread and my expertise.Am I correct in my conclusion that without a reasonable estimate of my wan bandwidth, it's impossible to implement qos? Specifically - I have Comcast (cable) and the download speed varies between 60Mbps and 5Mbps
# jun/29/2014 21:38:22 by RouterOS 6.12
# software id = AF8C-ZI5T
#
/ip firewall mangle
#Skype Layer7 Marking
add action=mark-packet chain=prerouting comment=Skype in-interface=PPPoE-UniFi layer7-protocol=skypetoskype new-packet-mark=QoS_1_In passthrough=no
add action=mark-packet chain=postrouting layer7-protocol=skypetoskype new-packet-mark=QoS_1_Out out-interface=PPPoE-UniFi passthrough=no
#VPN Layer 7 Marking
add action=mark-packet chain=prerouting comment=VPN in-interface=PPPoE-UniFi new-packet-mark=QoS_2_In passthrough=no protocol=gre
add action=mark-packet chain=postrouting new-packet-mark=QoS_2_Out out-interface=PPPoE-UniFi passthrough=no protocol=gre
#QoS_4 Steaming Layer 7 Marking
add action=mark-packet chain=prerouting comment="------------QoS_4 [Streaming_Services]------------" in-interface=PPPoE-UniFi layer7-protocol=Streaming new-packet-mark=QoS_4_In passthrough=no
add action=mark-packet chain=postrouting layer7-protocol=Streaming new-packet-mark=QoS_4_Out out-interface=PPPoE-UniFi passthrough=no
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi layer7-protocol=video new-packet-mark=QoS_4_In passthrough=no
add action=mark-packet chain=postrouting layer7-protocol=video new-packet-mark=QoS_4_Out out-interface=PPPoE-UniFi passthrough=no
#QoS_8 Torrent Layer 7 Marking
add action=mark-packet chain=prerouting comment="------------QoS_8 [Torrent_Services]------------" in-interface=PPPoE-UniFi layer7-protocol=Torrent-wwws new-packet-mark=QoS_8_In passthrough=no
add action=mark-packet chain=postrouting layer7-protocol=Torrent-wwws new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi passthrough=no
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi layer7-protocol=torrentDNS new-packet-mark=QoS_8_In passthrough=no
add action=mark-packet chain=postrouting layer7-protocol=torrentDNS new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi passthrough=no
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi new-packet-mark=QoS_8_In p2p=all-p2p passthrough=no
add action=mark-packet chain=postrouting new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi p2p=all-p2p passthrough=no
#QoS_1 Steam
add action=mark-packet chain=prerouting comment="------------QoS_1 [Steam]------------" in-interface=PPPoE-UniFi new-packet-mark=QoS_1_In passthrough=no protocol=tcp src-port=27014-27050
add action=mark-packet chain=postrouting dst-port=27014-27050 new-packet-mark=QoS_1_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi new-packet-mark=QoS_1_In passthrough=no protocol=udp src-port=3478,4379,4380,28960,27000-27030
add action=mark-packet chain=postrouting dst-port=3478,4379,4380,28960,27000-27030 new-packet-mark=QoS_1_Out out-interface=PPPoE-UniFi passthrough=no protocol=udp
#QoS_2 DNS
add action=mark-packet chain=prerouting comment="------------QoS_2 [DNS+NTP_PPTP_Services]------------" in-interface=PPPoE-UniFi new-packet-mark=QoS_2_In passthrough=no protocol=udp src-port=53,123,1723
add action=mark-packet chain=postrouting dst-port=53,123,1723 new-packet-mark=QoS_2_Out out-interface=PPPoE-UniFi passthrough=no protocol=udp
add action=mark-packet chain=prerouting connection-state=new in-interface=PPPoE-UniFi new-packet-mark=QoS_2_In passthrough=no protocol=tcp src-port=52,123,1723
add action=mark-packet chain=postrouting dst-port=52,123,1723 new-packet-mark=QoS_2_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
#QoS_3 WWW Services + General_Services
add action=mark-packet chain=prerouting comment="------------QoS_3 [WWW_Services]------------" connection-bytes=0-1500000 in-interface=PPPoE-UniFi new-packet-mark=QoS_3_In passthrough=no protocol=tcp src-port=80,443
add action=mark-packet chain=postrouting connection-bytes=0-1500000 dst-port=80,443 new-packet-mark=QoS_3_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
add action=mark-packet chain=prerouting comment="------------QoS_3 [General_Services]------------" in-interface=PPPoE-UniFi new-packet-mark=QoS_3_In passthrough=no protocol=tcp src-port=20,21,22,23,25,110,143,465,587,993,995,2525,3535
add action=mark-packet chain=postrouting dst-port=20,21,22,23,25,110,143,465,587,993,995,2525,3535 new-packet-mark=QoS_3_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
#QoS_5 WWW_Heavy
add action=mark-packet chain=prerouting comment="------------QoS_5 [WWW_Services_Heavy]------------" connection-bytes=1500000-0 in-interface=PPPoE-UniFi new-packet-mark=QoS_5_In passthrough=no protocol=tcp src-port=80,443
add action=mark-packet chain=postrouting connection-bytes=1500000-0 dst-port=80,443 new-packet-mark=QoS_5_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
#QoS_8 Other BULK
add action=mark-packet chain=prerouting comment="------------QoS_8 [Other_Services]------------" in-interface=PPPoE-UniFi new-packet-mark=QoS_8_In passthrough=no protocol=tcp
add action=mark-packet chain=postrouting new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi passthrough=no protocol=tcp
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi new-packet-mark=QoS_8_In passthrough=no protocol=udp
add action=mark-packet chain=postrouting new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi passthrough=no protocol=udp
add action=mark-packet chain=prerouting in-interface=PPPoE-UniFi new-packet-mark=QoS_8_In passthrough=no
add action=mark-packet chain=postrouting new-packet-mark=QoS_8_Out out-interface=PPPoE-UniFi passthrough=no
# jun/29/2014 21:27:09 by RouterOS 6.12
# software id = AF8C-ZI5T
#
/queue tree
#Upload
add max-limit=4700k name=QoS_Global_Upload parent=global queue=default
add limit-at=512k max-limit=3M name="QoS_1_Out(Steam)" packet-mark=QoS_1_Out parent=QoS_Global_Upload priority=1 queue=default
add limit-at=100k max-limit=1M name="QoS_2_Out(DNS+NTP+PPTP)" packet-mark=QoS_2_Out parent=QoS_Global_Upload priority=2 queue=default
add limit-at=1500k max-limit=4M name="QoS_3_Out(WWW)" packet-mark=QoS_3_Out parent=QoS_Global_Upload priority=3 queue=default
add burst-limit=3800k burst-time=3s max-limit=3M name="QoS_4_Out(Streaming)" packet-mark=QoS_4_Out parent=QoS_Global_Upload priority=4 queue=default
add burst-limit=3800k burst-time=3s max-limit=3M name="QoS_5_Out(WWW_Heavy)" packet-mark=QoS_5_Out parent=QoS_Global_Upload priority=5 queue=default
add burst-limit=4300k burst-time=3s max-limit=3500k name="QoS_8_Out(Default)" packet-mark=QoS_8_Out parent=QoS_Global_Upload queue=pcq-upload-default
#Download
add max-limit=4800k name=QoS_Global_Download parent=global queue=default
add limit-at=512k max-limit=3M name="QoS_1_In(Steam)" packet-mark=QoS_1_In parent=QoS_Global_Download priority=1 queue=default
add limit-at=100k max-limit=500k name="QoS_2_In(DNS+NTP+PPTP)" packet-mark=QoS_2_In parent=QoS_Global_Download priority=2 queue=default
add burst-limit=3M burst-threshold=2M burst-time=5s limit-at=1500k max-limit=2M name="QoS_3_In(WWW)" packet-mark=QoS_3_In parent=QoS_Global_Download priority=3 queue=default
add burst-limit=2500k burst-threshold=1M burst-time=5s max-limit=1M name="QoS_4_In(Streaming)" packet-mark=QoS_4_In parent=QoS_Global_Download priority=4 queue=default
add burst-limit=3800k burst-time=2s max-limit=1M name="QoS_5_In(WWW_Heavy)" packet-mark=QoS_5_In parent=QoS_Global_Download priority=5 queue=default
add burst-limit=4300k burst-threshold=4M burst-time=3s max-limit=3M name="QoS_8_In(Default+Torrent)" packet-mark=QoS_8_In parent=QoS_Global_Download queue=pcq-download-default
2 X ;;; LYNC | Mark new source connections
chain=forward action=mark-connection new-connection-mark=Lync-Connected
passthrough=yes connection-state=new src-address-list=Lync in-interface=TPG PPPoe
3 X ;;; LYNC | Mark Packet
chain=forward action=mark-packet new-packet-mark=Lync_Packet passthrough=yes
connection-mark=Lync-Connected
4 X ;;; LYNC | Mark new dest connections
chain=forward action=mark-connection new-connection-mark=Lync-Connected
passthrough=yes connection-state=new dst-address-list=Lync
out-interface=TPG PPPoe
5 X ;;; LYNC | Mark Packet
chain=forward action=mark-packet new-packet-mark=Lync_Packet passthrough=no
connection-mark=Lync-Connected
Perhaps not. I don't (often) torrent, so that isn't a concern. But that was in pcunite's original script, and while prioritizing UDP traffic like that wouldn't necessarily have been something I would have thought to do if I were writing a script myself, I saw no reason to change it.dear "alaskanjackal" giving higher priority to udp packets is not good when u download torrents, right?
i think i will place them under http_big
Thanks. I dropped the connection-rate parameter from Mangle and it works now and properly classifies large transfers in HTTP_BIG once 5MB of data has been transferred. This may have negative consequences for some long-lived HTTP TCP connections that don't use up much speed but may, over time, use more than 5MB of data, but I'm thinking it all probably makes very little practical difference in my network.connection-rate is broken from firmware 6.28 and after. i dont understand why mikrotik dont fix it.
http://forum.mikrotik.com/viewtopic.php ... te#p501644
downgrade to 6.28 and you will see that it works!
thank you for the nice qos script
HiImplementing VoIP traffic prioritization (Qos) with RouterOS v6
Option 3 ... coming soon
alaskanjackal,Thanks. I dropped the connection-rate parameter from Mangle and it works now and properly classifies large transfers in HTTP_BIG once 5MB of data has been transferred. This may have negative consequences for some long-lived HTTP TCP connections that don't use up much speed but may, over time, use more than 5MB of data, but I'm thinking it all probably makes very little practical difference in my network.connection-rate is broken from firmware 6.28 and after. i dont understand why mikrotik dont fix it.
http://forum.mikrotik.com/viewtopic.php ... te#p501644
downgrade to 6.28 and you will see that it works!
thank you for the nice qos script
I also made a couple of additional changes just now: I separated out VOIP into VOIP-TCP and VOIP-UDP. I then put VOIP-UDP_D into a separate queue with a parent of my inbound interface (rather than MASTER_DOWN) without a limit. I also moved the other UDP_D outside of MASTER_DOWN with no limit. I think this is probably good practice, since, as I mentioned above, there's no point in dropping inbound UDP packets if they've already made it this far. I left VOIP-TCP_D in the MASTER_DOWN queue with a limit as well as both VOIP-UDP_U and VOIP-TCP_U under MASTER_UP with limits (very unlikely that I'll ever have more than a few dozen Kbps in VoIP traffic, but you never know what might happen, so why not).
Seems to be working, but I'll play with it a bit more before posting a revised script.
RouterOS v6.36.4 working properly, then upgrade to 6.37.3. Bug fix confirmedis already fix after 6.31 or 6.33. i cant remember exactly
u should install and test bugfix version 6.36.4
Sorry for my long absence here.
If I have s2s ipsec VPN will it go into "OTHER"?Implementing VoIP traffic prioritization (Qos) with RouterOS v6 – Option 2
I also do not understand how LEVEL_A_ gets priority over LEVEL_B_ and then over LEVEL_C_.Implementing VoIP traffic prioritization (Qos) with RouterOS v6 – Option 2
In my opinion, the only way to understand how the traffic prioritization works is to try to implement a simple one on your own and debug it, not to try to understand someone else's complex example like the one above. Once you understand how it works using your simple case, reading the complex example becomes much easier.If I have s2s ipsec VPN will it go into "OTHER"?Implementing VoIP traffic prioritization (Qos) with RouterOS v6 – Option 2
Funny. To me the idea of setting the DSCP field doesn't sound complicated at all as it is basically a single mangle rule. What may be complicated is to distinguish VoIP packets from non-VoIP ones but if you reserve an address range or subnet on each site for your VoIP devices, or if you can ask the VoIP devices to set the DSCP themselves, it is also not very complex. Softphones are a problem unless they can set DSCP themselves because they cannot be identified by IP address and the PCs they run at generate both kinds of traffic.I think I will forget about putting VoIP into VPN, this definitely sounds to complicated. And I will try to tune the example I have already implemented. Just after I understood how LEVEL_A_ gets priority over LEVEL_B_ and then over LEVEL_C_
Do you use VoIP phones or analog/ISDN phones and only the PBXes would talk VoIP to each other? If VoIP phones, do the PBXes tell the phones to send media to each other directly or do they force themselves into the media path? All that plays a role - if VoIP phones send media directly to each other, they must set DSCP or you must do it on their behalf when forwarding the packets to the remote site.Looks like my PBX boxes are adding DSCP = 40 already, I just afraid that by putting this traffic into VPN will add unnecessary overheat and I will end up with having bigger disaster that I have now.
Yes but not only, you must also give the LEVEL_B queue the lowest priority among all the other child queues of LEVEL_A. And LEVEL_C must have the lowest priority among all child queues of LEVEL_B.So to make LEVEL_B and LEVEL_C always lower priority than LEVEL_A I will change parent of B and C to A?
That's the role of DSCP as mentioned in the other (s2s) thread. The "plaintext" traffic on the WAN can be classified as "TCP" and "other protocols" directly; the IPsec transport packets will either be ESP ones or UDP ones (depending on existence of NAT in the path) with a particular source and destination; whether "TCP" or "other" is encrypted inside them can only be determined if the sending side sets the DSCP field and the transit through internet doesn't destroy it completely.I also have ipsec s2s not for the purpose of VoIP, to completely different site. It is moatly RDP.
Since IPsec s2s is also UDP (I think), how I can put it "to not disturb" my VoIP but not to go into LEVEL_C / OTHER?
Should LEVEL_A as a parent of everything haveYes but not only, you must also give the LEVEL_B queue the lowest priority among all the other child queues of LEVEL_A. And LEVEL_C must have the lowest priority among all child queues of LEVEL_B.So to make LEVEL_B and LEVEL_C always lower priority than LEVEL_A I will change parent of B and C to A?
priority=1
add name="LEVEL_A_UP" parent=ether-WAN queue=default max-limit=900k [b]priority=1
[/b]add name="LEVEL_A_DOWN" parent=bridge-LAN queue=default max-limit=4M [b]priority=1
[/b]add name="VOIP_U" parent="LEVEL_A_UP" packet-mark="VOIP" queue=default priority=1
add name="VOIP_D" parent="LEVEL_A_DOWN" packet-mark="VOIP" queue=default priority=1
add name="LEVEL_B_UP" parent=LEVEL_A_UP queue=default max-limit=[b]something smaler than parent A[/b] [b]priority=2
[/b]add name="LEVEL_B_DOWN" parent=LEVEL_A_DOWN queue=default max-limit=something smaler than parent A [b]priority=2
[/b]
add name="ACK_U" parent="LEVEL_B_UP" packet-mark="ACK" queue=default priority=1
add name="ACK_D" parent="LEVEL_B_DOWN" packet-mark="ACK" queue=default priority=1
add name="SOMETHING" parent="LEVEL_B_UP" packet-mark="SOMETHING" queue=default [b]priority=7
[/b]add name="SOMETHING" parent="LEVEL_B_DOWN" packet-mark="SOMETHING" queue=default [b]priority=7
[/b]
add name="LEVEL_C_UP" parent=[b]LEVEL_B_UP[/b] queue=default max-limit=[b]something smaler than parent B[/b] [b]priority=8
[/b]add name="LEVEL_C_DOWN" parent=[b]LEVEL_B_UP[/b] queue=default max-limit=[b]something smaler than parent B[/b] [b]priority=8
[/b]
add name="HTTP_U" parent="LEVEL_C_UP" packet-mark="HTTP" queue=default [b]priority=1
[/b]add name="HTTP_D" parent="LEVEL_C_DOWN" packet-mark="HTTP" queue=default [b]priority=1
[/b]
add name="OTHER_U" parent="LEVEL_C_UP" packet-mark="OTHER" queue=default priority=8
add name="OTHER_D" parent="LEVEL_C_DOWN" packet-mark="OTHER" queue=default priority=8
I don't like to provide theoretical-only answers and as I've stated several times, I didn't have a strong enough reason to test this practically so far. So already my previous response was wrong, as the manual says the following:Should LEVEL_A as a parent of everything haveYes but not only, you must also give the LEVEL_B queue the lowest priority among all the other child queues of LEVEL_A. And LEVEL_C must have the lowest priority among all child queues of LEVEL_B.So to make LEVEL_B and LEVEL_C always lower priority than LEVEL_A I will change parent of B and C to A??Code: Select allpriority=1
Does priority is valid only among members of the same branch. So all children in sub branch will always step down to traffic if they parent priority is smaller than priority of an other branches on the same level. Does not mutter they have 1 but there is another purrent that have 7 ant they parrent has 8?
Regarding bandwidth, how to make C not to stal everything from B, and then B not to eat everything of A.
Do I need to change theirs max-limit to be smaller from each other?
and the example of proper "do not disturb my VoIP" should look like:
Code: Select alladd name="LEVEL_A_UP" parent=ether-WAN queue=default max-limit=900k [b]priority=1 [/b]add name="LEVEL_A_DOWN" parent=bridge-LAN queue=default max-limit=4M [b]priority=1 [/b]add name="VOIP_U" parent="LEVEL_A_UP" packet-mark="VOIP" queue=default priority=1 add name="VOIP_D" parent="LEVEL_A_DOWN" packet-mark="VOIP" queue=default priority=1 add name="LEVEL_B_UP" parent=LEVEL_A_UP queue=default max-limit=[b]something smaler than parent A[/b] [b]priority=2 [/b]add name="LEVEL_B_DOWN" parent=LEVEL_A_DOWN queue=default max-limit=something smaler than parent A [b]priority=2 [/b] add name="ACK_U" parent="LEVEL_B_UP" packet-mark="ACK" queue=default priority=1 add name="ACK_D" parent="LEVEL_B_DOWN" packet-mark="ACK" queue=default priority=1 add name="SOMETHING" parent="LEVEL_B_UP" packet-mark="SOMETHING" queue=default [b]priority=7 [/b]add name="SOMETHING" parent="LEVEL_B_DOWN" packet-mark="SOMETHING" queue=default [b]priority=7 [/b] add name="LEVEL_C_UP" parent=[b]LEVEL_B_UP[/b] queue=default max-limit=[b]something smaler than parent B[/b] [b]priority=8 [/b]add name="LEVEL_C_DOWN" parent=[b]LEVEL_B_UP[/b] queue=default max-limit=[b]something smaler than parent B[/b] [b]priority=8 [/b] add name="HTTP_U" parent="LEVEL_C_UP" packet-mark="HTTP" queue=default [b]priority=1 [/b]add name="HTTP_D" parent="LEVEL_C_DOWN" packet-mark="HTTP" queue=default [b]priority=1 [/b] add name="OTHER_U" parent="LEVEL_C_UP" packet-mark="OTHER" queue=default priority=8 add name="OTHER_D" parent="LEVEL_C_DOWN" packet-mark="OTHER" queue=default priority=8
I'm a little curious why you have some rules twiceros code
/ip firewall mangle add chain=forward action=mark-connection protocol=udp src-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" comment="IP-PBX" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP" add chain=forward action=mark-connection protocol=udp dst-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP"You are marking packets twice based on the same options. In my opinion rule 2 can be removed.
Then first there are two rules marking the connection and setting connection-marks. Then use the connection-mark to mark the packets in one single rule.
Should this topic be moved to Useful user articles forum?
isn't it enough to just mark it once? once a packet is read, it will be marked with connection mark, connection mark works both ways upload and download in which case you can mark the packet and be used in queue tree.I'm a little curious why you have some rules twiceros code
/ip firewall mangle add chain=forward action=mark-connection protocol=udp src-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" comment="IP-PBX" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP" add chain=forward action=mark-connection protocol=udp dst-address=192.168.100.5 connection-state=new new-connection-mark="VOIP" add chain=forward action=mark-packet passthrough=no connection-mark="VOIP" new-packet-mark="VOIP"You are marking packets twice based on the same options. In my opinion rule 2 can be removed.
Then first there are two rules marking the connection and setting connection-marks. Then use the connection-mark to mark the packets in one single rule.
This two rules are not the same... src/dst address are in use
Your understanding is correct in terms that the rule translating connection-mark into packet-mark may be there only once (as the last one after the two assigning the connection-mark). Regarding the need for two rules assigning the connection-mark, it is a more complex question.is my understanding correct?
Thanks for the detailed explanation!Your understanding is correct in terms that the rule translating connection-mark into packet-mark may be there only once (as the last one after the two assigning the connection-mark). Regarding the need for two rules assigning the connection-mark, it is a more complex question.is my understanding correct?
One approach would be to have only one such rule (for src- or dst-address) and say that if a single packet in the "wrong" direction doesn't get connection-marked, it causes no harm as the first subsequent packet in the opposite direction will fix this. The other approach, however, is to save CPU by having the connection-mark->packet-mark translation rule before the connection-marking rules so that these rules would only handle packets belonging to not yet marked connections. And this is usually combined with allowing these rules to handle only the initial packet of each connection (connection-state=new), so then you need to use both rules because you don't know in advance which RTP packet will be the first one in a given call.
And of course, the translation rules have to be doubled in the latter case - the first one handles packets belonging to already marked connections early in the chain, and the other one has to be there to handle the translation for the initial packets after the connection-mark has been just assigned.
I am also writing here because I have not found a solution. Has anyone managed to give priority to VoIP, and to work with no problem, with full load on the line? My problem is this.
I have a CRS109-8G.I am also writing here because I have not found a solution. Has anyone managed to give priority to VoIP, and to work with no problem, with full load on the line? My problem is this.
Someday, I hope to do another write up on this subject, when I get time. I had hoped that one would not need to be an expert to get this correct, but as of 2019, it still does. However, I think a better article would help.
From the moment that audio transmits from your equipment, until it gets back, there must not be greater than a 150ms interruption (or thereabout) otherwise you will notice the delay. Now, think about everything that an audio packet has to go through to make that happen. When you understand that, you'll have solved your VoIP issue.
The permanent fix, a separate Internet service line. Can't do that? Then fast hardware performing QoS where VoIP packets get the best treatment when bad things happen (and they will).
I have a CRS109-8G. With ubiquity the result is much better.
I don't believe that the problem is the hw specifications of CRC.I have a CRS109-8G. With ubiquity the result is much better.
I would not use the CRS109 for QoS tasks. Too under powered in my opinion. However, there are many variables.
Version 3, running smooth
/queue tree
# DOWN
add name=DOWN max-limit=90M parent=BR_LAN queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default
# UP
add name=UP max-limit=90M parent=ether1 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
/ip firewall mangle
add chain=prerouting action=mark-connection new-connection-mark=VOIP port=4244,5222,5223,5228,5242,50318,59234,1119,3724,6113 protocol=tcp passthrough=yes comment="VOIP"
How to add some TCP ports and prioritize them as VOIP? can I simply do this and it will be enough?
/queue tree
# DOWN
add name=DOWN max-limit=9M parent=LAN queue=default
add name="1. Gaming" packet-mark=Gaming parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default
# UP
add name=UP max-limit=540k parent=WAN queue=default
add name="1. Gaming_" packet-mark=Gaming parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
#DOWN
add name=DOWN max-limit=1M parent=LAN queue=default
# UP
add name=UP max-limit=100k parent=WAN queue=default
I will still get : Download Mbps 9.68, Upload Mbps 0.56
How is this possible?
friend how is your connection dial and packet marking in mangrove?version 3, running smooth
I found it today! Thank you!You can not use Fast Track and Queues Tree together.
do you prefer to put highest priority 1 (in my situation game : Apex) to fast track?
with connection byte ?Hello everyone. I've tested and updated the script. It now works correctly on RouterOS 6.1. Note that ether1 is WAN and ether2 is LAN. Adjust those as necessary for your environment.
I would appreciate if someone could tell me how to mark big downloads over HTTP traffic. Currently, the script marks port 80 so everything HTTP gets too much priority. The idea situation would be to let short bursts of HTTP traffic get high priority and the big long downloads get less.
what about when there are several LAN interfaces?
If anyone can add a tutorial on how to conduct QoS on CRS328-24P-4S+RM that would be great...........
Shouldn't the topic be moved to viewforum.php?f=23?
- Set the two parent queues (UP and DOWN) to have a bucket-size of 0.005.
- Create a bulkUp queue of kind PCQ, set the pcq-limit to 11*[upload rate in Mbps] (100ms of upload bandwidth) and the pcq-total-limit to 10 times that. Select all 4 classifier options.
- Create a bulkDown queue of kind sqf.
- Change the default queue to sfq.
- Set the HTTP/HTTP_BIG/QUIC/OTHER queues to be bulkUp in the UP direction, and bulkDown in the DOWN direction.
Moved. Topic ID is the same, so all links are still valid.I'm okay with that. Please keep the original url and redirect it to whatever the new one will be.
/ip firewall mangle add action=mark-packet chain=postrouting comment="mgmt prio winbox" \
dst-address=<dudeserver-mgmt-IP> new-packet-mark=dscp.48 passthrough=no protocol=tcp src-port=8291
/ip firewall mangle add action=mark-packet chain=postrouting comment=dscp.0_no-marking disabled=no \
dscp=0 new-packet-mark=dscp.0 passthrough=no
/ip firewall mangle add action=mark-packet chain=postrouting comment=dscp.46_VoIP-marking disabled=no \
dscp=46 new-packet-mark=dscp.46 passthrough=no
/ip firewall mangle add action=mark-packet chain=postrouting comment=dscp.48_network-mark disabled=no \
dscp=48 new-packet-mark=dscp.48 passthrough=no
:for x from 1 to 45 do={/ip firewall mangle add action=mark-packet chain=postrouting \
comment=dscp.1-45 disabled=no dscp=$x new-packet-mark=dscp.other passthrough=no}
/ip firewall mangle add action=mark-packet chain=postrouting comment=dscp.47 disabled=no \
dscp=47 new-packet-mark=dscp.other passthrough=no
:for x from 49 to 63 do={/ip firewall mangle add action=mark-packet chain=postrouting \
comment=dscp.49-63 disabled=no dscp=$x new-packet-mark=dscp.other passthrough=no}
/ipv6 firewall mangle add action=mark-packet chain=postrouting comment="mgmt prio winbox" \
dst-address=<dudeserver-mgmt-IP> new-packet-mark=dscp.48 passthrough=no protocol=tcp src-port=8291
/ipv6 firewall mangle add action=mark-packet chain=postrouting comment=dscp.0_no-marking disabled=no \
dscp=0 new-packet-mark=dscp.0 passthrough=no
/ipv6 firewall mangle add action=mark-packet chain=postrouting comment=dscp.46_VoIP-marking disabled=no \
dscp=46 new-packet-mark=dscp.46 passthrough=no
/ipv6 firewall mangle add action=mark-packet chain=postrouting comment=dscp.48_network-mark disabled=no \
dscp=48 new-packet-mark=dscp.48 passthrough=no
:for x from 1 to 45 do={/ipv6 firewall mangle add action=mark-packet chain=postrouting \
comment=dscp.1-45 disabled=no dscp=$x new-packet-mark=dscp.other passthrough=no}
/ipv6 firewall mangle add action=mark-packet chain=postrouting comment=dscp.47 disabled=no \
dscp=47 new-packet-mark=dscp.other passthrough=no
:for x from 49 to 63 do={/ipv6 firewall mangle add action=mark-packet chain=postrouting \
comment=dscp.49-63 disabled=no dscp=$x new-packet-mark=dscp.other passthrough=no}
/queue tree
add max-limit=666k name=line01 parent=ppp-out-line1 queue=default
add name="line01_dscp-48-prio=2" packet-mark=dscp.48 parent=line01 priority=2
add name="line01_dscp-46-prio=3" packet-mark=dscp.46 parent=line01 priority=3
add name="line01_dscp-other-prio=7" packet-mark=dscp.other parent=line01 priority=7
add name="line01_dscp-none_besteffort" packet-mark=dscp.0 parent=line01
/queue tree
add max-limit=1000M name=ether2-queue parent=ether2 queue=default
add name="ether2_dscp-48-prio=2" packet-mark=dscp.48 parent=ether2-queue priority=2
add name="ether2_dscp-46-prio=3" packet-mark=dscp.46 parent=ether2-queue priority=3
add name="ether2_dscp-other-prio=7" packet-mark=dscp.other parent=ether2-queue priority=7
add name="ether2_dscp-none_besteffort" packet-mark=dscp.0 parent=ether2-queue
class-map match-any MEDIA
match dscp ef
class-map match-all VOICE
description express forward = VoIP
match ip dscp ef
class-map match-any SIGNALING
description VoIP Signalling
match ip dscp cs3
match dscp cs3
match dscp af31
policy-map VOIP1M
description VoIP Prio for 1Mbit
class SIGNALING
bandwidth 100
class MEDIA
bandwidth 1000
class class-default
fair-queue
policy-map 10MVOIP
class class-default
shape average 10000000
service-policy VOIP1M
sh policy-map interface Vi2.17
Virtual-Access2.17
SSS session identifier 447 -
Service-policy output: 30MVOIP
Class-map: class-default (match-any)
7255033 packets, 949096170 bytes
30 second offered rate 0000 bps, drop rate 0000 bps
Match: any
Queueing
queue limit 64 packets
(queue depth/total drops/no-buffer drops) 0/1401/0
(pkts output/bytes output) 5906077/903171025
shape (average) cir 30000000, bc 120000, be 120000
target shape rate 30000000
Service-policy : VOIP1M
Class-map: SIGNALING (match-any)
614466 packets, 396421487 bytes
30 second offered rate 0000 bps, drop rate 0000 bps
Match: ip dscp cs3 (24)
Match: dscp cs3 (24)
Match: dscp af31 (26)
Queueing
queue limit 64 packets
(queue depth/total drops/no-buffer drops) 0/0/0
(pkts output/bytes output) 614468/396422741
bandwidth 100 kbps
Class-map: MEDIA (match-any)
453497 packets, 102353156 bytes
30 second offered rate 0000 bps, drop rate 0000 bps
Match: dscp ef (46)
Queueing
queue limit 64 packets
(queue depth/total drops/no-buffer drops) 0/0/0
(pkts output/bytes output) 453497/102353156
bandwidth 1000 kbps
Class-map: class-default (match-any)
6187064 packets, 450322568 bytes
30 second offered rate 0000 bps, drop rate 0000 bps
Match: any
Queueing
queue limit 64 packets
(queue depth/total drops/no-buffer drops/flowdrops) 0/1401/0/1401
(pkts output/bytes output) 4838112/404395128
Fair-queue: per-flow queue limit 16 packets
Need text here for the code block to work.Wow, thank you for doing this. To remove any ambiguity, would you please post your queue config (between code tags) so I can study it? How well did my reference implementation do for you? I want to make sure that your config is not too specific to your needs as we do need something general that people can start and learn from.
/queue type
set 0 kind=sfq
add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB
add kind=sfq name=bulkDown
/queue tree
add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=bulkDown
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=bulkDown
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=bulkDown
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=bulkDown
add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=bulkUp
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=bulkUp
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=bulkUp
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=bulkUp
/ip firewall mangle
add action=mark-connection chain=prerouting comment="SPARSE by default" connection-mark=no-mark new-connection-mark=SPARSE passthrough=yes
add action=mark-connection chain=postrouting connection-mark=no-mark new-connection-mark=SPARSE passthrough=yes
add action=mark-connection chain=prerouting comment="SPARSE low rate" new-connection-mark=SPARSE connection-rate=0-1000 passthrough=yes
add action=mark-connection chain=postrouting new-connection-mark=SPARSE connection-rate=0-1000 passthrough=yes
add action=mark-connection chain=prerouting comment="SPARSE first packets when idle or new" new-connection-mark=SPARSE_FORCE connection-rate=0-1 dst-limit=1,1,addresses-and-dst-port/1m40s passthrough=yes
add action=mark-connection chain=postrouting new-connection-mark=SPARSE_FORCE connection-rate=0-1 dst-limit=1,1,addresses-and-dst-port/1m40s passthrough=yes
add action=mark-connection chain=prerouting comment="BULK large packets in idle or new" connection-mark=SPARSE new-connection-mark=BULK packet-size=!0-500 connection-rate=0-1 passthrough=yes
add action=mark-connection chain=postrouting connection-mark=SPARSE new-connection-mark=BULK packet-size=!0-500 connection-rate=0-1 passthrough=yes
add action=mark-connection chain=prerouting comment="BULK high rate" new-connection-mark=BULK connection-rate=!0-10000 passthrough=yes
add action=mark-connection chain=postrouting new-connection-mark=BULK connection-rate=!0-10000 passthrough=yes
add action=mark-connection chain=prerouting connection-mark=SPARSE_FORCE new-connection-mark=SPARSE passthrough=yes
add action=mark-connection chain=postrouting connection-mark=SPARSE_FORCE new-connection-mark=SPARSE passthrough=yes
add action=mark-packet chain=prerouting connection-mark=BULK new-packet-mark=BULK passthrough=no
add action=mark-packet chain=postrouting connection-mark=BULK new-packet-mark=BULK passthrough=no
add action=mark-packet chain=prerouting connection-mark=SPARSE new-packet-mark=SPARSE passthrough=no
add action=mark-packet chain=postrouting connection-mark=SPARSE new-packet-mark=SPARSE passthrough=no
/ip firewall mangle
/queue type
/queue tree
add max-limit=36M name=UP packet-mark=no-mark parent=WAN1 queue=default
add max-limit=90M name=DOWN packet-mark=no-mark parent=BR1 queue=default
/ip firewall mangle
add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=VOIP passthrough=yes port=5060-5062,10000-20000 protocol=udp
add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no
add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 \
protocol=udp
add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no
add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp
add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no
add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP passthrough=\
yes port=80,443 protocol=tcp
add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=\
HTTP_BIG passthrough=yes protocol=tcp
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no
add action=mark-connection chain=prerouting comment=OTHER connection-state=new new-connection-mark=POP3 passthrough=yes port=995,465,587 \
protocol=tcp
add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no
add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=OTHER passthrough=yes
add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/queue type
add kind=red name=customRED red-avg-packet=1514
/queue tree
add max-limit=36M name=UP parent=WAN1 queue=default
add max-limit=90M name=DOWN parent=BR1 queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=customRED
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=customRED
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=customRED
add name="9. OTHER" packet-mark=OTHER parent=DOWN queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=customRED
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=customRED
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=customRED
add name="9. OTHER_" packet-mark=OTHER parent=UP queue=default
# Mangle is as above
/queue type
set 0 kind=sfq
add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB
/queue tree
add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default
add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=bulkUp
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=bulkUp
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=bulkUp
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=bulkUp
/ip firewall mangle
add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp
add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=PRIO passthrough=yes port=5060-5062,10000-20000 protocol=udp
add action=mark-packet chain=postrouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no
add action=mark-packet chain=prerouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no
add action=mark-packet chain=postrouting comment=ACK new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=prerouting new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=postrouting comment=Sparse connection-rate=0-1 dst-limit=5,2,addresses-and-dst-port/1m40s new-packet-mark=\
SPARSE passthrough=no
add action=mark-packet chain=postrouting connection-rate=1-10k new-packet-mark=SPARSE passthrough=no
add action=mark-packet chain=postrouting comment=Bulk new-packet-mark=BULK passthrough=no
/queue type
set 0 kind=sfq
add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB
/queue tree
add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default
add name="1. Priority" packet-mark=PRIO parent=DOWN priority=1 queue=default
add name="2. Sparse" packet-mark=SPARSE parent=DOWN priority=2 queue=default
add name="3. Bulk" packet-mark=BULK parent=DOWN priority=3 queue=default
add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default
add name="1. Priority_" packet-mark=PRIO parent=UP priority=1 queue=default
add name="2. Sparse_" packet-mark=SPARSE parent=UP priority=2 queue=default
add name="3. Bulk_" packet-mark=BULK parent=UP priority=3 queue=bulkUp
Hi, I am trying your configuration. Until now there are too much drops ACK upload packets than HTTP or HTTP_BIG packets. Download ACK packets are not dropped. Is this normal?I've done some testing with a closer server. Four cases considered: baseline, QOS2020, QOS2020-Optimised (my recommended changes), mikroCAKE (pseudo-CAKE implementation).
Graphs of the bandwidth vs latency, and a latency distribution plot. All tests were Perth to Sydney, 30 seconds of baseline either side of a 120 second test. Local connection is 100/40 Mbps fibre, remote connection is 1000/250 Mbps OVH dedicated server. I've used 90% of the rated line speed locally for the settings.
Configuration exports below
Baseline
QOS2020Code: Select all/ip firewall mangle /queue type /queue tree add max-limit=36M name=UP packet-mark=no-mark parent=WAN1 queue=default add max-limit=90M name=DOWN packet-mark=no-mark parent=BR1 queue=default
QOS2020 - OptimisedCode: Select all/ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=VOIP passthrough=yes port=5060-5062,10000-20000 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP passthrough=\ yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=\ HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=new new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=OTHER passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no /queue type add kind=red name=customRED red-avg-packet=1514 /queue tree add max-limit=36M name=UP parent=WAN1 queue=default add max-limit=90M name=DOWN parent=BR1 queue=default add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=customRED add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=customRED add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=customRED add name="9. OTHER" packet-mark=OTHER parent=DOWN queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=customRED add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=customRED add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=customRED add name="9. OTHER_" packet-mark=OTHER parent=UP queue=default
mikroCAKECode: Select all# Mangle is as above /queue type set 0 kind=sfq add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB /queue tree add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=bulkUp add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=bulkUp add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=bulkUp add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=bulkUp
Code: Select all/ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp add action=mark-connection chain=postrouting connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=PRIO passthrough=yes port=5060-5062,10000-20000 protocol=udp add action=mark-packet chain=postrouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no add action=mark-packet chain=prerouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=postrouting comment=Sparse connection-rate=0-1 dst-limit=5,2,addresses-and-dst-port/1m40s new-packet-mark=\ SPARSE passthrough=no add action=mark-packet chain=postrouting connection-rate=1-10k new-packet-mark=SPARSE passthrough=no add action=mark-packet chain=postrouting comment=Bulk new-packet-mark=BULK passthrough=no /queue type set 0 kind=sfq add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB /queue tree add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default add name="1. Priority" packet-mark=PRIO parent=DOWN priority=1 queue=default add name="2. Sparse" packet-mark=SPARSE parent=DOWN priority=2 queue=default add name="3. Bulk" packet-mark=BULK parent=DOWN priority=3 queue=default add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default add name="1. Priority_" packet-mark=PRIO parent=UP priority=1 queue=default add name="2. Sparse_" packet-mark=SPARSE parent=UP priority=2 queue=default add name="3. Bulk_" packet-mark=BULK parent=UP priority=3 queue=bulkUp
I second this question. I have similar problems. Would it be similar with QOS?Thank you so much for this!
I have 940mbps/35mbps cable using a RB4011 router. When applying the optimized QOS, I see better results at dslreport's bufferbloat test, but my overall throughput is much lower, around 500mbps. Is there a way to have QOS and still have close to line speeds with this model?
Thank you again!
Nice thread.How to Mark the Traffic Types:
phpBB that this forum is based on do support private message user/user user/admin etc, but for some reason MikroTik has turned this function off. It would be nice to have it one, since there are times you like to exchange private information that are not for all to read.I have a question to ask the admins (how do we private message you and talk about the forums)? I am planning on rewriting this article. What is the best course of action to maintain the link (which is pinned and also maybe linked elsewhere)? I would like for all posts to be deleted except for the first six ones (I'm going to go back and edit my own). Is there a better recommendation?
Before @pcunite addresses that, a quick answer:Do you need to mark the connection before mark the packet? Yes/No/Why?
Do you need to mark the connection before mark the packet? Yes/No/Why? Please add some words about this in your second post where you talk about marking.
Yes, that would work too. The only drawback is that matching two items (protocol & port) takes more CPU than matching just one (connection mark), and if you start thinking about discrimination between several categories of http connections, so you start matching e.g. address lists, the amount of CPU power spent on handling every single packet in the firewall grows even higher.I could mark the HTTP packets directly by setting TCP and port 80 and select mark packet, without marking connection?
Set parent queues to have a bucket-size of 0.005. Changed the default queue to sfq. (Using red gave similar performance, but multiple downloads seemed less fair). Rationale for the 0.005 size is to copy CoDel as much as possible.
@pcunite
No worries. I'll see if I can rerun the test graphs with the updated baseline when office reopens.
TCP and QUIC are stream protocols - as in you have a large amount of data and you will send multiple packets to transfer it. What the connection methods do is to drop some packets as a signal that the stream should slow down. So we are using RED for example to say 'speed up' or 'slow down'. TCP and QUIC have built in mechanisms to resend lost data so it doesn't cause much issue to drop data.the congestion methods mentioned all seem to apply to TCP exclusively
You may create a simple queues entry specifying the target IP or the entire interface you want to prioritize.My network only have two devices connect to one HAP AC2 through 2 RJ45 cable.(one is an openwrt router, and other is windows 7 computer)
What is the most effecient way to make windows 7 computer the higher priority than the other?
Maybe something like mac/ether port based QoS can be easily set up? (for ex, ether2 in bridge1 is higher priority than ether3 in bridge1)
Thanks.
Yeah, that would get the job done for OP but beware that doing that on a wireless network will also limit LAN-LAN speed. I say this since I've seen lots of tutorials suggesting people do this.You may create a simple queues entry specifying the target IP or the entire interface you want to prioritize.
/ip firewall mangle
add action=mark-connection chain=forward comment=MAIN-DOWNLOAD connection-state=new in-interface=bridge new-connection-mark=main-download passthrough=yes
add action=mark-packet chain=forward connection-mark=main-download new-packet-mark=main-download passthrough=yes
add action=mark-connection chain=forward comment=GUEST-DOWNLOAD connection-state=new in-interface=bridge-invitados new-connection-mark=guest-download passthrough=yes
add action=mark-packet chain=forward connection-mark=guest-download new-packet-mark=guest-download passthrough=yes
add action=mark-connection chain=forward comment=MAIN-UPLOAD connection-state=new new-connection-mark=main-upload out-interface=bridge passthrough=yes
add action=mark-packet chain=forward connection-mark=main-upload new-packet-mark=main-upload passthrough=yes
add action=mark-connection chain=forward comment=GUEST-UPLOAD connection-state=new new-connection-mark=guest-upload out-interface=bridge-invitados passthrough=yes
add action=mark-packet chain=forward connection-mark=guest-upload new-packet-mark=guest-upload passthrough=yes
add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=VOIP passthrough=yes port=5060-5062,10000-20000 protocol=udp
add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no
add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 protocol=udp
add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no
add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp
add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no
add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP passthrough=yes port=80,443 protocol=tcp
add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no
add action=mark-connection chain=prerouting comment=OTHER connection-state=new new-connection-mark=POP3 passthrough=yes port=995,465,587 protocol=tcp
add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no
add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=OTHER passthrough=yes
add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/queue tree
add max-limit=68M name=GLOBAL-DOWN parent=global queue=default
add bucket-size=0.005 max-limit=68M name=MAIN-DOWN packet-mark=main-download parent=GLOBAL-DOWN priority=1 queue=default
add name="1. VOIP" packet-mark=VOIP parent=MAIN-DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=MAIN-DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=MAIN-DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=MAIN-DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=MAIN-DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=MAIN-DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=MAIN-DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=MAIN-DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=MAIN-DOWN queue=default
add bucket-size=0.005 max-limit=20M name=GUEST-DOWN packet-mark=guest-download parent=GLOBAL-DOWN priority=2 queue=default
add name="1. VOIP_GD" packet-mark=VOIP parent=GUEST-DOWN priority=1 queue=default
add name="2. DNS_GD" packet-mark=DNS parent=GUEST-DOWN priority=2 queue=default
add name="3. ACK_GD" packet-mark=ACK parent=GUEST-DOWN priority=3 queue=default
add name="4. UDP_GD" packet-mark=UDP parent=GUEST-DOWN priority=3 queue=default
add name="5. ICMP_GD" packet-mark=ICMP parent=GUEST-DOWN priority=4 queue=default
add name="6. HTTP_GD" packet-mark=HTTP parent=GUEST-DOWN priority=5 queue=default
add name="7. HTTP_BIG_GD" packet-mark=HTTP_BIG parent=GUEST-DOWN priority=6 queue=default
add name="8. QUIC_GD" packet-mark=QUIC parent=GUEST-DOWN priority=7 queue=default
add max-limit=70M name=GLOBAL-UP parent=global queue=default
add bucket-size=0.005 max-limit=70M name=MAIN-UP packet-mark=main-upload parent=GLOBAL-UP priority=1 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=MAIN-UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=MAIN-UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=MAIN-UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=MAIN-UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=MAIN-UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=MAIN-UP priority=5 queue=bulkUp-Main
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=MAIN-UP priority=6 queue=bulkUp-Main
add name="8. QUIC_" packet-mark=QUIC parent=MAIN-UP priority=7 queue=bulkUp-Main
add name="9. OTHER_" packet-mark=OTHER parent=MAIN-UP queue=bulkUp-Main
add bucket-size=0.005 max-limit=20M name=GUEST-UP packet-mark=guest-upload parent=GLOBAL-UP priority=2 queue=default
add name="1. VOIP_GU" packet-mark=VOIP parent=GUEST-UP priority=1 queue=default
add name="2. DNS_GU" packet-mark=DNS parent=GUEST-UP priority=2 queue=default
add name="3. ACK_GU" packet-mark=ACK parent=GUEST-UP priority=3 queue=default
add name="4. UDP_GU" packet-mark=UDP parent=GUEST-UP priority=3 queue=default
add name="5. ICMP_GU" packet-mark=ICMP parent=GUEST-UP priority=4 queue=default
add name="6. HTTP_GU" packet-mark=HTTP parent=GUEST-UP priority=5 queue=bulkUp-Guest
add name="7. HTTP_BIG_GU" packet-mark=HTTP_BIG parent=GUEST-UP priority=6 queue=bulkUp-Guest
add name="8. QUIC_GU" packet-mark=QUIC parent=GUEST-UP priority=7 queue=bulkUp-Guest
add name="9. OTHER_GU" packet-mark=OTHER parent=GUEST-UP queue=bulkUp-Guest
Thanks for your replay.You may create a simple queues entry specifying the target IP or the entire interface you want to prioritize.My network only have two devices connect to one HAP AC2 through 2 RJ45 cable.(one is an openwrt router, and other is windows 7 computer)
What is the most effecient way to make windows 7 computer the higher priority than the other?
Maybe something like mac/ether port based QoS can be easily set up? (for ex, ether2 in bridge1 is higher priority than ether3 in bridge1)
Thanks.
Hi can u share script? thanks manversion 3, running smooth
/ip firewall mangle
add action=mark-connection chain=postrouting comment=icmp connection-state=new new-connection-mark=icmp-conn out-interface=wlan-2G-client passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting connection-mark=icmp-conn new-packet-mark=icmp-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=icmp-conn in-interface=wlan-2G-client new-packet-mark=icmp-in-pk passthrough=no
add action=mark-connection chain=postrouting comment=dns connection-state=new dst-port=53 new-connection-mark=dns-conn out-interface=wlan-2G-client passthrough=yes protocol=udp
add action=mark-connection chain=postrouting connection-state=new dst-port=53 new-connection-mark=dns-conn out-interface=wlan-2G-client passthrough=yes protocol=tcp
add action=mark-packet chain=postrouting connection-mark=dns-conn new-packet-mark=dns-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=dns-conn in-interface=wlan-2G-client new-packet-mark=dns-in-pk passthrough=no
add action=mark-connection chain=postrouting comment=voip connection-state=new dst-port=5060,5061 new-connection-mark=voip-conn out-interface=wlan-2G-client passthrough=yes protocol=udp
add action=mark-connection chain=postrouting connection-state=new dst-port=5060,5061 new-connection-mark=voip-conn out-interface=wlan-2G-client passthrough=yes protocol=tcp
add action=mark-packet chain=postrouting connection-mark=voip-conn new-packet-mark=voip-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=voip-conn in-interface=wlan-2G-client new-packet-mark=voip-in-pk passthrough=no
add action=mark-connection chain=postrouting comment=zoom connection-state=new dst-port=3478,3479,8801-8810,5090 new-connection-mark=zoom-conn out-interface=wlan-2G-client passthrough=yes protocol=udp
add action=mark-connection chain=postrouting connection-state=new dst-port=8801,8802,5090,5091 new-connection-mark=zoom-conn out-interface=wlan-2G-client passthrough=yes protocol=tcp
add action=mark-packet chain=postrouting connection-mark=zoom-conn new-packet-mark=zoom-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=zoom-conn in-interface=wlan-2G-client new-packet-mark=zoom-in-pk passthrough=no
add action=mark-connection chain=postrouting comment=rocket-league connection-state=new dst-port=7000-8800,8811-8887,8889-9000 new-connection-mark=rocketleague-conn out-interface=wlan-2G-client passthrough=yes protocol=udp
add action=mark-packet chain=postrouting connection-mark=rocketleague-conn new-packet-mark=rocketleague-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=rocketleague-conn in-interface=wlan-2G-client new-packet-mark=rocketleague-in-pk passthrough=no
add action=mark-connection chain=postrouting comment=other connection-state=new new-connection-mark=other-conn out-interface=wlan-2G-client passthrough=yes
add action=mark-packet chain=postrouting connection-mark=other-conn new-packet-mark=other-out-pk out-interface=wlan-2G-client passthrough=no
add action=mark-packet chain=prerouting connection-mark=other-conn in-interface=wlan-2G-client new-packet-mark=other-in-pk passthrough=no
/queue tree
add max-limit=22M name=internet parent=global queue=ethernet-default
add max-limit=10M name=internet-in parent=internet queue=ethernet-default
add max-limit=12M name=internet-out parent=internet queue=ethernet-default
add name=zoom-in packet-mark=zoom-in-pk parent=internet-in priority=4 queue=ethernet-default
add name=zoom-out packet-mark=zoom-out-pk parent=internet-out priority=4 queue=ethernet-default
add name=icmp-out packet-mark=icmp-out-pk parent=internet-out priority=2 queue=ethernet-default
add name=icmp-in packet-mark=icmp-in-pk parent=internet-in priority=2 queue=ethernet-default
add name=dns-out packet-mark=dns-out-pk parent=internet-out priority=2 queue=ethernet-default
add name=dns-in packet-mark=dns-in-pk parent=internet-in priority=2 queue=ethernet-default
add name=voip-in packet-mark=voip-in-pk parent=internet-in priority=2 queue=ethernet-default
add name=voip-out packet-mark=voip-out-pk parent=internet-out priority=2 queue=ethernet-default
add name=rocketleague-in packet-mark=rocketleague-in-pk parent=internet-in priority=4 queue=ethernet-default
add name=rocketleague-out packet-mark=rocketleague-out-pk parent=internet-out priority=4 queue=ethernet-default
add bucket-size=0.01 max-limit=10M name=other-out packet-mark=other-out-pk parent=internet-out queue=pcq-upload-default
add max-limit=8M name=other-in packet-mark=other-in-pk parent=internet-in queue=pcq-download-default
TCP uses a three-way handshake to establish a reliable connection, why prioritize the ack traffic only??
My setup able to track the TCP 3-way & 4-way handshake traffic ...
Mangle rules
Code: Select all/ip firewall mangle add action=mark-packet chain=prerouting comment="FIN / SYN / ACK / RST in" in-interface-list=WAN new-packet-mark=FIN-I packet-size=0-64 passthrough= no protocol=tcp tcp-flags=fin add action=mark-packet chain=prerouting in-interface-list=WAN new-packet-mark=SYN-I packet-size=0-64 passthrough=no protocol=tcp tcp-flags=syn add action=mark-packet chain=prerouting in-interface-list=WAN new-packet-mark=RST-I packet-size=0-64 passthrough=no protocol=tcp tcp-flags=rst add action=mark-packet chain=prerouting in-interface-list=WAN new-packet-mark=ACK-I packet-size=0-64 passthrough=no protocol=tcp tcp-flags=ack,!psh add action=mark-packet chain=postrouting comment="FIN / SYN / ACK / RST out" new-packet-mark=FIN-O out-interface-list=WAN packet-size=0-64 passthrough=no protocol=tcp tcp-flags=fin add action=mark-packet chain=postrouting new-packet-mark=SYN-O out-interface-list=WAN packet-size=0-64 passthrough=no protocol=tcp tcp-flags=syn add action=mark-packet chain=postrouting new-packet-mark=RST-O out-interface-list=WAN packet-size=0-64 passthrough=no protocol=tcp tcp-flags=rst add action=mark-packet chain=postrouting new-packet-mark=ACK-O out-interface-list=WAN packet-size=0-64 passthrough=no protocol=tcp tcp-flags=ack,!psh add action=mark-connection chain=prerouting comment="ICMP in" connection-mark=no-mark new-connection-mark=CM-ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=CM-ICMP in-interface-list=WAN new-packet-mark=ICMP-I passthrough=no add action=mark-connection chain=postrouting comment="ICMP out" connection-mark=no-mark new-connection-mark=CM-ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=CM-ICMP new-packet-mark=ICMP-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="DNS in" connection-mark= no-mark dst-port=53,853 new-connection-mark=CM-DNS passthrough=yes protocol=tcp add action=mark-connection chain=prerouting connection-mark=no-mark dst-port= 53,853 new-connection-mark=CM-DNS passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=CM-DNS in-interface-list=WAN new-packet-mark=DNS-I passthrough=no add action=mark-connection chain=postrouting comment="DNS out" connection-mark=no-mark dst-port=53,853 new-connection-mark=CM-DNS passthrough=yes protocol=tcp add action=mark-connection chain=postrouting connection-mark=no-mark dst-port=53,853 new-connection-mark=CM-DNS passthrough=yes protocol=udp add action=mark-packet chain=postrouting connection-mark=CM-DNS new-packet-mark=DNS-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="VPN in" connection-mark= no-mark dst-port=1723 new-connection-mark=CM-VPN passthrough=yes protocol=tcp add action=mark-connection chain=prerouting connection-mark=no-mark dst-port= 500,1194,1701,4500 new-connection-mark=CM-VPN passthrough=yes protocol= udp add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=gre add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=ipsec-esp add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=ipsec-ah add action=mark-packet chain=prerouting connection-mark=CM-VPN in-interface-list=WAN new-packet-mark=VPN-I passthrough=no add action=mark-connection chain=postrouting comment="VPN out" connection-mark=no-mark dst-port=1723 new-connection-mark=CM-VPN passthrough=yes protocol=tcp add action=mark-connection chain=postrouting connection-mark=no-mark dst-port=500,1194,1701,4500 new-connection-mark=CM-VPN passthrough=yes protocol=udp add action=mark-connection chain=postrouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=gre add action=mark-connection chain=postrouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=ipsec-esp add action=mark-connection chain=postrouting connection-mark=no-mark new-connection-mark=CM-VPN passthrough=yes protocol=ipsec-ah add action=mark-packet chain=postrouting connection-mark=CM-VPN new-packet-mark=VPN-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="VOIP in" connection-mark=no-mark dscp=26 new-connection-mark=CM-VOIP passthrough= yes add action=mark-connection chain=prerouting connection-mark=no-mark dscp=46 new-connection-mark=CM-VOIP passthrough=yes add action=mark-connection chain=prerouting connection-mark=no-mark dst-port= 3478-3479,5060-5061,8801-8802 new-connection-mark=CM-VOIP passthrough= yes protocol=udp add action=mark-packet chain=prerouting connection-mark=CM-VOIP in-interface-list=WAN new-packet-mark=VOIP-I passthrough=no add action=mark-connection chain=postrouting comment="VOIP out" connection-mark=no-mark dscp=26 new-connection-mark=CM-VOIP passthrough= yes add action=mark-connection chain=postrouting connection-mark=no-mark dscp=46 new-connection-mark=CM-VOIP passthrough=yes add action=mark-connection chain=postrouting connection-mark=no-mark dst-port=3478-3479,5060-5061,8801-8802 new-connection-mark=CM-VOIP passthrough=yes protocol=udp add action=mark-packet chain=postrouting connection-mark=CM-VOIP new-packet-mark=VOIP-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="EMAIL in" connection-mark=no-mark dst-port=25,110,143,465,587,993,995 new-connection-mark=CM-EMAIL passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=CM-EMAIL in-interface-list=WAN new-packet-mark=EMAIL-I passthrough=no add action=mark-connection chain=postrouting comment="EMAIL out" connection-mark=no-mark dst-port=25,110,143,465,587,993,995 new-connection-mark=CM-EMAIL passthrough=yes protocol=tcp add action=mark-packet chain=postrouting connection-mark=CM-EMAIL new-packet-mark=EMAIL-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="QUIC in" connection-mark=no-mark dst-port=80,443 new-connection-mark=CM-QUIC passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=CM-QUIC in-interface-list=WAN new-packet-mark=QUIC-I passthrough=no add action=mark-connection chain=postrouting comment="QUIC out" connection-mark=no-mark dst-port=80,443 new-connection-mark=CM-QUIC passthrough=yes protocol=udp add action=mark-packet chain=postrouting connection-mark=CM-QUIC new-packet-mark=QUIC-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="HTTP in" connection-mark=no-mark dst-port=80,443,8080,8443 new-connection-mark= CM-HTTP passthrough=yes protocol=tcp add action=mark-connection chain=prerouting connection-bytes=1000000-0 connection-mark=CM-HTTP connection-rate=!0-8k new-connection-mark= CM-HTTP-L passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=CM-HTTP-L in-interface-list=WAN new-packet-mark=HTTP-B-I passthrough=no add action=mark-packet chain=prerouting connection-mark=CM-HTTP in-interface-list=WAN new-packet-mark=HTTP-I passthrough=no add action=mark-connection chain=postrouting comment="HTTP out" connection-mark=no-mark dst-port=80,443,8080,8443 new-connection-mark= CM-HTTP passthrough=yes protocol=tcp add action=mark-connection chain=postrouting connection-bytes=1000000-0 connection-mark=CM-HTTP connection-rate=!0-8k new-connection-mark= CM-HTTP-L passthrough=yes protocol=tcp add action=mark-packet chain=postrouting connection-mark=CM-HTTP-L new-packet-mark=HTTP-B-O out-interface-list=WAN passthrough=no add action=mark-packet chain=postrouting connection-mark=CM-HTTP new-packet-mark=HTTP-O out-interface-list=WAN passthrough=no add action=mark-connection chain=prerouting comment="OTHER in" connection-mark=no-mark new-connection-mark=CM-OTHER passthrough=yes add action=mark-connection chain=prerouting connection-mark=CM-OTHER new-connection-mark=CM-OTHER-L packet-size=!0-400 passthrough=yes add action=mark-packet chain=prerouting connection-mark=CM-OTHER-L in-interface-list=WAN new-packet-mark=OTHER-B-I passthrough=no add action=mark-packet chain=prerouting connection-mark=CM-OTHER in-interface-list=WAN new-packet-mark=OTHER-I passthrough=no add action=mark-connection chain=postrouting comment="OTHER out" connection-mark=no-mark new-connection-mark=CM-OTHER passthrough=yes add action=mark-connection chain=postrouting connection-mark=CM-OTHER new-connection-mark=CM-OTHER-L packet-size=!0-400 passthrough=yes add action=mark-packet chain=postrouting connection-mark=CM-OTHER-L new-packet-mark=OTHER-B-O out-interface-list=WAN passthrough=no add action=mark-packet chain=postrouting connection-mark=CM-OTHER new-packet-mark=OTHER-O out-interface-list=WAN passthrough=no
Queue tree
Code: Select all/queue tree add bucket-size=0.01 max-limit=210M name=INTERNET parent=global queue=default add bucket-size=0.01 max-limit=200M name=IN parent=INTERNET queue=default add bucket-size=0.01 max-limit=10M name=OUT parent=INTERNET queue=default add name=DNS_IN packet-mark=DNS-I parent=IN priority=1 queue=default add name=NETWORK_IN packet-mark= FIN-I,SYN-I,RST-I,ACK-I,ICMP-I parent=IN priority=3 queue=default add name=VOIP_IN packet-mark=VOIP-I parent=IN priority=2 queue=default add name=OTHER_IN packet-mark=OTHER-I,VPN-I parent=IN priority=4 queue=default add name=HTTP_IN packet-mark=HTTP-I,EMAIL-I parent=IN priority=5 queue=default add name=HTTP_BIG_IN packet-mark=HTTP-B-I parent= IN priority=6 queue=default add name=QUIC_IN packet-mark=QUIC-I parent=IN priority=7 queue=default add name=OTHER_BIG_IN packet-mark=OTHER-B-I parent=IN queue=default add name=DNS_OUT packet-mark=DNS-O parent=OUT priority=1 queue=default add name=NETWORK_OUT packet-mark= FIN-O,SYN-O,RST-O,ACK-O,ICMP-O parent=OUT priority=3 queue=default add name=VOIP_OUT packet-mark=VOIP-O parent=OUT priority=2 queue=default add name=OTHER_OUT packet-mark=OTHER-O,VPN-O parent=OUT priority=4 queue=default add name=HTTP_OUT packet-mark=HTTP-O,EMAIL-O parent=OUT priority=5 queue=default add name=HTTP_BIG_OUT packet-mark=HTTP-B-O parent=OUT priority=6 queue=default add name=QUIC_OUT packet-mark=QUIC-O parent=OUT priority=7 queue=default add name=OTHER_BIG_OUT packet-mark=OTHER-B-O parent=OUT queue=default
Make sure that the fasttrack connection is turned off
We aren't trying to prioritize the handshake. The handshake is only 3 small packets to establish the TCP connection.TCP uses a three-way handshake to establish a reliable connection, why prioritize the ack traffic only??
We aren't trying to prioritize the handshake. The handshake is only 3 small packets to establish the TCP connection.TCP uses a three-way handshake to establish a reliable connection, why prioritize the ack traffic only??
Once you establish the connection and then start downloading at full speed, your computer need to tell the remote end that is successfully received the data. It does this by sending ACK packets. By prioritizing these ACK packets we can ensure that uploads on a connection do not impact downloads. If we didn't prioritize the ACK then the downloads would be limited because the remote computer would be waiting on the ACK until is sends more data.
Hope that clarifies somewhat.
The mangle rules and queue tree will not act accordingly if you enable fasttrack connections in /ip firewall filter (default config).Why is it necessary to deactivate the filter fasttrack connection?
# Identify VoIP
add chain=prerouting action=mark-connection new-connection-mark=VOIP port=5060-5062,10000-20000 protocol=udp passthrough=yes comment="VOIP"
add chain=prerouting action=mark-packet connection-mark=VOIP new-packet-mark=VOIP passthrough=no
# Identify PING on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmpv6 passthrough=yes comment="ICMP"
add chain=prerouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmpv6 passthrough=yes
add chain=postrouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-packet chain=forward new-packet-mark=DoH passthrough=no src-address-list=DoH comment="DoH"
I tried this, but it is not working.Do you really want to mark the responses from the DoH servers? If you actually want to mark the queries, the rule must match on dst-address-list, not the src one. Regardless that - if a rule's statistics doesn't count at all although you know that matching packets do exist, that rule is likely shadowed by some other one before (above) it, which matches the same packets and has passthrough=no (implicitly or explicitly).
add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new dst-address-list=!RFC1918 new-connection-mark=HTTP passthrough=yes port=80,443 protocol=\
tcp
add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=3M-100M dst-address-list=!RFC1918 new-connection-mark=HTTP_BIG passthrough=yes \
protocol=tcp
add action=mark-packet chain=forward comment=DoH connection-mark=HTTP dst-address-list=DoH log=yes log-prefix=DoHLogging new-packet-mark=DNS passthrough=no tcp-flags=""
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
# Identify DoH
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DoH passthrough=yes dst-address-list=DoH comment="DoH"
add chain=prerouting action=mark-packet connection-mark=DoH new-packet-mark=DoH passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DoH passthrough=yes dst-address-list=DoH
add chain=postrouting action=mark-packet connection-mark=DoH new-packet-mark=DoH passthrough=no
I tried this, but it is not working.Do you really want to mark the responses from the DoH servers? If you actually want to mark the queries, the rule must match on dst-address-list, not the src one. Regardless that - if a rule's statistics doesn't count at all although you know that matching packets do exist, that rule is likely shadowed by some other one before (above) it, which matches the same packets and has passthrough=no (implicitly or explicitly).
Code: Select alladd action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new dst-address-list=!RFC1918 new-connection-mark=HTTP passthrough=yes port=80,443 protocol=\ tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=3M-100M dst-address-list=!RFC1918 new-connection-mark=HTTP_BIG passthrough=yes \ protocol=tcp add action=mark-packet chain=forward comment=DoH connection-mark=HTTP dst-address-list=DoH log=yes log-prefix=DoHLogging new-packet-mark=DNS passthrough=no tcp-flags="" add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
Thanks that seems to be working!This is what I'm using and it's working:
Code: Select all# Identify DoH add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DoH passthrough=yes dst-address-list=DoH comment="DoH" add chain=prerouting action=mark-packet connection-mark=DoH new-packet-mark=DoH passthrough=no add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DoH passthrough=yes dst-address-list=DoH add chain=postrouting action=mark-packet connection-mark=DoH new-packet-mark=DoH passthrough=no
I tried this, but it is not working.Do you really want to mark the responses from the DoH servers? If you actually want to mark the queries, the rule must match on dst-address-list, not the src one. Regardless that - if a rule's statistics doesn't count at all although you know that matching packets do exist, that rule is likely shadowed by some other one before (above) it, which matches the same packets and has passthrough=no (implicitly or explicitly).
Code: Select alladd action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new dst-address-list=!RFC1918 new-connection-mark=HTTP passthrough=yes port=80,443 protocol=\ tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=3M-100M dst-address-list=!RFC1918 new-connection-mark=HTTP_BIG passthrough=yes \ protocol=tcp add action=mark-packet chain=forward comment=DoH connection-mark=HTTP dst-address-list=DoH log=yes log-prefix=DoHLogging new-packet-mark=DNS passthrough=no tcp-flags="" add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
/ip setting set allow-fast-path=no
# Place at very top
/ip firewall mangle
add action=mark-connection chain=prerouting dscp=0 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=1 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=2 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=3 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=4 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=5 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=6 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=7 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=prerouting dscp=8 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=9 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=10 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=11 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=12 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=13 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=14 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=15 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=prerouting dscp=16 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=17 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=18 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=19 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=20 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=21 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=22 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=23 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=prerouting dscp=24 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=25 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=26 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=27 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=28 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=29 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=30 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=31 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=prerouting dscp=32 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=33 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=34 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=35 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=36 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=37 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=38 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=39 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=prerouting dscp=40 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=41 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=42 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=43 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=44 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=45 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=46 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=47 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=prerouting dscp=48 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=49 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=50 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=51 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=52 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=53 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=54 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=prerouting dscp=55 comment=TOS_6 new-connection-mark=QUIC
# add action=mark-connection chain=prerouting dscp=56 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=57 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=58 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=59 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=60 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=61 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=62 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=prerouting dscp=63 comment=TOS_7 new-connection-mark=OTHER
add action=mark-connection chain=postrouting dscp=0 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=1 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=2 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=3 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=4 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=5 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=6 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=7 comment=TOS_0 new-connection-mark=VOIP
add action=mark-connection chain=postrouting dscp=8 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=9 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=10 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=11 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=12 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=13 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=14 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=15 comment=TOS_1 new-connection-mark=DNS
add action=mark-connection chain=postrouting dscp=16 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=17 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=18 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=19 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=20 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=21 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=22 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=23 comment=TOS_2 new-connection-mark=ACK
add action=mark-connection chain=postrouting dscp=24 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=25 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=26 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=27 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=28 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=29 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=30 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=31 comment=TOS_3 new-connection-mark=ICMP
add action=mark-connection chain=postrouting dscp=32 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=33 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=34 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=35 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=36 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=37 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=38 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=39 comment=TOS_4 new-connection-mark=HTTP
add action=mark-connection chain=postrouting dscp=40 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=41 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=42 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=43 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=44 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=45 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=46 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=47 comment=TOS_5 new-connection-mark=HTTP_BIG
add action=mark-connection chain=postrouting dscp=48 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=49 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=50 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=51 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=52 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=53 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=54 comment=TOS_6 new-connection-mark=QUIC
add action=mark-connection chain=postrouting dscp=55 comment=TOS_6 new-connection-mark=QUIC
# add action=mark-connection chain=postrouting dscp=56 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=57 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=58 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=59 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=60 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=61 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=62 comment=TOS_7 new-connection-mark=OTHER
# add action=mark-connection chain=postrouting dscp=63 comment=TOS_7 new-connection-mark=OTHER
# Insert other/custom capture rules here
# pcunite's mangle
# Identify DNS on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS"
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS"
# Identify VoIP
add chain=prerouting action=mark-connection new-connection-mark=VOIP port=5060-5062,10000-20000 protocol=udp passthrough=yes comment="VOIP"
# Identify HTTP/3 and Google's QUIC
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC"
# Identify UPD. Useful for further analysis. Should it be considered high priority or put in the catchall? You decide.
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=UDP protocol=udp passthrough=yes comment="UDP"
# Identify PING on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP"
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP"
# Identify Acknowledgment packets
add chain=postrouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK"
add chain=prerouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK"
# Identify HTTP traffic but move it to a Streaming mark if necessary.
add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP"
add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes comment="HTTP_BIG"
# Mark Packets
add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no comment=VOIP
add action=mark-packet chain=postrouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no comment=VOIP
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no comment=DNS
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no comment=DNS
add action=mark-packet chain=prerouting connection-mark=ACK new-packet-mark=ACK passthrough=no comment=ACK
add action=mark-packet chain=postrouting connection-mark=ACK new-packet-mark=ACK passthrough=no comment=ACK
add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no comment=UDP
add action=mark-packet chain=postrouting connection-mark=UDP new-packet-mark=UDP passthrough=no comment=UDP
add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no comment=ICMP
add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no comment=ICMP
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no comment=HTTP
add action=mark-packet chain=postrouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no comment=HTTP
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no comment=HTTP_BIG
add action=mark-packet chain=postrouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no comment=HTTP_BIG
add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no comment=QUIC
add action=mark-packet chain=postrouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no comment=QUIC
/queue tree
# DOWN
add name=DOWN max-limit=900M parent=LAN bucket-size=0.01 queue=default
add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=no-mark parent=DOWN priority=8 queue=default
# UP
add name=UP max-limit=900M parent=WAN bucket-size=0.01 queue=default
add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default
add name="9. OTHER_" packet-mark=no-mark parent=UP priority=8 queue=default
Thanks for your reply.MPLS packets are invisible to the ip firewall rules (unless you set use-ip-firewall=yes in /interface bridge settings, which affects a lot of things so don't do that unless you absolutely have to). So this topic suggests two approaches - to assign some packet-mark to all IP traffic, and let the queue for MPLS traffic be chosen by an absence of any packet-mark, or to connect the EoIP interfaces to dedicated bridges, and use /interface bridge filter rules rather than /ip firewall mangle ones to assign packet marks to the MPLS packets.
Can you please create a dedicated topic and place a link to it here? I think your case is quite specific and should be treated separately.I found I cannot work out the expected result
The reason why he marked connections instead of packets is to reduce load on the CPU.Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
add action=mark-connection chain=prerouting comment=DNS connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \
tcp-flags=""
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \
src-address-list=""
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment=DoH connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment="DoH (UDP 443)" connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment=VOIP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=VOIP passthrough=yes port=\
5060-5062,10000-15251,15253-20000,3478-3497,16384-16387,16393-16402,19302-19309 protocol=udp
add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no tcp-flags=""
add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \
protocol=udp
add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no
add action=mark-connection chain=prerouting comment=UDP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=UDP passthrough=yes protocol=udp
add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no
add action=mark-connection chain=prerouting comment=ICMP connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-connection chain=postrouting connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=HTTP \
passthrough=yes port=80,443 protocol=tcp
add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \
new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no
add action=mark-connection chain=prerouting comment=OTHER connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=POP3 passthrough=yes port=995,465,587 \
protocol=tcp
add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no
add action=mark-connection chain=prerouting connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=OTHER packet-mark=no-mark \
passthrough=yes
add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER packet-mark=no-mark passthrough=no
/queue tree
add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=DOWN parent=bridge queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS" packet-mark=DNS parent=DOWN priority=1 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP" packet-mark=VOIP parent=DOWN priority=2 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=redCustom
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC" packet-mark=QUIC parent=DOWN priority=6 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=redCustom
add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER" packet-mark=OTHER parent=DOWN queue=redCustom
add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=UP parent=pppoe-out1 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS_" packet-mark=DNS parent=UP priority=1 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP_" packet-mark=VOIP parent=UP priority=2 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=redCustom
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC_" packet-mark=QUIC parent=UP priority=6 queue=default
add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=redCustom
add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER_" packet-mark=OTHER parent=UP queue=redCustom
I know reason is CPU load, but as i said this causes the entire connection (speedtest bandwidth for example) getting captured by ACK mangle rule and its queue tree and never reaching other rules which where supposed to actually capture it.The reason why he marked connections instead of packets is to reduce load on the CPU.Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
I've encountered these anamolies you described as well. I've made a lot of modifications to the mangle rules since though.
One thing I'm not sure about is the priority of the mangle rules, like should ACK be marked before UDP/ICMP/QUIC or what? Should mark-packet http_big come first before mark-parket HTTP?
Maybe you know something about the mangle rules priority.
I also added established/related connection state when I discovered some connections would escape the mangel rules via connections tab. DoH traffic is also marked via address-list, DNS over UDP 443 is marked especially for Google Chrome as it uses that port for DNS queries sometimes, something I caught from the connections tab.
Here's mine:Code: Select alladd action=mark-connection chain=prerouting comment=DNS connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ tcp-flags="" add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ src-address-list="" add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=DoH connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment="DoH (UDP 443)" connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=VOIP passthrough=yes port=\ 5060-5062,10000-15251,15253-20000,3478-3497,16384-16387,16393-16402,19302-19309 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no tcp-flags="" add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=HTTP \ passthrough=yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \ new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=OTHER packet-mark=no-mark \ passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER packet-mark=no-mark passthrough=no
I've taken advantage of the 5 second bandwidth burst from my ISP that maxed out at 300M that I've seen so far. So I added burst for everything. I capped individual traffic types to 130M to prevent bufferbloat. That extra 300M for parent queue gives it that extra headroom.
The queue tree:Code: Select all/queue tree add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=DOWN parent=bridge queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS" packet-mark=DNS parent=DOWN priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP" packet-mark=VOIP parent=DOWN priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC" packet-mark=QUIC parent=DOWN priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER" packet-mark=OTHER parent=DOWN queue=redCustom add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=UP parent=pppoe-out1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS_" packet-mark=DNS parent=UP priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP_" packet-mark=VOIP parent=UP priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC_" packet-mark=QUIC parent=UP priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER_" packet-mark=OTHER parent=UP queue=redCustom
/ip firewall nat
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=icmp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=53 protocol=udp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=443 protocol=tcp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=80 protocol=tcp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=tcp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=udp
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN
Yeah, I am still confused about the order of the mangle rules.I know reason is CPU load, but as i said this causes the entire connection (speedtest bandwidth for example) getting captured by ACK mangle rule and its queue tree and never reaching other rules which where supposed to actually capture it.The reason why he marked connections instead of packets is to reduce load on the CPU.Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
I've encountered these anamolies you described as well. I've made a lot of modifications to the mangle rules since though.
One thing I'm not sure about is the priority of the mangle rules, like should ACK be marked before UDP/ICMP/QUIC or what? Should mark-packet http_big come first before mark-parket HTTP?
Maybe you know something about the mangle rules priority.
I also added established/related connection state when I discovered some connections would escape the mangel rules via connections tab. DoH traffic is also marked via address-list, DNS over UDP 443 is marked especially for Google Chrome as it uses that port for DNS queries sometimes, something I caught from the connections tab.
Here's mine:Code: Select alladd action=mark-connection chain=prerouting comment=DNS connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ tcp-flags="" add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ src-address-list="" add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=DoH connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment="DoH (UDP 443)" connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=VOIP passthrough=yes port=\ 5060-5062,10000-15251,15253-20000,3478-3497,16384-16387,16393-16402,19302-19309 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no tcp-flags="" add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=HTTP \ passthrough=yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \ new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=OTHER packet-mark=no-mark \ passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER packet-mark=no-mark passthrough=no
I've taken advantage of the 5 second bandwidth burst from my ISP that maxed out at 300M that I've seen so far. So I added burst for everything. I capped individual traffic types to 130M to prevent bufferbloat. That extra 300M for parent queue gives it that extra headroom.
The queue tree:Code: Select all/queue tree add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=DOWN parent=bridge queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS" packet-mark=DNS parent=DOWN priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP" packet-mark=VOIP parent=DOWN priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC" packet-mark=QUIC parent=DOWN priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER" packet-mark=OTHER parent=DOWN queue=redCustom add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=UP parent=pppoe-out1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS_" packet-mark=DNS parent=UP priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP_" packet-mark=VOIP parent=UP priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC_" packet-mark=QUIC parent=UP priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER_" packet-mark=OTHER parent=UP queue=redCustom
Im constantly changing and adapting my rules as i notice problems so not completely sure, but I prio ICMP and DNS above all, than ACK packets than rest..
About http packets, i mark big ones first than small ones, and have separate rule for SSL (443) and HTTP(80+8080) traffic (both small + big) while giving one step bigger priority to SSL traffic over HTTP in queue.
And yeah, if your ISP doesnt support big bursting same as i did in my above screenshot, you need to sacrifice some bandwidth, best is to limit high traffic consumers in one group and drop their total speed around 10-15% below total internet speed so they can never saturate it, while leaving other full bandwidth to other "bursty" queues so they have time to drop this big consumer queues via their limit-at limits down if you get what i mean.
BTW there is one more trick im testing for some times, what do you think of some basic QOS in NAT it self, i use this on locations where there is very variable speed LTE links and i cant make proper QUEUE tree.
As nat is processed in order, this gives sort of packet priority which packets will be nated first in chain.Code: Select all/ip firewall nat add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=icmp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=53 protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=443 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=80 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN
For example with this rules u wont notice such big slowdowns if someone is downloading torrents, or some other bandwidth hungry protocols, pages will still open snappy without any other mangle/queue rules.
Opinions?
No provider supports IPV6 in CroatiaYeah, I am still confused about the order of the mangle rules.I know reason is CPU load, but as i said this causes the entire connection (speedtest bandwidth for example) getting captured by ACK mangle rule and its queue tree and never reaching other rules which where supposed to actually capture it.The reason why he marked connections instead of packets is to reduce load on the CPU.Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
I've encountered these anamolies you described as well. I've made a lot of modifications to the mangle rules since though.
One thing I'm not sure about is the priority of the mangle rules, like should ACK be marked before UDP/ICMP/QUIC or what? Should mark-packet http_big come first before mark-parket HTTP?
Maybe you know something about the mangle rules priority.
I also added established/related connection state when I discovered some connections would escape the mangel rules via connections tab. DoH traffic is also marked via address-list, DNS over UDP 443 is marked especially for Google Chrome as it uses that port for DNS queries sometimes, something I caught from the connections tab.
Here's mine:Code: Select alladd action=mark-connection chain=prerouting comment=DNS connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ tcp-flags="" add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ src-address-list="" add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=DoH connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment="DoH (UDP 443)" connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=VOIP passthrough=yes port=\ 5060-5062,10000-15251,15253-20000,3478-3497,16384-16387,16393-16402,19302-19309 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no tcp-flags="" add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=HTTP \ passthrough=yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \ new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=OTHER packet-mark=no-mark \ passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER packet-mark=no-mark passthrough=no
I've taken advantage of the 5 second bandwidth burst from my ISP that maxed out at 300M that I've seen so far. So I added burst for everything. I capped individual traffic types to 130M to prevent bufferbloat. That extra 300M for parent queue gives it that extra headroom.
The queue tree:Code: Select all/queue tree add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=DOWN parent=bridge queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS" packet-mark=DNS parent=DOWN priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP" packet-mark=VOIP parent=DOWN priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC" packet-mark=QUIC parent=DOWN priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER" packet-mark=OTHER parent=DOWN queue=redCustom add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=UP parent=pppoe-out1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS_" packet-mark=DNS parent=UP priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP_" packet-mark=VOIP parent=UP priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC_" packet-mark=QUIC parent=UP priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER_" packet-mark=OTHER parent=UP queue=redCustom
Im constantly changing and adapting my rules as i notice problems so not completely sure, but I prio ICMP and DNS above all, than ACK packets than rest..
About http packets, i mark big ones first than small ones, and have separate rule for SSL (443) and HTTP(80+8080) traffic (both small + big) while giving one step bigger priority to SSL traffic over HTTP in queue.
And yeah, if your ISP doesnt support big bursting same as i did in my above screenshot, you need to sacrifice some bandwidth, best is to limit high traffic consumers in one group and drop their total speed around 10-15% below total internet speed so they can never saturate it, while leaving other full bandwidth to other "bursty" queues so they have time to drop this big consumer queues via their limit-at limits down if you get what i mean.
BTW there is one more trick im testing for some times, what do you think of some basic QOS in NAT it self, i use this on locations where there is very variable speed LTE links and i cant make proper QUEUE tree.
As nat is processed in order, this gives sort of packet priority which packets will be nated first in chain.Code: Select all/ip firewall nat add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=icmp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=53 protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=443 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=80 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN
For example with this rules u wont notice such big slowdowns if someone is downloading torrents, or some other bandwidth hungry protocols, pages will still open snappy without any other mangle/queue rules.
Opinions?
I think pcunite needs to look into out input on the issues from over the past few months and give us his opinion on this things.
NAT QoS, is something I haven't thought of before, but it could be problematic if the ISP is using dynamic IPs.
Also I have IPv6 connectivity from my ISP, NAT QoS would limit it only for IPv4 traffic and therefore make it inefficient. In my opinion I suggest you stick with mangles/other mechanisms that would work for both IPv4/IPv6 smoothly.
QoS is such a pain...
Your rules are only limited to IPv4 traffic. NAT is for IPv4. There's no NAT for IPv6 except something like NAT64 which is something I wished didn't exist to begin with. I'm anti-NAT anyway. The whole point of IPv6 was to bring back end-to-end principle.No provider supports IPV6 in CroatiaYeah, I am still confused about the order of the mangle rules.I know reason is CPU load, but as i said this causes the entire connection (speedtest bandwidth for example) getting captured by ACK mangle rule and its queue tree and never reaching other rules which where supposed to actually capture it.The reason why he marked connections instead of packets is to reduce load on the CPU.Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
I've encountered these anamolies you described as well. I've made a lot of modifications to the mangle rules since though.
One thing I'm not sure about is the priority of the mangle rules, like should ACK be marked before UDP/ICMP/QUIC or what? Should mark-packet http_big come first before mark-parket HTTP?
Maybe you know something about the mangle rules priority.
I also added established/related connection state when I discovered some connections would escape the mangel rules via connections tab. DoH traffic is also marked via address-list, DNS over UDP 443 is marked especially for Google Chrome as it uses that port for DNS queries sometimes, something I caught from the connections tab.
Here's mine:Code: Select alladd action=mark-connection chain=prerouting comment=DNS connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ tcp-flags="" add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=DNS passthrough=yes port=53 protocol=udp \ src-address-list="" add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=DoH connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=53,443,853 protocol=tcp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment="DoH (UDP 443)" connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=established,related,new dst-address-list=DoH new-connection-mark=DNS passthrough=yes port=443 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=VOIP passthrough=yes port=\ 5060-5062,10000-15251,15253-20000,3478-3497,16384-16387,16393-16402,19302-19309 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no tcp-flags="" add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new dst-address-list=!not_in_internet new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=HTTP \ passthrough=yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \ new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=OTHER packet-mark=no-mark \ passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER packet-mark=no-mark passthrough=no
I've taken advantage of the 5 second bandwidth burst from my ISP that maxed out at 300M that I've seen so far. So I added burst for everything. I capped individual traffic types to 130M to prevent bufferbloat. That extra 300M for parent queue gives it that extra headroom.
The queue tree:Code: Select all/queue tree add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=DOWN parent=bridge queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS" packet-mark=DNS parent=DOWN priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP" packet-mark=VOIP parent=DOWN priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC" packet-mark=QUIC parent=DOWN priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER" packet-mark=OTHER parent=DOWN queue=redCustom add bucket-size=0.01 burst-limit=300M burst-threshold=300M burst-time=1s max-limit=99M name=UP parent=pppoe-out1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="1. DNS_" packet-mark=DNS parent=UP priority=1 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=2M max-limit=99M name="2. VOIP_" packet-mark=VOIP parent=UP priority=2 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=18M max-limit=99M name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="7. QUIC_" packet-mark=QUIC parent=UP priority=6 queue=default add burst-limit=130M burst-threshold=130M burst-time=1s limit-at=10M max-limit=99M name="8. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=7 queue=redCustom add burst-limit=130M burst-threshold=130M burst-time=1s name="9. OTHER_" packet-mark=OTHER parent=UP queue=redCustom
Im constantly changing and adapting my rules as i notice problems so not completely sure, but I prio ICMP and DNS above all, than ACK packets than rest..
About http packets, i mark big ones first than small ones, and have separate rule for SSL (443) and HTTP(80+8080) traffic (both small + big) while giving one step bigger priority to SSL traffic over HTTP in queue.
And yeah, if your ISP doesnt support big bursting same as i did in my above screenshot, you need to sacrifice some bandwidth, best is to limit high traffic consumers in one group and drop their total speed around 10-15% below total internet speed so they can never saturate it, while leaving other full bandwidth to other "bursty" queues so they have time to drop this big consumer queues via their limit-at limits down if you get what i mean.
BTW there is one more trick im testing for some times, what do you think of some basic QOS in NAT it self, i use this on locations where there is very variable speed LTE links and i cant make proper QUEUE tree.
As nat is processed in order, this gives sort of packet priority which packets will be nated first in chain.Code: Select all/ip firewall nat add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=icmp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=53 protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=443 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN port=80 protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=tcp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN protocol=udp add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN
For example with this rules u wont notice such big slowdowns if someone is downloading torrents, or some other bandwidth hungry protocols, pages will still open snappy without any other mangle/queue rules.
Opinions?
I think pcunite needs to look into out input on the issues from over the past few months and give us his opinion on this things.
NAT QoS, is something I haven't thought of before, but it could be problematic if the ISP is using dynamic IPs.
Also I have IPv6 connectivity from my ISP, NAT QoS would limit it only for IPv4 traffic and therefore make it inefficient. In my opinion I suggest you stick with mangles/other mechanisms that would work for both IPv4/IPv6 smoothly.
QoS is such a pain...
You are using IPV6 in local network also ? There is no nat involved in router?If yes, than my rules would still work regardless as long your router is NAT-ing something at some point.
/ip firewall mangle add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \
new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp
try this....connection-bytes=!0-5000000Code: Select all/ip firewall mangle add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-300M connection-state=established,related,new dst-address-list=!not_in_internet \ new-connection-mark=HTTP_BIG passthrough=yes protocol=tcp
connection-bytes=5000000-0 doesn't work in RouterOS v7.1beta1 - it is possible to setup only 0-xxxxx.
Can someone confirm whether it works in stable version or not, please?
Sadly, documentation is outdated and I didn't find any further info.
not possible to use "!" in connection-bytes. I have tried connection-bytes=5M-100M and it seems to worktry this....connection-bytes=!0-5000000
The QoS model pcunite gave will mark LAN-to-LAN traffic as well and queue them. A solution I came up with is to use dst-address-list=!not_in_internet, where not_in_internet is a list of LAN subnets.@pcunite,
I followed your VLAN tutorial and set up router-on-a-stick which has been working great.
Now I am looking through your QoS tutorial and would like to know how this applied to the VLAN setup.
Would the LAN interface be the bridge?
Would this QoS setup only apply to traffic going to and from the WAN (ether1) port and not affect internal inter-LAN traffic
/ip firewall address-list
add address=0.0.0.0/8 comment=RFC6890 list=not_in_internet
add address=172.16.0.0/12 comment=RFC6890 list=not_in_internet
add address=192.168.0.0/16 comment=RFC6890 list=not_in_internet
add address=10.0.0.0/8 comment=RFC6890 list=not_in_internet
add address=169.254.0.0/16 comment=RFC6890 list=not_in_internet
add address=127.0.0.0/8 comment=RFC6890 list=not_in_internet
add address=224.0.0.0/4 comment=Multicast list=not_in_internet
add address=198.18.0.0/15 comment=RFC6890 list=not_in_internet
add address=192.0.0.0/24 comment=RFC6890 list=not_in_internet
add address=192.0.2.0/24 comment=RFC6890 list=not_in_internet
add address=198.51.100.0/24 comment=RFC6890 list=not_in_internet
add address=203.0.113.0/24 comment=RFC6890 list=not_in_internet
add address=100.64.0.0/10 comment=RFC6890 list=not_in_internet
add address=240.0.0.0/4 comment=RFC6890 list=not_in_internet
add address=192.88.99.0/24 comment="6to4 relay Anycast [RFC 3068]" list=not_in_internet
add action=mark-connection chain=prerouting comment=QUIC connection-state=established,related,new dst-address-list=!not_in_internet new-connection-mark=QUIC passthrough=yes port=80,443 \
protocol=udp
I've been thinking about dual-WAN load balancing with this QoS model.Any idea how a mangle setup with policy routing (mark routing) and connection / packet marking for qos could look like?
Both need "stop processing" in prerouting chain.
I experimented a bit with my existing rules, but I didn't get both working at the same time. Maybe I have to use a new chain and some jump & return rules.
Im a bit green so just throwing this out there to possibly spark some ideasI've been thinking about dual-WAN load balancing with this QoS model.
The mangle rules will mark all traffic regardless of the interface/direction by default, which simplifies the marking aspect.
But how do we apply separate queue trees to WAN1 (up/down) and WAN2 (up/down)?
/queue simple
add max-limit=48M/48M name=ATT-queue queue=default/default target="eth5-m
v33-VOIP,v44-LTN,v55-Radio-net,172.17.2.45/32,172.17.1.39/32,172.17.2.246/32,172.17.1.250/32"
add limit-at=16M/16M max-limit=48M/48M name=LTN parent=ATT-queue priority
1/1 queue=default/default target=v44-LTN
add limit-at=3M/3M max-limit=48M/48M name=VOIP-only parent=ATT-queue \
priority=2/2 queue=default/default target=\
v33-VOIP,172.17.2.45/32,172.17.1.39/32
add limit-at=2M/2M max-limit=48M/48M name=Radio-net parent=ATT-qu
priority=3/3 queue=default/default target=v55-Radio-net
add limit-at=20M/20M max-limit=48M/48M name=VOIP-plus-data parent=ATT-que
priority=4/4 queue=default/default target=\
172.17.2.246/32,172.17.1.250/32
add max-limit=35M/35M name=other parent=ATT-queue priority=6/6 queue=\
pcq-upload-default/pcq-download-default target=\
eth5-mgmt,v88-test,eth3-pfSense
Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-packet chain=prerouting new-packet-mark=DNS passthrough=no port=53 protocol=udp
add action=mark-packet chain=postrouting new-packet-mark=DNS passthrough=no port=53 protocol=udp
Can you upload your scripts?Are you sure about marking DNS / ICMP or ACK connections than their packet marks, because what im seeing that when i run speedtest some or sometimes entire bandwidth goes thru this QUEUE(DNS/ICMP/ACK) and as they have top prio actually choke my net.
I changed it to only mark packets directly without prior connection marking and now works fine, only this packets pass thru.(rest of mangle rules still uses connection +packet marking)
I tried absolutely destroying my net with few torrents, http downloads, windows updates, some youtube, radio stream(doesnt break), dropbox upload, and ping is still stable without drops, and web pages opens super fast.
This is how my QOS looks now that im using for some time now.
Yeah I dropped QoS entirely from my setup. I went with two ISPs.Im a bit green so just throwing this out there to possibly spark some ideasI've been thinking about dual-WAN load balancing with this QoS model.
The mangle rules will mark all traffic regardless of the interface/direction by default, which simplifies the marking aspect.
But how do we apply separate queue trees to WAN1 (up/down) and WAN2 (up/down)?
To answer your question, the only way ive found to QOS a dual wan setup is to queue only the UP of each WAN connection using simple queues.
At work we have a 50/50 dedicated fiber and a 200/20 DOCSIS connection. Im doing a dual WAN (no load balancing but there is failover) PBR routing. The dedicated fiber circuit is primarily used for live video streaming and VOIP, although I do have a little bit of regular traffic being routed through it (hence the need for QOS), and the DOCSIS WAN is just serving bulk data traffic. Since the mangles are being used to do the dual wan routing based on source IP/VLAN/subnets, I created simple queues for the fiber WAN connection based on source as well as thats the one that where we would really need QOS.
I havent needed/wanted to QOS the DOCSIS WAN as we have plenty bandwidth for our needs.
Code: Select all/queue simple add max-limit=48M/48M name=ATT-queue queue=default/default target="eth5-m v33-VOIP,v44-LTN,v55-Radio-net,172.17.2.45/32,172.17.1.39/32,172.17.2.246/32,172.17.1.250/32" add limit-at=16M/16M max-limit=48M/48M name=LTN parent=ATT-queue priority 1/1 queue=default/default target=v44-LTN add limit-at=3M/3M max-limit=48M/48M name=VOIP-only parent=ATT-queue \ priority=2/2 queue=default/default target=\ v33-VOIP,172.17.2.45/32,172.17.1.39/32 add limit-at=2M/2M max-limit=48M/48M name=Radio-net parent=ATT-qu priority=3/3 queue=default/default target=v55-Radio-net add limit-at=20M/20M max-limit=48M/48M name=VOIP-plus-data parent=ATT-que priority=4/4 queue=default/default target=\ 172.17.2.246/32,172.17.1.250/32 add max-limit=35M/35M name=other parent=ATT-queue priority=6/6 queue=\ pcq-upload-default/pcq-download-default target=\ eth5-mgmt,v88-test,eth3-pfSense
This entry appears to be the last from pcunite... I have been wading thru this thread since the 2013 beginning looking for a "final" recommended way to provide the QoS to make a couple of VOIP phones to work. But that appears not to be. And the thread wanders a good bit. One person suggested the procedure we need be put on the wiki. I just looked that over again and saw nothing. I have had a RB450Gx4 since June 2018 and since that time keep coming back here to find a procedure recommend by the RouterOS experts. It seems to me that the VOIP phone QoS would be such a common need that the experts would put their heads together and give us a couple of well-thought, well-tested out templates. It seems pcunite was on track to do this but there is still no forum entry that sums up all the machinations. There also appears here conflicting input. I find conflicts with here on various other RouterOS experts elsewhere. I was hoping that the 2 years I have needed this VOIP QoS that there would be some "expert" convergence on what we should use. I want something reasonably basic to implement QoS for 2 VOIP phones that optimally uses the RouterOS features with typical other services such as DNS, icmp, http/s, etc. Give us the rules and arithmetic to use with this "expert's template" and we can tweak the config for our VOIP phone counts and line speeds. Thanks to all the contributors but we need convergence on this topic.I've seen some weird packet issues when using RED for the defaults. So, I've gone back to SFQ for default but use RED for the bulky flows. The behavior of RED as default causes the VoIP queue to drop a single packet here and there when it does not appear to be under pressure. Perhaps there is something else going on, but I never want a packet to drop there, so SFQ (or probably any other type) prevents that behavior.
I have been wading thru this thread since the 2013 beginning looking for a "final" recommended way to provide the QoS to make a couple of VOIP phones to work. But that appears not to be.
The "slow down" of the "heavy" downloads is expected behaviour, that's the whole point of the QoS. To ensure each traffic type or groups of users get a fair share of the obviously limited bandwidth.@pcunite thanks for doing this. I've noticed a few things that I'd like your input on.
1. I'm trying to work out why you are detecting VoIP by just blanket accepting 10,000+ ports. Often these ports are also used for gaming etc. Is this intentional or by mistake? I'd like to see a variant made where you're making use of DSCP marking or some other method to detect this more accurately.
2. When I deploy this for an Aussie NBN connection (100/40) as-is, I get complaints about "the internet is slow" when I'm performing a large sequential download (Steam, direct, Speedtest, etc) and others are doing general browsing. Is there any changes that can be made to mitigate this effect? It does not seem to occur when all queues are disabled. This same thing happens when using the modified ones by bharrisau, and same experience across two different sites.
Cheers
@pcunite thanks for doing this. I've noticed a few things that I'd like your input on.
Code: Select all# UP add name=UP max-limit=90M parent=WAN bucket-size=0.01 queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
add name=UP max-limit=90M parent=lte1 bucket-size=0.01 queue=default
I wonder if those values need tweaking to give a potentially better outcome.Same as yours:
5 sec and 1514 bytes
Yea, I was wondering the same. It seems the consensus in other places than this thread, is to use perturb=10 in order to mimic CAKE/FQ-CODEL as much as possible.I wonder if those values need tweaking to give a potentially better outcome.Same as yours:
5 sec and 1514 bytes
why only apply to upload queues?I've done some testing with a closer server. Four cases considered: baseline, QOS2020, QOS2020-Optimised (my recommended changes), mikroCAKE (pseudo-CAKE implementation).
Graphs of the bandwidth vs latency, and a latency distribution plot. All tests were Perth to Sydney, 30 seconds of baseline either side of a 120 second test. Local connection is 100/40 Mbps fibre, remote connection is 1000/250 Mbps OVH dedicated server. I've used 90% of the rated line speed locally for the settings.
Configuration exports below
Baseline
QOS2020Code: Select all/ip firewall mangle /queue type /queue tree add max-limit=36M name=UP packet-mark=no-mark parent=WAN1 queue=default add max-limit=90M name=DOWN packet-mark=no-mark parent=BR1 queue=default
QOS2020 - OptimisedCode: Select all/ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=VOIP passthrough=yes port=5060-5062,10000-20000 protocol=udp add action=mark-packet chain=prerouting connection-mark=VOIP new-packet-mark=VOIP passthrough=no add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP passthrough=\ yes port=80,443 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=\ HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-state=new new-connection-mark=POP3 passthrough=yes port=995,465,587 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=POP3 new-packet-mark=OTHER passthrough=no add action=mark-connection chain=prerouting connection-mark=no-mark new-connection-mark=OTHER passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no /queue type add kind=red name=customRED red-avg-packet=1514 /queue tree add max-limit=36M name=UP parent=WAN1 queue=default add max-limit=90M name=DOWN parent=BR1 queue=default add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=customRED add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=customRED add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=customRED add name="9. OTHER" packet-mark=OTHER parent=DOWN queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=customRED add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=customRED add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=customRED add name="9. OTHER_" packet-mark=OTHER parent=UP queue=default
mikroCAKECode: Select all# Mangle is as above /queue type set 0 kind=sfq add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB /queue tree add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=bulkUp add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=bulkUp add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=bulkUp add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=bulkUp
Code: Select all/ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp add action=mark-connection chain=postrouting connection-state=new new-connection-mark=PRIO passthrough=yes port=53 protocol=udp add action=mark-connection chain=prerouting comment=VOIP new-connection-mark=PRIO passthrough=yes port=5060-5062,10000-20000 protocol=udp add action=mark-packet chain=postrouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no add action=mark-packet chain=prerouting connection-mark=PRIO new-packet-mark=PRIO passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=PRIO packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=postrouting comment=Sparse connection-rate=0-1 dst-limit=5,2,addresses-and-dst-port/1m40s new-packet-mark=\ SPARSE passthrough=no add action=mark-packet chain=postrouting connection-rate=1-10k new-packet-mark=SPARSE passthrough=no add action=mark-packet chain=postrouting comment=Bulk new-packet-mark=BULK passthrough=no /queue type set 0 kind=sfq add kind=pcq name=bulkUp pcq-classifier=src-address,dst-address,src-port,dst-port pcq-limit=450KiB pcq-total-limit=4500KiB /queue tree add bucket-size=0.005 max-limit=90M name=DOWN parent=BR1 queue=default add name="1. Priority" packet-mark=PRIO parent=DOWN priority=1 queue=default add name="2. Sparse" packet-mark=SPARSE parent=DOWN priority=2 queue=default add name="3. Bulk" packet-mark=BULK parent=DOWN priority=3 queue=default add bucket-size=0.005 max-limit=36M name=UP parent=WAN1 queue=default add name="1. Priority_" packet-mark=PRIO parent=UP priority=1 queue=default add name="2. Sparse_" packet-mark=SPARSE parent=UP priority=2 queue=default add name="3. Bulk_" packet-mark=BULK parent=UP priority=3 queue=bulkUp
Do you have any plans to release an updated 2021 (or 2022) guide for QoS that focuses on RouterOS 7.1.1 and CAKE / FQ_Codel?
Not really understanding this text from the help. Is it saying one should implement QoS on the Switch instead of the Router?
That would also mean I should apply the same thinking for Wifi devices. Exclude the ethernet port I use for the AP from QoS on the Switch, and let the WiFi QoS be handled by the AP.
Hello@ivicask
@kswong
Hello friend, I have been working with your QoS and I have modified it, I would like you to review it and improve it before sharing it: D
I see thank you very much. I totally base myself on the code you showed above, the truth is I'm still not very good at this.
@kswong
Hello friend, I have been working with your QoS and I have modified it, I would like you to review it and improve it before sharing it: D
In some cases a bucket size this small is necessary. Some vendors will police very strictly, and if an upstream provider does this, the "burst" that is allowed by smaller bucket sizes can unfortunately be dropped by the upstream, and in this case the customer will lose control over what is dropped. Smaller bucket sizes will react more quickly and be more eager to drop packets, and therefore by making the bucket size smaller, it can mean the difference between your device dropping the packets (which has at least some understanding of what is considered important) rather than the upstream ISP's policer.I am a little concerned at the smallness of your bucket-size.
Great, I with ROS6 and the old QoS got this test on a RB with traffic limit. I hope to migrate to ROS7 and be able to update it soon.not bad...
Thanks a lot
/queue simple
add limit-at=5M/5M max-limit=100M/100M name=queue1 target=192.168.1.0/24
/queue simple
add limit-at=5M/5M max-limit=100M/100M name=queuebw5 target=192.168.1.0/24
You can use simple Queues with PCQ, for example, and make them dynamic, for day, afternoon and night for example.
/queue simple
add name=me queue=Ume/Dme target=192.168.100.10
add disabled=yes name=day queue=Uday/Dday target=ether2,bridge-lan
add name=afternoon queue=Uafternoon/Dafternoon target=ether2,bridge-lan
add disabled=yes name=Night queue=UNight/DNight target=ether2,bridge-lan
/queue-type
add kind=pcq name=Dme pcq-classifier=dst-address pcq-rate=60M
add kind=pcq name=Ume pcq-classifier=src-address pcq-rate=20M
add kind=pcq name=Dday pcq-classifier=dst-address pcq-rate=20M
add kind=pcq name=Uday pcq-classifier=src-address pcq-rate=10M
/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="Allow SNMP" dst-port=161 in-interface=Corporate_VLAN protocol=udp
add action=accept chain=input comment="Allow LAN DNS queries-UDP" dst-port=53 in-interface-list=VLAN protocol=udp
add action=accept chain=input comment="Allow LAN DNS queries-TCP" dst-port=53 in-interface-list=VLAN protocol=tcp
add action=accept chain=input comment="Allow LAN NTP queries" dst-port=123 in-interface-list=VLAN protocol=udp
add action=accept chain=input comment="defconf: allow RB5009 access from Mgmt VLAN" in-interface-list=MGMT
add action=drop chain=input comment="defconf: drop all else" log-prefix=drop
## Forward rules
add action=fasttrack-connection chain=forward connection-state=established,related hw-offload=yes
add action=accept chain=forward comment="Allow Estab & Related" connection-state=established,related
add action=accept chain=forward comment="Corporate => WLAN" in-interface=Corporate_VLAN out-interface=WLAN_VLAN
add action=accept chain=forward comment="WLAN => Corporate" in-interface=WLAN_VLAN out-interface=Corporate_VLAN
add action=accept chain=forward comment="Corporate => IoT" in-interface=Corporate_VLAN out-interface=IoT_VLAN
add action=accept chain=forward comment="WLAN => IoT" in-interface=WLAN_VLAN out-interface=IoT_VLAN
add action=drop chain=forward in-interface=IoT_VLAN out-interface-list=WAN
add action=accept chain=forward comment="Allow Port Forwarding (dst-nat)" connection-nat-state=dstnat in-interface=e8-wan
add action=accept chain=forward comment="VLAN Internet Access" in-interface-list=VLAN out-interface-list=WAN
add action=drop chain=forward comment=Drop log-prefix=drop
/ip firewall mangle
add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=\
udp
add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp
add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no
add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 \
protocol=udp
add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no
add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp
add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no
add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack
add action=mark-connection chain=prerouting comment=SSH connection-state=new new-connection-mark=SSH passthrough=yes port=22,8984 \
protocol=tcp
add action=mark-packet chain=prerouting connection-mark=SSH new-packet-mark=SSH passthrough=no
add action=mark-connection chain=prerouting comment=OpenVpn connection-state=new new-connection-mark=OPENVPN passthrough=yes port=54 \
protocol=tcp
add action=mark-packet chain=prerouting connection-mark=OPENVPN new-packet-mark=OPENVPN passthrough=yes
add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp
add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP \
passthrough=yes port=80,443,8080 protocol=tcp
add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-1G new-connection-mark=\
HTTP_BIG passthrough=yes protocol=tcp
add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no
add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add action=mark-connection chain=prerouting comment=PBS connection-state=new new-connection-mark=PBS passthrough=yes port=8007 \
protocol=tcp
add action=mark-packet chain=prerouting connection-mark=PBS new-packet-mark=PBS passthrough=no
add action=mark-connection chain=prerouting comment=OTHER connection-mark=no-mark new-connection-mark=OTHER passthrough=yes
add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/queue tree
add bucket-size=0.01 max-limit=1G name=DOWN parent=BR1 queue=default
add bucket-size=0.01 max-limit=50M name=UP parent=e8-wan queue=default
add name="1. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="2. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="3. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="4. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="5. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="5. SSH" packet-mark=SSH parent=DOWN priority=5 queue=default
add name="5. QUIC" packet-mark=QUIC parent=DOWN priority=5 queue=default
add name="6. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="7. PBS" packet-mark=PBS parent=DOWN priority=7 queue=default
add name="8. OTHER" packet-mark=OTHER parent=DOWN queue=default
add name="1. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="2. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="3. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="4. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="5. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="5. SSH_" packet-mark=SSH parent=UP priority=5 queue=default
add name="5. QUIC_" packet-mark=QUIC parent=UP priority=5 queue=default
add name="6. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="7. PBS_" packet-mark=PBS parent=UP priority=7 queue=default
add name="8. OTHER_" packet-mark=OTHER parent=UP queue=default
disabled this ruleHey there....
i just replaced my unifi USG with a rb5009 and now closely followed this thread about implementation of a QoS. So far it works really great, all connections and packages are marked by the mangle rules and applied to my queues.
But there is also some strange stuff going on when running nightly backups from a remote system (using Proxmox Backup Server if that matters in any way...).
You can see, that a single of the four cores is completely blocked and weird enought the throughput is limited to ~15mb/s download here (as in Megabyte / s). Given that this is a 1000mbit connections, I'd expect more.
As soon as I activate the fastpath rule in Firewall, QoS does not work anymore (as expected) but the throughput goes up to ~50-80mb/s and the cpu usage is distributed over multiple cores (right part of the diagram).
Interestingly the usual speedtest tools (speedtest.net etc) all show a rather okish performance (~800mbit/s) no matter if fastpath / QoS is active or not.
Honestly I have no clue, what's going on here and would appreciate ANY help from you, thank you soo much!
Code: Select all/ip firewall filter add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp add action=accept chain=input comment="Allow SNMP" dst-port=161 in-interface=Corporate_VLAN protocol=udp add action=accept chain=input comment="Allow LAN DNS queries-UDP" dst-port=53 in-interface-list=VLAN protocol=udp add action=accept chain=input comment="Allow LAN DNS queries-TCP" dst-port=53 in-interface-list=VLAN protocol=tcp add action=accept chain=input comment="Allow LAN NTP queries" dst-port=123 in-interface-list=VLAN protocol=udp add action=accept chain=input comment="defconf: allow RB5009 access from Mgmt VLAN" in-interface-list=MGMT add action=drop chain=input comment="defconf: drop all else" log-prefix=drop ## Forward rules add action=fasttrack-connection chain=forward connection-state=established,related hw-offload=yes add action=accept chain=forward comment="Allow Estab & Related" connection-state=established,related add action=accept chain=forward comment="Corporate => WLAN" in-interface=Corporate_VLAN out-interface=WLAN_VLAN add action=accept chain=forward comment="WLAN => Corporate" in-interface=WLAN_VLAN out-interface=Corporate_VLAN add action=accept chain=forward comment="Corporate => IoT" in-interface=Corporate_VLAN out-interface=IoT_VLAN add action=accept chain=forward comment="WLAN => IoT" in-interface=WLAN_VLAN out-interface=IoT_VLAN add action=drop chain=forward in-interface=IoT_VLAN out-interface-list=WAN add action=accept chain=forward comment="Allow Port Forwarding (dst-nat)" connection-nat-state=dstnat in-interface=e8-wan add action=accept chain=forward comment="VLAN Internet Access" in-interface-list=VLAN out-interface-list=WAN add action=drop chain=forward comment=Drop log-prefix=drop /ip firewall mangle add action=mark-connection chain=prerouting comment=DNS connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=\ udp add action=mark-packet chain=prerouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=DNS passthrough=yes port=53 protocol=udp add action=mark-packet chain=postrouting connection-mark=DNS new-packet-mark=DNS passthrough=no add action=mark-connection chain=prerouting comment=QUIC connection-state=new new-connection-mark=QUIC passthrough=yes port=80,443 \ protocol=udp add action=mark-packet chain=prerouting connection-mark=QUIC new-packet-mark=QUIC passthrough=no add action=mark-connection chain=prerouting comment=UDP connection-state=new new-connection-mark=UDP passthrough=yes protocol=udp add action=mark-packet chain=prerouting connection-mark=UDP new-packet-mark=UDP passthrough=no add action=mark-connection chain=postrouting connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=postrouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-packet chain=postrouting comment=ACK new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-packet chain=prerouting new-packet-mark=ACK packet-size=0-123 passthrough=no protocol=tcp tcp-flags=ack add action=mark-connection chain=prerouting comment=SSH connection-state=new new-connection-mark=SSH passthrough=yes port=22,8984 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=SSH new-packet-mark=SSH passthrough=no add action=mark-connection chain=prerouting comment=OpenVpn connection-state=new new-connection-mark=OPENVPN passthrough=yes port=54 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=OPENVPN new-packet-mark=OPENVPN passthrough=yes add action=mark-connection chain=prerouting comment=ICMP connection-state=new new-connection-mark=ICMP passthrough=yes protocol=icmp add action=mark-packet chain=prerouting connection-mark=ICMP new-packet-mark=ICMP passthrough=no add action=mark-connection chain=prerouting comment=HTTP connection-mark=no-mark connection-state=new new-connection-mark=HTTP \ passthrough=yes port=80,443,8080 protocol=tcp add action=mark-connection chain=prerouting connection-bytes=5000000-0 connection-mark=HTTP connection-rate=2M-1G new-connection-mark=\ HTTP_BIG passthrough=yes protocol=tcp add action=mark-packet chain=prerouting connection-mark=HTTP new-packet-mark=HTTP passthrough=no add action=mark-packet chain=prerouting connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add action=mark-connection chain=prerouting comment=PBS connection-state=new new-connection-mark=PBS passthrough=yes port=8007 \ protocol=tcp add action=mark-packet chain=prerouting connection-mark=PBS new-packet-mark=PBS passthrough=no add action=mark-connection chain=prerouting comment=OTHER connection-mark=no-mark new-connection-mark=OTHER passthrough=yes add action=mark-packet chain=prerouting connection-mark=OTHER new-packet-mark=OTHER passthrough=no /queue tree add bucket-size=0.01 max-limit=1G name=DOWN parent=BR1 queue=default add bucket-size=0.01 max-limit=50M name=UP parent=e8-wan queue=default add name="1. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="2. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="3. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="4. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="5. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default add name="5. SSH" packet-mark=SSH parent=DOWN priority=5 queue=default add name="5. QUIC" packet-mark=QUIC parent=DOWN priority=5 queue=default add name="6. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default add name="7. PBS" packet-mark=PBS parent=DOWN priority=7 queue=default add name="8. OTHER" packet-mark=OTHER parent=DOWN queue=default add name="1. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="2. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="3. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="4. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="5. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default add name="5. SSH_" packet-mark=SSH parent=UP priority=5 queue=default add name="5. QUIC_" packet-mark=QUIC parent=UP priority=5 queue=default add name="6. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default add name="7. PBS_" packet-mark=PBS parent=UP priority=7 queue=default add name="8. OTHER_" packet-mark=OTHER parent=UP queue=default
/queue simple
add limit-at=11M/110M max-limit=11M/110M name=pppoe-out1 target=bridge1
add limit-at=2500k/25M max-limit=11M/110M name=QoS_2 \
packet-marks=QoS_2 parent=pppoe-out1 priority=2/2 queue=\
default-sfq/default-sfq target=bridge1 total-queue=default-sfq
add limit-at=2500k/25M max-limit=11M/110M name=QoS_3 \
packet-marks=QoS_3 parent=pppoe-out1 priority=3/3 queue=\
default-sfq/default-sfq target=bridge1 total-queue=default-sfq
I think bad bufferbloat could also be due to poor ISP, but I may be wrong.Code: Select all/queue simple add limit-at=11M/110M max-limit=11M/110M name=pppoe-out1 target=bridge1 add limit-at=2500k/25M max-limit=11M/110M name=QoS_2 \ packet-marks=QoS_2 parent=pppoe-out1 priority=2/2 queue=\ default-sfq/default-sfq target=bridge1 total-queue=default-sfq add limit-at=2500k/25M max-limit=11M/110M name=QoS_3 \ packet-marks=QoS_3 parent=pppoe-out1 priority=3/3 queue=\ default-sfq/default-sfq target=bridge1 total-queue=default-sfq
With the above confing all the mangles, priorities etc work correct but i have always C in bufferbloat test.
I disabled all the above rules (and mangles) and i made one simple queue with queue type cake and fq_codel, but i had again C in bufferbloat test.
(RB4011, ROS 7.2)
Its very strange.I think bad bufferbloat could also be due to poor ISP, but I may be wrong.Code: Select all/queue simple add limit-at=11M/110M max-limit=11M/110M name=pppoe-out1 target=bridge1 add limit-at=2500k/25M max-limit=11M/110M name=QoS_2 \ packet-marks=QoS_2 parent=pppoe-out1 priority=2/2 queue=\ default-sfq/default-sfq target=bridge1 total-queue=default-sfq add limit-at=2500k/25M max-limit=11M/110M name=QoS_3 \ packet-marks=QoS_3 parent=pppoe-out1 priority=3/3 queue=\ default-sfq/default-sfq target=bridge1 total-queue=default-sfq
With the above confing all the mangles, priorities etc work correct but i have always C in bufferbloat test.
I disabled all the above rules (and mangles) and i made one simple queue with queue type cake and fq_codel, but i had again C in bufferbloat test.
(RB4011, ROS 7.2)
Maybe reading a bit more about it will help you understand what happens and what you can do about it?
https://en.wikipedia.org/wiki/Bufferbloat
Try to change the queue types to fq_codel or cakeIts very strange.
I think bad bufferbloat could also be due to poor ISP, but I may be wrong.
Maybe reading a bit more about it will help you understand what happens and what you can do about it?
https://en.wikipedia.org/wiki/Bufferbloat
I change the queue types to fifo small and sfq and i have not any difference in bufferbloat test.
I try to change the queues from simple to tree but i have the same issue.
I change the bucket size from 0.1 to 0.01 in childes but nothing changed.
Always i get C in tests.
Hi Kswong, could you please share the QOS script for reference. many thanks!Pfd.jpg
Starting in ROS V6, Queue on input and postrouting chain why mark prerouting or forward chain
I got good results using mangle chain input and postrouting
/queue simple
add limit-at=10M/10M max-limit=100M/100M name=queuebw10 target=192.168.1.0/24
/queue type
add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel
/queue simple
add bucket-size=0.01/0.01 max-limit=118M/11M name=queue1 queue=fq-codel/fq-codel target=ether1 total-queue=fq-codel
/queue type
add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel
/queue tree
add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel
add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
I found an old thread (viewtopic.php?t=113308) that talks about using QoS with FastTrack enabled. That got me interested. After reading the thread and also reviewing packet flow documentation, I came to realize I can successfully use this approach with fq_codel.
Code: Select all/queue type add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel /queue tree add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
The key are interface queues that work along with FastTrack. Because interface-attached HTB works only for egress, I put my download queue on the bridge interface (BTW, I have two VLANs on top of it), so the queuing happens when Internet traffic leaves the router in LAN direction. The upload queue is on WAN ether1.
I then ran some tests and got the same good bufferbloat results as with a simple queue. Here is one sample: https://www.waveform.com/tools/bufferbl ... b4aa8dc505. And CPU usage was much lower. It wasn't too bad even before for my 120M/12M Internet connection, but now it got me thinking - how well would hAP ac2 handle a much faster WAN connection?
I pulled out a spare router, reset to all defaults, and ran some tests. I used iperf3 with 20 threads and 60 seconds run to simulate LAN to WAN heavy traffic. Client PC is on LAN side of hAP ac2, server PC is on WAN.
Same fq_codel configuration as above, only max-limit set to 1020M for both download and upload. Simulating a gigabit Internet service.
With FastTrack disabled, two CPU cores are maxed out at 100%, iperf reported ~560Mbps.
With FastTrack enabled, only one core reached 90-95%, overall utilization ~50%. Iperf speeds were 915-924Mbps. FastTrack makes a huge difference indeed.
I also ran continuous pings from client to server to see fq_codel working for the lack of a better test. The difference was also huge:
1ms unloaded.
With fq_codel average ping 3ms, 15ms max.
Without fq_codel (queues disabled) average ping 13ms, max 48ms. Fq_codel makes a difference even on such a fast connection.
It's a big discovery for me. MikroTik's clever solution - FastTrack - turns out to be even better than HW NAT in my case as every SOHO router with HW NAT I've seen can't do SQM with it enabled. If you search online for best routers with SQM for gigabit Internet service, you will find most recommendations are around x86 or some other beefy solutions. Unless my test was flawed somehow, you can actually get pretty close to a gigabit with fq_codel on an inexpensive hAP ac2. Granted, I don't have those kind of speeds, but this will certainly be on my list of recommendations for others.
It also means older low-performance MikroTik devices can do pretty well with fq_codel thanks to FastTrack. And even if you have a more powerful device like RB5009, the option to save some processing power is there. With container support coming up soon, there is always going to be a way to put that extra CPU to good use.
I want to point out that I don't use WiFi on hAP ac2, which would definitely consume a good chunk of CPU.
I followed exactly as stated above, but DL/UL trafic from bufferbloat test on https://www.waveform.com/tools/bufferbloat is bypassed from Queue.Implementing traffic prioritization (QoS) with RouterOS
To turn on the QoS capabilities of RouterOS, we implement two things: marking and then queuing.
The Marking Stage
..........The Queuing StageCode: Select all/ip firewall mangle # Identify DNS on the network or coming from the Router itself add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS" add chain=prerouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes add chain=postrouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no # Identify VoIP add chain=prerouting action=mark-connection new-connection-mark=VOIP port=5060-5062,10000-10050 protocol=udp passthrough=yes comment="VOIP" add chain=prerouting action=mark-packet connection-mark=VOIP new-packet-mark=VOIP passthrough=no # Identify HTTP/3 and Google's QUIC add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC" add chain=prerouting action=mark-packet connection-mark=QUIC new-packet-mark=QUIC passthrough=no # Identify UPD. Useful for further analysis. Should it be considered high priority or put in the catchall? You decide. add chain=prerouting action=mark-connection connection-state=new new-connection-mark=UDP protocol=udp passthrough=yes comment="UDP" add chain=prerouting action=mark-packet connection-mark=UDP new-packet-mark=UDP passthrough=no # Identify PING on the network or coming from the Router itself add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP" add chain=prerouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes add chain=postrouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no # Identify Acknowledgment packets add chain=postrouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK" add chain=prerouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no # Identify HTTP traffic but move it to a Streaming mark if necessary. add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP" add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes add chain=prerouting action=mark-packet connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add chain=prerouting action=mark-packet connection-mark=HTTP new-packet-mark=HTTP passthrough=no # Email goes to the catchall add chain=prerouting action=mark-connection connection-state=new new-connection-mark=POP3 port=995,465,587 protocol=tcp passthrough=yes comment="OTHER" add chain=prerouting action=mark-packet connection-mark=POP3 new-packet-mark=OTHER passthrough=no # Unknown goes to the catchall add chain=prerouting action=mark-connection connection-mark=no-mark new-connection-mark=OTHER passthrough=yes add chain=prerouting action=mark-packet connection-mark=OTHER new-packet-mark=OTHER passthrough=no
......
Many thanks anserk, it worked wonderfully well also for me.I found an old thread (viewtopic.php?t=113308) that talks about using QoS with FastTrack enabled. That got me interested. After reading the thread and also reviewing packet flow documentation, I came to realize I can successfully use this approach with fq_codel.
Code: Select all/queue type add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel /queue tree add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
I am not a pro user but In my opinion this script doesn't catch the traffic(inpu-output) generated by router itself. I extended the script by adding input-output connection mark. Because my router checks some ips every 30 seconds by Netwatch. Without input-output connection mark, netwach traffic is unable to prioritized.Implementing traffic prioritization (QoS) with RouterOS
To turn on the QoS capabilities of RouterOS, we implement two things: marking and then queuing.
The Marking Stage
How to Mark the Traffic Types:
RouterOS supplies the Mangle feature to mark packets. What you decide to mark is up to personal and business decisions. Here is a sample starting point. It can be appropriate to mark items, interesting to you, that will ultimately go into the same queue. This is useful for network monitoring purposes. The POP3 mark is an example of that.
Take time to get your marking correct. Test to ensure you are seeing the totals move as you expect. At this stage, we are only marking items. We will use another command to take actions on these marks.
Code: Select all/ip firewall mangle # Identify DNS on the network or coming from the Router itself add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS" add chain=prerouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes add chain=postrouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no # Identify VoIP add chain=prerouting action=mark-connection new-connection-mark=VOIP port=5060-5062,10000-10050 protocol=udp passthrough=yes comment="VOIP" add chain=prerouting action=mark-packet connection-mark=VOIP new-packet-mark=VOIP passthrough=no # Identify HTTP/3 and Google's QUIC add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC" add chain=prerouting action=mark-packet connection-mark=QUIC new-packet-mark=QUIC passthrough=no # Identify UPD. Useful for further analysis. Should it be considered high priority or put in the catchall? You decide. add chain=prerouting action=mark-connection connection-state=new new-connection-mark=UDP protocol=udp passthrough=yes comment="UDP" add chain=prerouting action=mark-packet connection-mark=UDP new-packet-mark=UDP passthrough=no # Identify PING on the network or coming from the Router itself add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP" add chain=prerouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes add chain=postrouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no # Identify Acknowledgment packets add chain=postrouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK" add chain=prerouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no # Identify HTTP traffic but move it to a Streaming mark if necessary. add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP" add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes add chain=prerouting action=mark-packet connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no add chain=prerouting action=mark-packet connection-mark=HTTP new-packet-mark=HTTP passthrough=no # Email goes to the catchall add chain=prerouting action=mark-connection connection-state=new new-connection-mark=POP3 port=995,465,587 protocol=tcp passthrough=yes comment="OTHER" add chain=prerouting action=mark-packet connection-mark=POP3 new-packet-mark=OTHER passthrough=no # Unknown goes to the catchall add chain=prerouting action=mark-connection connection-mark=no-mark new-connection-mark=OTHER passthrough=yes add chain=prerouting action=mark-packet connection-mark=OTHER new-packet-mark=OTHER passthrough=no
The Queuing Stage
How to act on Traffic Marks:
RouterOS supplies the Queue Tree structure that enable us to act on marks. This is how we truly classify the packet flows on the network. A whole book could be written on what is occurring here. There are many options one could use to dial in a very custom Queue Tree. The purpose of this article, however, is to present a simple yet very effective implementation. A few things do need to be understood.
Max-limit:
In order for queuing to occur in our equipment, and thus give us the control on packet flows, we have to set our interfaces to operate at 10% the rate of our ISP connection. This is only a starting number and is dependent upon your CPU speed and simultaneous connections. Apply to both the upload and download links. This way buffering always occurs inside of our equipment. The max-limit parameter is required for the algorithms to function and must not be 0. In our example, we have 100M service, so we have set it to 90M.
Limit-at:
This option is not something you will use commonly and is therefore recommended to leave it at 0 (disabled). However, there is a very special situation where you must enable it. Read the Protection with Limit-at section to learn more.
bucket-size:
During congestion, this value sets the amount of tokens to accrue before the chosen queue type takes effect. This is an equation and means that after Max-limit is reached (bucket-size * max-limit) worth of bytes will be engaged by the queue type. For our purposes, we only want a small amount of time addressing packets going over the limit, enough to smooth out any protocol windowing.
Code: Select all/queue tree # DOWN add name=DOWN max-limit=90M parent=LAN bucket-size=0.01 queue=default add name="1. VOIP" packet-mark=VOIP parent=DOWN priority=1 queue=default add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default # UP add name=UP max-limit=90M parent=WAN bucket-size=0.01 queue=default add name="1. VOIP_" packet-mark=VOIP parent=UP priority=1 queue=default add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
I now have a problem that the mangle tag does not work on ROS 7.7. Please help me check
# Identify HTTP/3 and Google's QUIC
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC"
add chain=prerouting action=mark-packet connection-mark=QUIC new-packet-mark=QUIC passthrough=no
# Identify HTTP traffic but move it to a Streaming mark if necessary.
add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP"
add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes
add chain=prerouting action=mark-packet connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add chain=prerouting action=mark-packet connection-mark=HTTP new-packet-mark=HTTP passthrough=no
However, when testing packet loss on Valorant, I saw that having this config on or off isn't modifying anything and I've got the same results with or without QoS when playing with a download behind./ip firewall mangle
# Identify DNS on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes comment="DNS"
add chain=prerouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=DNS port=53 protocol=udp passthrough=yes
add chain=postrouting action=mark-packet connection-mark=DNS new-packet-mark=DNS passthrough=no
# Identify Games packets
add chain=prerouting action=mark-connection new-connection-mark=Games port=3478-3479,5000-5500,5060,5062,6112,3724,1119,7000-7500 protocol=udp passthrough=yes comment="Games-UDP"
add chain=prerouting action=mark-packet connection-mark=Games new-packet-mark=Games passthrough=no
# Identify HTTP/3 and Google's QUIC
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=QUIC port=80,443 protocol=udp passthrough=yes comment="QUIC"
add chain=prerouting action=mark-packet connection-mark=QUIC new-packet-mark=QUIC passthrough=no
# Identify UPD. Useful for further analysis. Should it be considered high priority or put in the catchall? You decide.
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=UDP protocol=udp passthrough=yes comment="UDP"
add chain=prerouting action=mark-packet connection-mark=UDP new-packet-mark=UDP passthrough=no
# Identify PING on the network or coming from the Router itself
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes comment="ICMP"
add chain=prerouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no
add chain=postrouting action=mark-connection connection-state=new new-connection-mark=ICMP protocol=icmp passthrough=yes
add chain=postrouting action=mark-packet connection-mark=ICMP new-packet-mark=ICMP passthrough=no
# Identify Acknowledgment packets
add chain=postrouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no comment="ACK"
add chain=prerouting action=mark-packet new-packet-mark=ACK packet-size=0-123 protocol=tcp tcp-flags=ack passthrough=no
# Identify HTTP traffic but move it to a Streaming mark if necessary.
add chain=prerouting action=mark-connection connection-mark=no-mark connection-state=new new-connection-mark=HTTP port=80,443 protocol=tcp passthrough=yes comment="HTTP"
add chain=prerouting action=mark-connection connection-bytes=5M-0 connection-mark=HTTP connection-rate=2M-100M new-connection-mark=HTTP_BIG protocol=tcp passthrough=yes
add chain=prerouting action=mark-packet connection-mark=HTTP_BIG new-packet-mark=HTTP_BIG passthrough=no
add chain=prerouting action=mark-packet connection-mark=HTTP new-packet-mark=HTTP passthrough=no
# Email goes to the catchall
add chain=prerouting action=mark-connection connection-state=new new-connection-mark=POP3 port=995,465,587 protocol=tcp passthrough=yes comment="OTHER"
add chain=prerouting action=mark-packet connection-mark=POP3 new-packet-mark=OTHER passthrough=no
# Unknown goes to the catchall
add chain=prerouting action=mark-connection connection-mark=no-mark new-connection-mark=OTHER passthrough=yes
add chain=prerouting action=mark-packet connection-mark=OTHER new-packet-mark=OTHER passthrough=no
/queue tree
# DOWN
add name=DOWN max-limit=190M parent=LAN bucket-size=0.01 queue=default
add name="1. GAMES" packet-mark=Games parent=DOWN priority=1 queue=default
add name="2. DNS" packet-mark=DNS parent=DOWN priority=2 queue=default
add name="3. ACK" packet-mark=ACK parent=DOWN priority=3 queue=default
add name="4. UDP" packet-mark=UDP parent=DOWN priority=3 queue=default
add name="5. ICMP" packet-mark=ICMP parent=DOWN priority=4 queue=default
add name="6. HTTP" packet-mark=HTTP parent=DOWN priority=5 queue=default
add name="7. HTTP_BIG" packet-mark=HTTP_BIG parent=DOWN priority=6 queue=default
add name="8. QUIC" packet-mark=QUIC parent=DOWN priority=7 queue=default
add name="9. OTHER" packet-mark=OTHER parent=DOWN priority=8 queue=default
# UP
add name=UP max-limit=190M parent=ether1-WAN bucket-size=0.01 queue=default
add name="1. GAMES_" packet-mark=GAMES parent=UP priority=1 queue=default
add name="2. DNS_" packet-mark=DNS parent=UP priority=2 queue=default
add name="3. ACK_" packet-mark=ACK parent=UP priority=3 queue=default
add name="4. UDP_" packet-mark=UDP parent=UP priority=3 queue=default
add name="5. ICMP_" packet-mark=ICMP parent=UP priority=4 queue=default
add name="6. HTTP_" packet-mark=HTTP parent=UP priority=5 queue=default
add name="7. HTTP_BIG_" packet-mark=HTTP_BIG parent=UP priority=6 queue=default
add name="8. QUIC_" packet-mark=QUIC parent=UP priority=7 queue=default
add name="9. OTHER_" packet-mark=OTHER parent=UP priority=8 queue=default
I just wanted to say, "thanks," as well, anserk. This seems to be the best current solution to smoothing traffic on the 5009 in a home environment with a gigabit internet connection, while maintaining as much speed as possible.I found an old thread (viewtopic.php?t=113308) that talks about using QoS with FastTrack enabled. That got me interested. After reading the thread and also reviewing packet flow documentation, I came to realize I can successfully use this approach with fq_codel.
Code: Select all
/queue type
add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel
/queue tree
add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel
add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
Good afternoon, hope you are well,I found an old thread (viewtopic.php?t=113308) that talks about using QoS with FastTrack enabled. That got me interested. After reading the thread and also reviewing packet flow documentation, I came to realize I can successfully use this approach with fq_codel.
Code: Select all/queue type add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel /queue tree add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
The key are interface queues that work along with FastTrack. Because interface-attached HTB works only for egress, I put my download queue on the bridge interface (BTW, I have two VLANs on top of it), so the queuing happens when Internet traffic leaves the router in LAN direction. The upload queue is on WAN ether1.
I then ran some tests and got the same good bufferbloat results as with a simple queue. Here is one sample: https://www.waveform.com/tools/bufferbl ... b4aa8dc505. And CPU usage was much lower. It wasn't too bad even before for my 120M/12M Internet connection, but now it got me thinking - how well would hAP ac2 handle a much faster WAN connection?
I pulled out a spare router, reset to all defaults, and ran some tests. I used iperf3 with 20 threads and 60 seconds run to simulate LAN to WAN heavy traffic. Client PC is on LAN side of hAP ac2, server PC is on WAN.
Same fq_codel configuration as above, only max-limit set to 1020M for both download and upload. Simulating a gigabit Internet service.
With FastTrack disabled, two CPU cores are maxed out at 100%, iperf reported ~560Mbps.
With FastTrack enabled, only one core reached 90-95%, overall utilization ~50%. Iperf speeds were 915-924Mbps. FastTrack makes a huge difference indeed.
I also ran continuous pings from client to server to see fq_codel working for the lack of a better test. The difference was also huge:
1ms unloaded.
With fq_codel average ping 3ms, 15ms max.
Without fq_codel (queues disabled) average ping 13ms, max 48ms. Fq_codel makes a difference even on such a fast connection.
It's a big discovery for me. MikroTik's clever solution - FastTrack - turns out to be even better than HW NAT in my case as every SOHO router with HW NAT I've seen can't do SQM with it enabled. If you search online for best routers with SQM for gigabit Internet service, you will find most recommendations are around x86 or some other beefy solutions. Unless my test was flawed somehow, you can actually get pretty close to a gigabit with fq_codel on an inexpensive hAP ac2. Granted, I don't have those kind of speeds, but this will certainly be on my list of recommendations for others.
It also means older low-performance MikroTik devices can do pretty well with fq_codel thanks to FastTrack. And even if you have a more powerful device like RB5009, the option to save some processing power is there. With container support coming up soon, there is always going to be a way to put that extra CPU to good use.
I want to point out that I don't use WiFi on hAP ac2, which would definitely consume a good chunk of CPU.
Good morning, understood,I use it only with fq-codel on the bridge interface for download and ether1 (WAN) for upload.
Thank you very much, i am also fond of the set and forget idea but testing both out to see performance!I haven't changed eth2-eth5 queues from the default, which is only-hardware-queue on my router.
I never tried pcunite's approach, sorry. I wanted a simple configuration and - the key point - ability to use while FastTrack is enabled. It works great without taxing CPU too much. I don't have to fiddle with it at all, it's "set and forget". The 3 configuration lines in my post above is all it takes.
Good luck with testing!
Just wanted to thank you for this easy qos setup, at the first glance seems to be doing a great job!I use it only with fq-codel on the bridge interface for download and ether1 (WAN) for upload.
How this can be adjusted for 2 bridges - one for homelan and another one for guestlan?I found an old thread (viewtopic.php?t=113308) that talks about using QoS with FastTrack enabled. That got me interested. After reading the thread and also reviewing packet flow documentation, I came to realize I can successfully use this approach with fq_codel.
Code: Select all/queue type add fq-codel-limit=1000 fq-codel-quantum=300 fq-codel-target=12ms kind=fq-codel name=fq-codel /queue tree add bucket-size=0.01 max-limit=118M name=download packet-mark=no-mark parent=bridge1 queue=fq-codel add bucket-size=0.01 max-limit=11M name=upload packet-mark=no-mark parent=ether1 queue=fq-codel
The key are interface queues that work along with FastTrack. Because interface-attached HTB works only for egress, I put my download queue on the bridge interface (BTW, I have two VLANs on top of it), so the queuing happens when Internet traffic leaves the router in LAN direction. The upload queue is on WAN ether1.
I then ran some tests and got the same good bufferbloat results as with a simple queue. Here is one sample: https://www.waveform.com/tools/bufferbl ... b4aa8dc505. And CPU usage was much lower. It wasn't too bad even before for my 120M/12M Internet connection, but now it got me thinking - how well would hAP ac2 handle a much faster WAN connection?
I pulled out a spare router, reset to all defaults, and ran some tests. I used iperf3 with 20 threads and 60 seconds run to simulate LAN to WAN heavy traffic. Client PC is on LAN side of hAP ac2, server PC is on WAN.
Same fq_codel configuration as above, only max-limit set to 1020M for both download and upload. Simulating a gigabit Internet service.
With FastTrack disabled, two CPU cores are maxed out at 100%, iperf reported ~560Mbps.
With FastTrack enabled, only one core reached 90-95%, overall utilization ~50%. Iperf speeds were 915-924Mbps. FastTrack makes a huge difference indeed.
I also ran continuous pings from client to server to see fq_codel working for the lack of a better test. The difference was also huge:
1ms unloaded.
With fq_codel average ping 3ms, 15ms max.
Without fq_codel (queues disabled) average ping 13ms, max 48ms. Fq_codel makes a difference even on such a fast connection.
It's a big discovery for me. MikroTik's clever solution - FastTrack - turns out to be even better than HW NAT in my case as every SOHO router with HW NAT I've seen can't do SQM with it enabled. If you search online for best routers with SQM for gigabit Internet service, you will find most recommendations are around x86 or some other beefy solutions. Unless my test was flawed somehow, you can actually get pretty close to a gigabit with fq_codel on an inexpensive hAP ac2. Granted, I don't have those kind of speeds, but this will certainly be on my list of recommendations for others.
It also means older low-performance MikroTik devices can do pretty well with fq_codel thanks to FastTrack. And even if you have a more powerful device like RB5009, the option to save some processing power is there. With container support coming up soon, there is always going to be a way to put that extra CPU to good use.
I want to point out that I don't use WiFi on hAP ac2, which would definitely consume a good chunk of CPU.
