MESH problem

[Roy]

Hi all,
I’m testing 433GL X 3 unit with mesh mode.
HT 20/40 above, Chain0/1, HT Guard interval long, Dynamic MESH
(there is no noise 5GHz)

Problem in mesh mode is

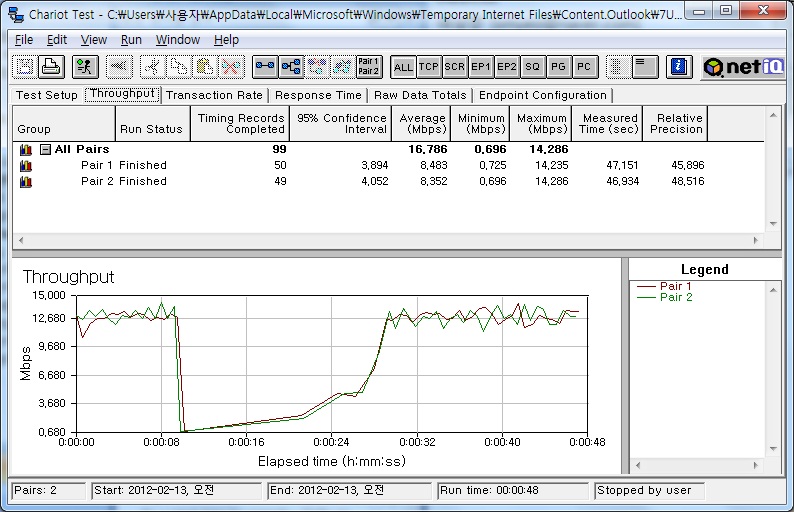

1. throughput is just up to 24Mbps.
2. When one of them is disconnected, throughput is very low, so even cannot send small size video.

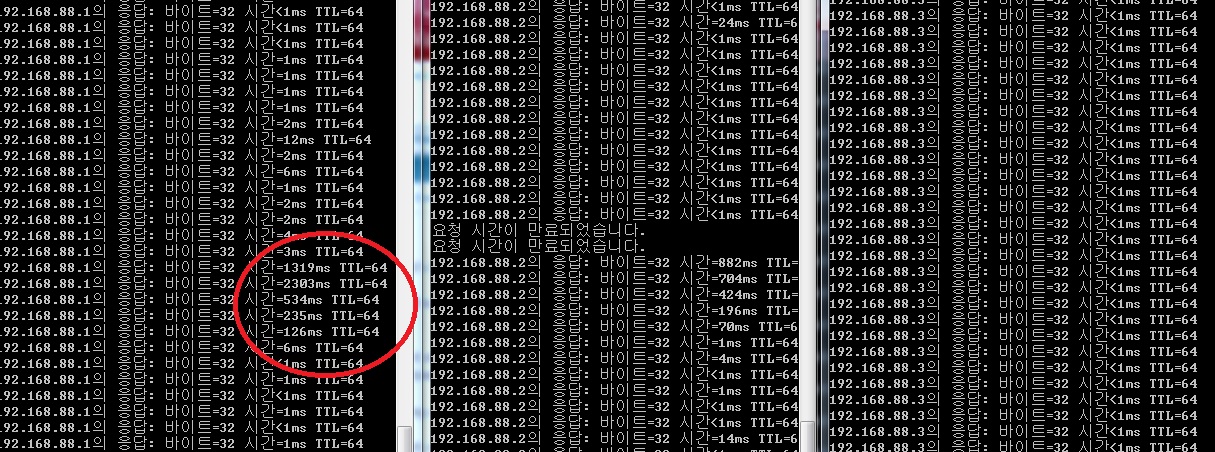

   And ping reply time is over 1000~2000ms 3~5seconds.


   So I wish to know how to set for

• maximize throughput in mesh mode(expecting 60~100Mbps)
• minimze mesh recovery time and delay time.

please help me anybody

[TheWiFiGuy]

Im no expert in this matter, but ive seen the high ping times when the mesh has been set up wrongly , in my case incorrect bridge setup with no rstp.

[uldis]

I would suggest to make one of the node as an AP and clients to station-bridge mode.
Then enable Nv2 wireless protocol and use bridge with RSTP protocol mode.

[Roy]

@uldis

I would suggest to make one of the node as an AP and clients to station-bridge mode.
Then enable Nv2 wireless protocol and use bridge with RSTP protocol mode.

http://forum.mikrotik.com/t/mesh-handover-network-with-no-latency-time-or-no-packet-loss/53239/1
I wish to use above application

[chadd]

@uldis

I would suggest to make one of the node as an AP and clients to station-bridge mode.
Then enable Nv2 wireless protocol and use bridge with RSTP protocol mode.

Uldis,

Do you know if WDS slave or AP-AP WDS will ever be an option with NV2? Right now there is really no way to set up a true wireless mesh network while running NV2.

Thanks,
Chadd

[Alessio_Garavano]

@chadd

@uldis

I would suggest to make one of the node as an AP and clients to station-bridge mode.
Then enable Nv2 wireless protocol and use bridge with RSTP protocol mode.

Uldis,

Do you know if WDS slave or AP-AP WDS will ever be an option with NV2? Right now there is really no way to set up a true wireless mesh network while running NV2.

Thanks,
Chadd

and?
