Another thread gave me an idea for a “interactive piano” using /terminal/inkey. It got more complex than I intended… But essentially everything that’s played is saved to an array & played. A status bar shows the current octave, note length, last note played — even a “tape counter” for recording length. The help should explain most things, so here is a screenshot:
To use it, you need to either cut-and-paste the following script, or add it to /system/script etc as desired. To invoke the piano, you just use $PIANO at the CLI (after loading the script). After quit via “q”, a valid script will be output to play it back. Obviously this all requires a RouterOS device with a “beeper” (e.g. :beep does something) – most ARM devices do NOT have one. I’ll add more examples later, but add a comment if you find any bug or have suggestions.
# version 1.2
:global PIANO do={
# required for recussion later
:global PIANO
# default note time is 200ms for 1/8 note (1x)
:local nms 200ms
# change note length by arg using $PIANO ms=250ms
:if ([:typeof $ms]="str") do={:set nms [:totime "0.$ms"]}
:if ([:typeof $ms]="time") do={:set nms $ms}
# or, use BPM via bpm= to control the length of 1/4 note
:local lbpm (60000 / (([:tonsec [:totime $nms]] / 1000000) * 2))
:if ([:typeof $bpm]~"(num|str)") do={
:set lbpm [:tonum $bpm]
:set nms [:totime "0.$(60000 / $bpm / 2)"]
}
# handle silent=yes (for output recording without playing)
:local lsilent "no"
:if ($silent="yes") do={ :set lsilent "yes" }
# handle 'as-value' to return array, instead of output script
:local asvalue 0
:if ([:tostr $1]="as-value") do={:set asvalue 1}
# array map of keypress to the Hz values for octaves 1 to 9
# note: k o l are +1 octave, so those are shifted by 1
:local scalearr {"a"=("C",33,65,131,262,523,1047,2093,4186,8372) ;
"w"=("C#",35,69,139,277,554,1109,2217,4435,8870) ;
"s"=("D",37,73,147,294,587,1175,2349,4699,9397) ;
"e"=("D#",39,78,156,311,622,1245,2489,4978,9956) ;
"d"=("E",41,82,165,330,659,1319,2637,5274,10548) ;
"f"=("F",44,87,175,349,698,1397,2794,5588,11175) ;
"t"=("F#",46,92,185,370,740,1480,2960,5920,11840) ;
"g"=("G",49,98,196,392,784,1568,3136,6272,12544) ;
"y"=("G#",52,104,208,415,831,1661,3322,6645,13290) ;
"h"=("A",55,110,220,440,880,1760,3520,7040,14080) ;
"u"=("A#",58,117,233,466,932,1865,3729,7459,14917) ;
"j"=("B",62,123,247,494,988,1976,3951,7902,15804) ;
"k"=("+C",65,131,262,523,1047,2093,4186,8372,16744) ;
"o"=("+C#",139,277,554,1109,2217,4435,8870,17739) ;
"l"=("+D",73,147,294,587,1175,2349,4699,9397,18795) ;
}
# script needs to map numeric ASCII keycode to a string type with letter
:local asciimap {"";"";"";"";"";"";"";"";"back";"";"tab";"";"";"enter";"return";"";"";"";"";"";"";"";"";"";"";"";"";"ESC";"";"";"";"";"space";"!";"\"";"";"\$";"%";"&";"";"(";")";"*";"+";",";"-";".";"/";"0";"1";"2";"3";"4";"5";"6";"7";"8";"9";":";";";"<";"=";">";"\?";"@";"A";"B";"C";"D";"E";"F";"G";"H";"I";"J";"K";"L";"M";"N";"O";"P";"Q";"R";"S";"T";"U";"V";"W";"X";"Y";"Z";"[";"\\";"]";"^";"_";"`";"a";"b";"c";"d";"e";"f";"g";"h";"i";"j";"k";"l";"m";"n";"o";"p";"q";"r";"s";"t";"u";"v";"w";"x";"y";"z";"{";"|";"}";"~";"delete"}
# current note size in ms - can be adjusted using 1-8 keys while playing
:local lnms $nms
# current octave, default is 4
:local octave 4
# current "eighth"
:local neighth 1
# store if "recording" and notes played
:local record 1
:local played [:toarray ""]
# ...recording stopped when $record is set to 0, on with 1
# notes are pushed to a array "list"
# with each element in "outer" list being a list of two values:
# ($freq,$lnms) e.g. {(440,125),(440,125)}
# helper function to format note as C3
:local getnotename do={
:local notename $2
:if ([:len $2] != 0) do={
:if ([:pick $notename 0 1]="+") do={
# used higher octave keys like j i k
:set notename "$[:pick $notename 1 8]$($1 + 1)"
} else={
:set notename "$notename$[:tostr $1]"
}
} else={:set notename ""}
:return $notename
}
# helper function to print status line on update
:local printstatus do={
:local reconoff ""
:local reccount ""
# recording ON or OFF
:if ([:tonum $3]!=0) do={:set reconoff "\1B[1;35mON "} else={:set reconoff "\1B[2;35mOFF"}
# pretty display of record counter (length of played)
:for lrec from=1 to=(4-[:len [:tostr [:len $4]]]) do={:set reccount "0$reccount"}
:set reccount "$reccount$[:tostr [:len $4]]"
:local notename $7
# replace last status line, with new status line
/terminal cuu
:local notelenstr "$6/8"
:if ("$6" = "4") do={:set notelenstr "1/2"}
:if ("$6" = "2") do={:set notelenstr "1/4"}
:if ("$6" = "6") do={:set notelenstr "3/4"}
:if ("$6" = "8") do={:set notelenstr " 1 "}
:put "\t\1B[1;34m$[:pick $2 7 16]s\1B[0m \1B[2;31mOCTAVE\1B[0m \1B[1;31m$1\1B[0m \1B[1;34m$notelenstr\1B[0m \1B[1;35m$reccount\1B[0m \1B[2;35mRECORD\1B[0m $reconoff\1B[0m \1B[1;7m$notename\1B[0m \1B[1;1m$5\1B[0m "
}
# IF \$PIANO is called with a play=$myrecording, play that and exit
:if ([:typeof $1]="array") do={
# optional: store the saved recording, so it's returned again
# :set played $play
:set played $1
:put ""
:put " # SCRIPT TO PLAY RECORDING"
:foreach rnote in=$played do={
:if ([:typeof ($rnote->0)]="num" && [:typeof ($rnote->1)]~"(time|num)") do={
:if (($rnote->0) > 19) do={
# play regular note
:if ($lsilent!="yes") do={
/beep freq=($rnote->0) length=($rnote->1)
/terminal/cuu
}
:put " \1B[1;35m /beep\1B[0m \1B[2;34mlength=\1B[0m\1B[1;34m$[:pick [:tostr ($rnote->1)] 7 16]\1B[0m \1B[2;31mfreq=\1B[0m\1B[1;31m$($rnote->0)\1B[0m \1B[2;31m; (\"\1B[0m\1B[1;7m$($rnote->2)\1B[0m\1B[2;31m\")\1B[0m \1B[2;35m; :delay $[:pick [:tostr ($rnote->1)] 7 16]\1B[0m "
} else={
# either "marker" - no delay, but comment
:if (($rnote->1) = 0) do={
:put "\t\t\t# MARK"
} else={
# or a "rest" - output the delay command
:put "\t\1B[1;35m :delay $[:pick [:tostr ($rnote->1)] 7 16]\1B[0m "
}
}
:if ($lsilent!="yes") do={
:delay ($rnote->1)
}
} else={
:error "$[:tostr $rnote] contains invalid data"
}
}
:return $played
}
# help screen

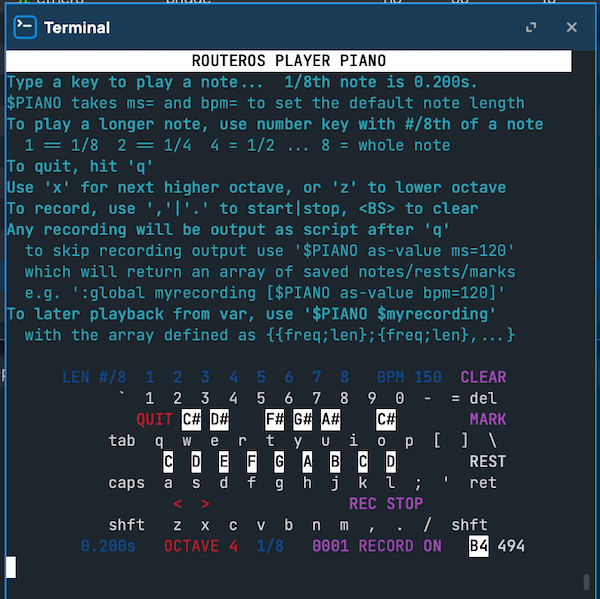

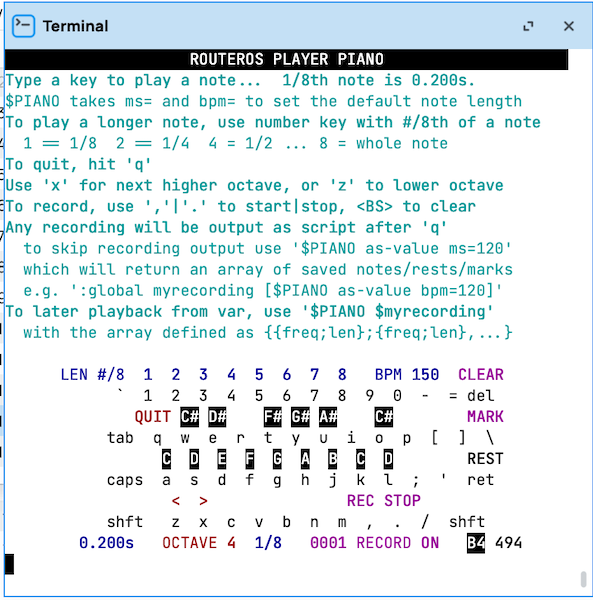

:put "\1B[1;7m ROUTEROS PLAYER PIANO \1B[0m"
:put "\1B[1;36mType a key to play a note... 1/8th note is $[:pick $nms 7 16]s."
:put "\1B[2;36m\$PIANO takes ms= and bpm= to set the default note length"
:put "\1B[1;36mTo play a longer note, use number key with #/8th of a note"
:put "\1B[2;36m 1 == 1/8 2 == 1/4 4 = 1/2 ... 8 = whole note"
:put "\1B[1;36mTo quit, hit 'q'"
:put "\1B[1;36mUse 'x' for next higher octave, or 'z' to lower octave"
:put "\1B[1;36mTo record, use ','|'.' to start|stop, <BS> to clear"
:put "\1B[1;36mAny recording will be output as script after 'q'"
:put "\1B[2;36m to skip recording output use '\$PIANO as-value ms=120'"
:put "\1B[2;36m which will return an array of saved notes/rests/marks"
:put "\1B[2;36m e.g. ':global myrecording [\$PIANO as-value bpm=120]'"
:put "\1B[1;36mTo later playback from var, use '\$PIANO \$myrecording'"
:put "\1B[2;36m with the array defined as {{freq;len};{freq;len},...}"
:put "\1B[0m"
:put " \1B[2;34mLEN \1B[1;34m#\1B[2;34m/8\1B[0m \1B[1;34m 1\1B[0m \1B[1;34m 2\1B[0m \1B[1;34m 3\1B[0m \1B[1;34m 4\1B[0m \1B[1;34m 5\1B[0m \1B[1;34m 6\1B[0m \1B[1;34m 7\1B[0m \1B[1;34m 8\1B[0m \1B[2;34mBPM \1B[1;34m$lbpm \1B[1;35mCLEAR\1B[0m"
:put "\t\1B[0m ` 1 2 3 4 5 6 7 8 9 0 - = del"
:put "\t \1B[1;31mQUIT\1B[0m \1B[1;7mC#\1B[0m \1B[1;7mD#\1B[0m \1B[1;7mF#\1B[0m \1B[1;7mG#\1B[0m \1B[1;7mA#\1B[0m \1B[1;7mC#\1B[0m \1B[1;35mMARK\1B[0m"
:put "\t\1B[0m tab q w e r t y u i o p [ ] \\"
:put "\t \1B[1;7mC\1B[0m \1B[1;7mD\1B[0m \1B[1;7mE\1B[0m \1B[1;7mF\1B[0m \1B[1;7mG\1B[0m \1B[1;7mA\1B[0m \1B[1;7mB\1B[0m \1B[1;7mC\1B[0m \1B[1;7mD\1B[0m \1B[1mREST\1B[0m"
:put "\t\1B[0m caps a s d f g h j k l ; ' ret"
:put "\t\1B[1;31m < > \1B[1;35mREC\1B[0m \1B[1;35mSTOP\1B[0m"
:put "\t\1B[0m shft z x c v b n m , . / shft"
:put ""
# first print of the status line
$printstatus $octave $lnms $record $played 0 $neighth
# start live player...
# - loops per note time, plays notes per stored octave and keypress
# ends with q is pressed (ascii code 113)
:local lastkey 65535
:local lastfq 0
:local notename ""
:while ($lastkey != 113) do={
# collect input
:set lastkey [/terminal inkey]
# 65535 means no keyboard input recieved before input timeout
:if ($lastkey = 65535) do={:delay $nms} else={
# if a number, use that as the multiplier for notes per second
:if ($lastkey > 48 && $lastkey < 57) do={
:set $neighth ($lastkey - 48)
:set $lnms ($nms*$neighth)
# update the display with new time per note
$printstatus $octave $lnms $record $played $lastfq $neighth $notename
}
# convert the keypress ASCII code (num type) to a actual str type with a letter
:local lastascii ($asciimap->$lastkey)
:if ($lastkey = 60929) do={:set lastascii "left"}
:if ($lastkey = 60930) do={:set lastascii "right"}
:if ($lastkey = 60931) do={:set lastascii "up"}
:if ($lastkey = 60932) do={:set lastascii "down"}
# change octave via x or z
:if ($lastascii ~ "x|z|left|right") do={
:local newoctave
:if ($lastascii~"z|left") do={ :set newoctave ($octave-1) } else={ :set newoctave ($octave +1) }
:if ($newoctave > 0 && $newoctave < 10) do={
:set octave $newoctave
}
}
# handle recording start/resume stop/start
:if ($lastascii = ",") do={:set record 1}
:if ($lastascii = ".") do={:set record 0}
# handle clear recording
:if ($lastascii = "back") do={:set played [:toarray ""]}
# if enter key, that's a rest, which is stored as freq==0
:if ($lastascii = "enter") do={
# add the rest to stored recording
:if ($record!=0) do={ :set $played ($played,{{0;$lnms}}) }
}
# handle mark recording
:if ($lastascii = "\\") do={
:if ($record!=0) do={ :set $played ($played,{{0;0}}) }
}
# fetch the actual Hz freq for the note, array is 0-based, so ->0 is 1st octave
:local freq ($scalearr->$lastascii->($octave))
# actually play the note
:if ([:typeof $freq]="num") do={
:if ($freq > 20) do={
:if ($silent!="yes") do={
:beep frequency=$freq length=$lnms
}
:set lastfq $freq
:set notename [$getnotename $octave ($scalearr->$lastascii->0)]
# if recording
:if ($record!=0) do={ :set $played ($played,{{$freq;$lnms;$notename}}) }
}
:delay $lnms
/terminal cuu
}
$printstatus $octave $lnms $record $played $lastfq $neighth $notename
}
}
:if ($asvalue=1) do={
:return $played
} else={
$PIANO $played silent="yes"
# in theory, should return nothing without "as-value"
# but return anyway for easy-of-use
:return $played
}
}
:global myrecording [$PIANO bpm=150]
Known Issues/Bugs
- support file serialization – should store ms as num in output array – not a typeof time… issue is JSON de/serialize does not store milliseconds
- perhaps should store note name in output array – as third element – to aid “debugging” since note name is known – use ;(“note”); in output which is a NOOP.
- BPM math may be calculate wrong, need to test more [scripting has no floating point numbers, so division is tricky/error-prone – only time type support fractional numbers but time types do not support division…]
- support up/down arrow keys for “splice”/replacing a past note — e.g. walk the array stack, to replace an entry [requires using counter as index into a “sparce array” instead of just appending to array]
- similar with left/right arrows to change octave (easier than above…)
- silent=yes has re-draw issue – does not need a /terminal/cuu if silent=yes
- status bar/help should show note sizes as 1/8 … 1/4 … 1/2 … 1 – not 2/8 … 4/8 … 8/8
- “open quesion” – unclear if showing a “note name” in script output as a NOOP ; (“A4”) ; or as comment # A4 – problem is comment do not always cut-and-paste well…
- support setting “mark name” – perhaps a | (e.g. shift \ on US Mac keyboard) — on a mark, 3rd element in $played array could some text to display
- support changing BPM with + / - key – ideally also noting as a mark (with BPM change noted) since recording will change BPM mid-stream
- fix typos in help/comments — generally code still a bit messy [although limited since DRY is hard since scripting does not allow local function to call other local functions in a single global function]
- perhaps add a “$PIANO help” that will show full docs — current help text is too long
- could do more with coloring/ANSI codes to make sure they work with both black and white terminal backgrounds – e.g. on Mac via ssh on black, “dim” is pretty dim…
- octave was misspelled octive, everywhere (var, help, screen)
)))
