3 vpls tunnels through 1 wlan

RouterOS Forwarding Protocols
1

Hello,

I am trying to build a setup like in attached picture.
To make transparent bridge between 3(6) LANS using vpls tunnels. LANS cant see each other. No problem for one vpls tunnel, but how configure other two? Cant make it by following this example http://wiki.mikrotik.com/wiki/Transparently_Bridge_two_Networks_using_MPLS

need help, thanks.

VM.
vpls setup.JPG

2

Please show us your current vpls and bridge configuration.

3

Now it’s just one vpls bridge running, like described in wiki.
I don’t know if you need anything else…

4

3 vpls on 1 wlan interfeci is nonsense .



you can make 3 vlan on 1 vpls , this is better

5

Create 3 VPLS instances between the routers, bridge each with Ethernet port

6

rather create 3 vlans between the routers and bridge each vlan to a respective ethernet port

7

Thats what I want, but how to do that? :slight_smile:

I don’t need especialy vpls.
I had running 3 eoip tunnels, but often it stops passing dhcp packets through until I reboot RB in WDS station mode. I don’t know if it is a bug or something, but I tryin to avoid this. That’s the reason I want to try vpls tunnels insteed of eoip. And vpls is higher performance vs eoip for 11n.

Thanks in advices.

VM.

8

OK, I’ve done it. By adding another vpls just with diferent VPLS ID.

would performance be better with 3 vlans over 1 vpls ???

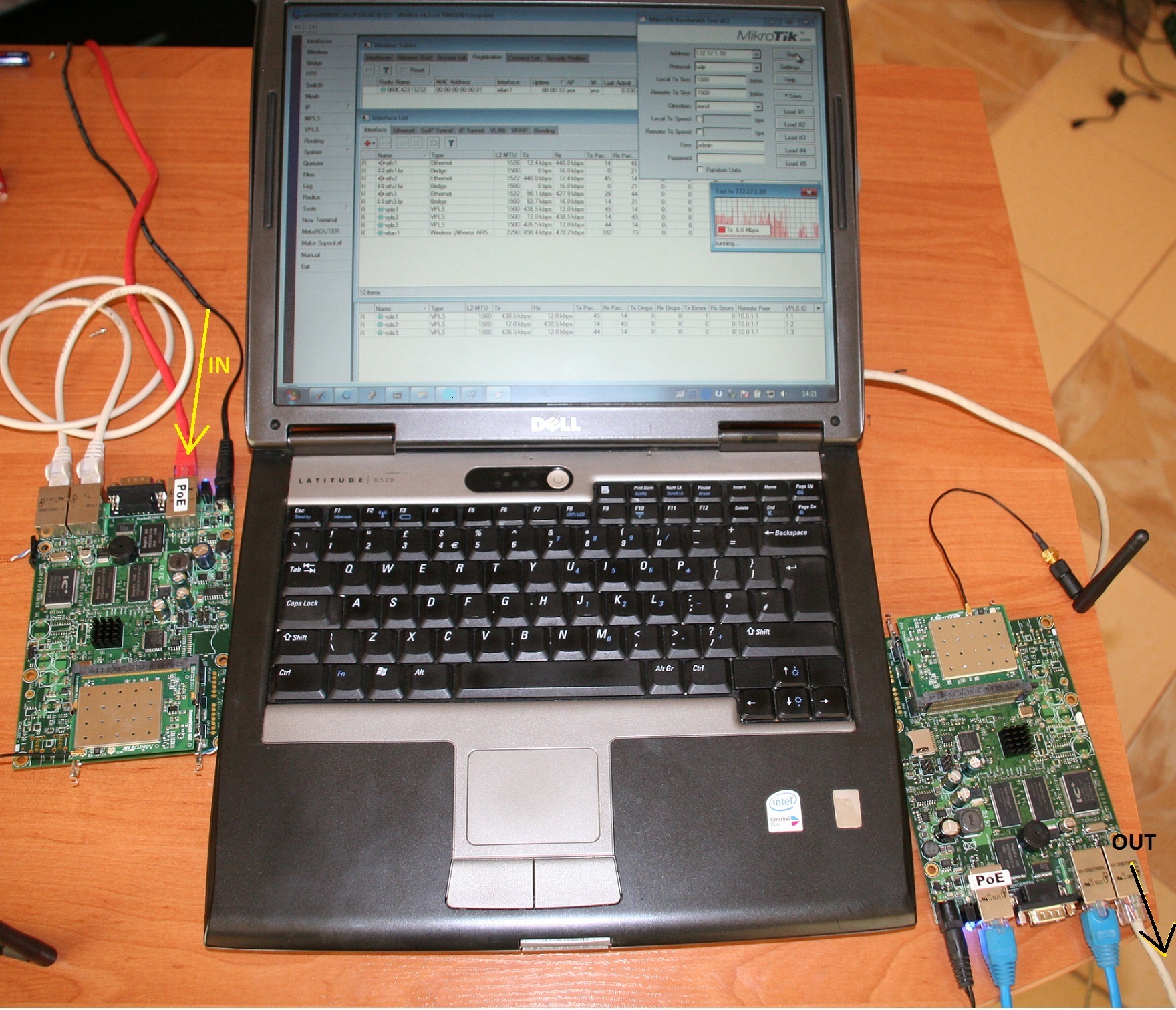

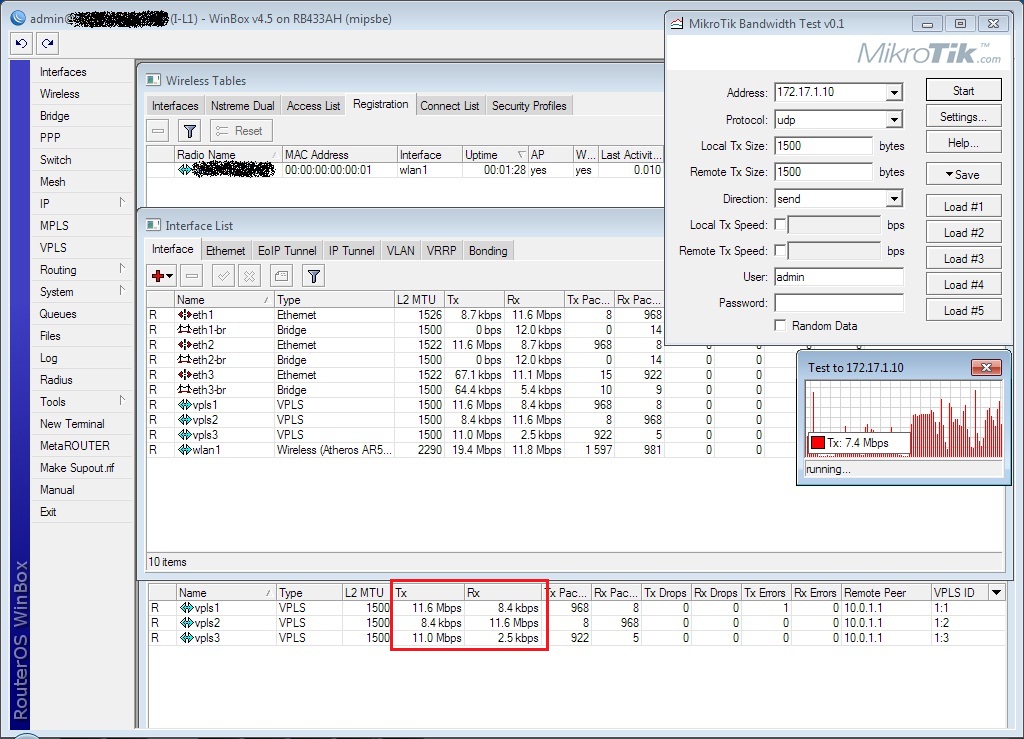

attached testing just for fun :slight_smile:
