A lot of TCP Retransmits and Dup ACKs

gleichda · January 2, 2025, 9:41am

Hi all,
I’m currently struggling with a lot of TCP Retransmits and Dup ACKs in my Setup with no idea where they come from.
A few discoveries I had:

This happens with different devices and different mediums (Ethernet and WiFi and also tested with different devices)
For testing I also already removed all ethernet cables except for eth1 (which is connected to my ISP Router) with the same result
This happens on IPv4 and IPv6
This happens different connections (device to internet, device to local device and even device to router interface (SSH/HTTP))

A few things I’ve checked and tested:

This was already happening on a 6.X firmware but still persists after upgrading to the latest Firmware (7.16.2) both on the RouterBoard and Packages.
I have 2 identical router models (hAP ac3) And I tested on both of them with exactly the same behavior
There is no high load on the router (CPU Usage stays below 10% even while the Packet Sniffer is running)
There is enough free memory (170MB of 256MB free)

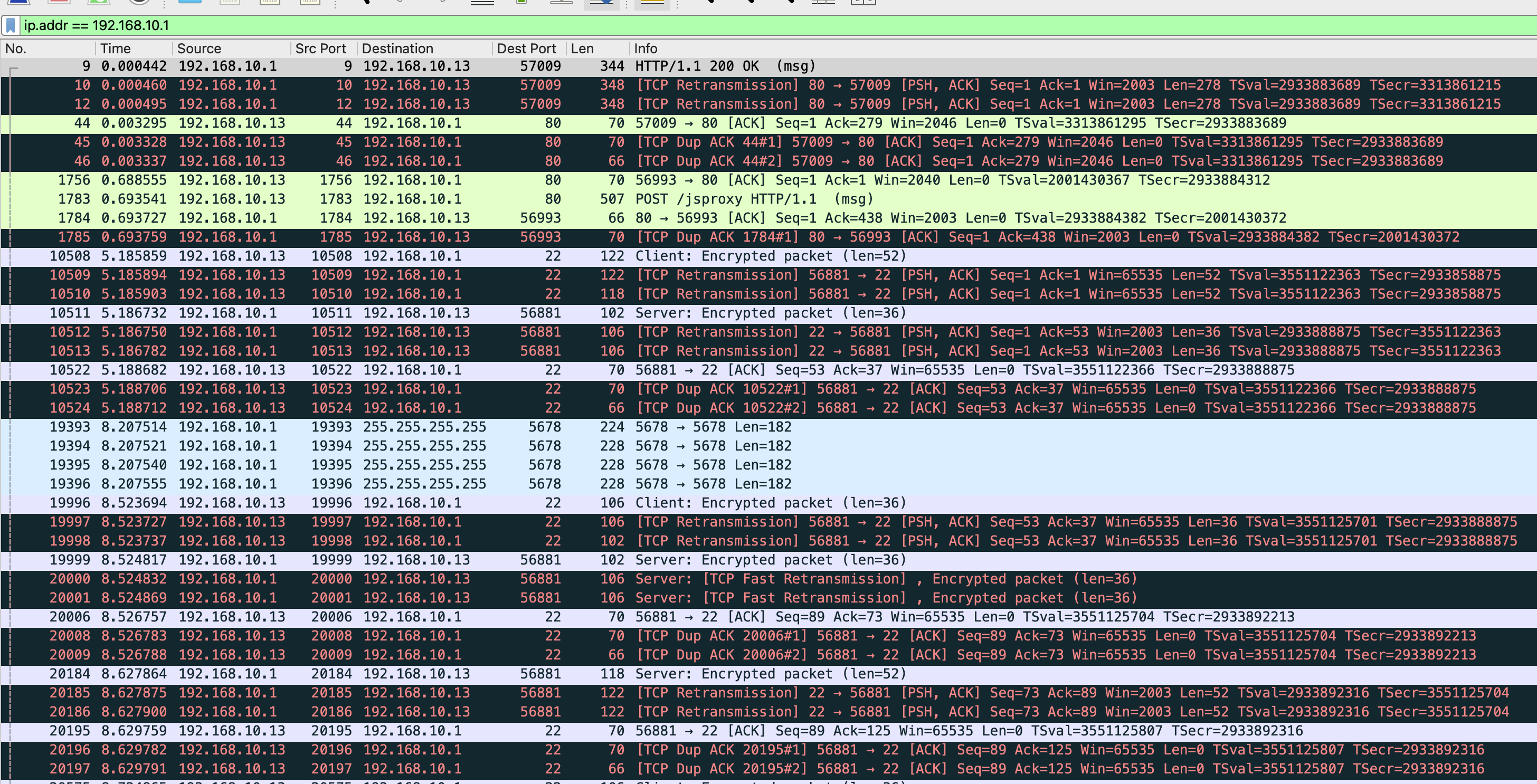

Screenshot filtered for router IP:
Screenshot 2025-01-02 at 10.40.07.png
My Config (w/o sensitive values):

# 2025-01-02 10:20:43 by RouterOS 7.16.2
# software id = UKL1-66QJ
#
# model = RBD53iG-5HacD2HnD
# serial number = HEH08H2HHG5
/interface bridge
add name=vlan-bridge vlan-filtering=yes
/interface wireguard
add listen-port=13231 mtu=1420 name=wireguard
/interface vlan
add interface=vlan-bridge name=vlan1 vlan-id=1
add interface=vlan-bridge name=vlan10 vlan-id=10
add interface=vlan-bridge name=vlan20 vlan-id=20
add interface=vlan-bridge name=vlan30 vlan-id=30
/interface list
add name=gast_list
add name=iot_list
add name=privat_list
add name=wan_list
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
add authentication-types=wpa2-psk mode=dynamic-keys name=privat \
    supplicant-identity=MikroTik
add authentication-types=wpa2-psk mode=dynamic-keys name=iot \
    supplicant-identity=MikroTik
add authentication-types=wpa2-psk mode=dynamic-keys name=gast \
    supplicant-identity=MikroTik
/interface wireless
set [ find default-name=wlan1 ] band=2ghz-b/g/n country=germany disabled=no \
    distance=indoors installation=indoor mode=ap-bridge security-profile=\
    privat ssid=0815_2.4G vlan-id=10 vlan-mode=use-tag
set [ find default-name=wlan2 ] band=5ghz-a/n/ac country=germany disabled=no \
    distance=indoors installation=indoor mode=ap-bridge security-profile=\
    privat ssid=0815 vlan-id=10 vlan-mode=use-tag
add disabled=no mac-address=4A:A9:8A:D3:6D:F6 master-interface=wlan2 name=\
    gast security-profile=gast ssid=0815_Gast vlan-id=30 vlan-mode=use-tag
add disabled=no mac-address=4A:A9:8A:D3:6D:F5 master-interface=wlan1 name=\
    gast2_4 security-profile=gast ssid=0815_Gast_2.4G vlan-id=30 vlan-mode=\
    use-tag
add disabled=no mac-address=4A:A9:8A:D3:6D:F4 master-interface=wlan2 name=iot \
    security-profile=iot ssid=0815_IoT vlan-id=20 vlan-mode=use-tag
add disabled=no mac-address=4A:A9:8A:D3:6D:F3 master-interface=wlan1 name=\
    iot2_4 security-profile=iot ssid=0815_IoT_2.4G vlan-id=20 vlan-mode=\
    use-tag
/ip pool
add name=dhcp_vlan1_pool ranges=192.168.1.2-192.168.1.254
add name=dhcp_privat_pool ranges=192.168.10.2-192.168.10.254
add name=dhcp_iot_pool ranges=192.168.48.2-192.168.48.254
add name=dhcp_guest_pool ranges=192.168.30.2-192.168.30.254
/ip dhcp-server
add address-pool=dhcp_vlan1_pool interface=vlan1 lease-time=10m name=\
    dhcp_vlan1
add address-pool=dhcp_privat_pool interface=vlan10 lease-time=10m name=\
    dhcp_privat
add address-pool=dhcp_iot_pool interface=vlan20 lease-time=10m name=dhcp_iot
add address-pool=dhcp_guest_pool interface=vlan30 lease-time=10m name=\
    dhcp_guest
/interface bridge filter
add action=drop chain=forward comment="deny intra gast communication" \
    in-interface-list=gast_list out-interface-list=gast_list
add action=drop chain=forward comment="deny intra iot communication" \
    in-interface-list=iot_list out-interface-list=iot_list
/interface bridge port
add bridge=vlan-bridge comment=TV frame-types=\
    admit-only-untagged-and-priority-tagged ingress-filtering=no interface=\
    ether2 pvid=20
add bridge=vlan-bridge frame-types=admit-only-untagged-and-priority-tagged \
    ingress-filtering=no interface=ether3 pvid=20
add bridge=vlan-bridge frame-types=admit-only-untagged-and-priority-tagged \
    ingress-filtering=no interface=ether4 pvid=20
add bridge=vlan-bridge frame-types=admit-only-untagged-and-priority-tagged \
    ingress-filtering=no interface=ether5 pvid=10
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=wlan1 pvid=10
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=wlan2 pvid=10
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=iot2_4 pvid=20
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=iot pvid=20
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=gast2_4 pvid=30
add bridge=vlan-bridge frame-types=admit-only-vlan-tagged ingress-filtering=\
    no interface=gast pvid=30
/ipv6 settings
set accept-router-advertisements=yes
/interface bridge vlan
add bridge=vlan-bridge tagged=vlan-bridge vlan-ids=1
add bridge=vlan-bridge tagged=vlan-bridge,wlan1,wlan2 vlan-ids=10
add bridge=vlan-bridge tagged=vlan-bridge,iot,iot2_4 vlan-ids=20
add bridge=vlan-bridge tagged=vlan-bridge,gast2_4,gast vlan-ids=30
/interface list member
add interface=gast list=gast_list
add interface=gast2_4 list=gast_list
add interface=iot list=iot_list
add interface=iot2_4 list=iot_list
add interface=wlan1 list=privat_list
add interface=wlan2 list=privat_list
add interface=ether2 list=privat_list
add interface=ether3 list=privat_list
add interface=ether4 list=privat_list
add interface=ether5 list=privat_list
add interface=vlan10 list=privat_list
add interface=ether1 list=wan_list
add interface=wireguard list=privat_list
/interface wireguard peers
add allowed-address=192.168.100.2/32 comment=foo-handy interface=wireguard \
    name=peer1 public-key="FWUcz+9f0wgJc48BsHm7860LXbkpoxCIofmvqhajFEQ="
add allowed-address=192.168.100.3/32 comment=foo-tablet interface=wireguard \
    name=peer2 public-key="+1Al+1tQhj/M7ORMKKOr29zJXCnGN6YbY89GLX0Jhg0="
add allowed-address=192.168.100.11/32 comment=tablet-handy interface=\
    wireguard name=peer3 public-key=\
    "wJtCob2tx8KMJvZU/T/xMs/UqMp8G/3aCGNlYrCDoB8="
add allowed-address=192.168.100.10/32 comment=bar-handy interface=\
    wireguard name=peer4 public-key=\
    "qUDJ16mSuDQ+gY1T/ErY8T4I3Dzjrr1ilm11NOOrhRY="
add allowed-address=192.168.100.20/32 comment=travelrouter interface=\
    wireguard name=peer5 public-key=\
    "31yaNo8mMhN8IeKbWYFpgt2ziY9Iov9MCWSsaB8uSUg="
/ip address
add address=192.168.1.1/24 interface=vlan1 network=192.168.1.0
add address=192.168.10.1/24 interface=vlan10 network=192.168.10.0
add address=192.168.48.1/24 interface=vlan20 network=192.168.48.0
add address=192.168.30.1/24 interface=vlan30 network=192.168.30.0
add address=192.168.100.1/24 interface=wireguard network=192.168.100.0
/ip dhcp-client
add interface=ether1 use-peer-dns=no
/ip dhcp-server lease
<ENTRIES REMOVED FOR PRIVACY>
/ip dhcp-server network
add address=192.168.1.0/24 gateway=192.168.1.1
add address=192.168.10.0/24 dns-server=192.168.10.1 gateway=192.168.10.1
add address=192.168.30.0/24 dns-server=192.168.30.1 gateway=192.168.30.1
add address=192.168.48.0/24 dns-server=192.168.48.1 gateway=192.168.48.1
/ip dns
set allow-remote-requests=yes servers=8.8.8.8,8.8.4.4 verify-doh-cert=yes
/ip dns static
add address=192.168.10.200 name=homeassistant.<HIDDEN> ttl=10m type=A
add address=192.168.100.1 name=wireguard.<HIDDEN> ttl=10m type=A
add address=192.168.32.1 name=fritz.box ttl=10m type=A
add address=8.8.8.8 disabled=yes name=dns.google type=A
add address=8.8.4.4 disabled=yes name=dns.google type=A
add address=2001:4860:4860::8888 disabled=yes name=dns.google type=AAAA
add address=2001:4860:4860::8844 disabled=yes name=dns.google type=AAAA
add disabled=yes forward-to=dns.google regexp="\\\\.*\$" ttl=10m type=FWD
/ip firewall address-list
add address=0.0.0.0/8 comment=RFC6890 list=special_ranges
add address=10.0.0.0/8 comment=RFC6890 list=special_ranges
add address=100.64.0.0/10 comment=RFC6890 list=special_ranges
add address=127.0.0.0/8 comment=RFC6890 list=special_ranges
add address=169.254.0.0/16 comment=RFC6890 list=special_ranges
add address=172.16.0.0/12 comment=RFC6890 list=special_ranges
add address=192.0.0.0/24 comment=RFC6890 list=special_ranges
add address=192.0.2.0/24 comment=RFC6890 list=special_ranges
add address=192.88.99.0/24 comment="6to4 relay Anycast [RFC3068]" list=\
    special_ranges
add address=192.168.0.0/16 comment=RFC6890 list=special_ranges
add address=198.51.100.0/24 comment=RFC6890 list=special_ranges
add address=198.18.0.0/15 comment=RFC6890 list=special_ranges
add address=203.0.113.0/24 comment=RFC6890 list=special_ranges
add address=224.0.0.0/4 comment=Multicast list=special_ranges
add address=240.0.0.0/4 comment=RFC6890 list=special_ranges
add address=192.168.10.1 comment="VLAN10 gateway" list=gateways
add address=192.168.48.1 comment="VLAN20 gateway" list=gateways
add address=192.168.30.1 comment="VLAN30 gateway" list=gateways
add address=192.168.48.220 list=WLED
add address=192.168.48.221 list=WLED
/ip firewall filter
add action=accept chain=input comment="accept established,related" \
    connection-state=established,related
add action=accept chain=input comment="allow WireGuard" dst-port=13231 \
    protocol=udp
add action=accept chain=input comment="allow WireGuard traffic" src-address=\
    192.168.100.0/23
add action=drop chain=input connection-state=invalid
add action=accept chain=input comment="allow ICMP" in-interface=ether1 \
    protocol=icmp
add action=drop chain=input comment="block everything else" in-interface=\
    ether1
add action=accept chain=forward comment="accept established,related" \
    connection-state=established,related
add action=drop chain=forward connection-state=invalid
add action=drop chain=forward comment=\
    "drop access to clients behind NAT from WAN" connection-nat-state=!dstnat \
    connection-state=new in-interface=ether1
add action=accept chain=forward comment=\
    "allow private network to iot devices" in-interface=vlan10 out-interface=\
    vlan30
add action=accept chain=forward comment="foo Handy from any network" \
    src-mac-address=<HIDDEN>
add action=accept chain=forward comment="bar Handy from any network" \
    src-mac-address=<HIDDEN>
add chain=forward comment="Cross communication between WLED" \
    dst-address-list=WLED port=21324 protocol=udp src-address-list=WLED
add chain=forward comment="Cross communication between WLED" \
    dst-address-list=WLED port=65506 protocol=udp src-address-list=WLED
add action=drop chain=forward comment=\
    "drop guest to special ranges (RFC6890)" dst-address-list=special_ranges \
    in-interface=vlan30
add action=drop chain=input comment=\
    "deny ingress to mikrotik if not in private" dst-address-list=gateways \
    in-interface-list=!privat_list port=22,80 protocol=tcp
add action=accept chain=forward comment="MQTT to Hassio" dst-address=\
    192.168.10.200 src-address=192.168.40.236
add action=accept chain=forward comment="MQTT to Hassio" dst-address=\
    192.168.10.200 dst-port=1883 in-interface=vlan20 protocol=tcp
add action=drop chain=forward comment="drop iot to special ranges (RFC6890)" \
    dst-address-list=special_ranges in-interface=vlan20
/ip firewall nat
add action=masquerade chain=srcnat out-interface=ether1
add action=dst-nat chain=dstnat dst-port=80 in-interface=ether1 protocol=tcp \
    to-addresses=192.168.10.200 to-ports=80
add action=dst-nat chain=dstnat dst-port=443 in-interface=ether1 protocol=tcp \
    to-addresses=192.168.10.200 to-ports=443
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ipv6 address
add address=::1 from-pool=ipv6-dhcp-pool interface=vlan10
/ipv6 dhcp-client
add add-default-route=yes interface=ether1 pool-name=ipv6-dhcp-pool \
    prefix-hint=::/57 request=prefix
/ipv6 nd
set [ find default=yes ] hop-limit=64
/system clock
set time-zone-name=Europe/Berlin
/system note
set show-at-login=no
/system routerboard settings
set auto-upgrade=yes
/tool mac-server
set allowed-interface-list=privat_list
/tool mac-server mac-winbox
set allowed-interface-list=privat_list

sindy · January 2, 2025, 11:22am

Do you use /tool sniffer on the router itself for packet capturin, and if you do, do you specify a particular interface to sniff at? If the answers are “yes” to the first one and “no” to the second, the capture may contain the same packet/frame multiple times - once captured on the physical interface, once on the bridge, and possibly yet another time on the vlan interface, depening on the actual path of the packet. The TCP dissector in Wireshark would not take information about packet origin into account even if it was present in the capture file, but that’s not even the case when sniffing on Mikrotik - the sniffer keeps using .pcap format rather than moving to .pcapng that adds information about the source interface to the captured packets.

gleichda · January 2, 2025, 3:15pm

Thanks Sindy,
you pinpointed the issue. I limited to MAC and IP Addresses but never to a certain interface. I now tested the same setup with limiting to single interfaces and can confirm that 99% of the Retransmits/Dup ACKs are gone and are now at an expected level.
