Cannot contact a brand new SXT G-5HPacD

RouterOS Beginner Basics
1

Hello I will use a brand new SXT G-5HPacD but I cannot contact it.

I use the original PoE injector and power supply but I cant find the IP of it.
I hear one beep after power on and 2 short beeps 8s later- the LED is green.
I try to contact 182.168.88.1 by direct wiring to my PC

If I let search a IP scanner I also cant find it
I also test to contact it with winBox- no contact ;o(

If I press the little button behind its door for long time I dont see any changes an the LED

What I can try to use it?

Ron

2

192.168.88.1 (182?)

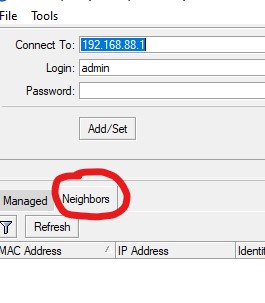

With WinBox, what is under “Neighbors” tab ? If there is a line, Click on the MAC address there, and connect via MAC address.

3

Okay- I try it later

actually I connect it with a separate Laptop and scan the complete IP´s from 192.168.1.1 to 192.168.255.255

;o)

4

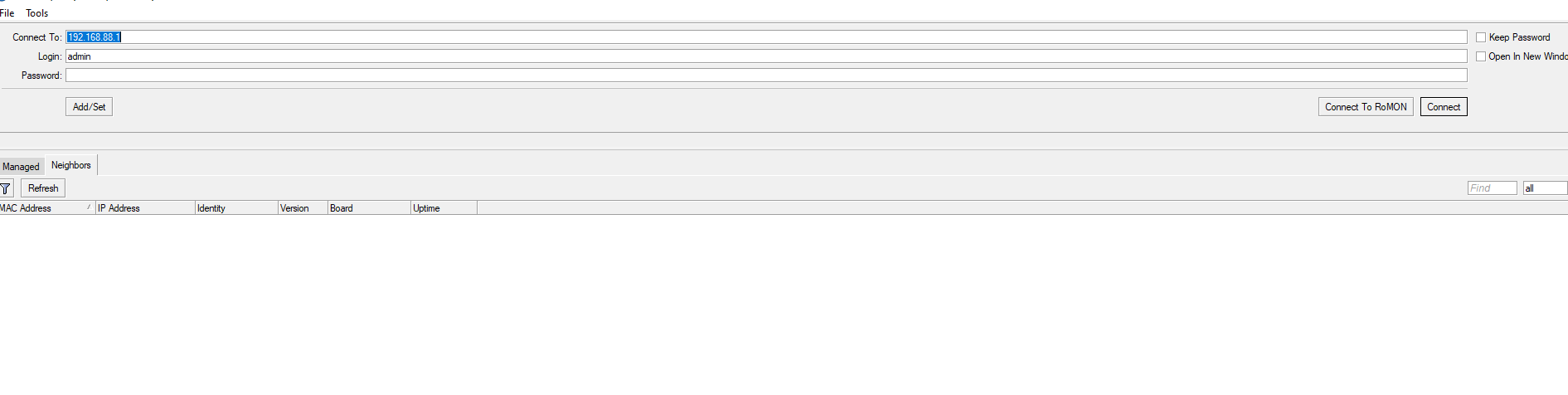

these are the correct settings?

5

Okay
Now I found someone on 192.168.15.9

If I will open this in google chrome I cannot find it

What I can do to reset all the settings on the Mikrotik?

…because all in english I dont know for what I should use winBox ;o(

…I´m from Germany and my english is …

6

192.168.15.9 tells me that you are connected on another network than the SXTsq 5 ac network. Plug the cable of your laptop in the PoE injector of the SXTsq !

And use “Neighbors” tab, not the Managed tab, to be able to connect even when the IP settings are wrong.
https://help.mikrotik.com/docs/display/QG/Quick+Guide+G3

https://help.mikrotik.com/docs/display/UM/SXTsq-series

7

Okay- with cable of the laptop it cannot find neigbors ;o(

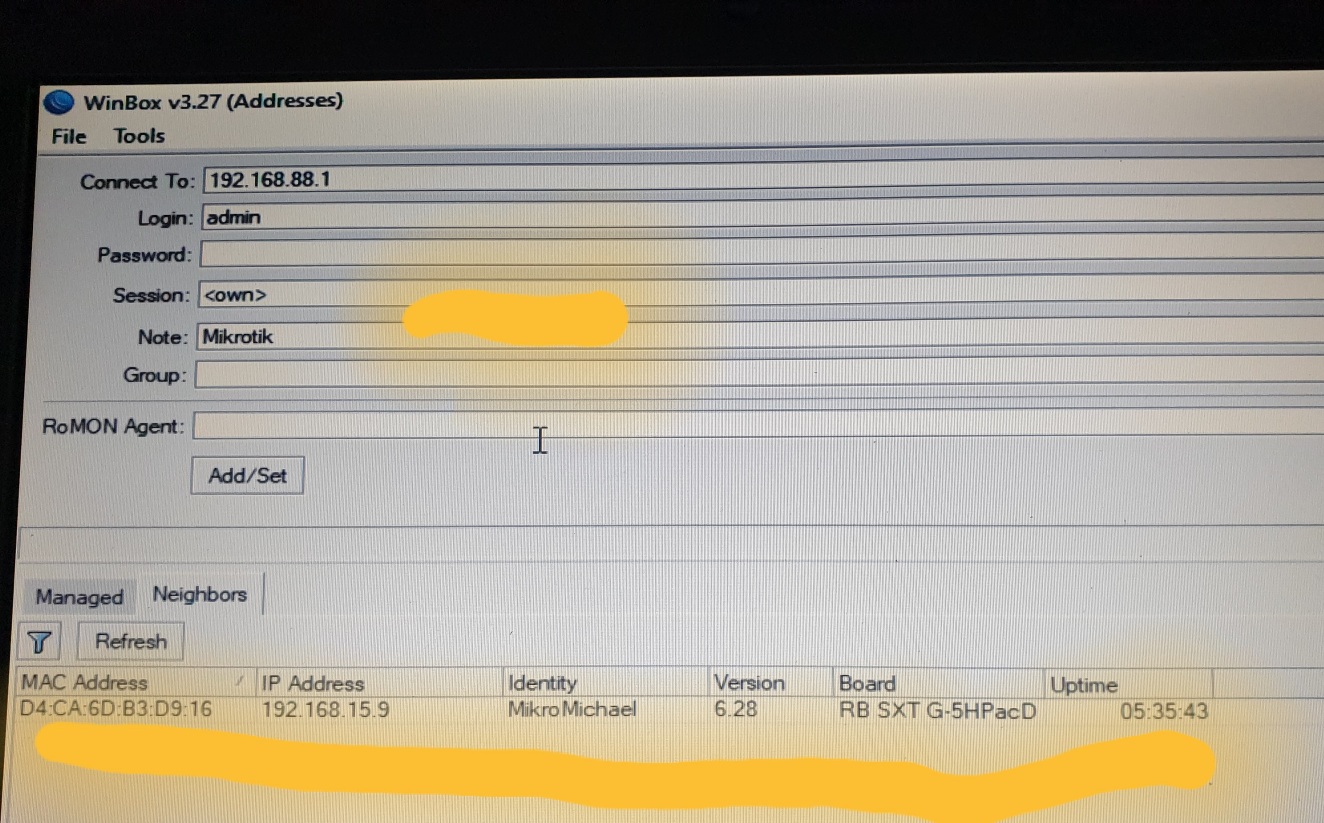

With cable in I see the following

I Think the seller has edit some things and sell it as new.

(The Unit, holder, package and other parts looks brandNew)

Okay- I think I must do a reset

8

Connect by clicking on the MAC address, or hardware reset the device (preferred) as mentioned in the documents in the previous post.

Brand New??? With version 6.28 as factory default ??? Software 6.28 release note “What’s new in 6.28 (2015-Apr-15 15:18)”:
You might need to learn the “netinstall” procedure if you cannot upgrade, to give it a normal version. LT version 6.46.8 will certainly work (avoid Stable, unless you urgently need something of the new features)

Consider returning this device. It has been tampered with. (Or check under System-> Resources → Total Sector Writes, for no more than a few 100.000 writes, as the flash has a limited lifetime.)

9

Hello again

after hard reset I can arrive it under 192.168.88.1 ;o)

Now I want to update the Software

I click on [check for updates]

I get the message -could not resolve address upgrade.mikrotik.com-

(the laptop has Wifi in another network)

If I log in to the mikrotik website to search the 6.46.8 Version manually I found sooooo much files and dont know whats the file I needed

is there anyone that can do my basic settings in teamviewer?

thank you, Ron

10

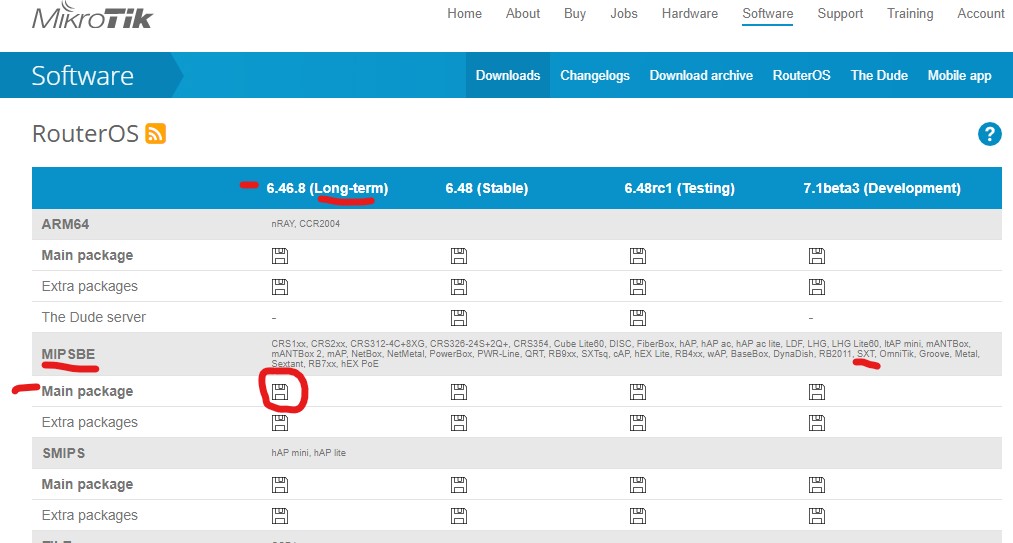

Download MIPSBE image. Drag it in “Files” window on the SXT and reboot.

11

OK
I test it tomorrow.
Now I must go sleep because it snows a lot and 4AM I must sit into the Snow plow ;o)

Thank you for today!

12

Just to come back on your brand new SXT G-5HPacD. The letters after that should be “r2” or “HG”. (Your column is just too small to see the rest. But if there is anything the name would end on “…” when the column is too small in Windows.) So it is just nothing else ?

My “RBSXT G-5HPacD r2” , however it is a SXT SA5 ac / RBSXTG-5HPacD-SA, of last year has a factory firmware of 6.42.10 (the lowest that can be installed)

So I don’t understand what you received as device. RBSXTG-5HPacD exists, RBSXTG-5HPacD-HG exists, but both are “end of live” ,and are replaced by the RBSXTsqG-5acD (cheaper but license level 3). Some vendors still have them though.

13

Hello
now I´m back

I had connect the SXT by Winbox and drag the downloadet file to the Files ordner and it opens a window that shows the upload

Now I restart the SXT ans there ist still the old firmware- Whats the mistake I do?

14

The LOG will tell you why it didn’t upgrade

I learned something new today in the MT model name/numbers.
Inmy SXT SA5 ac (also called model SXT G-5HPacD) , by adding 2 new devices I saw more recent factory firmware but the “r2” version number was gone.
So with MT , version numbers go like: SXT G-5HPacD / SXT G-5HPacD r2 / SXT G-5HPacD (no r number)

So for your upgrade check the model and the Achitecture name (in /system resources), to be sure it is ‘mipsbe’ (the *.npk file is specific for the architecture)
