Can't get IP from

RouterOS Wireless Networking
1

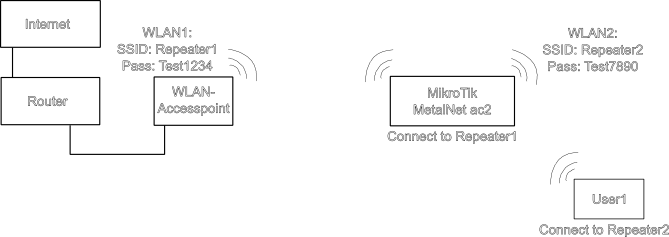

I want to use a MikroTik MetalNet ac2 (Firmware 6.49.17) as WLAN repeater with accesspoint. See the attached image.

I resetted the configuration and set it as followed:
wlan1- wireless (2GHz Band):
Mode: station pseudobridge
SSID: Repeater1
Security Profile: repeater1-profile

create a virtual wlan called wlan3
wlan3-wireless:
Mode: ap bridge
Master Interface: wlan1
SSID: Repeater2
Security Profile: repeater2-profile

create a bridge and add two ports (interface wlan1 and wlan3)

I can see the Repeater2 WLAN on my smartphone but I got no IP-Address. Why? I expected that the smartphone get its IP from the router. Is there a setting missing?

Thanks
Michael

2

Post your complete configuration for review, (anonymizing/masking sensible data) instructions here:
http://forum.mikrotik.com/t/forum-rules/173010/1

Or compare your setup with the one in this thread:
http://forum.mikrotik.com/t/wireless-repeater-and-ap/166913/1
maybe the solution is there.
