I have a situation - I am not familiar with Mikrotik OS and I experience real challenges setting up my 2 Mikrotik Audience wifi mesh. I am close to return both products
The problem:
I need to extend my wifi coverage - i decided to replace my AeroHive AP230 Access Point with 2 Mikrotik Audience devices and use the mesh functionality for the spots where I cannot get ethernet cable connected to the second AP.
The current setup:
My network looks like this:
OpnSense firewall (router) on wich I have 3 Vlans defined that will match each SSID I need (vlan id 10, 20, 30) and obviously a different DHCP network
After the firewall, I have an ubiquity switch (Ubiquiti EdgeSwitch which is powering the AeroHive AP via POE on port 8. The switch port 8 is set as Trunk port. (acceps all 3 vlans)
The current AP has the 3 vlans linked to each SSID (Lan_Wifi, guest_Wifi and IoT_Wifi) => clients connecting to these ssid receive IPs (dhcp) from 3 different networks.
Miktotik issue:
I am addresing only AP1 setup. The second one i didn’t even unpack
I started with setting up the first SSID - changing the default one. I added the vlan tag in the cnf and also created the vlan interface (under interfaces) & added to the bridge. It doesn’t work do receive IPs via SSID 1.
I definitely miss how this works. Can anyone explain to me how should I add Vlans to the bridges and how can I attached them to SSIDs ?
don’t add VLAN interfaces to a bridge. and don’t create VLAN interfaces on Ethernet interfaces at all if you intend for the traffic to be bridged (rather than routed).
then you can create a VLAN interface attached to the bridge (/interface/vlan/add interface=mybridge name=vlan20 vlan-id=20) if you want, but if another device is providing DHCP and routing, you might not need to do that at all. L2 switching will work fine without it.
another question - stupid maybe:
I see that the device has 3 wireless adapters - wlan1..3
I believe Wlan3 is used for mesh (CAPsMAN only), however the other 2 need to be members of the bridge?
In CAPsMAN I have 2 different interfaces and I cannot validate if these 2 are actually mapping the wlan1 and wlan2
wireless interfaces managed by CAPsMAN should not be added to the bridge manually; CAPsMAN will do that for you when it brings the interface up, including configuring the correct VLAN tags.
you can map the CAPsMAN interface to the AP’s interface name based on MAC address. for example, here is a CAPsMAN with some radios:
[admin@cr1.stm] /caps-man/radio> print
Flags: P - PROVISIONED
Columns: RADIO-MAC, INTERFACE, REMOTE-CAP-NAME, REMOTE-CAP-IDENTITY
# RADIO-MAC INTERFACE REMOTE-CAP-NAME REMOTE-CAP-IDENTITY
0 P C4:AD:34:18:B9:68 wr2.stm-1 CAP-C4AD3418B962 wr2.stm
1 P 74:4D:28:8E:70:CC wr1.stm-1 CAP-744D288E70C6 wr1.stm
2 P 74:4D:28:8E:70:CB wr1.stm-2 CAP-744D288E70C6 wr1.stm
3 P C4:AD:34:00:3D:A7 wr3.stm-1 CAP-C4AD34003DA1 wr3.stm
4 P 74:4D:28:8E:7A:8F wr4.stm-1 CAP-744D288E7A89 wr4.stm
if we want to find out what interface is “wr2.stm-1”, log into that AP and run:
[admin@wr2.stm] /interface/wireless> :put [get [find where mac-address=C4:AD:34:18:B9:68] name]
wlan-5ghz
(in this case i renamed the wireless interfaces to “wlan-2.4ghz” and “wlan-5ghz”, if you didn’t do that then it would print “wlan1” or “wlan2”.)
as far as mesh goes, i’m not familiar with Audience specifically, but i understand it has three radios: low-gain 2.4GHz, low-gain 5GHz, and high-gain 5GHz. i think i would prefer to configure this so the two low-gain radios are managed by CAPsMAN and used for clients, and the high-gain 5GHz radio is not managed by CAPsMAN, instead used for a WDS mesh to interconnect the APs.
VLAN+WDS mesh configuration is like this. on all APs, configure the high-gain wireless interface (which is not managed by CAPsMAN) with the same SSID and other settings and set wds-mode=static-mesh:
now the WDS mesh acts as a .1q trunk between your APs, and tagged packets from the CAPsMAN-managed wireless interfaces will flow over WDS.
if you have 3+ APs meshed, make sure RSTP or MSTP is enabled on the bridge to avoid L2 loops. (edit: and make sure STP priority is correctly set so that the wired AP is chosen as the root bridge, otherwise your traffic flow will be weird.)
this can be a bit awkward to configure the first time. i suggest putting all the APs on your desk to set them up, and only physically install them once everything is working.
I am too stupid to figure it out and super frustrated
so, after a factory reset I am trying to set the first SSID on AP1
By default the device is booting into Home Mesh mode and this enables by default CAPsMan
I connect it to the network (ubiquity switch trunk port) via ETH1. Seems ok as I get an ip from the corect dhcp server (serving wired connected devices and no Vlan)
So far is ok. I can access the device on the LAN IP - 172.16.10.x

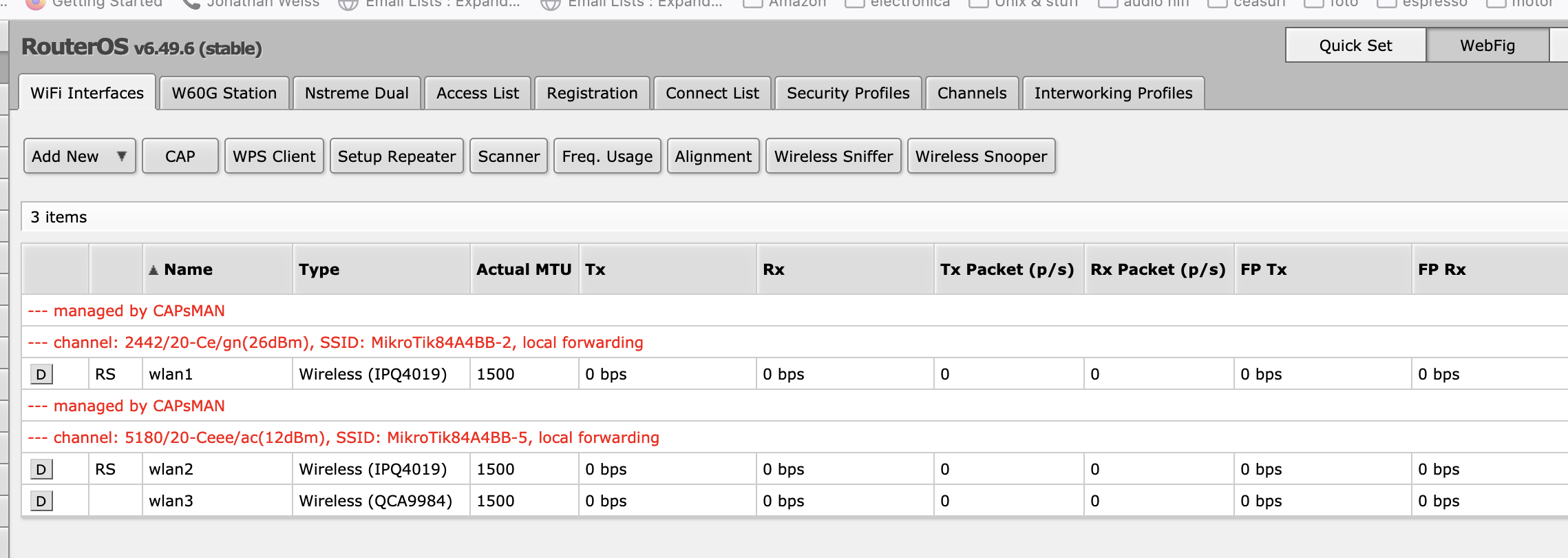

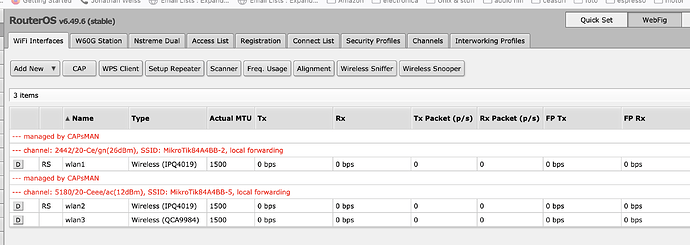

all 3 wlan interfaces listed in the attached file.
Now, As CAPsMan already has a default setup, I am trying to change the default SSID into one I want to use and add a security profile as well.
/caps-man interface> print
Flags: M - master, D - dynamic, B - bound, X - disabled, I - inactive, R - running
Question 1:
If I change the security profile on cap interfaces am I messing with CAPsMan sync setup?
Question 2: If I add Vlan tag 10 to the bridge config I still don’t get ips from the right subnet and I also loose access to the device. not clear where to add it. I’ve seen there is a field on the cap interface config to specify Vlan id.
Question3:
Can can I add the second and the 3th SSID? From interfaces by adding a virtual one or from CAPsMan config?
apologies for the annoying questions. I really want to make this setup work and keep these devices.
my suggestion is, don’t use QuickSet. it might be okay for simple setups, but i think it’s better to learn how to configure the device normally so you understand what’s going on. especially if the QuickSet configuration isn’t doing what you want
also, i noticed in your screenshot that you’re using the WebFig web interface. if you use the WinBox software instead, you can connect to the device over a pure L2 connection (MikroTik calls this “MAC-WinBox” and “MAC-SSH”) which means the connection will still work even if you mess up the L3 configuration. that’s pretty handy when you’re trying to configure a new device. by default i think this is only enabled on interfaces in the “LAN” interface-list, but you should change that to “all” while you’re setting it up:
If I change the security profile on cap interfaces am I messing with CAPsMan sync setup?
you can edit the CAPsMAN interfaces, but your changes will be lost if you reprovision, so you probably don’t want to do that. instead, create your new CAPsMAN configuration (security profile, channel, data path, etc.), and associate all of this with a configuration in
/caps-man/configuration
. then configure a provisioning rule in
/caps-man/provisioning
to associate each radio with the appropriate configuration. when you change the config, reprovision the radio using
/caps-man/radio/provision <number>
.
If I add Vlan tag 10 to the bridge config I still don’t get ips from the right subnet and I also loose access to the device. not clear where to add it. I’ve seen there is a field on the cap interface config to specify Vlan id.
create your bridge VLAN configuration for the wired network first and make sure all that is working before you do anything with wireless. (in fact, just disable wireless interfaces until you’ve done that.). getting wired VLANs working properly first will make it a lot easier to do VLANs in CAPsMAN afterwards, compared to setting up a non-VLAN wireless config and trying to retrofit VLANs into it.
Can can I add the second and the 3th SSID? From interfaces by adding a virtual one or from CAPsMan config?
additional SSIDs on the same radio are configured as slave configurations in the provisioning rules:
because the slave configuration runs on the same radio as the master configuration, the radio parameters (frequency, channel width, etc.) should be the same on the master and all its slaves.
if you’re still having problems, post your whole config here using
