hi.
I bought a CCR2216 because the CPU of the CCR1016 was maxing out but otherwise it was working great.
The CR2216 with firmware/os 7.6, was working great for 5 days and then it started rebooting intermittendly. Some days 3 time sper day., some days no reboot. The log file said “system,error,critical router was rebooted without proper shutdown”
It only has 2x SPF+ modules on eth 5 and eth 12.

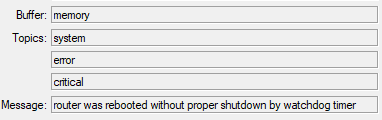

I upgraded the OS to 7.11.2 and now the router still reboots but the log file is now " system,error,critical router was rebooted without proper shutdown by watchdog timer"
Watchdog was disabled the 1st time I got that message and it still rebooted.
I enabled watchdog and ping a local IP with timeout of 120 secs and it still reboot intermittendly. The Internet does not go down for 120 seconds so its not due to communications.
I disabled Internet detect as some users suggested.
@Kanzler
CCR2216 has redundant power supplies. An issue with power doesn’t seem very likely.
@malamaka:
Can you tell us a little more about your setup? What features are you using? What amount of traffic is going through when it reboots? Did you update RouterBOOT after upgrading RouterOS (/system routerboard upgrade)?
Please note that we used a CCR1016 before and we replaced it because the CPU maxed out about 10minutes every hr.
What I am trying to say is that the CCR2216 is way bigger and more powerfull than the CCR1016 and we are only using SFP+ (10gbs) modules thus the amount of traffic shouldn’t be the issue. We are not maxing more than 5 Gbps.
Its a straigh forward setup with BGP and 800 clients connecting via either pppoe or pptp sessions.
I did upgrade both the OS and firmware(/system routerboard upgrade) to 7.11.2.
If it was a PSU issue, the logs wont read “system,error,critical router was rebooted without proper shutdown by watchdog timer” unless there is a bug in the system and as Fezz said, there is a redundant PSU.
We have had no issues with the 2216 up until we started peering with more and more providers.
First we started seeing reboot by watchdog every few days and then we added more peers and the reboots become more frequent ±2hours apart.
we were on 7.10.x at the time. We decided to do a midnight upgrade and did so to the latest 7.14.1 stable after an hour of monitoring we decided to call it a day just to find the router rebooted again about 20 min after we left the office. This time it actually shows reboot without proper shutdown and nothing about watchdog.
AutoSupout is also not created when these reboots happen.
Definitely not actual power to the unit because we are powering a switch right next to it and that thing has been running for 385 days.
Now the unit is not doing much SFP+ modules are spaced apart for now the cabinet has a aircon build in running at max 24c router temp is about 27 and sfp’s doing the work runs max at 48.
Any way just wanted to know if you ever found a workaround or solution.
Thanks
Have absolutely same behavior - random time reboot with following message :
ConnTrack - disabled
L3HW - disabled
even - admin ethernet port disabled !
More than 200 BGP sessions with about 10M prefixes.

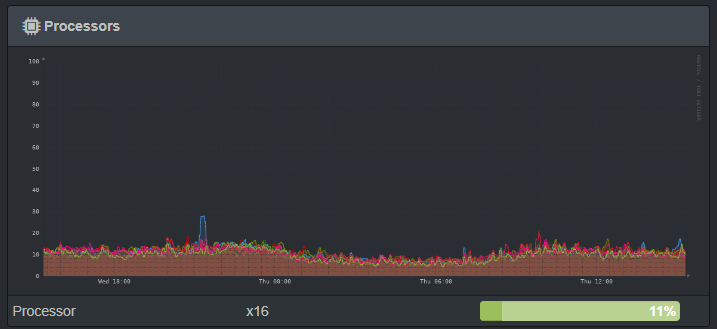

No more than 15% overall CPU usage :
Reboots started about 3 months ago with no change of number of peers, configuration or RouterOS. Time between reboots from 6 hour to 20 days. Now running 7.14.3.
Only one generated autosupout.rif file…
We eventually decided to buy a brand new one and even configured it manual after that router ran flawlessly for weeks… and you know what.. BAM!! the exact same issue is back.
One tip, if you don’t know, is you can read the autosupout.rif from https://mikrotik.com/client/supout (if have/create an account at www.mikrotik.com). Sometimes the stored logs in supout.rif give a good clue at the issue while you wait for Mikrotik to respond.
