Hello

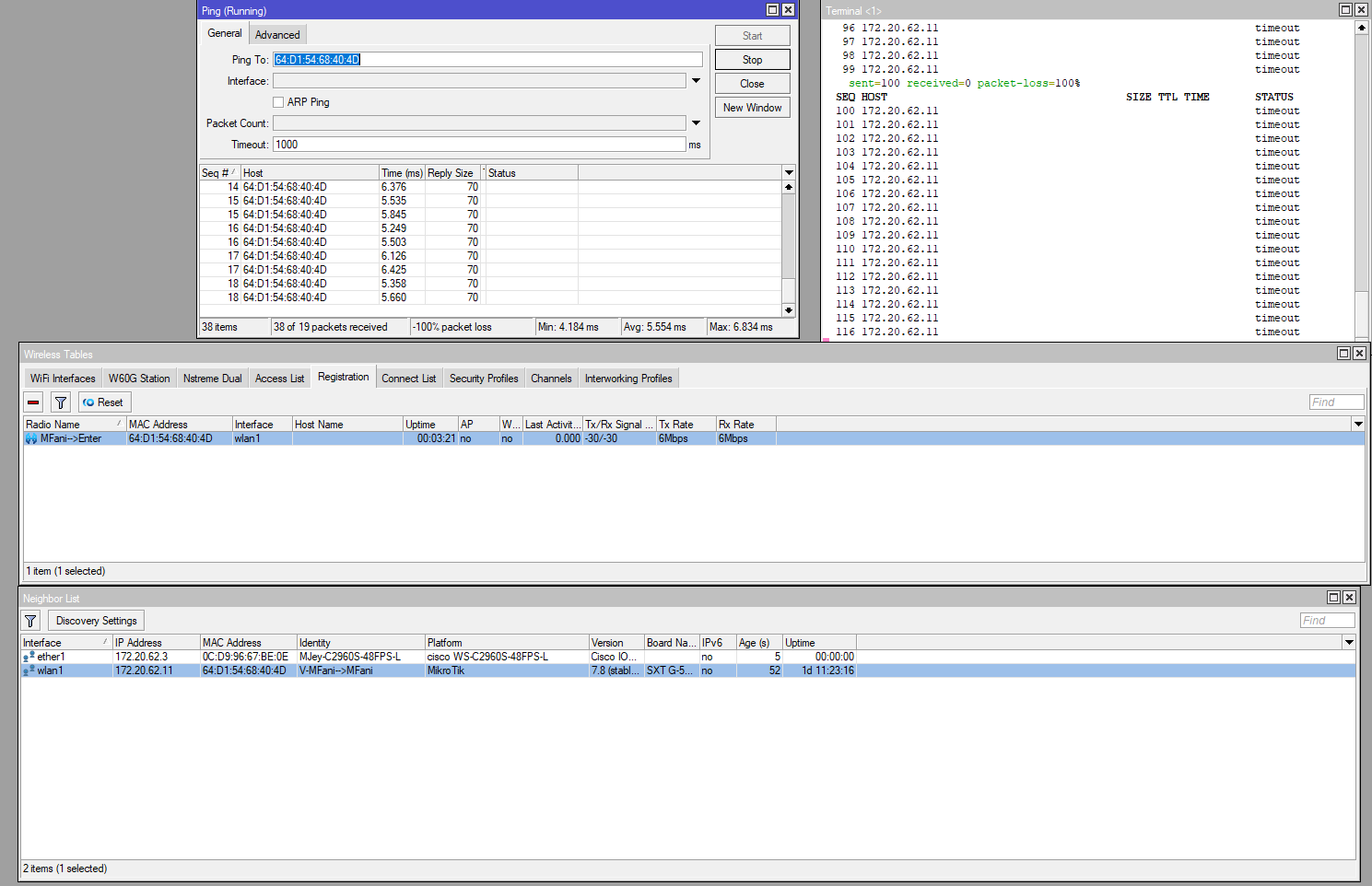

I have two different models of wireless radios. When connected, they connect via wireless, but they do not transfer any data and not ping over ip.
I noticed that one is SXT SA5 ac and the other is SXT 5 ac. Is it because of this?
any body cant help me ?
Would like to see the config before replying:
/export file=anynameyoulike
Don’t forget to remove serial and any other private information.
# 2023-07-11 09:48:45 by RouterOS 7.10.1
# software id = HYDU-3I1M
#
# model = RBSXTG-5HPacD
# serial number =
/interface bridge
add name=bridge1
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
add authentication-types=wpa2-psk,wpa2-eap group-ciphers=tkip,aes-ccm mode=\
dynamic-keys name=profile1 supplicant-identity=********* \
unicast-ciphers=tkip,aes-ccm
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-a/n/ac channel-width=\
20/40/80mhz-Ceee country=uzbekistan disabled=no frequency=5745 \
frequency-mode=manual-txpower mode=ap-bridge radio-name=MFani->Enter \
security-profile=profile1 ssid=MFani-->Enter wireless-protocol=\
nv2-nstreme wps-mode=disabled
/interface bridge port
add bridge=bridge1 interface=ether1
add bridge=bridge1 interface=wlan1
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface ovpn-server server
set auth=sha1,md5
/interface wireless access-list
add interface=wlan1 mac-address=64:D1:54:68:40:4D vlan-mode=no-tag
/interface wireless connect-list
add interface=wlan1 mac-address=64:D1:54:68:40:4D
/ip address
add address=172.20.62.10/24 interface=bridge1 network=172.20.62.0
/ip route
add disabled=no dst-address=0.0.0.0/0 gateway=172.20.62.2
/routing bfd configuration
add disabled=no interfaces=all min-rx=200us min-tx=200us multiplier=5
/system identity
set name=RouterOS
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=192.168.60.90
this is other side radio config:
# jun/29/2023 01:28:56 by RouterOS 7.8
# software id = 1123-99YC
#
# model = SXT G-5HPacD r2
# serial number =
/interface bridge
add fast-forward=no name=bridge1
/interface ethernet
set [ find default-name=ether1 ] speed=100Mbps
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
add authentication-types=wpa2-psk,wpa2-eap group-ciphers=tkip,aes-ccm \
management-protection=allowed mode=dynamic-keys name=profile1 \
supplicant-identity="" unicast-ciphers=tkip,aes-ccm
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-a/n/ac channel-width=20/40/80mhz-Ceee \
country=uzbekistan disabled=no frequency=auto frequency-mode=manual-txpower \
radio-name=MFani-->Enter security-profile=profile1 ssid=MFani-->Enter \
wireless-protocol=nv2-nstreme
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/snmp community
set [ find default=yes ] addresses=0.0.0.0/32 name=zabbix
/system logging action
add name=kiwi remote=192.168.60.24 target=remote
/interface bridge port
add bridge=bridge1 hw=no ingress-filtering=no interface=ether1
add bridge=bridge1 ingress-filtering=no interface=wlan1
/ip neighbor discovery-settings
set discover-interface-list=!dynamic
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface ovpn-server server
set auth=sha1,md5
/interface wireless access-list
add interface=wlan1 mac-address=6C:3B:6B:9C:16:B0 vlan-mode=no-tag
add interface=wlan1 mac-address=DC:2C:6E:F1:80:A2 vlan-mode=no-tag
/interface wireless connect-list
add interface=wlan1 mac-address=6C:3B:6B:9C:16:B0 security-profile=default
add interface=wlan1 mac-address=DC:2C:6E:F1:80:A2
/ip address
add address=172.20.62.11/24 interface=bridge1 network=172.20.62.0
/ip route
add dst-address=0.0.0.0/0 gateway=172.20.62.2
/ip service
set ftp disabled=yes
set www disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ip ssh
set forwarding-enabled=remote
/snmp
set enabled=yes trap-target=192.168.60.10 trap-version=2
/system identity
set name=V-MFani-->MFani
/system ntp client
set enabled=yes
/system ntp client servers
add address=192.168.60.22
