CRS310-8G+2S+ w/RouterOS as switch, ACL/switch rules help

RouterOS
1

Hi, I am new to Mikrotik and I am having some issue understanding ACL/switch rules. I am moving from a cisco sg350 on which I use ACL rules between vlans (4 vlans), I am trying to recreate such setup on this CRS310-8G+2S+IN switch; I have read its better to use RouterOS for such task and taking advantage of HW offload.

Original setup, vlans, dhcp, trunk, etc. are working as expec

ted, when I try to implement ACL/switch rules then is where I am stuck, how does this differ from cisco?.

I start the rules placing the DROP/deny all at the bottom and start to give access to some ports (for now just a few to test (I need to add more from vlan to Home assistant later which reside on the main segment).

I deny access between VLANS - this works)

From MAIN/home segment I can access vlans (depending on what port I allow, e.g. rdp, ssh, http) and IT WORKS.

From VLANS to main segment does not work, even if I place a rule on top allowing it, this is where I am stuck, if I disable the ALL DROP rule(s) at the bottom it does work) so it seems its ignoring the top ALLOW rules. config attached. my main concern is the LoT vlan, I want/need to be able to allow some ports (to connect Home Assistant).

Why is this happening?

As a note, I have also configured it the other way around, to allow everything and drop some ports as needed, but this is not good because there are way too many ports to drop,

Is there something I am missing or a better way to do what I need? any suggestion are very much appreciated it. Thanks for reading.

I cannot upload config since I am a new user…

config is below, I formatted it and added some comments for better view:

2026-05-13 14:16:38 by RouterOS 7.22.3

model = CRS310-8G+2S+

/interface bridge
add admin-mac=04:XX:XX:XX:XX:EC auto-mac=no comment=defconf fast-forward=no name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=sfp-sfpplus1 ] auto-negotiation=no speed=2.5G-baseT
set [ find default-name=sfp-sfpplus2 ] auto-negotiation=no speed=2.5G-baseT
/interface vlan
add interface=bridge name=Cam vlan-id=20
add interface=bridge name=LoT vlan-id=7
add interface=bridge name=MGMT vlan-id=99
add interface=bridge name=VLAN2 vlan-id=2
add interface=bridge name=VLAN107 vlan-id=107
/interface ethernet switch
set 0 l3-hw-offloading=yes
/ip pool
add name=dhcp_pool0 ranges=172.16.8.40-172.16.8.80
add name=dhcp_pool1 ranges=10.21.1.40-10.21.1.60
add name=dhcp_pool2 ranges=192.168.108.40-192.168.108.60
add name=dhcp_pool3 ranges=10.20.1.40-10.20.1.45
/ip dhcp-server
add address-pool=dhcp_pool0 comment="LoT dhcp VLAN -7- 172.16.7.0" interface=LoT name="LoT dhcp"
add address-pool=dhcp_pool1 comment="VLAN2 dhcp VLAN -2- 10.21.0.0" interface=VLAN2 name="VLAN2 dhcp"
add address-pool=dhcp_pool2 comment="VLAN107 dhcp VLAN -107- 192.168.107.0" interface=VLAN107 name="VLAN107 dhcp"
add address-pool=dhcp_pool3 comment="VLAN20 dhcp VLAN -20- 10.20.0.0" interface=Cam name="VLAN20 dhcp"
/interface bridge port
add bridge=bridge comment=defconf interface=ether1
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=ether6
add bridge=bridge comment=defconf interface=ether7 pvid=7
add bridge=bridge comment=defconf interface=ether8
add bridge=bridge comment=defconf interface=sfp-sfpplus1
add bridge=bridge comment=defconf interface=sfp-sfpplus2
/interface ethernet switch l3hw-settings
set autorestart=yes
/interface bridge vlan
add bridge=bridge comment=LoT tagged=sfp-sfpplus1,sfp-sfpplus2,bridge untagged=ether7 vlan-ids=7
add bridge=bridge comment=VLAN2 tagged=sfp-sfpplus1,sfp-sfpplus2,bridge vlan-ids=2
add bridge=bridge comment=Cam tagged=sfp-sfpplus1,bridge vlan-ids=20
add bridge=bridge comment=VLAN107 tagged=sfp-sfpplus1,sfp-sfpplus2,bridge vlan-ids=107
add bridge=bridge comment=MGMT tagged=bridge,ether2,ether3,ether4,ether5,ether6,ether8 vlan-ids=99

=====> ALLOW rules from vlans (e.g. ssh and RDP) to MAIN segment (192.168.1.##) - these DO NOT WORK:
/interface ethernet switch rule
add comment="LoT-test ALLOW ssh from LoT to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=22 protocol=tcp src-address=172.16.7.0/255.255.255.0 switch=switch1
add comment="LoT-test ALLOW ssh from vlan107 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=22 protocol=tcp src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="LoT-test ALLOW ssh from vlan Cam to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=22 protocol=tcp src-address=10.20.1.0/255.255.255.0 switch=switch1
add comment="LoT-test ALLOW ssh from vlan2 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=22 protocol=tcp src-address=10.21.1.0/255.255.255.0 switch=switch1
add comment="LoT-test ALLOW RDP to vlan 1 from vlan 7 --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=172.16.8.0/255.255.255.0 switch=switch1 vlan-id=7
add comment="LoT-test ALLOW RDP to vlan107 from vlan 7 --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=192.168.108.0/255.255.255.0 switch=switch1 vlan-id=7
add comment="LoT-test ALLOW RDP to vlan2 from vlan 7 --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=10.21.0.1/255.255.255.0 switch=switch1 vlan-id=7
add comment="LoT-test ALLOW RDP to vlan Cam from vlan 7 --not working" dst-address=192.168.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=10.20.1.0/255.255.255.0 switch=switch1 vlan-id=7

=====> ALLOW rules (RDP, ssh, http), from MAIN segment to VLANS, these WORK as expected:
add comment="LoT-test ALLOW RDP to vlan LoT from MAIN -----" dst-address=172.16.8.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="Cam-test ALLOW RDP to vlan Cam from MAIN -----" dst-address=10.20.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN107-test ALLOW RDP to vlan107 from MAIN -----" dst-address=192.168.108.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW RDP to vlan2 from MAIN -----" dst-address=10.21.1.0/255.255.255.0 dst-port=3389 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW GUI to pihole .35 from MAIN -----" dst-address=10.21.1.35/0.0.0.225 dst-port=80 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW ssh to .35 pihole from MAIN -----" dst-address=10.21.1.35/0.0.0.255 dst-port=22 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW ssh to Proxmox .99 from MAIN -----" dst-address=10.20.1.99/0.0.0.255 dst-port=22 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW https to Proxmox .99 from MAIN -----" dst-address=10.20.1.99/0.0.0.255 dst-port=8006 protocol=tcp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="LoT-test ALLOW icmp to vlan LoT from vlan MAIN -----" dst-address=172.16.8.0/255.255.255.0 protocol=icmp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="Cam-test ALLOW icmp to vlan Cam from vlan MAIN -----" dst-address=10.20.1.0/255.255.255.0 protocol=icmp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN107-test ALLOW icmp to vlan107 from vlan MAIN -----" dst-address=192.168.108.0/255.255.255.0 protocol=icmp src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test ALLOW icmp to vlan2 from vlan MAIN -----" dst-address=10.21.1.0/255.255.255.0 protocol=icmp src-address=192.168.1.0/255.255.255.0 switch=switch1

=====> drop/deny http,https,ssh,icmp from vlan segments to its own router IP (MAIN segment (192.168.1.##) not listed here):
add comment="LoT-test Drop http GUI to vlan LoT ok" dst-address=172.16.8.1/0.0.0.225 dst-port=80 new-dst-ports="" protocol=tcp src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="LoT-test Drop https GUI to vlan LoT ok" dst-address=172.16.8.1/0.0.0.225 dst-port=443 new-dst-ports="" protocol=tcp src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="LoT-test Drop ssh vlan LoT router ok" dst-address=172.16.8.1/0.0.0.255 dst-port=22 new-dst-ports="" protocol=tcp src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="LoT-test Drop ping to vlan LoT router ok" dst-address=172.16.8.1/0.0.0.255 new-dst-ports="" protocol=icmp src-address= 172.16.8.0/255.255.255.0 switch=switch1
add comment="Cam-test Drop GUI to vlan Cam ok" dst-address=10.20.1.1/0.0.0.225 dst-port=80 new-dst-ports="" protocol=tcp src-address=10.20.1.0/255.255.255.0 switch=switch1
add comment="Cam-test Drop GUI to vlan Cam ok" dst-address=10.20.1.1/0.0.0.225 dst-port=443 new-dst-ports="" protocol=tcp src-address=10.20.1.0/255.255.255.0 switch=switch1
add comment="Cam-test Drop ssh vlan Cam router ok" dst-address=10.20.1.1/0.0.0.255 dst-port=22 new-dst-ports="" protocol=tcp src-address=10.20.1.0/255.255.255.0 switch=switch1
add comment="Cam-test Drop ping to vlan Cam router ok" dst-address=10.20.1.1/0.0.0.255 new-dst-ports="" protocol=icmp src-address=10.20.1.0/255.255.255.0 switch=switch1
add comment="VLAN107-test Drop GUI to vlan VLAN107 ok" dst-address=192.168.108.0/0.0.0.225 dst-port=80 new-dst-ports="" protocol=tcp src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="VLAN107-test Drop GUI to vlan VLAN107 ok" dst-address=192.168.108.0/0.0.0.225 dst-port=443 new-dst-ports="" protocol=tcp src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="VLAN107-test Drop ssh vlan VLAN107 router ok" dst-address=192.168.108.0/0.0.0.255 dst-port=22 new-dst-ports="" protocol=tcp src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="VLAN107-test Drop ping to vlan VLAN107 router ok" dst-address=192.168.108.1/0.0.0.255 new-dst-ports="" protocol=icmp src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="VLAN2-test Drop http GUI to vlan VLAN2 ok" dst-address=10.21.1.1/0.0.0.225 dst-port=80 new-dst-ports="" protocol=tcp src-address=10.21.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test Drop https GUI to vlan VLAN2 ok" dst-address=10.21.1.1/0.0.0.225 dst-port=443 new-dst-ports="" protocol=tcp src-address=10.21.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test Drop ssh vlan VLAN2 router ok" dst-address=10.21.1.1/0.0.0.255 dst-port=22 new-dst-ports="" protocol=tcp src-address=10.21.1.0/255.255.255.0 switch=switch1
add comment="VLAN2-test Drop ping to vlan VLAN2 router ok" dst-address=10.21.1.1/0.0.0.255 new-dst-ports="" protocol=icmp src-address=10.21.1.0/255.255.255.0 switch=switch1

=====> DROP/deny from vlans to vlan segments, not counting MAIN segment (192.168.1.##):
add comment="test Drop VLAN LoT TO and FROM VLAN107" dst-address=192.168.108.0/255.255.255.0 new-dst-ports="" src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN LoT TO and FROM VLAN2" dst-address=10.21.1.0/255.255.255.0 new-dst-ports="" src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN LoT TO and FROM VLAN Cam" dst-address=10.20.1.0/255.255.255.0 new-dst-ports="" src-address=172.16.8.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN107 TO and FROM vlan Cam" dst-address=10.20.1.0/255.255.255.0 new-dst-ports="" src-address=192.168.108.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN2 TO and FROM vlan VLAN107" dst-address=192.168.108.0/255.255.255.0 new-dst-ports="" src-address=10.21.1.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN2 TO and FROM vlan VLAN Cam" dst-address=10.20.1.0/255.255.255.0 new-dst-ports="" src-address=10.21.1.0/255.255.255.0 switch=switch1

=====> DROP/deny from main segment 192.168.1## (called MAIN) to the other vlans:
add comment="test Drop VLAN LoT TO and FROM vlan MAIN -----" dst-address=172.16.8.0/255.255.255.0 new-dst-ports="" src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN Cam TO and FROM vlan MAIN -----" dst-address=10.20.1.0/255.255.255.0 new-dst-ports="" src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN2 TO and FROM vlan MAIN -----" dst-address=10.21.1.0/255.255.255.0 new-dst-ports="" src-address=192.168.1.0/255.255.255.0 switch=switch1
add comment="test Drop VLAN107 TO and FROM vlan MAIN -----" dst-address=192.168.108.0/255.255.255.0 new-dst-ports="" src-address=192.168.1.0/255.255.255.0 switch=switch1

/ip address
add address=192.168.1.247/24 comment=defconf interface=bridge network=192.168.1.0
add address=10.21.1.1/24 comment="VLAN 10.21.0.1 Seg. (VLAN2)" interface=VLAN2 network=10.21.1.0
add address=172.16.8.1/24 comment="VLAN 172.16.7.1 Seg. (LoT)" interface=LoT network=172.16.8.0
add address=10.20.1.1/24 comment="VLAN 10.20.0.1 Seg. (Cam)" interface=Cam network=10.20.1.0
add address=192.168.108.1/24 comment="VLAN 192.168.107.1 Seg. (VLAN107)" interface=VLAN107 network=192.168.108.0
add address=192.168.1.253/24 comment=MGMT interface=bridge network=192.168.1.0

/ip dhcp-server lease
add address=10.20.0.35 client-id=1:00:XX:XX:XX:XX:44 mac-address=00:XX:XX:XX:XX:44 server="VLAN20 dhcp"
/ip dhcp-server network

add address=10.20.1.0/24 comment=Cam dns-server=10.20.1.1 gateway=10.20.1.1
add address=10.21.1.0/24 comment=VLAN2 dns-server=10.21.1.1 gateway=10.21.1.1
add address=172.16.8.0/24 comment=Lot dns-server=172.16.8.1 gateway=172.16.8.1
add address=192.168.108.0/24 comment=VLAN107 dns-server=192.168.108.1 gateway=192.168.108.1
/ip dns
set allow-remote-requests=yes servers=192.168.1.1
/ip route
add comment="Route to outside" disabled=no distance=1 dst-address=0.0.0.0/0
gateway=192.168.1.1 routing-table=main suppress-hw-offload=no
/system clock
set time-zone-name=America/New_York

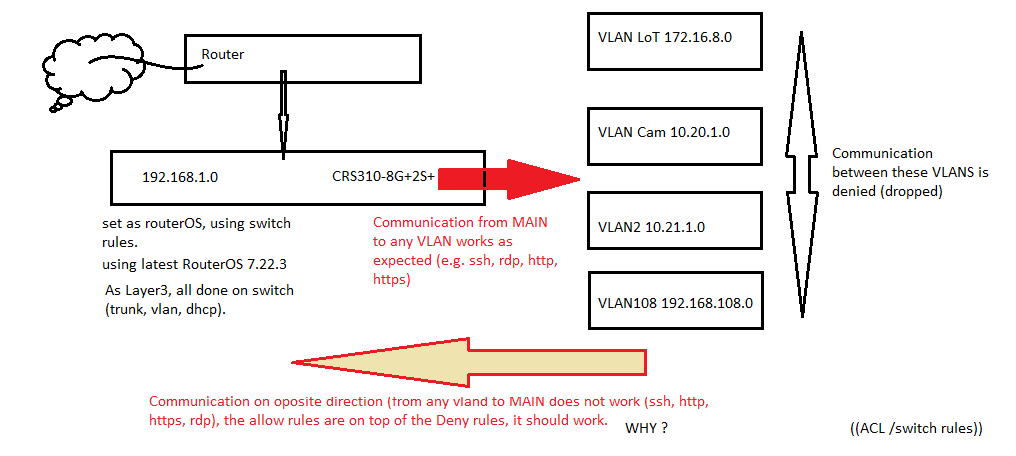

CRS310-8G+2S+IN,switch rules

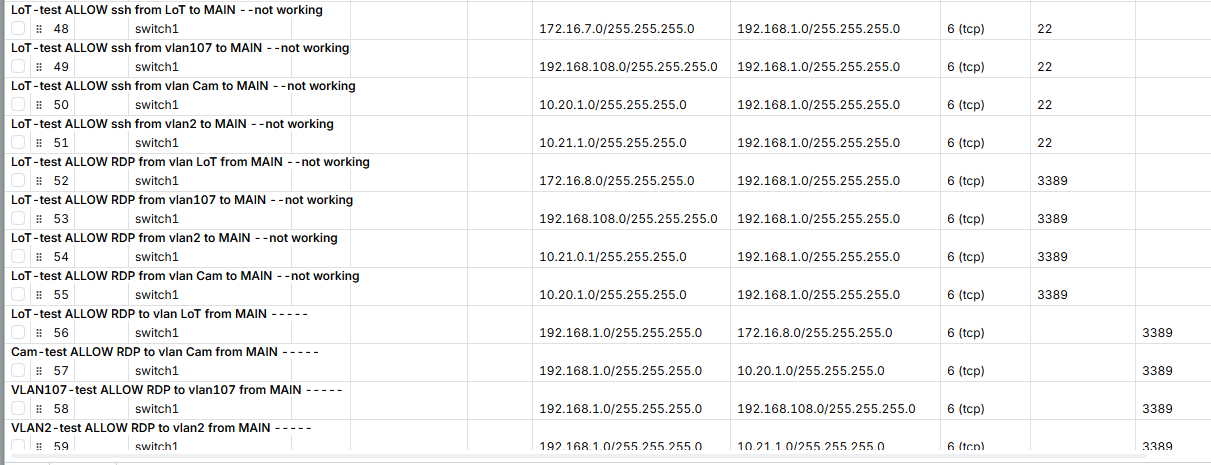

CRS310-8G+2S+IN,switch rules1016×456 12.2 KB

2

I think for these allow rules for the LoT -> MAIN direction you need to replace all dst-port= with src-port= to be able to let the response packets through. Those response packets have the RDP/SSH ports as source ports!

3

Thanks for the suggestion, I have made the following changes (removed the vlan-id and corrected comments), still no go:

Basically all the vlans shoud be able to connect rdp and ssh to MAIN segment since these rules are at the top of the list but it does not. icmp/traceroute works just fine since its not blocked.

=====> ALLOW rules from vlans (e.g. ssh and RDP) to MAIN segment (192.168.1.##) - these DO NOT WORK:
/interface ethernet switch rule
add comment="LoT-test ALLOW ssh from vlan107 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=192.168.108.0/255.255.255.0 src-port=22 switch=switch1
add comment="LoT-test ALLOW ssh from vlan Cam to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=10.20.1.0/255.255.255.0 src-port=22 switch=switch1
add comment="LoT-test ALLOW ssh from vlan2 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=10.21.1.0/255.255.255.0 src-port=22 switch=switch1
add comment="LoT-test ALLOW RDP from vlan LoT from MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=172.16.8.0/255.255.255.0 src-port=3389 switch=switch1
add comment="LoT-test ALLOW RDP from vlan107 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=192.168.108.0/255.255.255.0 src-port=3389 switch=switch1
add comment="LoT-test ALLOW RDP from vlan2 to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=10.21.0.1/255.255.255.0 src-port=3389 switch=switch1
add comment="LoT-test ALLOW RDP from vlan Cam to MAIN --not working" dst-address=192.168.1.0/255.255.255.0 protocol=tcp src-address=10.20.1.0/255.255.255.0 src-port=3389 switch=switch1

rules

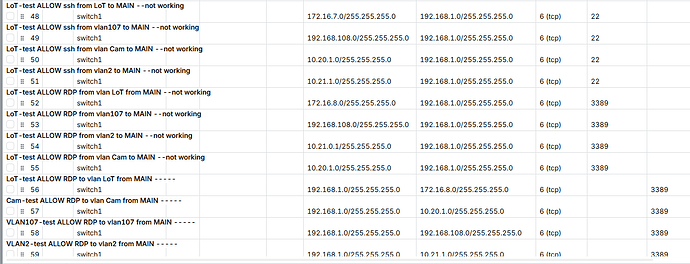

rules1211×465 70.3 KB

4

Is there a way to accomplish this? drop all (bottom rules) and allow some (top rules). It seems like a simple thing to do but its not comparing to cisco.

I have seen hundreds of posts all over the place but the information (examples) about switch rules (L3) regarding the scenario is very scarse to non-existent. I really like this switch and I had hopes to move to 2.5gb with L3 support… I still have a few days before I can’t send it back.

5

If you are expecting the MikroTik switch to be configured like a Cisco switch, you will be dissappointed.

Cisco has their own custom ASICs, so they can efficiently process Cisco's ACLs. This is similar to DEC when they designed VAX/VMS in 1975 they created the VAX architecture to support the Virtual Memory protection they wanted.

The ACL on the MikroTik is model dependant, and is more like an interface to whatever rule processing the particular switch chip supports.

They can be useful, but normally for very low level stuff.

You may be able to isolate the vlans with ACLs, but be aware that the ACLs are not stateful, so if you want to allow traffic to return for an established connection, that isn't doable, at least as far as I am aware. Normally firewalls are done with a router. (in ROS with ip filter Filter - RouterOS - MikroTik Documentation)

And the ACL rules are very poorly documented. For example, see Is there any SwOS ACL documentation with example?

6

Here's an example of what the ACL can do Switch Port Security using ACL rules and Bridge Settings

7

Thanks for the information, I appreciate it... I went through it and some I have read already... its a pity but for my test/use this does not work and decided to send it back. I worked on it all week trying different scenarios and did not accomplish what I wanted... I did not need this as the main router just as a L3 switch for my lab.

I really liked it but not 100% for me. Thanks a lot.
