CRS328-4C-20S-4S+RM + CRS326-24G-2S + RM SFP and SFP+ Module problem

Hardware MikroTik hardware general
1

Hi all
I have this two switches
CRS328-4C-20S-4S+RM
CRS326-24G-2S + RM

and these SFP modules
Ubiquiti UF-RJ45-10G for SFP+ port
Ubiquiti UF-RJ45-1G for SFP port

Mirotik S-RJ01 or S+RJ10 these aren’t available

My setup :

CRS328-4C-20S-4S+RM running DHCP on Bridge Name: LANBridge ip 10.10.10.2/24
Bridge ports SFP2 and Combo2
SFP2 negotiation set to 1Gbps
Combo2 negotiation set auto

CRS326-24G-2S + RM
dhcp client on Bridge 1
Bridge1 ports ether1 ether3
ether1 negotiation set to 1Gbps
ether3 connected with my pc

option 1
CRS328-4C-20S-4S+RM SFP2 negotiation set to 1Gbps sonnected to CRS326-24G-2S + RM ether1 negotiation set to 1Gbps
it says link ok but i dont get ip form dhcp

option 2
CRS328-4C-20S-4S+RM Combo2 negotiation set auto connected to CRS326-24G-2S + RM ether1 negotiation set auto (works auto or 1Gbps)
Link ok and i get ip from DHCP

SFP module is not working with auto negotiation

Question is
SFP module are not compatible or I made somthing wrong

2

…a lot (at least all I know) of people have tried modules from ubiquiti (note, not ones from other vendors, that are marked generally compatible) and failed.
These buggers are cheap…must be a reason behind that.
Buy the next, marked generic from amazonia or the bay and go with it…or use the 80m version from fs.com…these report to be fine…and cooler

3

Thx for answer

so it means SFP module compatibility problem

ok
I will try to return them and get mikrotik S+RJ10

4

Hello, blackangel1

Try apply following configuration to port where the UF-RJ45-1G module is plugged - disabled auto-negotiation, forced speed to 1G, and enabled full-duplex. Module re-plug may be needed.

5

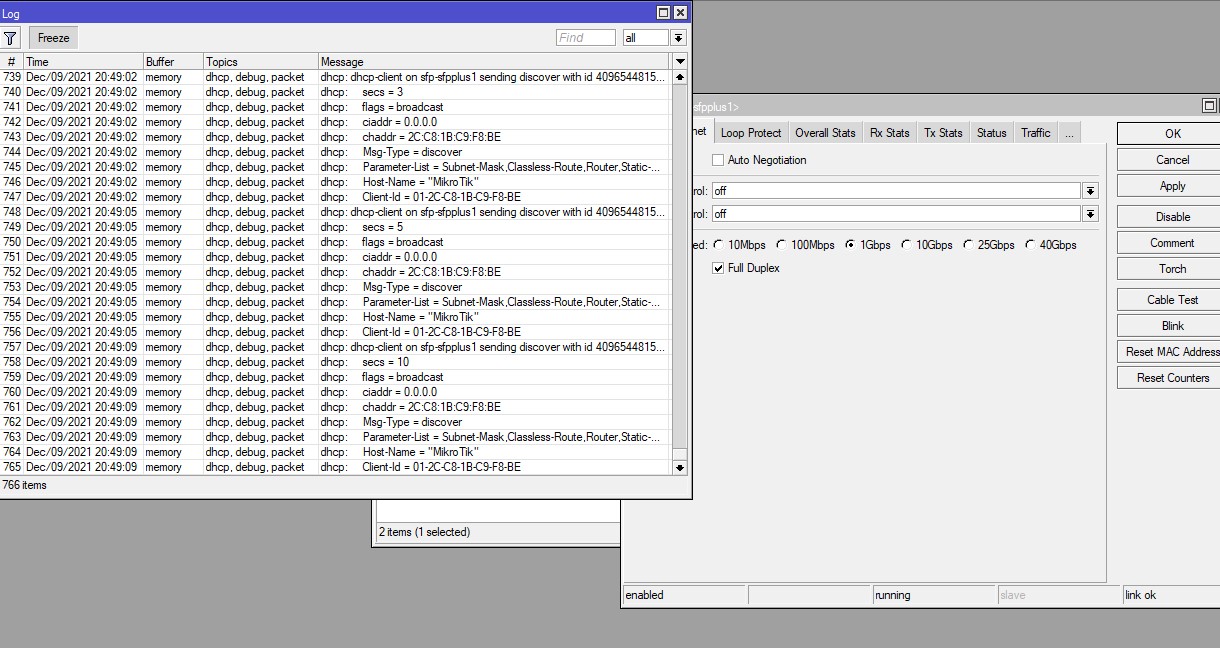

as you can see on attached picture
disabling negotation only shows link ok
but i am not getting IP from DHCP
