DHCP servers are isolated from each other, lacking intercommunication.

RouterOS Beginner Basics
1

I’m experiencing difficulties with my Mikrotik router’s DHCP configuration. Three separate DHCP pool are unable to communicate with each other:

  1. 10.10.0.0/24
  2. 10.10.3.0/24
  3. 10.5.50.0/24

These DHCP servers support Hotspot and L2TP VPN also unable to communicate. However, devices within these IP classes cannot communicate.

# 2024-10-25 11:32:15 by RouterOS 7.12.1
# software id = TFFX-3ADS
#
#
/interface bridge
add arp=local-proxy-arp name=Fiber-bridge
add arp=local-proxy-arp name=bridge1
/interface ethernet
set [ find default-name=ether1 ] name=WAN-1
set [ find default-name=ether2 ] arp=proxy-arp
set [ find default-name=ether3 ] arp=proxy-arp
set [ find default-name=ether4 ] arp=proxy-arp
set [ find default-name=ether5 ] arp=proxy-arp name="ether5 LAN"
set [ find default-name=ether6 ] arp=proxy-arp
set [ find default-name=ether7 ] arp=proxy-arp
set [ find default-name=ether8 ] arp=local-proxy-arp
set [ find default-name=ether9 ] arp=local-proxy-arp
set [ find default-name=ether10 ] arp=local-proxy-arp
/interface list
add name=WAN
add name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
add dns-name=assiraat.local login-by=mac,http-chap mac-auth-mode=\
    mac-as-username-and-password name=hsprof1 use-radius=yes
add dns-name=assiraat.local hotspot-address=10.10.3.1 login-by=mac,http-chap \
    mac-auth-mode=mac-as-username-and-password name=Fiber_profile use-radius=\
    yes
/ip pool
add name=dhcp ranges=10.10.0.21-10.10.0.254
add name=hs-pool-11 ranges=10.5.50.20-10.5.50.254
add name=dhcp_Fiber ranges=10.10.3.20-10.10.3.154
add name=vpn-pool ranges=10.1.1.4-10.1.1.10
/ip dhcp-server
add address-pool=dhcp interface=bridge1 lease-time=10m name=dhcp1
add address-pool=hs-pool-11 interface=ether2 lease-time=10m name="proxy net"
add address-pool=dhcp_Fiber interface=Fiber-bridge lease-time=10m name=dhcp2
/ip hotspot
add address-pool=hs-pool-11 addresses-per-mac=1 disabled=no interface=ether2 \
    name=hotspot1 profile=hsprof1
add address-pool=dhcp_Fiber addresses-per-mac=1 disabled=no interface=\
    Fiber-bridge name=Fiber_hotspot profile=Fiber_profile
/ip hotspot user profile
add address-pool=hs-pool-11 name=2MB rate-limit=2M/2M
add address-pool=hs-pool-11 name=4MB rate-limit=4M/4M
add address-pool=hs-pool-11 name=1MB rate-limit=1M/1M
add address-pool=hs-pool-11 name=40MB rate-limit=40M/40M
add address-pool=dhcp_Fiber name=4MB_Fiber rate-limit=4M/4M
/port
set 0 name=serial0
/ppp profile
add dns-server=10.10.0.10,8.8.8.8 local-address=10.10.0.1 name=profile1 \
    remote-address=vpn-pool
add dns-server=10.10.0.10,8.8.8.8 local-address=10.1.1.1 name=LPTP_profile \
    remote-address=10.1.1.2
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/interface bridge port
add bridge=bridge1 ingress-filtering=no interface=ether4
add bridge=bridge1 ingress-filtering=no interface="ether5 LAN"
add bridge=bridge1 ingress-filtering=no interface=ether3
add bridge=bridge1 ingress-filtering=no interface=ether6
add bridge=Fiber-bridge ingress-filtering=no interface=ether9
add bridge=Fiber-bridge ingress-filtering=no interface=ether8
add bridge=Fiber-bridge ingress-filtering=no interface=ether7
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface l2tp-server server
set enabled=yes use-ipsec=yes

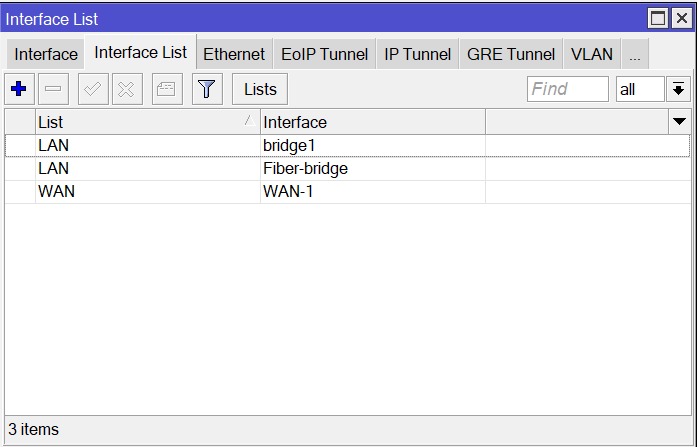

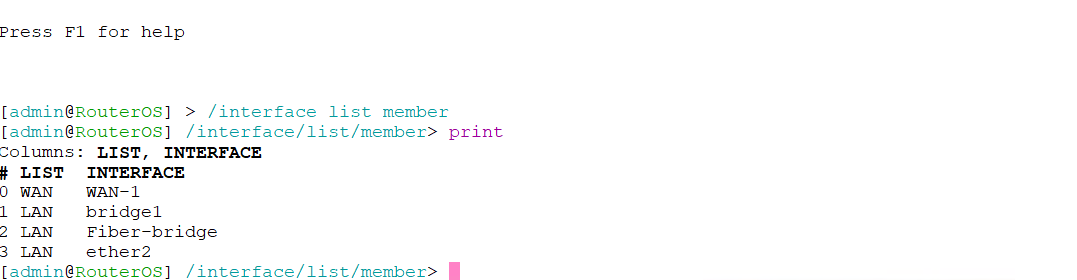

/interface list member
add interface=WAN-1 list=WAN
add interface=bridge1 list=LAN
/interface ovpn-server server
set auth=sha1,md5 certificate=Server cipher=aes256-cbc enabled=yes \
    require-client-certificate=yes
/interface pptp-server server
# PPTP connections are considered unsafe, it is suggested to use a more modern VPN protocol instead
set authentication=chap,mschap1,mschap2 enabled=yes
/ip address
add address=209.150.147.50/30 interface=WAN-1 network=209.150.147.48
add address=10.10.0.1/24 interface=bridge1 network=10.10.0.0
add address=10.5.50.1/24 comment="hotspot network" interface=ether2 network=\
    10.5.50.0
add address=10.10.3.1/24 interface=Fiber-bridge network=10.10.3.0
/ip dhcp-server lease
add address=10.10.0.145 client-id=1:0:c:29:61:d6:dd mac-address=\
    00:0C:29:61:D6:DD server=dhcp1
add address=10.5.50.125 client-id=1:48:4d:7e:e5:b:1b mac-address=\
    48:4D:7E:E5:0B:1B server="proxy net"
add address=10.5.50.197 client-id=1:24:b7:2a:da:55:8e mac-address=\
    24:B7:2A:DA:55:8E server="proxy net"
add address=10.5.50.12 client-id=1:48:4d:7e:e5:2b:f1 mac-address=\
    48:4D:7E:E5:2B:F1 server="proxy net"
add address=10.10.0.24 client-id=1:24:6e:96:40:ca:d8 mac-address=\
    24:6E:96:40:CA:D8 server=dhcp1
/ip dhcp-server network
add address=10.5.50.0/24 dns-server=10.5.50.10 domain=assiraat.local gateway=\
    10.5.50.1
add address=10.6.60.0/24 gateway=10.6.60.1
add address=10.10.0.0/24 gateway=10.10.0.1
add address=10.10.3.0/24 dns-server=10.10.3.10,8.8.8.8,4.4.4.4 domain=\
    Assiraat.local gateway=10.10.3.1
add address=192.168.200.0/24 gateway=192.168.200.1
/ip dns
set servers=10.10.0.10,8.8.8.8,4.4.4.4
/ip firewall address-list
add address=10.5.50.0/24 list=Proxy-Net
add address=10.10.0.0/24 list=LAN
add address=209.150.147.50 list=WAN
/ip firewall filter
add action=accept chain=forward comment=L2TP dst-address=10.10.0.0/24 \
    src-address=192.168.10.0/24
add action=accept chain=forward comment=L2TP dst-address=10.5.50.0/24 \
    src-address=192.168.10.0/24
add action=accept chain=forward comment=L2TP dst-address=10.10.3.0/24 \
    src-address=192.168.10.0/24
add action=accept chain=input dst-port=1723 protocol=tcp
add action=accept chain=forward comment=FTP dst-port=21 protocol=tcp
add action=accept chain=input dst-port=1701,500,4500 protocol=udp
add action=accept chain=input protocol=ipsec-esp
add action=accept chain=forward dst-port=50000-51000 protocol=tcp
add action=drop chain=forward comment=Facebook dst-address-list=IP-Facebook \
    src-address-list=Proxy-Net
add action=drop chain=forward comment="Block youtube" dst-address-list=\
    IP-Youtube src-address-list=Proxy-Net
add action=passthrough chain=unused-hs-chain comment=\
    "place hotspot rules here"
/ip firewall nat
add action=masquerade chain=srcnat comment="L2TP/VPN Islamabad" disabled=yes \
    src-address=192.168.10.0/24
add action=passthrough chain=unused-hs-chain comment=\
    "place hotspot rules here"
add action=masquerade chain=srcnat out-interface=WAN-1
add action=masquerade chain=srcnat comment="masquerade hotspot network" \
    src-address=10.5.50.0/24
add action=masquerade chain=srcnat comment="masquerade hotspot network" \
    src-address=10.10.3.0/24
add action=dst-nat chain=dstnat dst-address-list=WAN dst-port=3389 protocol=\
    tcp to-addresses=10.10.0.10 to-ports=3389
add action=dst-nat chain=dstnat comment="SQL Server" dst-address-list=WAN \
    dst-port=1433 protocol=tcp to-addresses=10.10.0.10 to-ports=1433
add action=dst-nat chain=dstnat comment="FTP Server" dst-address-list=WAN \
    dst-port=21 protocol=tcp to-addresses=10.10.0.10 to-ports=21
add action=dst-nat chain=dstnat comment="FTP Server port 2" dst-address-list=\
    WAN dst-port=22 protocol=tcp to-addresses=10.10.0.10 to-ports=22
add action=dst-nat chain=dstnat comment=HIMS dst-address-list=WAN dst-port=80 \
    protocol=tcp to-addresses=10.10.0.10 to-ports=80
add action=dst-nat chain=dstnat comment=HR dst-address-list=WAN dst-port=8080 \
    protocol=tcp to-addresses=10.10.0.10 to-ports=8080
add action=accept chain=dstnat comment="FTP account" dst-port=50000-51000 \
    protocol=tcp to-addresses=10.10.0.10
add action=accept chain=srcnat comment="L2TP/VPN Islamabad" disabled=yes \
    dst-address=192.168.10.0/24 src-address=10.10.0.0/24
/ip firewall raw
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting comment=Facebook \
    content=.facebook.com dst-address-list=!Proxy-Net src-address-list=\
    IP-Facebook
add action=add-dst-to-address-list address-list=IP-Youtube \
    address-list-timeout=none-dynamic chain=prerouting comment=Youtube \
    content=.youtube.com dst-address-list=!Proxy-Net src-address-list=\
    Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting comment=Facebook \
    content=web.facebook.com disabled=yes dst-address-list=!Proxy-Net \
    src-address-list=IP-Facebook
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=.facebook.net \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=.fbcdn.net \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=.fbsbx.com \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=fb.com \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=fb.gg \
    disabled=yes dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=fbwat.ch \
    disabled=yes dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=messenger.com \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
add action=add-dst-to-address-list address-list=IP-Facebook \
    address-list-timeout=none-dynamic chain=prerouting content=m.me \
    dst-address-list=!Proxy-Net src-address-list=Proxy-Net
/ip hotspot ip-binding
add address=10.5.50.0/24 disabled=yes type=bypassed
add address=10.10.0.0/24 disabled=yes type=bypassed
add address=10.10.3.0/24 disabled=yes type=bypassed
/ip hotspot user
add name=admin
add comment="Clinc-5 " mac-address=18:66:DA:16:16:1B name=18:66:DA:16:16:1B \
    profile=2MB server=hotspot1
add address=10.5.50.4 comment="IT Office" mac-address=48:4D:7E:E5:6D:27 name=\
    48:4D:7E:E5:6D:27 profile=4MB server=hotspot1
add address=10.5.50.19 comment="USB LAN Adapter" mac-address=\
    00:E0:4C:68:0F:FC name=00:E0:4C:68:0F:FC profile=2MB server=hotspot1
add address=10.5.50.18 comment="Ali Majeed Mobile" mac-address=\
    AC:73:52:BB:DE:C1 name=AC:73:52:BB:DE:C1 profile=1MB server=hotspot1
add comment="HR -PC (Hanan Sarfaraz)" mac-address=C8:D9:D2:1A:16:6E name=\
    C8:D9:D2:1A:16:6E profile=4MB server=hotspot1
add address=10.5.50.21 comment="Furqan Javaid Laptop" mac-address=\
    9C:B6:54:9E:11:08 name=9C:B6:54:9E:11:08 profile=1MB server=hotspot1
add address=10.5.50.22 comment="Admin Excutive-PC (Dilshad Nawaz)" \
    mac-address=48:4D:7E:E5:0B:1B name=48:4D:7E:E5:0B:1B profile=4MB server=\
    hotspot1
add address=10.5.50.23 comment="Percurement Officer -PC  (M.Tahir)" \
    mac-address=48:4D:7E:E5:30:01 name=48:4D:7E:E5:30:01 profile=1MB server=\
    hotspot1
add address=10.5.50.24 comment="HR Officer Mobile (Hanan Sarfaraz)" \
    mac-address=38:38:4B:CB:86:7E name=38:38:4B:CB:86:7E profile=1MB server=\
    hotspot1
add address=10.5.50.25 comment="Pharmacy-PC (Furqan Javaid)" mac-address=\
    48:4D:7E:E5:35:ED name=48:4D:7E:E5:35:ED profile=4MB server=hotspot1
add address=10.5.50.26 comment="Qazi Shafi Mobile" mac-address=\
    18:E7:77:82:89:9F name=18:E7:77:82:89:9F profile=4MB server=hotspot1
add comment="Qazi Shafi Laptop" mac-address=04:6C:59:EF:4E:9E name=\
    04:6C:59:EF:4E:9E profile=4MB_Fiber server=hotspot1
add address=10.5.50.28 comment="Percurement Officer-Mobile (M.Tahir)" \
    mac-address=90:97:F3:B0:DF:68 name=90:97:F3:B0:DF:68 profile=1MB server=\
    hotspot1
add address=10.5.50.29 comment="Furqan Javaid Mobile" mac-address=\
    80:79:5D:E5:68:B9 name=80:79:5D:E5:68:B9 profile=1MB server=hotspot1
add address=10.5.50.16 comment="Dilshad Nawaz Mobile " mac-address=\
    C4:A4:51:6B:03:8B name=C4:A4:51:6B:03:8B profile=1MB server=hotspot1
add comment="M.Waqas Civil Engnr" mac-address=B4:0F:B3:30:8D:EF name=\
    B4:0F:B3:30:8D:EF profile=1MB server=hotspot1
add address=10.50.5.14 comment="Reception-PC (Usman)" mac-address=\
    48:4D:7E:E5:2E:37 name=48:4D:7E:E5:2E:37 profile=4MB server=hotspot1
add address=10.5.50.13 comment="Project Manager Ashraf shb" mac-address=\
    6C:00:6B:07:56:93 name=6C:00:6B:07:56:93 profile=2MB server=hotspot1
add address=10.5.50.11 comment="Malik Ishaq Mobile" mac-address=\
    2C:9D:65:64:AA:DA name=2C:9D:65:64:AA:DA profile=1MB server=hotspot1
add address=10.5.50.12 comment="Facility-Sup PC (Abdul Rehman)" mac-address=\
    48:4D:7E:ED:A5:FD name=48:4D:7E:ED:A5:FD profile=4MB server=hotspot1
add address=10.5.50.9 comment="Finance Office (M.Jhanzaib)" mac-address=\
    F4:02:28:6F:6A:5C name=F4:02:28:6F:6A:5C profile=4MB server=hotspot1
add address=10.5.50.8 comment="Facility-Sup (Abdul Rehman) Mobile" \
    mac-address=BC:91:B5:ED:E5:A2 name=BC:91:B5:ED:E5:A2 profile=1MB server=\
    hotspot1
add address=10.5.50.6 comment="PRO Officer (Farah) Mobile" mac-address=\
    2C:9D:65:6A:09:D2 name=2C:9D:65:6A:09:D2 profile=1MB server=hotspot1
add address=10.5.50.5 comment="DM Admin (Mobile)" mac-address=\
    B0:EB:57:C6:85:89 name=B0:EB:57:C6:85:89 profile=4MB server=hotspot1
add address=10.5.50.14 comment="M.shahriyar Account Officer Mobile" \
    mac-address=D4:63:DE:FB:12:62 name=D4:63:DE:FB:12:62 profile=1MB server=\
    hotspot1
add comment="Filter Clinic 1" mac-address=18:66:DA:2D:80:AF name=\
    18:66:DA:2D:80:AF profile=4MB server=hotspot1
add comment="Vitals Nursing Room" mac-address=48:4D:7E:E5:6B:DA name=\
    48:4D:7E:E5:6B:DA server=hotspot1
add comment="Deputy Manager Admin (PC)" mac-address=48:4D:7E:E5:0E:47 name=\
    48:4D:7E:E5:0E:47 profile=4MB server=hotspot1
add comment="Filter Clinic-2" mac-address=64:00:6A:6F:90:97 name=\
    64:00:6A:6F:90:97 profile=2MB server=hotspot1
add comment="Filter Clinic 3" mac-address=48:4D:7E:ED:A2:97 name=\
    48:4D:7E:ED:A2:97 server=hotspot1
add comment="Consultant Room 1 PC" mac-address=48:4D:7E:E5:2C:FF name=\
    48:4D:7E:E5:2C:FF server=hotspot1
add comment="Consultant Clinic-02" mac-address=48:4D:7E:E5:43:7C name=\
    48:4D:7E:E5:43:7C server=hotspot1
add comment="Account Officer (Shahryar PC)" mac-address=48:4D:7E:ED:63:CA \
    name=48:4D:7E:ED:63:CA profile=1MB server=hotspot1
add comment="Naveed Ali Raza BM Engr" mac-address=BE:AC:BF:A1:92:8B name=\
    BE:AC:BF:A1:92:8B profile=2MB server=hotspot1
add comment="Naveed Ali Raza BM Engr Laptop" mac-address=F8:16:54:98:DA:37 \
    name=F8:16:54:98:DA:37 profile=1MB server=hotspot1
add comment="Zahid cafe Mob" mac-address=50:77:05:B0:BD:E2 name=\
    50:77:05:B0:BD:E2 profile=2MB server=hotspot1
add comment="Dr Usama" mac-address=8C:B8:4A:0E:56:E1 name=8C:B8:4A:0E:56:E1 \
    profile=2MB server=hotspot1
add comment="M.Bashir Cashier PC" mac-address=48:4D:7E:E5:2B:F1 name=\
    48:4D:7E:E5:2B:F1 profile=2MB server=hotspot1
add comment="Alishba Reception PC" mac-address=50:9A:4C:52:2D:8B name=\
    50:9A:4C:52:2D:8B profile=4MB server=hotspot1
add comment="Junaid Nurse Aid" mac-address=28:D2:5A:D5:F2:7D name=\
    28:D2:5A:D5:F2:7D profile=1MB server=hotspot1
add mac-address=F8:4E:73:6B:66:F4 name=F8:4E:73:6B:66:F4 profile=1MB server=\
    hotspot1
add comment="clinc 4" mac-address=48:4D:7E:E5:2E:C8 name=48:4D:7E:E5:2E:C8 \
    server=hotspot1
add comment=Laboratory mac-address=48:4D:7E:EE:03:5B name=48:4D:7E:EE:03:5B \
    profile=4MB server=hotspot1
add comment="Pharmacy 2nd system" mac-address=48:4D:7E:DE:0F:2B name=\
    48:4D:7E:DE:0F:2B profile=4MB server=hotspot1
add comment="accounts printer" mac-address=74:97:79:1E:A0:62 name=\
    74:97:79:1E:A0:62 profile=2MB server=hotspot1
add comment=Clinic-5 mac-address=48:4D:7E:E4:60:4B name=48:4D:7E:E4:60:4B \
    profile=2MB server=hotspot1
add comment="Dr Usman private" mac-address=78:F2:38:7E:21:84 name=\
    78:F2:38:7E:21:84 profile=2MB server=hotspot1
add comment="Dr Qanita private" mac-address=FC:A5:D0:86:C6:0B name=\
    FC:A5:D0:86:C6:0B profile=2MB server=hotspot1
add comment="Dr Adil Ranjha" mac-address=64:17:CD:7F:3B:0E name=\
    64:17:CD:7F:3B:0E profile=2MB server=hotspot1
add comment="Dr Sana private" mac-address=FC:29:E3:55:75:67 name=\
    FC:29:E3:55:75:67 profile=2MB server=hotspot1
add comment="Abdul Raheem IT Officer" mac-address=C0:10:B1:93:A4:37 name=\
    C0:10:B1:93:A4:37 profile=2MB server=hotspot1
add comment="Clinic- 7" mac-address=48:4D:7E:ED:63:6F name=48:4D:7E:ED:63:6F \
    server=hotspot1
add comment="USG Room FF" mac-address=48:4D:7E:EE:04:F0 name=\
    48:4D:7E:EE:04:F0 server=hotspot1
add comment="Naveed Ali Raza BM PC" mac-address=EC:F4:BB:64:DD:2A name=\
    EC:F4:BB:64:DD:2A profile=2MB server=hotspot1
add comment="Muzamil Lab" mac-address=4C:EA:AE:DE:FF:A9 name=\
    4C:EA:AE:DE:FF:A9 profile=1MB server=hotspot1
add comment="Ghulam Shabir coock" mac-address=3A:16:32:14:78:0F name=\
    3A:16:32:14:78:0F profile=2MB server=hotspot1
add comment="Camp dr" mac-address=14:3C:C3:A4:69:A2 name=14:3C:C3:A4:69:A2 \
    profile=2MB server=hotspot1
add comment="Dr. Irfan khan hematologist" mac-address=80:86:F2:55:08:A2 name=\
    80:86:F2:55:08:A2 profile=2MB server=hotspot1
add comment="Dr adeel anjum" mac-address=80:9F:F5:C3:E0:FD name=\
    80:9F:F5:C3:E0:FD profile=2MB server=hotspot1
add comment="Ghulam Shabir Cock" mac-address=AC:29:29:6F:99:07 name=\
    AC:29:29:6F:99:07 profile=1MB server=hotspot1
add comment="Dr Rida" mac-address=9C:82:81:04:4C:43 name=9C:82:81:04:4C:43 \
    profile=2MB server=hotspot1
add comment="Dr zahra " mac-address=F4:BE:EC:B2:88:03 name=F4:BE:EC:B2:88:03 \
    profile=1MB server=hotspot1
add comment="Dr Saima CC" mac-address=DC:DC:E2:34:9C:08 name=\
    DC:DC:E2:34:9C:08 profile=1MB server=hotspot1
add comment="Dr farooq" mac-address=A4:F8:41:AB:91:C0 name=A4:F8:41:AB:91:C0 \
    profile=1MB server=hotspot1
add comment="Dr Anfaal" mac-address=9C:82:81:15:69:FB name=9C:82:81:15:69:FB \
    profile=1MB server=hotspot1
add comment="Dr Asim radiologist" mac-address=10:3F:44:61:F5:DE name=\
    10:3F:44:61:F5:DE profile=2MB server=hotspot1
add comment="Dr Salman Lashari" mac-address=F8:8F:07:9C:4E:E1 name=\
    F8:8F:07:9C:4E:E1 profile=2MB server=hotspot1
add comment="Dr Hashim" mac-address=B4:20:5B:2D:6E:D5 name=B4:20:5B:2D:6E:D5 \
    profile=2MB server=hotspot1
add comment="New pc Furqan" mac-address=8C:DC:D4:46:06:2E name=\
    8C:DC:D4:46:06:2E profile=4MB server=hotspot1
add comment="Dr Arzo Sajjad" mac-address=5C:17:CF:1D:B8:F3 name=\
    5C:17:CF:1D:B8:F3 profile=2MB server=hotspot1
add comment="Qazi Shafi MOb" mac-address=00:9C:C0:6E:B3:29 name=\
    00:9C:C0:6E:B3:29 profile=40MB server=hotspot1
add comment="Cafetairia System" mac-address=DC:4A:3E:97:C9:E3 name=\
    DC:4A:3E:97:C9:E3 profile=4MB server=hotspot1
add comment="Dr Wqarda Mobile" mac-address=44:F2:1B:14:35:BD name=\
    44:F2:1B:14:35:BD profile=2MB server=hotspot1
add comment="Hanan Sarfraz HR officer" mac-address=1C:7A:CF:FB:D9:D5 name=\
    1C:7A:CF:FB:D9:D5 profile=2MB server=hotspot1
add comment="Solar panel" mac-address=7C:87:CE:D9:CC:54 name=\
    7C:87:CE:D9:CC:54 profile=2MB server=hotspot1
add comment="DR Mohsin " mac-address=A8:DB:03:64:6C:F3 name=A8:DB:03:64:6C:F3 \
    profile=4MB server=hotspot1
add comment="Dr Usama Ibrahim" mac-address=36:1C:80:DD:A6:27 name=\
    36:1C:80:DD:A6:27 profile=4MB server=hotspot1
add comment="Mr. Bashir" mac-address=B8:C9:B5:C2:2B:E7 name=B8:C9:B5:C2:2B:E7 \
    profile=2MB server=hotspot1
add comment="Abdul Rehman IT office ASPHS" mac-address=C4:A4:51:69:C1:73 \
    name=C4:A4:51:69:C1:73 profile=4MB server=hotspot1
add comment="Dr. Salman physio" mac-address=78:36:CC:3E:72:21 name=\
    78:36:CC:3E:72:21 profile=2MB server=hotspot1
add comment="Dr irfan khan new" mac-address=A8:6F:36:E2:63:13 name=\
    A8:6F:36:E2:63:13 profile=4MB server=hotspot1
add comment="Dr. babar ali" mac-address=88:C0:8B:28:CE:00 name=\
    88:C0:8B:28:CE:00 profile=2MB server=hotspot1
add comment="Waiting area LED" mac-address=CE:F3:95:A2:35:42 name=\
    CE:F3:95:A2:35:42 profile=4MB server=hotspot1
add comment="Dr maria WMO" mac-address=E4:9C:67:0E:74:02 name=\
    E4:9C:67:0E:74:02 profile=2MB server=hotspot1
add comment=LED mac-address=1A:93:9B:EC:30:5D name=1A:93:9B:EC:30:5D profile=\
    4MB server=hotspot1
add comment="Ehsan Ilahi" mac-address=14:99:3E:7F:3C:7E name=\
    14:99:3E:7F:3C:7E profile=4MB server=hotspot1
add comment="Abdul Shakoor USG DPT" mac-address=6C:1E:D7:C1:D1:8D name=\
    6C:1E:D7:C1:D1:8D profile=2MB server=hotspot1
add comment="Dr. Rashid" mac-address=88:F8:72:3F:E6:49 name=88:F8:72:3F:E6:49 \
    profile=2MB server=hotspot1
add comment="Pharmacy System" mac-address=C8:D9:D2:1A:7C:4B name=\
    C8:D9:D2:1A:7C:4B profile=4MB server=hotspot1
add comment="Pharmacy Manager PC" mac-address=C8:D9:D2:1A:29:75 name=\
    C8:D9:D2:1A:29:75 profile=2MB server=hotspot1
add comment="DC Server" mac-address=24:6E:96:88:1F:32 name=24:6E:96:88:1F:32 \
    server=hotspot1
add comment="Accounts Officer PC" mac-address=48:4D:7E:EE:04:4B name=\
    48:4D:7E:EE:04:4B profile=4MB server=hotspot1
add comment=test mac-address=48:4D:7E:EE:06:BC name=48:4D:7E:EE:06:BC server=\
    hotspot1
add comment="dr asim" name=A2:46:8D:66:FF:76 profile=2MB server=hotspot1
add comment="dr tahira" name=B0:54:76:D0:CB:90 profile=2MB server=hotspot1
add comment=tariq mac-address=9C:5A:81:D2:7E:50 name=9C:5A:81:D2:7E:50 \
    profile=4MB server=hotspot1
add comment="dr adnan sarwar" name=B8:3B:CC:30:97:29 profile=2MB server=\
    hotspot1
add comment=abdullah name=F0:6C:5D:57:E1:E2 profile=2MB server=hotspot1
add comment="dr shumaila naz" name=80:9F:F5:7D:ED:73 profile=2MB server=\
    hotspot1
add comment="dr adil" name=58:20:71:16:7B:E0 profile=2MB server=hotspot1
add comment="Store System" mac-address=48:4D:7E:E5:3D:9D name=\
    48:4D:7E:E5:3D:9D profile=4MB server=hotspot1
add comment="attendance machine" mac-address=00:17:61:10:99:99 name=\
    00:17:61:10:99:99 profile=1MB server=hotspot1
add comment="abdul raheem" name=C8:D9:D2:1A:1E:83 profile=4MB server=hotspot1
add comment="dr adeela" name=30:50:CE:FC:3A:F6 profile=2MB server=hotspot1
add comment=dilshad mac-address=3C:6A:A7:99:E8:0F name=3C:6A:A7:99:E8:0F \
    profile=4MB server=hotspot1
add comment="ultra sound doctor laptop" mac-address=4C:BB:58:2C:F8:E7 name=\
    4C:BB:58:2C:F8:E7 profile=2MB server=hotspot1
add mac-address=80:E8:2C:55:69:52 name=80:E8:2C:55:69:52 profile=4MB_Fiber \
    server=Fiber_hotspot
add comment="AHSD008 Computer LAB PC 1" mac-address=C8:D9:D2:1A:0C:4F name=\
    C8:D9:D2:1A:0C:4F profile=4MB_Fiber server=Fiber_hotspot
add comment="CC-PC 1" mac-address=DC:4A:3E:97:C9:E3 name=DC:4A:3E:97:C9:E3 \
    profile=4MB_Fiber server=Fiber_hotspot
add comment="Domain Controller Fiber pool" mac-address=24:6E:96:88:1F:34 \
    name=24:6E:96:88:1F:34 server=Fiber_hotspot
add comment="AHSD002 COMPUTER LAB PC-2" mac-address=C8:D9:D2:19:E6:CF name=\
    C8:D9:D2:19:E6:CF profile=4MB_Fiber server=Fiber_hotspot
add comment="khizar Factory" mac-address=BC:91:B5:78:5A:27 name=\
    BC:91:B5:78:5A:27 profile=2MB server=hotspot1
add comment="AHSD007 IT OFFICER SCHOOL" mac-address=C8:D9:D2:19:E9:C4 name=\
    C8:D9:D2:19:E9:C4 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD018 COMPUTER LAB PC-18" mac-address=C8:D9:D2:19:F1:44 name=\
    C8:D9:D2:19:F1:44 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD020 COMPUTER LAB PC-20" mac-address=C8:D9:D2:1A:2E:42 name=\
    C8:D9:D2:1A:2E:42 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD019 COMPUTER PC-19" mac-address=C8:D9:D2:1A:35:F9 name=\
    C8:D9:D2:1A:35:F9 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD010 COMPUTER LAB PC-10" mac-address=C8:D9:D2:1A:36:74 name=\
    C8:D9:D2:1A:36:74 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD021 COMPUTER LAB PC-21" mac-address=C8:D9:D2:19:F8:42 name=\
    C8:D9:D2:19:F8:42 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD016 COMPUTER LAB PC-016" mac-address=C8:D9:D2:19:FE:E8 name=\
    C8:D9:D2:19:FE:E8 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD012 COMPUTER LAB PC-012" mac-address=C8:D9:D2:1A:0F:0B name=\
    C8:D9:D2:1A:0F:0B profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD013 COMPUTER LAB PC-13" mac-address=C8:D9:D2:19:E6:5E name=\
    C8:D9:D2:19:E6:5E profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD017 COMPUTER LAB PC-17" mac-address=C8:D9:D2:19:EC:BB name=\
    C8:D9:D2:19:EC:BB profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD014 COMPUTER LAB PC-14" mac-address=C8:D9:D2:1A:2D:F9 name=\
    C8:D9:D2:1A:2D:F9 profile=4MB_Fiber server=Fiber_hotspot
add comment="AHSD015 COMPUTER LAB PC-15" mac-address=C8:D9:D2:1A:59:1B name=\
    C8:D9:D2:1A:59:1B profile=4MB_Fiber server=Fiber_hotspot
add comment="tenda router Community Center" mac-address=D8:32:14:1A:A0:B8 \
    name=D8:32:14:1A:A0:B8 profile=4MB_Fiber server=Fiber_hotspot
add comment="abdul raheem' cc mobile" mac-address=8A:68:C2:B2:A3:F8 name=\
    8A:68:C2:B2:A3:F8 profile=4MB_Fiber server=Fiber_hotspot
add comment="Community Center NVR" mac-address=DC:07:F8:31:DC:31 name=\
    DC:07:F8:31:DC:31 profile=4MB_Fiber server=Fiber_hotspot
add comment="zahid sb cc" mac-address=52:2A:80:03:61:3B name=\
    52:2A:80:03:61:3B profile=4MB_Fiber server=Fiber_hotspot
add comment="ABDULLAH HO CC" mac-address=F0:6C:5D:57:E1:E2 name=\
    F0:6C:5D:57:E1:E2 profile=4MB_Fiber server=Fiber_hotspot
add comment="ABDUL REHMAN IT OFFICER CC" mac-address=12:42:15:29:48:4A name=\
    12:42:15:29:48:4A profile=4MB_Fiber server=Fiber_hotspot
add comment="Haseeb Ishaq" mac-address=08:CC:27:29:4C:75 name=\
    08:CC:27:29:4C:75 profile=4MB server=hotspot1
add comment="ASPHS NVR School" mac-address=FC:9F:FD:0F:10:00 name=\
    FC:9F:FD:0F:10:00 profile=4MB_Fiber server=Fiber_hotspot
add comment="dr arsalan" mac-address=6C:1E:D7:9D:80:8D name=6C:1E:D7:9D:80:8D \
    profile=2MB server=hotspot1
/ip route
add check-gateway=ping disabled=no dst-address=0.0.0.0/0 gateway=\
    209.150.147.49
add check-gateway=ping disabled=no distance=1 dst-address=192.168.10.0/24 \
    gateway=10.1.1.2 pref-src="" routing-table=main scope=30 \
    suppress-hw-offload=no target-scope=10
add check-gateway=ping disabled=no dst-address=192.168.10.0/24 gateway=\
    10.1.1.2 pref-src=10.10.0.1 routing-table=main scope=30 \
    suppress-hw-offload=no target-scope=10
add disabled=no dst-address=10.10.3.0/24 gateway=10.1.1.2 routing-table=main \
    suppress-hw-offload=no
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www port=5556
set ssh disabled=yes
set api disabled=yes
set winbox port=5555
set api-ssl disabled=yes
/ppp secret
add name=*****profile=profile1 service=pptp
add name=******profile=profile1 service=pptp
add name=*******profile=LPTP_profile service=l2tp
/radius
add address=127.0.0.1 service=hotspot
/radius incoming
set accept=yes
/routing bfd configuration
add disabled=no interfaces=all min-rx=200ms min-tx=200ms multiplier=5
/system clock
set time-zone-name=Asia/Karachi
/system identity
set name=RouterOS
/system logging
add topics=interface,info
add topics=interface,info
add topics=interface,info
/system note
set show-at-login=no
2

What are the gateway addresses for each of your subnets, and where are they assigned? For example if one of your DHCP servers is serving subnet 10.6.60.0/24 and giving a gateway address of 10.6.60.1, then that address 10.6.60.1 must be assigned to “something” on the same L2 network.

3

yes every subnet has gateway

10.10.0.0/24 gateway is 10.10.0.1
10.10.3.0/24 gateway is 10.10.3.1
10.5.50.0/24 gateway is 10.5.50.1

4

Do the clients on ech subnet get appropriate IP and gateway from DHCP, and can they ping their gateways?

Check all internal interfaces are in the correct interface list, and aren’t getting caught by a firewall rule.

5

Devices obtain IP addresses via DHCP and can successfully ping their default gateway. However, they are unable to access devices on adjacent subnets.

Internal Interfaces are correct in list (attached )
Interface list.jpeg

6
/interface list member
add interface=WAN-1 list=WAN
add interface=bridge1 list=LAN

Seems to me that, based on the config, the second bridge isn’t part of the LAN address list.

But from your config so many questions…why?
Why multiple bridges (instead of using VLAN)?
Why is your firewall so much changed?
Why the choice of addresses like that?

7

The interface list has been updated, but devices still cannot ping each other.

Why multiple bridges (instead of using VLAN)?
We're using bridges because the hotspot feature is needed to control internet speed limits, and it requires bridges.

Why is your firewall so much changed?
Many firewall rules were created by the hotspot configuration, and we added a few rules ourselves for testing.

Why the choice of addresses like that?
Our main IP address range is 10.10.0.0/24. When we created the hotspot, it automatically generated a second range, 10.5.50.0/24.

Our office expanded, and we connected a second building via fiber. We then set up a second hotspot with the subnet 10.10.3.0/24.

However, these subnets cannot ping each other. If we could enable communication between them, it would resolve our problem.

but these subnet cant ping each other, if they talk each other our problem will resolved.

interfacelist.png1077×280 11.7 KB
