Empty user address on VPN IKEv2 user

RouterOS The User Manager
1

I have successfully integrated VPN ikev2 with eap-radius authentication mode. I’m using mikrotik radius as radius server. When a user connect to the VPN server, he will get an private ip from the pool as expected, and all connectivity through VPN running well.

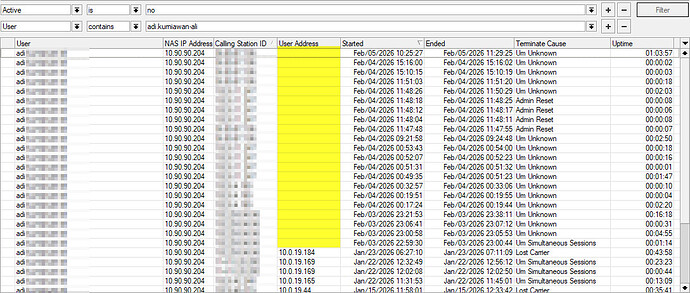

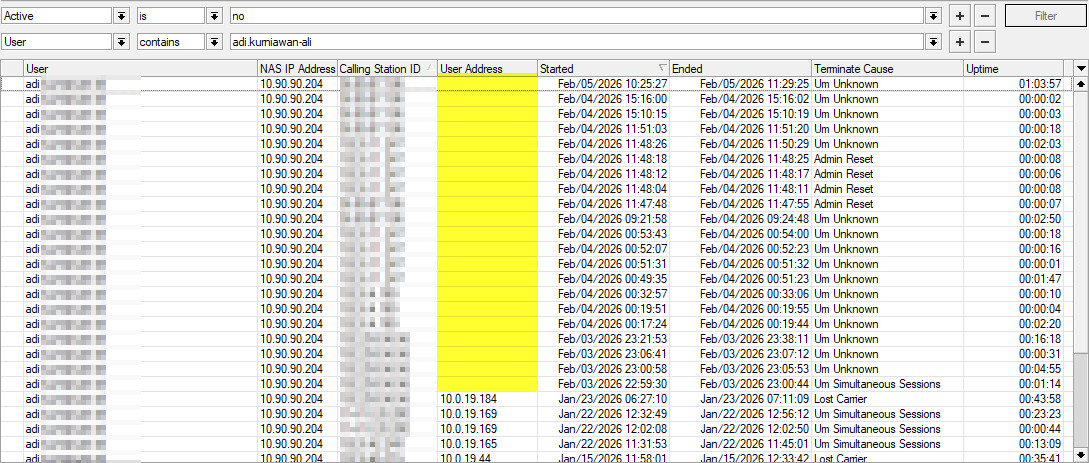

If i take a look on the user manager, the user address is empty. I have trying with different vpn protocols (sstp, l2tp, openvpn), user manager able to catch the user address IPs.

user_manager_sessions
user_manager_sessions1089×463 303 KB

I have checked the radius, and accouting feature was enabled. Did i miss something?

Here is my ikev2 configuration

2026-02-06 09:49:17 by RouterOS 7.20.7

model = CCR1009-7G-1C-1S+

/ip ipsec policy group
add name=group1-ikev2

/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
add dh-group=ecp256,modp2048,modp1024 dpd-interval=2m enc-algorithm=
aes-256,aes-128 name=profile1-ikev2

/ip ipsec proposal
add enc-algorithms=aes-128-cbc lifetime=1d name=asyst pfs-group=modp2048
add auth-algorithms=sha256,sha1 enc-algorithms=aes-256-cbc,aes-128-cbc
lifetime=1h name=proposal1-ikev2 pfs-group=none

/ip pool
add name=pool-ovpn-lintas ranges=10.0.8.10-10.0.9.254

/ip ipsec mode-config
add address-pool=pool-ovpn-lintas address-prefix-length=32 name=cfg1-ikev2
split-include="10.20.0.0/16,10.30.0.0/16,10.40.0.0/16,10.51.0.0/16,10.154.
14.0/24,172.25.207.0/24,172.30.6.0/24,183.23.35.128/28" static-dns=
10.20.30.60,8.8.8.8 system-dns=no

/ip ipsec identity
add generate-policy=port-strict peer=asyst
add auth-method=eap-radius certificate=server-LA-ikev2 generate-policy=
port-strict mode-config=cfg1-ikev2 peer=peer-ikev2 policy-template-group=
group1-ikev2

/ip ipsec settings
set interim-update=1m

/ppp aaa
set use-radius=yes

/radius
add address=xxx require-message-auth=no service=ppp,ipsec
timeout=300ms

/radius incoming
set accept=yes

Thank you.

3

And what info did you expect to see there?

4

It would be nice if the user ip address assigned by mikrotik recorded into userman, just like the other protocols (sstp, openvpn, etc). If we want to track someone who access a server, it would be easier.

Anyway, if i change the radius to another like freeradius, will it works?

I’m also try to set some parameters on the userman profile, like rate limit, idle timeout, but it looks like none of them working. Is that also expected?

5

I think you need to look in the “calling station ID” field instead. That should have the IP of the calling user I think.

I do eap authentication of WiFi users and it doesn’t have User Address either. But it does have MAC address as “calling station ID”.

I think this is not determined by the RADIUS server (user-manager in this case) but by the agent, which is IKEv2 here. It probably hasn’t decided yet what address it will give to the user at the time it checks the authentication.
