Hello,
is it normal for a Fancon to generate so many IRQ? ~1400 per “tick”.
CCR1009, v6.47
Same issue here:

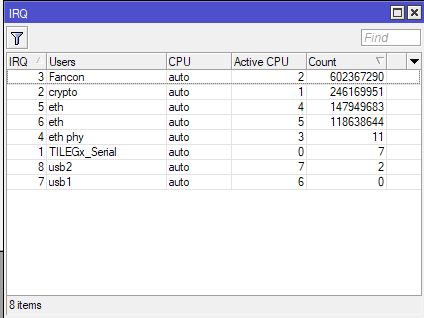

> /system resource irq print
Flags: ro - read-only
# IRQ USERS CPU ACTIVE-CPU COUNT
0 1 MicroSD auto 0 0
1 2 TILEGx_Serial auto 1 7
2 3 crypto auto 2 0
3 4 ts auto 3 0
4 5 Fancon auto 4 278 500 579
5 6 eth phy auto 5 2
6 7 eth auto 6 67 308 785
7 8 eth auto 7 68 672 438
8 9 usb1 auto 8 0
9 10 usb2 auto 9 2
My system info:
> /system routerboard print
routerboard: yes
model: CCR1036-8G-2S+
serial-number: 5AAC02XXXXXX
firmware-type: tilegx
factory-firmware: 3.22
current-firmware: 6.48.2
upgrade-firmware: 6.48.2
> /system package print
Flags: X - disabled
# NAME VERSION SCHEDULED
0 routeros-tile 6.48.2
1 system 6.48.2
2 X ipv6 6.48.2
3 X wireless 6.48.2
4 X hotspot 6.48.2
5 X mpls 6.48.2
6 routing 6.48.2
7 ppp 6.48.2
8 dhcp 6.48.2
9 security 6.48.2
10 advanced-tools 6.48.2
output of
/sys rou exportplease?
Same here.
> /system resource irq print
Flags: ro - read-only
# IRQ USERS CPU ACTIVE-CPU COUNT
0 1 MicroSD auto 0 0
1 2 TILEGx_Serial auto 1 4
2 3 ts auto 2 0
3 4 crypto auto 3 583 150 714
4 5 Fancon auto 4 1 042 156 631
5 6 eth phy auto 5 2
6 7 eth auto 6 3 466 750 577
7 8 eth auto 7 4 219 172 084
8 9 usb1 auto 8 0
9 10 usb2 auto 9 2
> /system routerboard export
# may/27/2021 14:52:18 by RouterOS 6.46.4
# software id = PADZ-07IU
#
# model = CCR1036-8G-2S+
# serial number = 6AAC05E7E5F4
We also notice performance issues. Some VPN clients gets the downlink 10x slower than usually and cannot establish remote desktop connections to internal network hosts. Some other has no such issues. I accidentally noticed this suspicious Fancon IRQ counts. Could it be related?
Is like all at default… ???
Is like all at nondeafault…
> /sys rou export
# jun/14/2021 08:13:28 by RouterOS 6.48.2
# software id = HSQU-RTUY
#
# model = CCR1036-8G-2S+
# serial number = 6AAC05XXXXXX
> /system resource irq print
Flags: ro - read-only
# IRQ USERS CPU ACTIVE-CPU COUNT
0 1 MicroSD auto 0 0
1 2 TILEGx_Serial auto 1 6
2 3 ts auto 2 0
3 4 crypto auto 3 0
4 5 Fancon auto 4 1 048 073 213
5 6 eth phy auto 5 2
6 7 eth auto 6 39 458 788
7 8 eth auto 7 36 634 030
8 9 usb1 auto 8 0
9 10 usb2 auto 9 2
Yes, this is normal behavior. Depending on the model it can be 1 to 4 IRQ per one fan rotation.
