I got an email from a US distributor “hAP AX3 Available”.
Follow the link and it’s available to back order… With no ship date.
Already had that same joke with 2 European distributors.
Simple trick to lure in customers…
I have received my hAP AX2 - only 80Mhz channel width as far as I can see ?
You can set 160MHz but no supported channel message…
i was hoping for 160mhz but at the end 160mhz is not a mandatory feature of 802.11ax
maybe is not a MikroTIk limitation but the chipset, maybe a Higher end chipset is needed to support 160mhz
in audience and rb4011 the radio supporting 160mhz was a high end 4x4:4 separate radio
How many watts does it idle at?
Just got my hAP ax2, firsts impressions, the wifi is atually good and fast.
at 20v I got a reading of ~4.5w
At 48V it will most likely be the same
it does not support 48V, max is 28v.
It is possible to have difference in power usage, due the internal voltage regulators, they can be more efficient in some voltages and less in anothers.
It was a joke but ok, not well received.
Sorry, did not catch that was a joke, no problem.
Also the power source can have same problem.
For example, if the device is better efficent on 18V (not so casual value…)
The power adapter for provide 18V is les efficent than when provide 21V… and so on…
Maybe I’m wrong but…
What can one do with a 2,5 Gb Eth ??
Which MT switch (or router , other brands too) is capable of 2,5Gb Eth ports ?
Why not a 10Gb ethernet (looking towards 802.11ax bandwidth) ??
2.5 (and 5) Gbps are standards that are more popular for twisted pair use, and in cheaper equipment.
10 Gbps twisted pair is possible, but usually it will be used over fiber or DAC (via SFP+ module).
I have a hAP ax2 router from today and I am a bit disappointed. I have a UPC 750/200 Mbit link and on the UPC router I get speeds of about 500 Mbit / s over Wi-Fi 5. I connected the ax2 router to it and configured it for Wi-Fi 6. On the iPhone 13 speedtest I only have about 250 Mbit / s.
I also tested some time ago on ASUS XD6 and I had about 700 Mbit / s after Wi-Fi 6.
Is something wrongly positioned?
Please help.
Configuration in attachment.
I’m getting 750+Mbps on mine. Hard to say what is wrong, it can be a lot of different things, like channel utilization, noise and etc.
From the image that you posted, the device selected seems to not be on WiFi6 rates, but, on WiFi5 ones(720Mbps).
To be able to help, we need to see your full config, in text form.
You can get it using the following command:
export
Open a new topic and describe the issue, post the full config, probably in the general section, not in the hardware.
ax2 has maximum 80MHz channel? Not support 160MHz?
But on UPC router Wi-Fi 5 I have 500 Mbit/s…

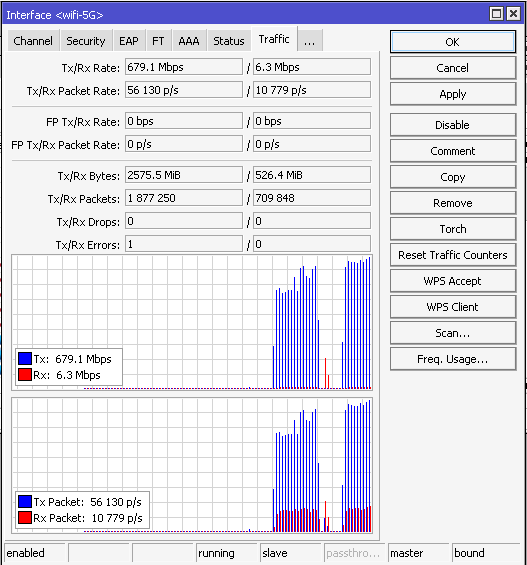

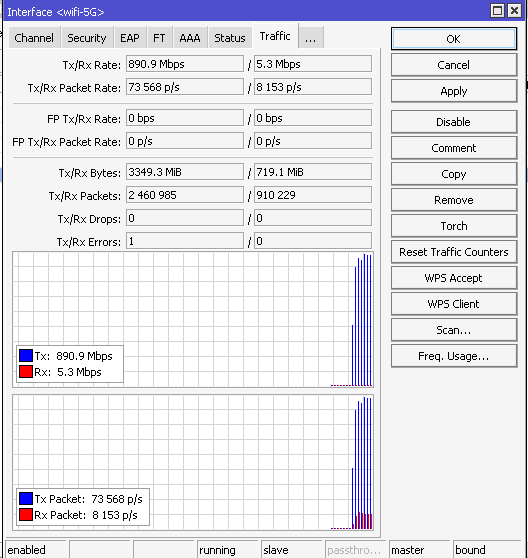

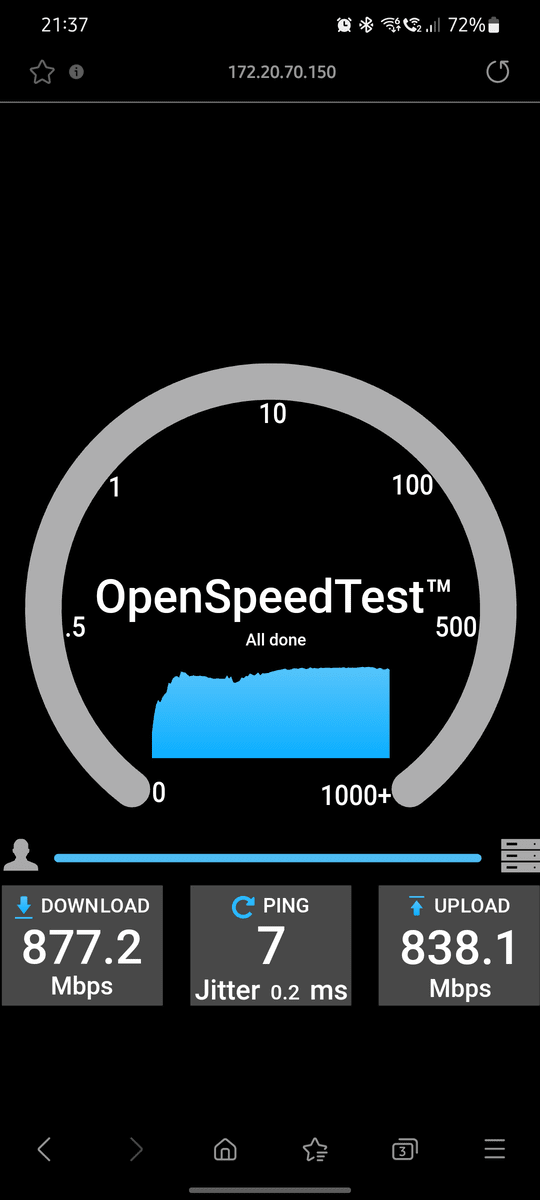

You don´t need 160Mhz to get more than 500Mbps as you can see below:
I’m about 3-4 meters from router.
In the same room.
Now I jave this config:
# oct/19/2022 22:06:59 by RouterOS 7.6
# software id = NAHX-XSTS
#
# model = C52iG-5HaxD2HaxD
# serial number = <CENSORED>
/interface bridge
add admin-mac=18:FD:74:BB:9E:5D auto-mac=no name=bridge
/interface wifiwave2
set [ find default-name=wifi1 ] channel.band=5ghz-ax .skip-dfs-channels=\
10min-cac .width=20/40/80mhz configuration.country=Poland .mode=ap .ssid=\
MT5 disabled=no security.authentication-types=wpa2-psk,wpa3-psk
set [ find default-name=wifi2 ] channel.band=2ghz-ax .skip-dfs-channels=\
10min-cac .width=20/40mhz configuration.country=Poland .mode=ap .ssid=MT \
disabled=no security.authentication-types=wpa2-psk,wpa3-psk
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp interface=bridge name=defconf
/port
set 0 name=serial0
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wifi1
add bridge=bridge comment=defconf interface=wifi2
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add interface=bridge list=LAN
add interface=ether1 list=WAN
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=\
192.168.88.0
/ip dhcp-client
add comment=defconf interface=ether1
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf dns-server=192.168.88.1 gateway=\
192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=\
invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" \
connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat ipsec-policy=out,none out-interface-list=WAN
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
33434-33534 protocol=udp
add action=accept chain=input comment=\
"defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=input comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=\
invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" \
src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" \
dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=forward comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/system clock
set time-zone-name=Europe/Warsaw
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
I done speedtest now and I have only 200 Mbit/s download on iPhone 13.
Do not use third-party sites,
Use the forum.

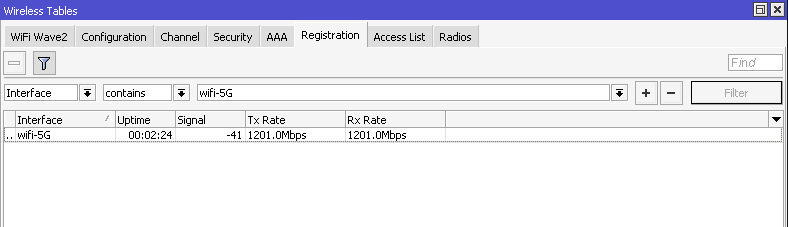

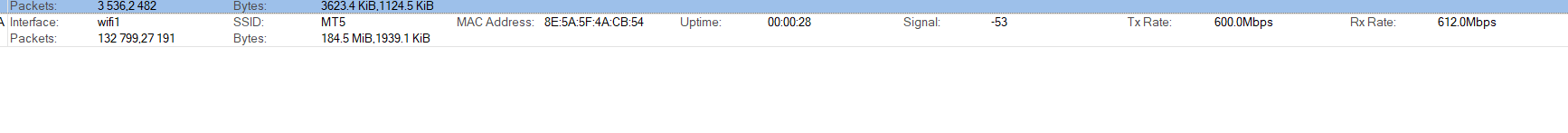

When I start doing speedtest, the tx rate drops to 600/600, not 1201 Mbps.
