Help Config Firewall Access List, Filter

RouterOS Beginner Basics
1

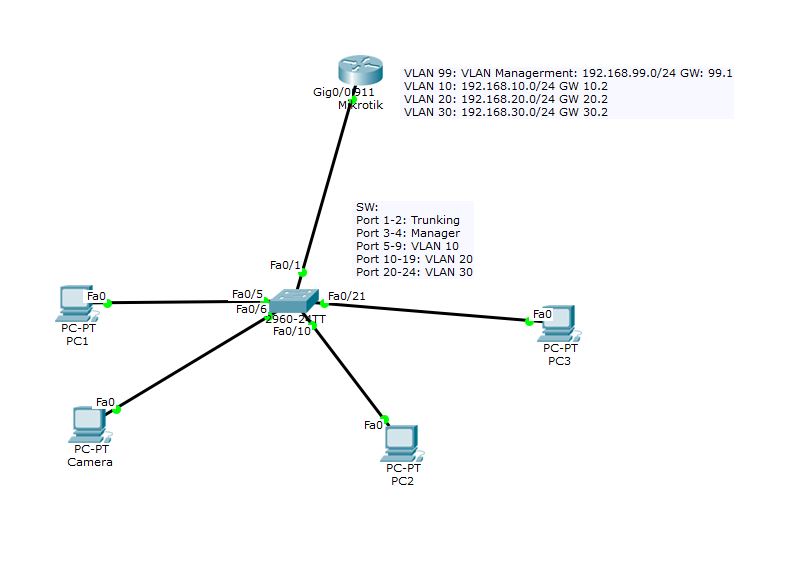

Topology Network

Hi,

How to config network?

  • VLAN 10, 20, 30 not access.
  • VLAN 20 access range IP VLAN 10 (ex: 192.168.10.5 - 192.168.10.20).

Tks,

2

What is VLAN 10, 20, 30 not supposed to access?

For the second part that is pretty easy:

you want a forward rule to permit 192.68.20.0/24 to reach 192.168.10.5-20
you then want a forward rule to deny 192.168.20.0/24 to reach 192.168.10.0/24

I’m not at home so I cannot give the specific syntax just yet.

3

Hello,

Your needs seems very unclear. Can’t figure out what you are looking for.

Regards,

4

I need help configuring the following:
VLANs 10, 20, 30 can not access each other
An IP range in VLAN 20 can access an IP range in VLAN 10
Sorry, I’m not good at expressing

5

Tks bro,
