Hi, Friends;
I have the following network:
Puerto Tipo VLANs
Sfp WAN
ether1 access VLAN11
ether2 trunk 11,20,40 ---> Tplink Festa 65 wall
ether3 trunk 11,20,40 ---> Tplink Festa 65 wall
ether4 access VLAN11
ether5 access VLAN11
ether6 bridge2 independiente 192.168.18.x
ether7 access VLAN11
ether8 access VLAN11

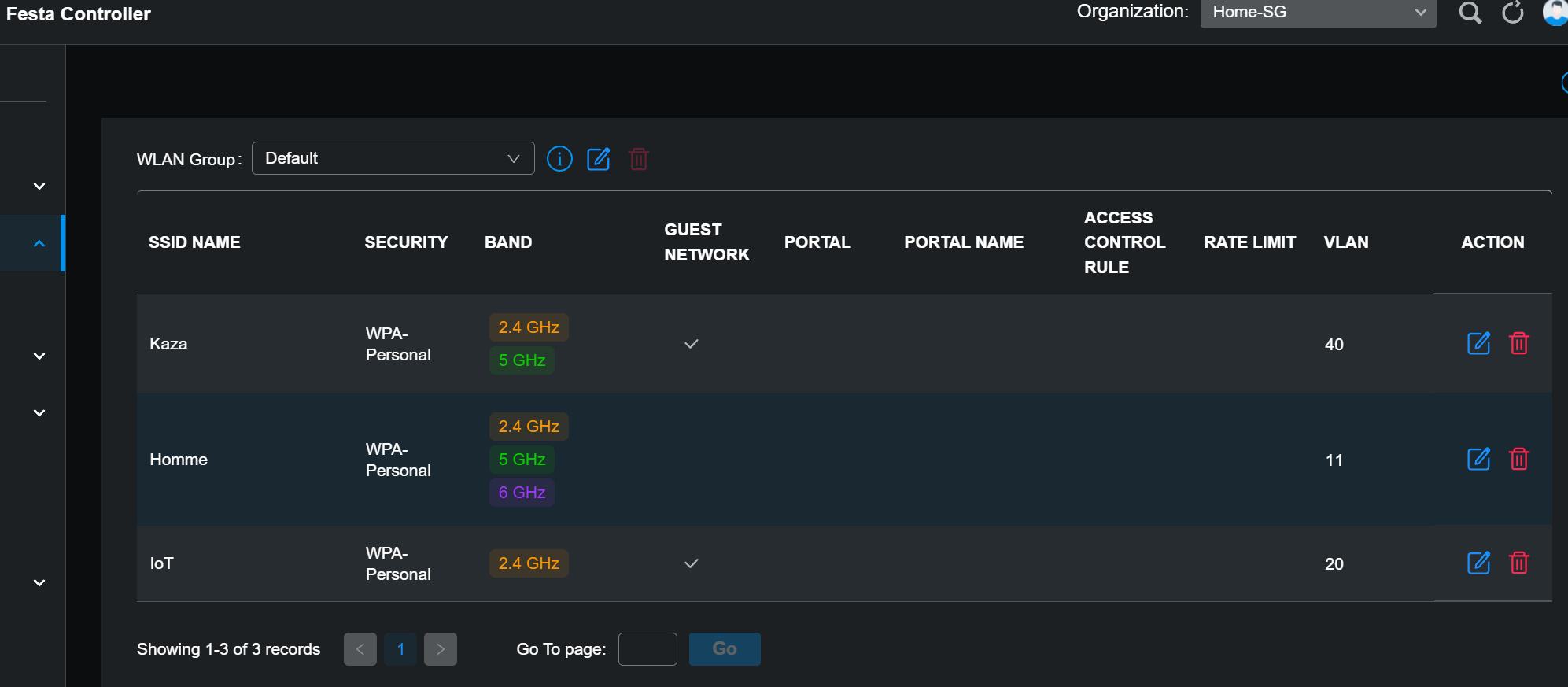

vlan11: Principal Network
vlan20: IoT
vlan40: Guest

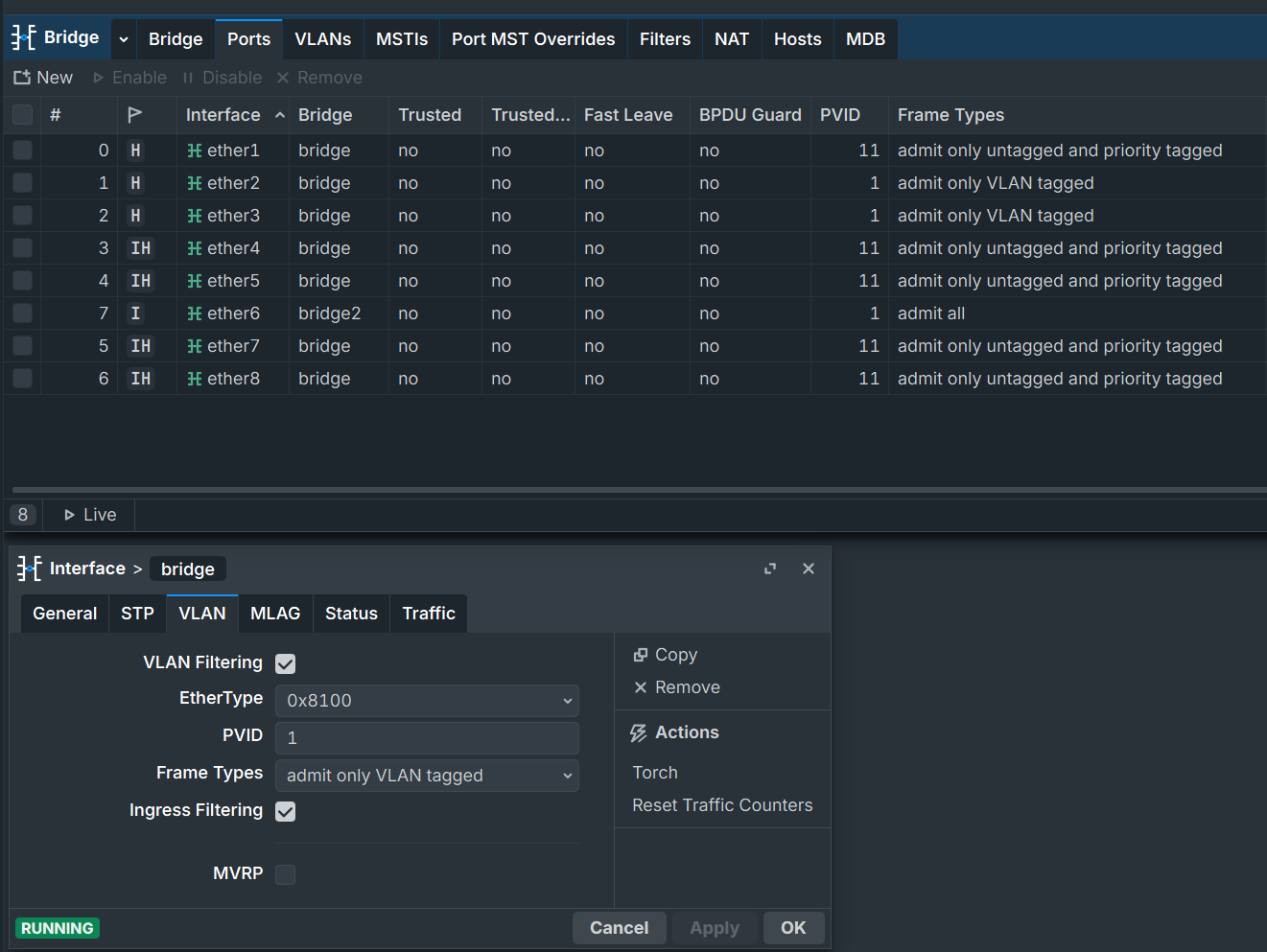

The problem is that when I configure the trunks this way:
interface bridge port
set [find interface=ether2] frame-types=admit-only-vlan-taggedset [find interface=ether3] frame-types=admit-only-vlan-tagged
The Wi-Fi isn't working; it currently works in this mode, but it's not secure. "admit all"
Details:
abc@MikroTik] /interface/bridge/port> print detail
Flags: X - DISABLED, I - INACTIVE; D - DYNAMIC; H - HW-OFFLOAD; Y - MANAGED
0 H interface=ether1 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-only-untagged-and-priority-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
1 H interface=ether2 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-all ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes broadcast-flood=yes tag-stacking=no
bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
2 H interface=ether3 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-all ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes broadcast-flood=yes tag-stacking=no
bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
3 I H interface=ether4 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-only-untagged-and-priority-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
4 I H interface=ether5 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-only-untagged-and-priority-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
5 I H interface=ether7 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-only-untagged-and-priority-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
6 I H interface=ether8 bridge=bridge priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=11 frame-types=admit-only-untagged-and-priority-tagged ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes
broadcast-flood=yes tag-stacking=no bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no
7 I interface=ether6 bridge=bridge2 priority=0x80 edge=auto point-to-point=auto learn=auto horizon=none hw=yes auto-isolate=no restricted-role=no restricted-tcn=no pvid=1 frame-types=admit-all ingress-filtering=yes unknown-unicast-flood=yes unknown-multicast-flood=yes broadcast-flood=yes tag-stacking=no
bpdu-guard=no trusted=no trusted-ra=no mvrp-registrar-state=normal mvrp-applicant-state=normal-participant multicast-router=temporary-query fast-leave=no

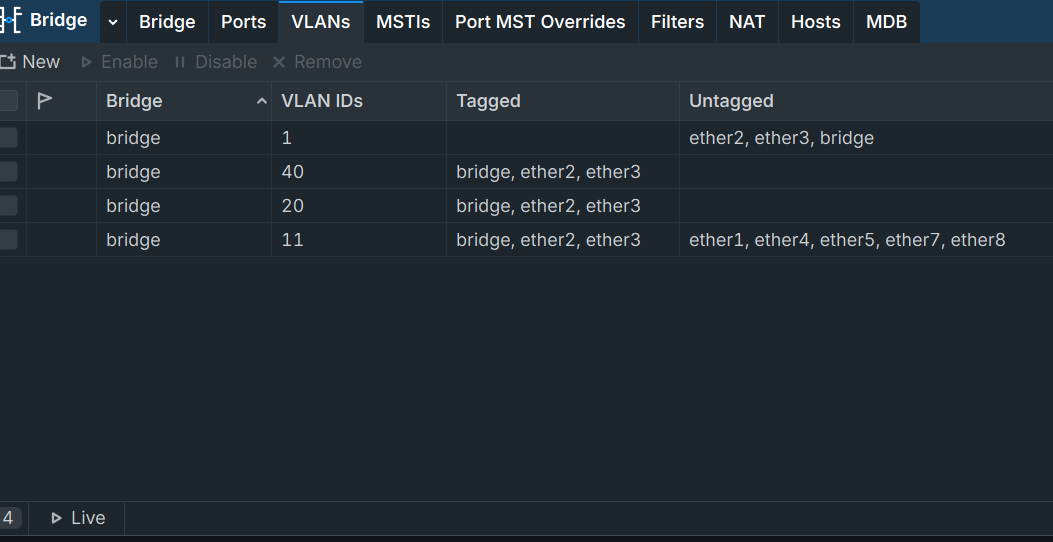

vlans:
abc@MikroTik] /interface/bridge/vlan> print detail
Flags: Y - MANAGED; X - DISABLED, D - DYNAMIC
0 bridge=bridge vlan-ids=11 tagged=bridge,ether2,ether3 untagged=ether1,ether4,ether5,ether7,ether8 mvrp-forbidden="" current-tagged=bridge,ether2,ether3 current-untagged=ether1
1 bridge=bridge vlan-ids=20 tagged=bridge,ether2,ether3 untagged="" mvrp-forbidden="" current-tagged=bridge,ether2,ether3 current-untagged=""
2 bridge=bridge vlan-ids=40 tagged=bridge,ether2,ether3 untagged="" mvrp-forbidden="" current-tagged=bridge,ether2,ether3 current-untagged=""
3 bridge=bridge vlan-ids=1 tagged="" untagged=ether2,ether3,bridge mvrp-forbidden="" current-tagged="" current-untagged=bridge,ether2,ether3
Firewall:
@MikroTik] /ip/firewall/filter> print
Flags: X - DISABLED, I - INVALID; D - DYNAMIC
0 D ;;; back-to-home-vpn
chain=forward action=drop src-address-list=back-to-home-lan-restricted-peers out-interface-list=LAN
1 D ;;; back-to-home-vpn
chain=input action=accept protocol=udp dst-port=22021
2 D ;;; special dummy rule to show fasttrack counters
chain=forward action=passthrough
3 ;;; defconf: accept established,related,untracked
chain=input action=accept connection-state=established,related,untracked log=no log-prefix=""
4 ;;; Permitir Acceso a IPs Confiables
chain=input action=accept protocol=tcp src-address-list=IPs-Confiables dst-port=8291 log=no log-prefix=""
5 ;;; defconf: drop invalid
chain=input action=drop connection-state=invalid log=no log-prefix=""
6 ;;; defconf: accept to local loopback (for CAPsMAN)
chain=input action=accept dst-address=127.0.0.1 log=no log-prefix=""
7 ;;; defconf: accept ICMP desde PC
chain=input action=accept protocol=icmp src-address=192.168.7.122 log=no log-prefix=""
8 ;;; defconf: accept in ipsec policy
chain=forward action=accept log=no log-prefix="" ipsec-policy=in,ipsec
9 ;;; defconf: accept out ipsec policy
chain=forward action=accept log=no log-prefix="" ipsec-policy=out,ipsec
10 ;;; defconf: fasttrack
chain=forward action=fasttrack-connection connection-state=established,related log=no log-prefix=""
11 ;;; defconf: accept established,related, untracked
chain=forward action=accept connection-state=established,related,untracked log=no log-prefix=""
12 ;;; Vlan-40 Invitados: Aceptar tr fico desde vlan-40 a Wan
chain=forward action=accept in-interface=vlan 40 out-interface-list=WAN log=no log-prefix=""
13 ;;; Vlan-20 IoT: Aceptar tr fico desde Vlan-20 a Wan
chain=forward action=accept in-interface=vlan 20 out-interface-list=WAN log=no log-prefix=""
14 ;;; Permitir consultas DNS desde la LAN-UDP
chain=input action=accept protocol=udp in-interface-list=LAN dst-port=53 log=no log-prefix=""
15 ;;; Permitir consultas DNS desde la LAN-TCP
chain=input action=accept protocol=tcp in-interface-list=LAN dst-port=53 log=no log-prefix=""
16 ;;; Drop peticiones DNS dsd WAN-UDP
chain=input action=drop protocol=udp in-interface-list=WAN dst-port=53 log=no log-prefix=""
17 ;;; Drop peticiones DNS dsd WAN-TCP
chain=input action=drop protocol=tcp in-interface-list=WAN dst-port=53 log=no log-prefix=""
18 ;;; Vlan-40: Evitar tr fico de vlan40 hacia el router
chain=input action=drop in-interface=vlan 40 log=no log-prefix=""
19 ;;; Vlan-40: Tr fico iniciado desde Vlan-40 dropear
chain=forward action=drop in-interface=vlan 40 log=no log-prefix=""
20 ;;; Vlan-20 IoT: Evitar tr fico de vlan-20 hacia el router
chain=input action=drop in-interface=vlan 20 log=no log-prefix=""
21 ;;; Vlan-20 IoT: Drop todo tr fico forward excepto WAN
chain=forward action=drop in-interface=vlan 20 log=no log-prefix=""
22 ;;; Vlan-20 IoT: Bloquear LAN hacia IoT
chain=forward action=drop out-interface=vlan 20 in-interface-list=LAN
23 ;;; defconf: drop all not coming from LAN
chain=input action=drop in-interface-list=!LAN log=no log-prefix=""
24 ;;; Port Scanner
chain=input action=add-src-to-address-list protocol=tcp psd=10,5s,3,1 address-list=Port_Scanners address-list-timeout=4w2d46m40s log=no log-prefix=""
25 ;;; "Drop Port Scanners"
chain=input action=drop src-address-list=Port_Scanners log=no log-prefix=""
26 ;;; Dropear todo lo dem s
chain=input action=drop log=no log-prefix=""
27 ;;; "Drop Intento a IP no p blicas desde la LAN"
chain=forward action=drop dst-address-list=not_in_internet in-interface-list=LAN out-interface-list=!LAN log=no log-prefix="!Public_from_LAN"
28 ;;; "Drop paquetes entrantes desde intenet con ip no p blica"
chain=forward action=drop src-address-list=not_in_internet in-interface-list=WAN log=yes log-prefix="!public invalid IPs"
29 ;;; defconf: drop invalid
chain=forward action=drop connection-state=invalid log=no log-prefix=""
30 ;;; defconf: drop all from WAN not DSTNATed
chain=forward action=drop connection-state=new connection-nat-state=!dstnat in-interface-list=WAN log=no log-prefix=""
31 ;;; "Drop paquetes desde la LAN fuera del rango IP de la LAN"
chain=forward action=drop src-address-list=!LAN_Permitidas in-interface-list=LAN log=no log-prefix=""
