Dear All

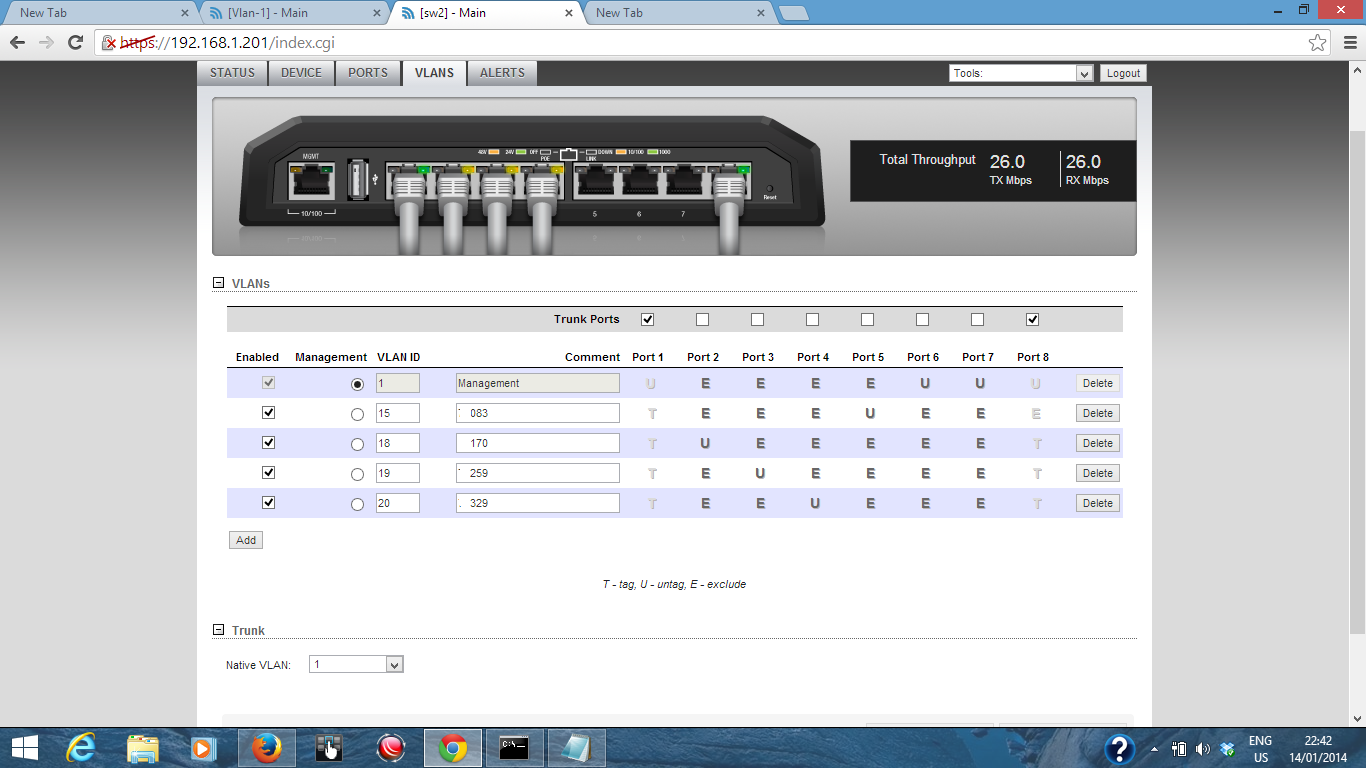

Please how can l achieve this configuration on CRS.
Can seem to get hold of information on it.
Any help or direction is appreciated.
Thanks
jan/02/1970 00:10:20 by RouterOS 6.7
software id = T6W9-7WV2
/interface ethernet
set [ find default-name=ether5 ] master-port=ether2
set [ find default-name=ether6 ] master-port=ether2
set [ find default-name=ether7 ] master-port=ether2
set [ find default-name=ether8 ] master-port=ether2
set [ find default-name=ether9 ] master-port=ether2
set [ find default-name=ether10 ] master-port=ether2
set [ find default-name=ether11 ] master-port=ether2
set [ find default-name=ether12 ] master-port=ether2
set [ find default-name=ether14 ] master-port=ether2
/interface ethernet switch
set bridge-type=service-vlan-bridge bypass-l2-security-check-filter-for=""
bypass-vlan-ingress-filter-for=""
drop-if-invalid-or-src-port-not-member-of-vlan-on-ports=""
drop-if-no-vlan-assignment-on-ports="" egress-mirror-ratio=1/1
egress-mirror0-enable=yes egress-mirror0-format=modified
egress-mirror0-port=switch1-cpu egress-mirror0-port=switch1-cpu
egress-mirror1-enable=yes egress-mirror1-format=modified
egress-sampling-ratio=1/1 fdb-uses=mirror0 forward-invalid-vlan=yes
ingress-mirror-ratio=1/1 ingress-mirror0-enable=yes
ingress-mirror0-format=modified ingress-mirror0-port=switch1-cpu
ingress-mirror1-enable=yes ingress-mirror1-format=modified
ingress-mirror1-port=switch1-cpu invalid-vlan-lookup-mode=ivl
ipv4-multicast-lookup-mode=dst-mac-and-vid-always mac-level-isolation=no
mirror-egress-if-ingress-mirrored=no mirror-tx-on-mirror-port=no
mirrored-packet-drop-precedence=green mirrored-packet-qos-priority=0
override-existing-when-ufdb-full=no unicast-fdb-timeout=5m
use-cvid-in-one2one-vlan-lookup=yes use-svid-in-one2one-vlan-lookup=no
vlan-level-isolation=yes vlan-uses=mirror0
/port
set 0 name=serial0
/interface ethernet switch dscp-qos-map
set (unknown) priority=1
set (unknown) priority=1
set (unknown) drop-precedence=yellow
set (unknown) drop-precedence=red
set (unknown) priority=2
set (unknown) priority=2
set (unknown) drop-precedence=yellow priority=2
set (unknown) drop-precedence=red priority=2
set (unknown) priority=2
set (unknown) priority=2
set (unknown) drop-precedence=yellow priority=2
set (unknown) drop-precedence=red priority=2
set (unknown) priority=2
set (unknown) priority=2
set (unknown) drop-precedence=yellow priority=2
set (unknown) drop-precedence=red priority=2
set (unknown) priority=2
set (unknown) priority=3
set (unknown) priority=2
set (unknown) priority=2
/interface ethernet switch egress-vlan-translation
add customer-vid=11 new-customer-vid=0 port=ether5
add customer-vid=12 new-customer-vid=0 port=ether6
add customer-vid=13 new-customer-vid=0 port=ether7
add customer-vid=14 new-customer-vid=0 port=ether8
add customer-vid=15 new-customer-vid=0 port=ether9
add customer-vid=16 new-customer-vid=0 port=ether10
add customer-vid=17 new-customer-vid=0 port=ether11
add customer-vid=18 new-customer-vid=0 port=ether12
add customer-vid=19 new-customer-vid=0 port=ether13
add customer-vid=20 new-customer-vid=0 port=ether14
/interface ethernet switch ingress-vlan-translation
add customer-vid=0 new-customer-vid=11 port=ether5
add customer-vid=0 new-customer-vid=12 port=ether6
add customer-vid=0 new-customer-vid=13 port=ether7
add customer-vid=0 new-customer-vid=14 port=ether8
add customer-vid=0 new-customer-vid=15 port=ether9
add customer-vid=0 new-customer-vid=16 port=ether10
add customer-vid=0 new-customer-vid=17 port=ether11
add customer-vid=0 new-customer-vid=18 port=ether12
add customer-vid=0 new-customer-vid=19 port=ether13
add customer-vid=0 new-customer-vid=20 port=ether14
/interface ethernet switch port
set 0 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 1 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 2 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 3 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 4 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 5 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 6 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 7 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 8 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 9 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 10 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 11 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 12 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 13 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 14 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 15 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 16 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 17 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 18 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 19 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 20 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 21 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 22 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 23 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 24 egress-vlan-mode=unmodified isolation-profile=30
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
set 25 egress-vlan-mode=unmodified isolation-profile=31
learn-restricted-unknown-sa=yes per-queue-scheduling="wrr-group1:1,wrr-gro
up1:2,wrr-group1:4,strict-priority:0,wrr-group0:0,wrr-group0:0,wrr-group0:
0,wrr-group0:0"
/ip service
set "" disabled=no port=22
/lcd interface
set ether1 interface=ether1
set ether2 interface=ether2
set ether3 interface=ether3
set ether4 interface=ether4
set ether5 interface=ether5
set ether6 interface=ether6
set ether7 interface=ether7
set ether8 interface=ether8
set ether9 interface=ether9
set ether10 interface=ether10
set ether11 interface=ether11
set ether12 interface=ether12
set ether13 interface=ether13
set ether14 interface=ether14
set ether15 interface=ether15
set ether16 interface=ether16
set ether17 interface=ether17
set ether18 interface=ether18
set ether19 interface=ether19
set ether20 interface=ether20
set ether21 interface=ether21
set ether22 interface=ether22
set ether23 interface=ether23
set ether24 interface=ether24
set sfp1 interface=sfp1
/lcd interface pages
set 0 interfaces="ether1,ether2,ether3,ether4,ether5,ether6,ether7,ether8,ethe
r9,ether10,ether11,ether12"
set 1 interfaces="ether13,ether14,ether15,ether16,ether17,ether18,ether19,ethe
r20,ether21,ether22,ether23,ether24"
Still waiting on the manual for the switching features in the CRS. I know how to do it using bridges, but you would take a huge speed hit for that. As for using the switch chip… there is no manual for the CRS features yet… and they actually aren’t completed yet. Maybe mikrotik can shed some light here.
Thanks
l tried the bridge it works on rb750 but not on the crs.
Am passing pppoe traffic on those vlans
Thanks
Not sure why the bridging way didn’t work… it should work just fine. It’s just a MASSIVE performance hit. If your ok with that we can set it up that way.
-Eric
Am running 20 dsl lines on it.
Each 12/1 mbps. All the crs will just act as vlan switch wit ccr doing the pppoe dialing and load-balancing.
Any idea.
Thanks
I would try to do it using the switch chip… see if support@mikrotik.com can provide some guidance until they release a manual for the CRS features.
