How to use RB411U and Sierra Wireless Modem 4G LTE MC8092

Hardware MikroTik hardware general
1

Scenario: RB411U + FW 5.22 + 4G LTE Card MC8092 (Sierra Wireless)
The LTE Info gives some error (see image belove)
Is the 4G LTE Card MC8092 supported?

2

Non penso funzioni la MC8092 in italia, tant’è che la riconosce ma ti da errore di segnale.

Da sito Sierra:

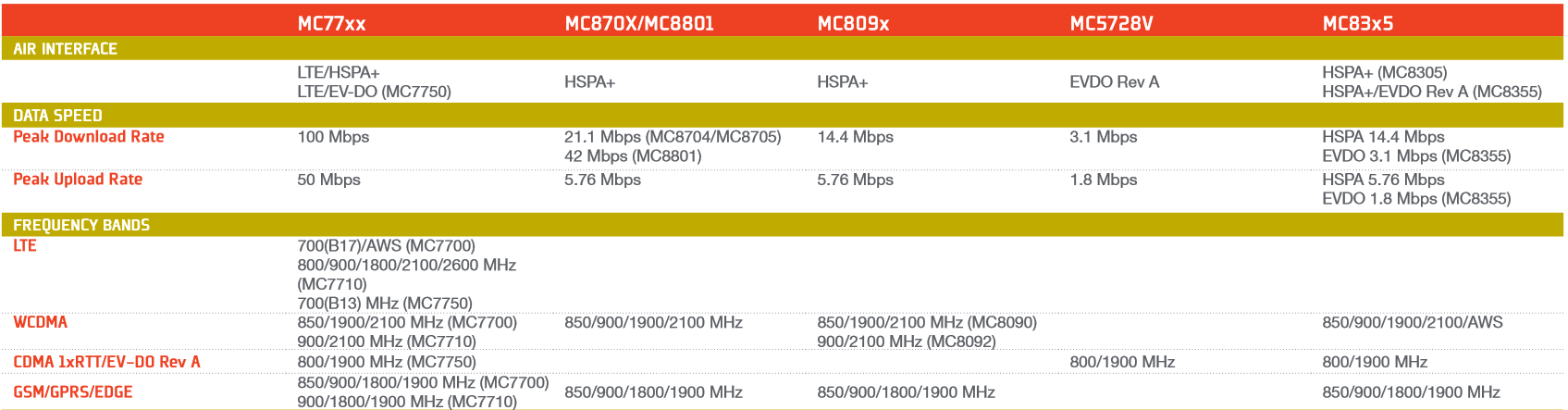

MC8092: Dual-band UMTS/HSPA+ connectivity,
dual-band diversity (900/2100 MHz)

Non è LTE, la lte mi pare sia la MC77XX

3

Ma il router lo vede come interfaccia LTE.

4

most likely those AT commands are not supported by this card that is why you have those ERROR values.
enable the lte1 interface and then check if it connects fine. If yes then add a dhcp-client on that lte1 interface.
For debugging enable async,debug logging.

5

jan/ 2/1970 0: 3:53 by RouterOS 5.22

software id = DR94-6P55

00:03:48 async,debug lte0: sent AT+COPS?
00:03:48 async,debug lte0: rcvd +COPS: 0
00:03:48 async,debug lte0: sent AT+CPIN?
00:03:48 async,debug lte0: rcvd +CPIN: READY
00:03:49 async,debug lte0: sent AT+GMI
00:03:49 async,debug lte0: rcvd
00:03:49 async,debug lte0: rcvd Sierra Wireless, Incorporated
00:03:49 async,debug lte0: sent AT+GMM
00:03:49 async,debug lte0: rcvd
00:03:49 async,debug lte0: rcvd MC8092
00:03:49 async,debug lte0: sent AT+GMR
00:03:49 async,debug lte0: rcvd
00:03:49 async,debug lte0: rcvd P1_0_0_8AP R1338 CNHKGDKCE01 2011/10/21 09:21:31
00:03:49 async,debug lte0: sent AT+GSN
00:03:49 async,debug lte0: rcvd
00:03:49 async,debug lte0: rcvd 351516050021229
00:03:49 async,debug lte0: sent AT+CPAS
00:03:49 async,debug lte0: rcvd +CPAS: 0
00:03:49 async,debug lte0: sent AT+CFUN?
00:03:49 async,debug lte0: rcvd +CFUN: 0
00:03:49 async,debug lte0: sent AT+CSQ
00:03:50 async,debug lte0: rcvd +CSQ: 99,99
00:03:50 async,debug lte0: sent AT+CSQ?
00:03:50 async,debug lte0: rcvd ERROR: operation not allowed
00:03:50 async,debug lte0: sent AT+COPS?
00:03:50 async,debug lte0: rcvd +COPS: 0
00:03:50 async,debug lte0: sent AT+CPIN?
00:03:50 async,debug lte0: rcvd +CPIN: READY
00:03:51 async,debug lte0: sent AT+GMI
00:03:51 async,debug lte0: rcvd
00:03:51 async,debug lte0: rcvd Sierra Wireless, Incorporated
00:03:51 async,debug lte0: sent AT+GMM
00:03:51 async,debug lte0: rcvd
00:03:51 async,debug lte0: rcvd MC8092
00:03:51 async,debug lte0: sent AT+GMR
00:03:51 async,debug lte0: rcvd
00:03:51 async,debug lte0: rcvd P1_0_0_8AP R1338 CNHKGDKCE01 2011/10/21 09:21:31
00:03:51 async,debug lte0: sent AT+GSN
00:03:51 async,debug lte0: rcvd
00:03:51 async,debug lte0: rcvd 351516050021229
00:03:51 async,debug lte0: sent AT+CPAS
00:03:51 async,debug lte0: rcvd +CPAS: 0
00:03:51 async,debug lte0: sent AT+CFUN?
00:03:51 async,debug lte0: rcvd +CFUN: 0
00:03:51 async,debug lte0: sent AT+CSQ
00:03:51 async,debug lte0: rcvd +CSQ: 99,99
00:03:51 async,debug lte0: sent AT+CSQ?
00:03:51 async,debug lte0: rcvd ERROR: operation not allowed
00:03:51 async,debug lte0: sent AT+COPS?
00:03:51 async,debug lte0: rcvd +COPS: 0
00:03:51 async,debug lte0: sent AT+CPIN?
00:03:51 async,debug lte0: rcvd +CPIN: READY
00:03:52 async,debug lte0: sent AT+GMI
00:03:52 async,debug lte0: rcvd
00:03:52 async,debug lte0: rcvd Sierra Wireless, Incorporated
00:03:52 async,debug lte0: sent AT+GMM
00:03:52 async,debug lte0: rcvd
00:03:52 async,debug lte0: rcvd MC8092
00:03:52 async,debug lte0: sent AT+GMR
00:03:52 async,debug lte0: rcvd
00:03:52 async,debug lte0: rcvd P1_0_0_8AP R1338 CNHKGDKCE01 2011/10/21 09:21:31
00:03:52 async,debug lte0: sent AT+GSN
00:03:52 async,debug lte0: rcvd
00:03:52 async,debug lte0: rcvd 351516050021229
00:03:52 async,debug lte0: sent AT+CPAS
00:03:52 async,debug lte0: rcvd +CPAS: 0
00:03:52 async,debug lte0: sent AT+CFUN?
00:03:52 async,debug lte0: rcvd +CFUN: 0
00:03:52 async,debug lte0: sent AT+CSQ
00:03:52 async,debug lte0: rcvd +CSQ: 99,99
00:03:52 async,debug lte0: sent AT+CSQ?
00:03:52 async,debug lte0: rcvd ERROR: operation not allowed
00:03:52 async,debug lte0: sent AT+COPS?
00:03:52 async,debug lte0: rcvd +COPS: 0
00:03:52 async,debug lte0: sent AT+CPIN?
00:03:52 async,debug lte0: rcvd +CPIN: READY
00:03:53 async,debug lte0: sent AT+GMI
00:03:53 async,debug lte0: rcvd
00:03:53 async,debug lte0: rcvd Sierra Wireless, Incorporated
00:03:53 async,debug lte0: sent AT+GMM
00:03:53 async,debug lte0: rcvd
00:03:53 async,debug lte0: rcvd MC8092
00:03:53 async,debug lte0: sent AT+GMR
00:03:53 async,debug lte0: rcvd
00:03:53 async,debug lte0: rcvd P1_0_0_8AP R1338 CNHKGDKCE01 2011/10/21 09:21:31
00:03:53 async,debug lte0: sent AT+GSN
00:03:53 async,debug lte0: rcvd
00:03:53 async,debug lte0: rcvd 351516050021229
00:03:53 async,debug lte0: sent AT+CPAS
00:03:53 async,debug lte0: rcvd +CPAS: 0
00:03:53 async,debug lte0: sent AT+CFUN?
00:03:53 async,debug lte0: rcvd +CFUN: 0
00:03:53 async,debug lte0: sent AT+CSQ
00:03:53 async,debug lte0: rcvd +CSQ: 99,99
00:03:53 async,debug lte0: sent AT+CSQ?
00:03:53 async,debug lte0: rcvd ERROR: operation not allowed
00:03:53 async,debug lte0: sent AT+COPS?
00:03:53 async,debug lte0: rcvd +COPS: 0
00:03:53 async,debug lte0: sent AT+CPIN?
00:03:53 async,debug lte0: rcvd +CPIN: READY

6

Hi,

I have the MC7710 from Sierra Wireless and trying to make this card work on the RB411U
and I came across the same as you see, but if you query the modem without the question
mark it responds.. My modem is not registered to any network yet, so I do not know it the
modem responds differently when online.

From my terminal you see the difference:


[admin@MikroTik] > /system serial-terminal usb2 channel=3

[Ctrl-A is the prefix key]

AT
OK
AT+CSQ?
+CME ERROR: operation not allowed
AT+CSQ
+CSQ: 99,99

OK

7

The modem MC8092 is not 4G LTE.

Ipse dixit.

8

Solved in http://forum.mikrotik.com/t/mikrotik-rb4xx-with-sierra-wireless-mc7710/67336/1
