I can not raise the pptp connections of. local area network

RouterOS General
1

ocal area network service provider is running and vpn connection is no

gray IP provider 192.168.223.60
mask 255,255,255,0
gatevay 192,168,223,1
dns 192,168,211,25

pptp 192.168.211.250
login, pass

routing for windows
route add 192.168.0.0 mask 255.255.0.0 192.168.223.1

settings for d-link 320. it works
http://cs5659.userapi.com/u7841102/docs/45f5cf206bb9/Dokument_Microsoft_Office_Word.docx



that gives us a pptp to Windows (when you look at the icon URL)

имя уст-ва ван минипорт(pptp)
тип уст-ва vpn
проверка подл-ти ms chap v2
шифрование mppe 128
сжатие нет
формирование выкл
ipv4 cl белый статический айпи
ipv4 serv 192,168,211,250
состоян. nap не поддерживается nap
адрес первоист. n/a
адрес назнач. 192.168.211.250

rtace and print route

C:\Users\sasha>route print

Список интерфейсов
30…VPN-подключение
16…7a 79 05 41 14 b1 …Hamachi Network Interface
11…00 80 48 5a 70 85 …Realtek RTL8139/810x Family Fast Ethernet сетевой
адаптер
1…Software Loopback Interface 1
12…00 00 00 00 00 00 00 e0 Адаптер Microsoft ISATAP
13…00 00 00 00 00 00 00 e0 Teredo Tunneling Pseudo-Interface
15…00 00 00 00 00 00 00 e0 Адаптер Microsoft ISATAP #2
18…00 00 00 00 00 00 00 e0 Адаптер Microsoft ISATAP #3

IPv4 таблица маршрута

Активные маршруты:
Сетевой адрес Маска сети Адрес шлюза Интерфейс Метрика
0.0.0.0 0.0.0.0 192.168.223.1 192.168.223.60 4501
0.0.0.0 0.0.0.0 On-link 195.78.105.24 21
5.0.0.0 255.0.0.0 On-link 5.65.20.177 13481
5.65.20.177 255.255.255.255 On-link 5.65.20.177 13481
5.255.255.255 255.255.255.255 On-link 5.65.20.177 13481
127.0.0.0 255.0.0.0 On-link 127.0.0.1 4531
127.0.0.1 255.255.255.255 On-link 127.0.0.1 4531
127.255.255.255 255.255.255.255 On-link 127.0.0.1 4531
192.168.0.0 255.255.0.0 192.168.223.1 192.168.223.60 4246
192.168.211.250 255.255.255.255 192.168.223.1 192.168.223.60 4246
192.168.223.0 255.255.255.0 On-link 192.168.223.60 4501
192.168.223.60 255.255.255.255 On-link 192.168.223.60 4501
192.168.223.255 255.255.255.255 On-link 192.168.223.60 4501
195.78.105.24 255.255.255.255 On-link 195.78.105.24 276
224.0.0.0 240.0.0.0 On-link 127.0.0.1 4531
224.0.0.0 240.0.0.0 On-link 192.168.223.60 4502
224.0.0.0 240.0.0.0 On-link 5.65.20.177 13482
224.0.0.0 240.0.0.0 On-link 195.78.105.24 21
255.255.255.255 255.255.255.255 On-link 127.0.0.1 4531
255.255.255.255 255.255.255.255 On-link 192.168.223.60 4501
255.255.255.255 255.255.255.255 On-link 5.65.20.177 13481
255.255.255.255 255.255.255.255 On-link 195.78.105.24 276

Постоянные маршруты:
Сетевой адрес Маска Адрес шлюза Метрика
0.0.0.0 0.0.0.0 192.168.223.1 По умолчанию

IPv6 таблица маршрута

Активные маршруты:
Метрика Сетевой адрес Шлюз
1 306 ::1/128 On-link
16 276 2620:9b::/64 On-link
16 276 2620:9b::/96 On-link
16 276 2620:9b::541:14b1/128 On-link
11 276 fe80::/64 On-link
16 276 fe80::/64 On-link
16 276 fe80::3dfa:ebe6:b87a 6fd/128
On-link
11 276 fe80::ad5d:95c0:c548:3c5c/128
On-link
1 306 ff00::/8 On-link
11 276 ff00::/8 On-link
16 276 ff00::/8 On-link

Постоянные маршруты:
Метрика Сетевой адрес Шлюз
0 4294967295 2620:9b::/96 On-link

C:\Users\sasha>tracert > http://www.ru

Трассировка маршрута к > http://www.ru > [194.87.0.50]
с максимальным числом прыжков 30:

1 <1 мс <1 мс <1 мс vpn1.holi.local [192.168.211.250]
2 1 ms 1 ms 1 ms gw.holi.net.ua [195.78.104.1]
3 2 ms 1 ms 1 ms 195.69.201.237
4 18 ms 18 ms 18 ms 77.222.129.93
5 19 ms 19 ms 19 ms 80.91.163.14
6 39 ms 39 ms 38 ms 193.25.180.83
7 31 ms 30 ms 30 ms 193.106.115.38
8 30 ms 30 ms 31 ms 80.249.132.101
9 39 ms 40 ms 39 ms 80.249.128.166
10 40 ms 39 ms 40 ms 194.87.0.111
11 40 ms 39 ms 39 ms 194.87.5.116

log mikrotik

00:12:16 pptp,ppp,info MyPPTP: terminating… - administrator request
00:12:16 pptp,ppp,info MyPPTP: disconnected
00:12:16 pptp,ppp,info MyPPTP: initializing…
00:12:16 pptp,ppp,info MyPPTP: dialing…
00:12:17 pptp,ppp,info MyPPTP: terminating…
00:12:17 pptp,ppp,info MyPPTP: disconnected
00:12:17 pptp,ppp,info MyPPTP: initializing…
00:12:17 pptp,ppp,info MyPPTP: dialing…
00:12:17 system,info device changed by admin
00:12:19 pptp,ppp,info MyPPTP: authenticated
00:12:19 pptp,ppp,info MyPPTP: connected
00:12:25 system,info device changed by admin
00:12:26 pptp,ppp,info MyPPTP: terminating… - administrator request
00:12:26 pptp,ppp,info MyPPTP: disconnected
00:12:26 pptp,ppp,info MyPPTP: initializing…
00:12:26 pptp,ppp,info MyPPTP: dialing…
00:12:28 pptp,ppp,info MyPPTP: authenticated
00:12:28 pptp,ppp,info MyPPTP: connected
00:12:30 system,info device changed by admin
00:12:31 pptp,ppp,info MyPPTP: terminating… - administrator request
00:12:31 pptp,ppp,info MyPPTP: disconnected
00:12:31 pptp,ppp,info MyPPTP: initializing…
00:12:31 pptp,ppp,info MyPPTP: dialing…
00:12:33 pptp,ppp,info MyPPTP: authenticated
00:12:33 pptp,ppp,info MyPPTP: connected
00:12:33 pptp,ppp,info MyPPTP: using encoding - MPPE128 stateless
00:13:43 pptp,ppp,info MyPPTP: terminating…
00:13:43 pptp,ppp,info MyPPTP: disconnected
00:13:43 pptp,ppp,info MyPPTP: initializing…
00:13:43 pptp,ppp,info MyPPTP: dialing…
00:13:45 pptp,ppp,info MyPPTP: terminating…
00:13:45 pptp,ppp,info MyPPTP: disconnected
00:13:45 pptp,ppp,info MyPPTP: initializing…
00:13:45 pptp,ppp,info MyPPTP: dialing…
00:13:47 pptp,ppp,info MyPPTP: authenticated
00:13:47 pptp,ppp,info MyPPTP: connected
00:13:47 pptp,ppp,info MyPPTP: using encoding - MPPE128 stateless
00:14:10 system,info device changed by admin
00:14:11 pptp,ppp,info MyPPTP: terminating… - administrator request
00:14:11 pptp,ppp,info MyPPTP: disconnected
00:14:11 pptp,ppp,info MyPPTP: initializing…
00:14:11 pptp,ppp,info MyPPTP: dialing…
00:14:13 pptp,ppp,info MyPPTP: authenticated
00:14:13 pptp,ppp,info MyPPTP: connected
00:14:13 pptp,ppp,info MyPPTP: using encoding - MPPE128 stateless
00:14:20 system,info device changed by admin
00:14:21 pptp,ppp,info MyPPTP: terminating… - administrator request
00:14:21 pptp,ppp,info MyPPTP: disconnected
00:14:21 pptp,ppp,info MyPPTP: initializing…
00:14:21 pptp,ppp,info MyPPTP: dialing…
00:14:23 pptp,ppp,info MyPPTP: authenticated
00:14:23 pptp,ppp,info MyPPTP: connected
00:14:23 pptp,ppp,info MyPPTP: using encoding - MPPE128 stateless
00:15:33 pptp,ppp,info MyPPTP: terminating…
00:15:33 pptp,ppp,info MyPPTP: disconnected
00:15:33 pptp,ppp,info MyPPTP: initializing…
00:15:33 pptp,ppp,info MyPPTP: dialing…
00:15:35 pptp,ppp,info MyPPTP: terminating…
00:15:35 pptp,ppp,info MyPPTP: disconnected
00:15:35 pptp,ppp,info MyPPTP: initializing…
00:15:35 pptp,ppp,info MyPPTP: dialing…
00:15:37 pptp,ppp,info MyPPTP: authenticated
00:15:37 pptp,ppp,info MyPPTP: connected
00:15:37 pptp,ppp,info MyPPTP: using encoding - MPPE128 stateless
00:15:51 system,info device changed by admin
00:15:52 pptp,ppp,info MyPPTP: terminating… - administrator request
00:15:52 pptp,ppp,info MyPPTP: disabled >

\

settings mikrotik


# jan/02/1970 00:21:44 by RouterOS 5.13
# software id = LV16-XT9G
#
/interface ethernet
set 0 mac-address=00:80:48:5A:70:85
/interface pptp-client
add add-default-route=yes connect-to=192.168.211.250 max-mru=1400 max-mtu=1400 name=MyPPTP password=pass user=do
/ip address
add address=192.168.223.60/24 interface=ether1
add address=192.168.0.1/24 interface=ether2
/ip dns
set allow-remote-requests=yes servers=192.168.211.25
/ip firewall nat
add action=masquerade chain=srcnat out-interface=ether1 to-addresses=0.0.0.0
add action=masquerade chain=srcnat out-interface=MyPPTP
/ip route
add distance=1 dst-address=192.168.0.0/16 gateway=192.168.223.1

components

[admin@MikroTik] > system package print
Flags: X - disabled

NAME VERSION SCHEDULED

0 system 5.13
1 hotspot 5.13
2 X ipv6 5.13
3 routerboard 5.13
4 routeros-mipsbe 5.13
5 wireless 5.13
6 ppp 5.13
7 advanced-tools 5.13
8 mpls 5.13
9 security 5.13
10 routing 5.13
11 dhcp 5.13
[admin@MikroTik] >

vpn on your computer up if I go through a router connected to a local network provider

ps: struggling for 2 weeks

2

help please

3

try check your ppp profile. and security settings etc. :
a working profile against windows (server profile, use same settings at client)

/ppp profile add bridge=bridge change-tcp-mss=no dns-server=192.168.21.1 local-address=\
    192.168.21.1 name=pptp-server only-one=default remote-ipv6-prefix-pool=none \
    use-compression=no use-encryption=required use-ipv6=yes use-mpls=default \
    use-vj-compression=no


/interface pptp-server
add comment="VPN server - No radius" disabled=no name=pptp-in1 user=""
/interface pptp-server server
set authentication=mschap2 default-profile=pptp-server enabled=yes \
    keepalive-timeout=30 max-mru=1460 max-mtu=1460 mrru=disabled


/ppp secret
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 local-address=\
    172.16.5.16 name=install password=xxxxxxxx profile=pppoe-install \
    remote-address=172.24.5.16 routes="" service=pppoe
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 local-address=\
    192.168.21.1 name=xxxxxx password=xxxxxxx profile=default remote-address=\
    192.168.21.56 remote-ipv6-prefix=::/64 routes="" service=any
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 local-address=\
    192.168.21.1 name=yyyyyyy password=yyyyyyyy profile=any remote-address=\
    192.168.21.57 routes="" service=any
add caller-id="" disabled=yes limit-bytes-in=0 limit-bytes-out=0 local-address=\
    192.168.21.1 name=zzzzzz password=zzzzzz profile=any remote-address=\
    192.168.21.60 routes="" service=l2tp
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 local-address=\
    192.168.21.1 name=aaaaaaaaa password=aaaaaaa profile=l2tp remote-address=\
    192.168.21.58 routes="" service=any
add caller-id="" disabled=no limit-bytes-in=0 limit-bytes-out=0 local-address=\
    192.168.21.1 name=bbbbbbb password=bbbbbb profile=l2tp remote-address=\
    192.168.21.59 routes="" service=any
4

I think the problem is with the profile you use …

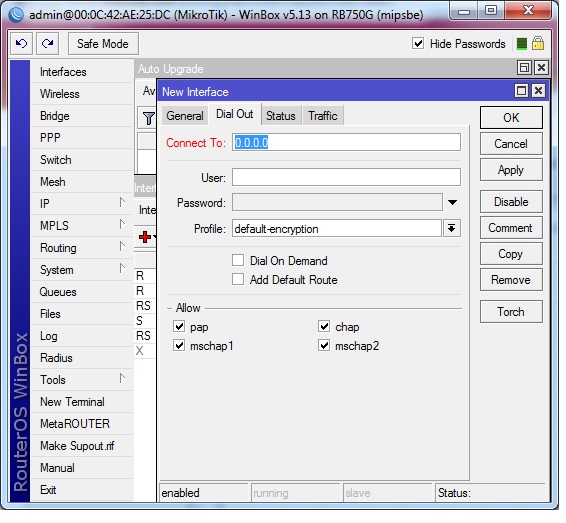

you use default-encryption - try default.

5

thanks for the help, but it did not work: (
tried to change the values ​​in the profile. also does not lead to nothing

it may be defective?

6

Thanks for your help. figured out. the problem here

http://pcrouter.ru/ipb/index.php?showtopic=105
