Internal Bridge Routing Help

[mahfuzazam]

Hi Guys,

I have created two bridges with the following IP Address:

Bridge1: 192.168.222.0/24
Bridge2: 192.168.48.0/22

Bridge1 contains a NAS server with the IP 192.168.222.35, and Bridge2 runs DHCP and is used for normal user-end internet connectivity.

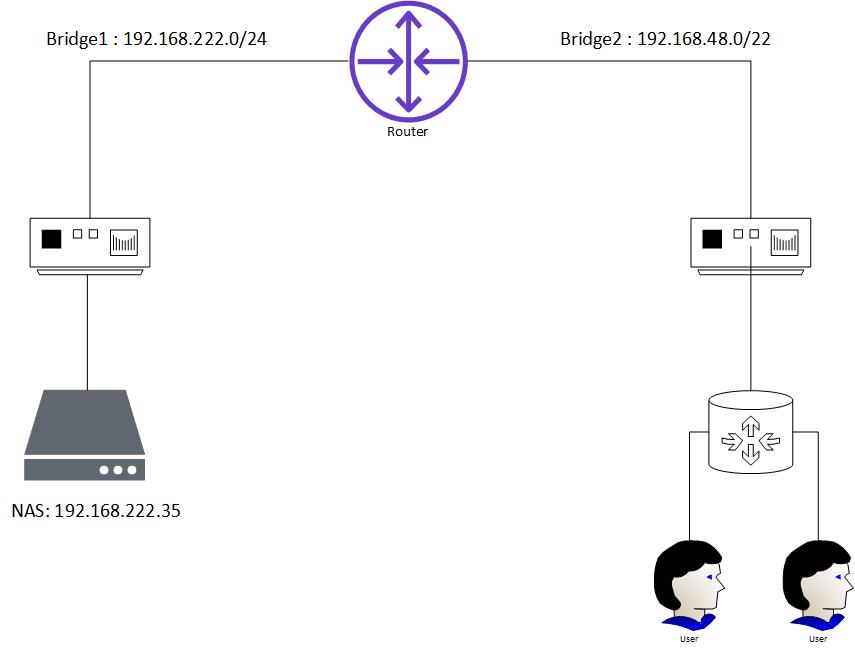

Now I want to do internal bridge-routing, for my users to access the NAS server. How is it possible? Attaching a basic diagram.

[erlinden]

Two things to focus on:

• Route: https://help.mikrotik.com/docs/display/ROS/IP+Routing
• Firewall: https://help.mikrotik.com/docs/display/ROS/Filter

[mahfuzazam]

Two things to focus on:

• Route: IP Routing - RouterOS - MikroTik Documentation
• Firewall: Filter - RouterOS - MikroTik Documentation

Thanks for the suggestions. I'm going through the documents. But I wasn't getting proper answers for two internal bridges in the same router.

[akakua]

Just set the following addresses:
Bridge1: 192.168.222.1/24
Bridge2: 192.168.48.1/22

[mahfuzazam]

Just set the following addresses:
Bridge1: 192.168.222.1/24
Bridge2: 192.168.48.1/22

I already did. The diagram shows the network addresses. But internally it’s configured with default gw.
