Hello,

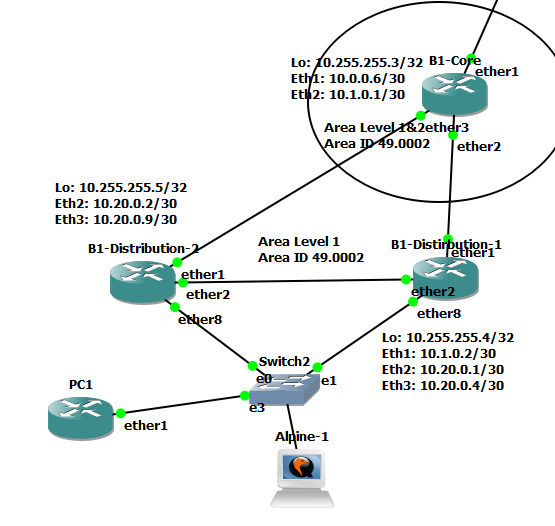

I got this:
Well, both B1-Distribution-1 and B1-Distribution-2 announce
192.168.0.0/24 since one is 192.168.0.2/24 and the other is 192.168.0.3/24 (planning to do VRRP here later).From my understanding B1-Core should get two LSPs (one from each neighbor) and both of those should have
192.168.0.0/24, so B1-Core should use ECMP to reach the 192.168.0.0/24 subnet. What am I missing, because that's not working.
B1-Core:
/routing/isis/export
# 2026-04-03 18:51:41 by RouterOS 7.22
# system id = NdEfA9bvPSL
#
/routing isis instance
add areas=49.0002 disabled=no l1.originate-default=always name=B1 system-id=0255.0255.0003
/routing isis interface-template
add instance=B1 interfaces=lo levels=l2 passive
add instance=B1 interfaces=ether2 levels=l1 ptp
add instance=B1 interfaces=ether1 levels=l1,l2 ptp
add instance=B1 interfaces=ether3 levels=l1 ptp
/ip/address/print
Columns: ADDRESS, NETWORK, INTERFACE, VRF
# ADDRESS NETWORK INTERFACE VRF
0 10.255.255.3/32 10.255.255.3 lo main
1 10.0.0.6/30 10.0.0.4 ether1 main
2 10.1.0.1/30 10.1.0.0 ether2 main
3 10.50.0.1/30 10.50.0.0 ether3 main
/ip/route/print
Flags: D - DYNAMIC; A - ACTIVE; c - CONNECT, i - IS-IS
Columns: DST-ADDRESS, GATEWAY, ROUTING-TABLE, DISTANCE
DST-ADDRESS GATEWAY ROUTING-TABLE DISTANCE
DAi 10.0.0.0/30 10.0.0.5%ether1 main 115
DAc 10.0.0.4/30 ether1 main 0
D i 10.0.0.4/30 10.0.0.5%ether1 main 115
DAc 10.1.0.0/30 ether2 main 0
D i 10.1.0.0/30 10.1.0.2%ether2 main 115
DAi 10.20.0.0/30 10.1.0.2%ether2 main 115
DAc 10.50.0.0/30 ether3 main 0
D i 10.50.0.0/30 10.50.0.2%ether3 main 115
DAi 10.255.255.1/32 10.0.0.5%ether1 main 115
DAi 10.255.255.2/32 10.0.0.5%ether1 main 115
DAc 10.255.255.3/32 lo main 0
DAi 10.255.255.4/32 10.1.0.2%ether2 main 115
DAi 10.255.255.5/32 10.50.0.2%ether3 main 115
DAi 192.168.0.0/24 10.1.0.2%ether2 main 115
# Revealing LSPs (a ton here, so no reason to paste them all I guess
1 D instance=B1 level=l1 lsp-id="0255.0255.0004.00-00" age=598 checksum=0xCBFE sequence=0x1A body=
areas: 4902
nlpid: IP
is-reach:
0255.0255.0005.00 20
0255.0255.0003.00 20
ip-reach:
10.255.255.4 0
10.20.0.0/30 20
192.168.0.0/24 0
10.1.0.0/30 20
is-reach-ext:
0255.0255.0005.00 20
0255.0255.0003.00 20
ip-reach-ext:
10.255.255.4 0
10.20.0.0/30 20
192.168.0.0/24 0
10.1.0.0/30 20
2 D instance=B1 level=l1 lsp-id="0255.0255.0005.00-00" age=565 checksum=0x84EF sequence=0xD body=
areas: 4902
nlpid: IP
is-reach:
0255.0255.0004.00 20
0255.0255.0003.00 20
ip-reach:
10.20.0.0/30 20
10.50.0.0/30 20
10.255.255.5 0
192.168.0.0/24 0
is-reach-ext:
0255.0255.0004.00 20
0255.0255.0003.00 20
ip-reach-ext:
10.20.0.0/30 20
10.50.0.0/30 20
10.255.255.5 0
192.168.0.0/24 0
B1-Distribution-1:
/routing isis instance
add areas=49.0002 disabled=no name=B1 system-id=0255.0255.0004
/routing isis interface-template
add instance=B1 interfaces=lo levels=l1 passive
add instance=B1 interfaces=ether1 levels=l1 ptp
add instance=B1 interfaces=ether2 levels=l1 ptp
add instance=B1 interfaces=ether8 levels=l1 passive
/ip/address/print
Columns: ADDRESS, NETWORK, INTERFACE, VRF
# ADDRESS NETWORK INTERFACE VRF
0 10.1.0.2/30 10.1.0.0 ether1 main
1 10.255.255.4/32 10.255.255.4 lo main
2 10.20.0.1/30 10.20.0.0 ether2 main
3 192.168.0.2/24 192.168.0.0 ether8 main
B1-Distribution-2:
/routing isis instance
add areas=49.0002 name=B1 system-id=0255.0255.0005
/routing isis interface-template
add instance=B1 interfaces=lo levels=l1 passive
add instance=B1 interfaces=ether2 levels=l1 ptp
add instance=B1 interfaces=ether1 levels=l1 ptp
add instance=B1 interfaces=ether8 levels=l1 passive
/ip/address/print
Columns: ADDRESS, NETWORK, INTERFACE, VRF
# ADDRESS NETWORK INTERFACE VRF
0 10.255.255.5/32 10.255.255.5 lo main
1 10.20.0.2/30 10.20.0.0 ether2 main
2 10.50.0.2/30 10.50.0.0 ether1 main
3 192.168.0.3/24 192.168.0.0 ether8 main
Does anyone know what am I doing wrong?
