hello,
I facing an issue for last two weeks. I am using RB1100 and configured two interfaces. 1 for WAN and another for LAN.Now the issue is that my WAN side showing 24Mbps download and 4Mbps upload and my LAN side showing 20Mbps download and 4 Mbps upload. Upload is the same in both interfaces but the difference in download. what is the issue any body knows.
No web proxy enable and no allow remote DNS requests
have you some kind of queue configuration? on the other hand i think that this values at the webinterface are not 100% accurate as bandwidth usage is calculate via taking the delta between to countervalue. so the timeframe which was used to calculate WAN might be not the same as the timeframe which was used to calculate LAN. Is the value constantly wrong?
I think the timeframe for upload is calculated right but the issue in download…Hows about that
What i meant was that for one interface the data are from a different “time” as for the other interface. but than it must be also the other way around wrong sometimes. what kind of traffic do you have on the network? belongs the 20M mostly to one tcp connection? how about traffic on the WAN interface which is “garbage” and get drop by the firewall?
I have got 25 Mbps for my customers..and i have made queues for each customers…20Mbps is my use in LAN while 4 to 5 mbps goes to garbage on WAN side…

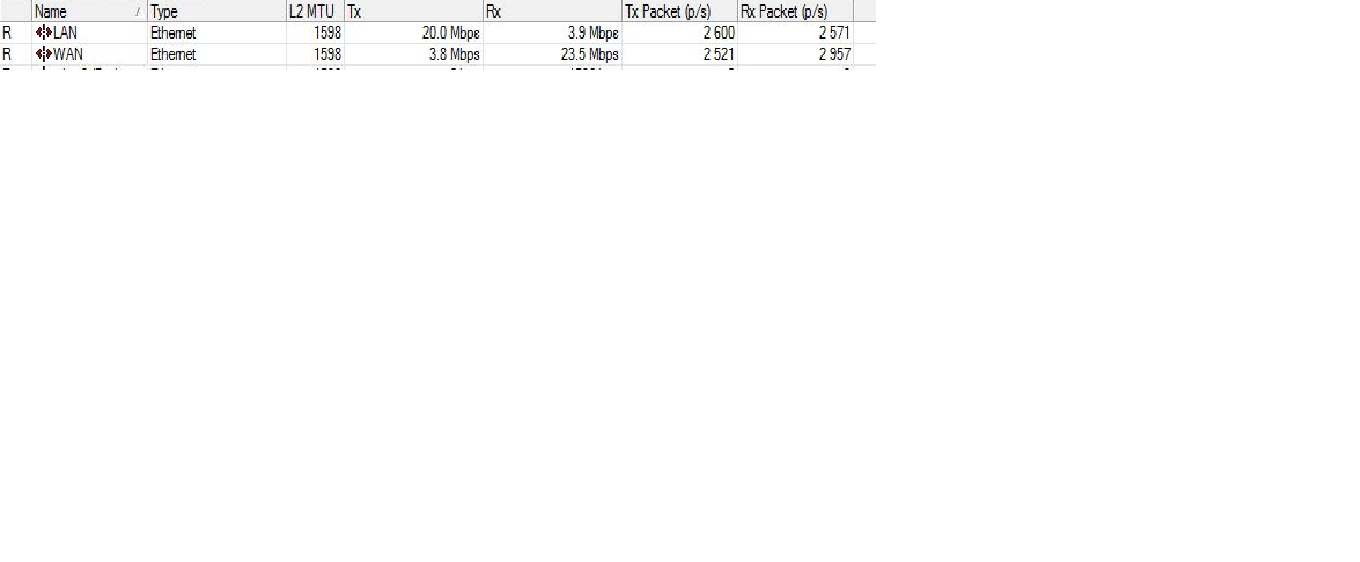

I have made some rules in firewall… for unwanted traffic our the WAN side..but still the same issue .as shows in the screen shot.
If 5 Mbps garbage-traffic coming in on the WAN interface and get dropped by firewall-rules this is exactly what i would expect as an result. So you get 25M ( WAN-RX ), you filter out 5M, you send out the remaining 20M ( LAN-TX ).
If you really get 5Mbps garbage-traffic which get dropped you should investigate what kind of traffic it is and why it’s coming.
Hello,
I am having this same challenge. My WAN is reading 40mb while i am getting 30mb on my LAN. I don’t have queues except for the dynamic simple queues generated by hotspot.
Any help would be appreciated.
Thanks
Don’t you have opened the dns cache to Internet, do you?
Hello I have remote request enabled, is that what you mean? below is my DNS configuration:
ip dns print
servers: 8.8.8.8,4.2.2.1
dynamic-servers:
allow-remote-requests: yes
max-udp-packet-size: 4096
cache-size: 16096KiB
cache-max-ttl: 1w
cache-used: 4651KiB
Then drop udp and tcp in input chain port 53 on wan interface.
I do have that already in place but still the problem persists
17 chain=input action=drop protocol=udp in-interface=Internet dst-port=53
18 chain=input action=drop protocol=tcp in-interface=Internet dst-port=53
What i noticed is that this happen once i enable hotspot.
Are those counters rising? If not you are maybe accepting or fasttracking the connections before those rules.
Thanks for your response, i actually drag the rules to the top and still got no counter increase. Below is my filter rule:
0 ;;; Echo request - Avoiding Ping Flood
chain=ICMP action=accept protocol=icmp icmp-options=8:0 limit=1,5
1 chain=input action=accept protocol=udp src-address=192.168.50.6
dst-address=192.168.50.1 dst-port=1812
2 chain=forward action=accept protocol=udp src-address=10.0.0.1
dst-address=10.0.0.13 dst-port=1812
3 chain=forward action=accept src-address=10.0.0.13
4 chain=forward action=accept protocol=udp src-address=10.0.0.1
dst-address=10.0.0.13 dst-port=1813
5 chain=input action=drop protocol=udp in-interface=Internet dst-port=53
6 chain=input action=drop protocol=tcp in-interface=Internet dst-port=53
7 chain=input action=accept protocol=tcp src-address=172.16.0.0/12
dst-address=public IP src-address-list=support dst-port=80
8 ;;; Accept FTP - TCP
chain=input action=accept protocol=tcp port=21
9 chain=input action=accept protocol=udp src-address=127.0.0.1
dst-address=127.0.0.1 dst-port=1812
10 chain=input action=accept protocol=udp src-address=127.0.0.1
dst-address=127.0.0.1 dst-port=3799
11 chain=input action=accept protocol=udp src-address=127.0.0.1
dst-address=127.0.0.1 dst-port=1813
12 chain=input action=accept protocol=udp src-address=192.168.50.6
dst-address=192.168.50.1 dst-port=1813
13 chain=input action=accept protocol=udp src-address=192.168.50.6
dst-address=192.168.50.1 dst-port=3799
14 chain=input action=accept protocol=tcp dst-address=public ip
dst-port=8291
15 chain=forward action=accept protocol=tcp dst-port=8291
16 chain=input action=accept protocol=tcp dst-address=public ip dst-port=2>
17 chain=input action=accept protocol=udp dst-address=public subnet
dst-port=80
18 chain=input action=accept protocol=udp src-address=192.168.16.2
dst-address=192.168.16.1 dst-port=161
19 chain=input action=drop protocol=tcp in-interface=Internet dst-port=3128
20 chain=input action=accept protocol=tcp dst-port=1700
21 chain=forward action=accept protocol=tcp dst-port=5900
22 ;;; place hotspot rules here
chain=unused-hs-chain action=passthrough
23 X ;;; block facebook on https
chain=forward action=reject reject-with=tcp-reset protocol=tcp
dst-address-list=Facebook
24 ;;; torrentsites
chain=forward action=drop dst-address=46.28.48.164
25 ;;; torrentsites
chain=forward action=drop src-address=172.16.0.0/12
layer7-protocol=torrentsites
26 ;;; dropDNS
chain=forward action=drop protocol=udp src-address=172.16.0.0/12
layer7-protocol=torrentsites dst-port=53
27 ;;; keyword_drop
chain=forward action=drop src-address=172.16.0.0/12 content=torrent
28 ;;; trackers_drop
chain=forward action=drop src-address=172.16.0.0/12 content=tracker
29 ;;; get_peers_drop
chain=forward action=drop src-address=172.16.0.0/12 content=getpeers
30 ;;; info_hash_drop
chain=forward action=drop src-address=172.16.0.0/12 content=info_hash
31 ;;; p2p_drop
chain=forward action=drop p2p=all-p2p src-address=172.16.0.0/12
32 ;;; drop ftp brute forcers
chain=input action=drop protocol=tcp src-address-list=ftp_blacklist
dst-port=21
33 chain=output action=add-dst-to-address-list protocol=tcp
address-list=ftp_blacklist address-list-timeout=3h
content=530 Login incorrect
34 ;;; drop ssh brute forcers
chain=input action=drop protocol=tcp src-address-list=ssh_blacklist
dst-port=22
35 chain=input action=add-src-to-address-list connection-state=new protocol=tc>
src-address-list=ssh_stage3 address-list=ssh_blacklist
address-list-timeout=1w3d dst-port=22
36 chain=input action=add-src-to-address-list connection-state=new protocol=tc>
src-address-list=ssh_stage2 address-list=ssh_stage3
address-list-timeout=1m dst-port=22
37 chain=input action=add-src-to-address-list connection-state=new protocol=tc>
src-address-list=ssh_stage1 address-list=ssh_stage2
address-list-timeout=1m dst-port=22
38 chain=input action=add-src-to-address-list connection-state=new protocol=tc>
address-list=ssh_stage1 address-list-timeout=1m dst-port=22
39 ;;; drop ssh brute downstream
chain=forward action=drop protocol=tcp src-address-list=ssh_blacklist
dst-port=22
40 ;;; Add Syn Flood IP to the list
chain=input action=add-src-to-address-list tcp-flags=syn protocol=tcp
address-list=Syn_Flooder address-list-timeout=30m connection-limit=30,32
41 ;;; Drop to syn flood list
chain=input action=drop src-address-list=Syn_Flooder
42 ;;; Port Scanner Detect
chain=input action=add-src-to-address-list protocol=tcp psd=21,3s,3,1
address-list=Port_Scanner address-list-timeout=1w
43 ;;; Drop to port scan list
chain=input action=drop src-address-list=Port_Scanner
44 ;;; Jump for icmp input flow
chain=input action=jump jump-target=ICMP protocol=icmp
45 X ;;; Block all access to the winbox - except to support list # DO NOT ENABLE>
IS RULE BEFORE ADD YOUR SUBNET IN THE SUPPORT ADDRESS LIST
chain=input action=drop protocol=tcp src-address-list=!support
dst-port=8291
46 ;;; Jump for icmp forward flow
chain=forward action=jump jump-target=ICMP protocol=icmp
47 ;;; Drop to bogon list
chain=forward action=drop dst-address-list=bogons
48 ;;; Add Spammers to the list for 3 hours
chain=forward action=add-src-to-address-list protocol=tcp
address-list=spammers address-list-timeout=3h dst-port=25,587
connection-limit=30,32 limit=30/1m,0
49 ;;; Avoid spammers action
chain=forward action=drop protocol=tcp src-address-list=spammers
dst-port=25,587
50 ;;; Accept DNS - UDP
chain=input action=accept protocol=udp port=53
51 ;;; Accept DNS - TCP
chain=input action=accept protocol=tcp port=53
52 ;;; Accept to established connections
chain=input action=accept connection-state=established
53 ;;; Full access to SUPPORT address list
chain=input action=accept src-address-list=support1
54 chain=forward action=accept protocol=tcp dst-port=389
55 chain=forward action=accept protocol=tcp dst-port=1812
56 chain=forward action=accept protocol=tcp dst-port=1813
57 ;;; Drop anything else! # DO NOT ENABLE THIS RULE BEFORE YOU MAKE SURE ABOU>
LL ACCEPT RULES YOU NEED
chain=input action=drop
58 ;;; Echo reply
chain=ICMP action=accept protocol=icmp icmp-options=0:0
59 ;;; Time Exceeded
chain=ICMP action=accept protocol=icmp icmp-options=11:0
60 ;;; Destination unreachable
chain=ICMP action=accept protocol=icmp icmp-options=3:0-1
61 ;;; PMTUD
chain=ICMP action=accept protocol=icmp icmp-options=3:4
62 ;;; Drop to the other ICMPs
chain=ICMP action=drop protocol=icmp
63 ;;; Jump for icmp output
chain=output action=jump jump-target=ICMP protocol=icmp
64 X ;;; announce_peers_drop
chain=forward action=drop src-address=172.16.0.0/12 content=announce_peers
Bump! any suggestion from anyone on what else to check? like i said, everything is fine when/if i don’t have hotspot enabled. My hotspot settings has bandwidth limit set (hence there are dynamic queues existing). I recently started experiencing this disparity.
Thanks
If your hotspot users are bandwidth limited (shaped), maybe some bytes are intentionally discarded and not forwarded to lan interface ..
some progress on this? currently i have the same problem of difference between interfaces
By intentionally you mean i added a rule that does that or the router has a mind of its own? If that is the case, then why should the WAN traffic be more than the LAN since some bytes going through LAN to WAN is being discarded?
sorry, but where is problem investigating it yourself? with sniffer, firewall counters and logging???
my best guess is:
a) some traffic are dropped by firewall
b) some management traffic like winbox connection can add some traffic
c) typical network traffic like broadcasts etc.
Hi, b and c would not be the case since we are talking about LAN being lesser than WAN. As for a, there seem not to be firewall issue as everything seem to normalise once hotspot is disabled. So i think it has to do with hotspot (at least in my own case)
Thanks
Intentionally ..because “you” are shaping
Tipical users traffic is more on download direction..
Anyway you have to go deeper and discover what it’s happening ..we are only giving you some hints (remember.. we have not access to your device/config and we know nothing of your network)
