Links are not Displayed in Local Network

beisenbe · May 4, 2011, 9:03am

I just installed The Dude on a Windows 7 current (May 4 2011) 32 bit system

NO LINKS ARE DISPLAYED for the Local Network!

What am I doing wrong?

Thanks in advance.

Bob

CyberT · May 4, 2011, 9:37am

what Ver Dude did you install, And please define “links are not displayed”

Links will be auto plotted if the devices are scanned, and form part of the same IP range they will link back to the Iprange “cloud” the Link speeds and thruput will only be displayed if the devices support SNMP.

Regards

beisenbe · May 4, 2011, 11:03am

Thanks for the quick response and apologies for being vague.

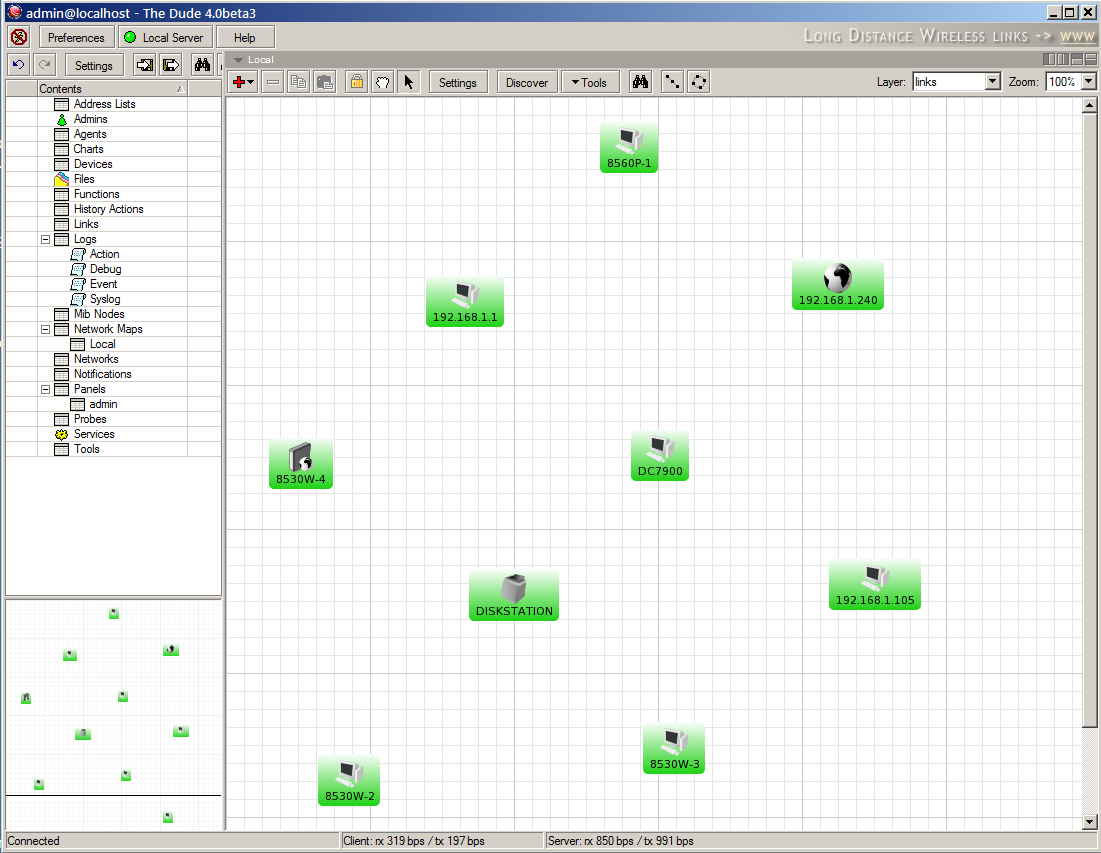

I attach a screen shot which says all I know: I am absolutely ignorant of this fine piece of software, unfortunately for me.

I installed the stable release first and had the same problem, identically.

I thought there would be graphics between the boxes representing devices.

Thanks in advance for the software and help and apologies for being so naive.

Bob
