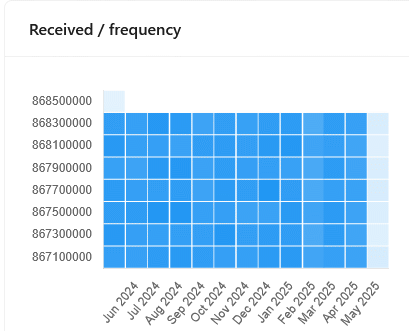

R11e-LR8 not forwarding packets received @ 868,5MHz when Protocol = LNS, and not printing 868.5MHz-Packets in WinBox/Terminal
ROS: up to 7.19beta8 (I changed beginning of May2024 from UDP to LNS-Protocol, don’t know ROS version that time)
UDP forwarding: all Rx Packets @ any Frequency: fine
CUPS: did not test
Products: “wAP LR8 kit” + “LtAP LR8 LTE kit”
any hints? thx
With ADR, I believe that what will control what channels a sensor will use. You may want to verify the channel plan on backend aligns with RouterOS channels. I don’t use LNS (just Semtech UDP), and in US band are different, so IDK for sure. What backend are you using?
But if UDP mode works, and LNS does not… that might point to some bug (and since LNS is relatively new).
Can you post the output of the following command?
/iot lora channels print
=>all channels are there (default channels configuration);
it does not show/forward packets received on this only frequency: 868.5MHz; all other channels work;
I use Chirpstack, but this should be irrelevant as the gateway doesn’t show traffic on 868.5
strange=>bug?
cheers
___@gw-01] > iot/lora/channels/print
Columns: NAME, TYPE, RADIO, FREQ-OFF, BANDWIDTH, FREQ, SPREAD-FACTOR, DATARATE
0 gateway-0 MSF radio1 -400000 125_kHz 868.1
1 gateway-0 MSF radio1 -200000 125_kHz 868.3
2 gateway-0 MSF radio1 0 125_kHz 868.5
3 gateway-0 MSF radio0 -400000 125_kHz 867.1
4 gateway-0 MSF radio0 -200000 125_kHz 867.3
5 gateway-0 MSF radio0 0 125_kHz 867.5
6 gateway-0 MSF radio0 200000 125_kHz 867.7
7 gateway-0 MSF radio0 400000 125_kHz 867.9
8 gateway-0 LoRa radio1 -200000 250_kHz 868.3 SF7
9 gateway-0 FSK radio1 300000 125_kHz 868.8 50000
Could be. I checked mine (cups with TTN), I don’t have graphs, but I see traffic in 868.5MHz (band 125kHz)
[jeff@MikroTik] > /iot lora traffic/print where freqhz=868500
# TIME GWID MSGTYPE DEVADDR MVER FCNT CRC TYPE NETID JOINEUI DEVEUI DEVNONCE JOINNONCE FREQHZ MOD BAND DAT... COD... IFC... TXMODE COU... RFC... RSSI SNR SNRMIN SNRMAX RXCRC RFPOW
5 202... 503139535B664750 Join-ac... 31 BB A7 20 RFU Error Rx 13548811 868500 LoRa 125... SF 7 4/6 2 108... 1 -10... -12.00 -14.25 -7.50 31278
16:...
16 202... 503139535B664750 Join-ac... 41 28 88 1E RFU Error Rx 12734518 868500 LoRa 125... SF 8 4/8 2 310... 1 -10... -14.50 -16.75 -9.25 24688
16:...
19 202... 503139535B664750 Unconfi... 26 0B EA 4E LoRaWAN R1 492 Ok Rx 868500 LoRa 125... SF 8 4/5 2 422... 1 -81.00 8.75 7.00 11.25 29709
17:...
20 202... 503139535B664750 Unconfi... 26 0B EA 4E LoRaWAN R1 19 Tx 868500 LoRa 125... SF 8 4/5 Tim... 422... 0 16
17:...
21 202... 503139535B664750 Confirm... BB 47 87 9B RFU 51131 Error Rx 868500 LoRa 125... SF 7 4/8 2 134... 1 -10... -11.00 -14.25 -8.25 48731
17:...
22 202... 503139535B664750 Proprie... RFU Error Rx 868500 LoRa 125... SF 7 ?/? 2 408... 1 -10... -11.50 -14.50 -7.00 7957
18:...
23 202... 503139535B664750 Join-re... RFU Error Rx CC 3D 36 AC 9... 1C 63 61 6A 2... 45630 868500 LoRa 125... SF 7 ?/? 2 286... 1 -10... -11.50 -14.25 -7.50 59092
18:...
24 202... 503139535B664750 Proprie... RFU Error Rx 868500 LoRa 125... SF 7 4/6 2 101... 1 -10... -11.50 -13.75 -8.50 19769
18:...
25 202... 503139535B664750 Confirm... C5 CB FE 7C RFU 2642 Error Rx 868500 LoRa 125... SF 7 4/6 2 334... 1 -10... -11.25 -13.50 -8.00 20642
19:...
26 202... 503139535B664750 Join-re... RFU Error Rx 03 4D 0D 6A 7... DD 6D 40 B6 1... 17260 868500 LoRa 125... SF 8 4/7 2 245... 1 -10... -14.00 -17.00 -10.00 4388
19:...
27 202... 503139535B664750 Unconfi... 26 0B EA 4E LoRaWAN R1 497 Ok Rx 868500 LoRa 125... SF 7 4/5 2 335... 1 -86.00 7.50 3.25 10.50 33751
19:...
28 202... 503139535B664750 Rejoin-... RFU Error Rx AB 0D F5 F0 E... 868500 LoRa 125... SF 7 4/5 2 456... 1 -10... -11.25 -13.75 -8.25 16574
19:...
