I recently purchased a brand new Mikrotik hEX RB750Gr3. I have a 200/200Mbps fibre line at home. Performing a speed test directly connected to the WAN (ONT) using my laptop I can verify the speed matches. However, when the router is connected to the ONT and I connect (via LAN) to the router, I get speeds in the range of 70/80Mbps.
Is there some default configuration in RouterOS that might be limiting this? I have made no configuration changes post-purchase.
NO, have you changed the configuration??
/export hide-sensitive file=anynameyouwish
Did you check your cables??
Only config change was related to IP ranges (from 192.168.88.. to 192.168.1..)
Cables all good, testing against ONT
# apr/06/2022 16:08:17 by RouterOS 6.49.5
# software id = YZ1G-CUG8
#
# model = RB750Gr3
# serial number = CC210EABA9A9
/interface bridge
add admin-mac=2C:C8:1B:C4:A3:CE auto-mac=no comment=defconf name=bridge
/interface ethernet
set [ find default-name=ether1 ] name=ISP_eth1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=default-dhcp ranges=192.168.1.10-192.168.1.254
/ip dhcp-server
add address-pool=default-dhcp disabled=no interface=bridge name=defconf
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ISP_eth1 list=WAN
/ip address
add address=192.168.1.1/24 comment=defconf interface=bridge network=\
192.168.1.0
/ip dhcp-client
add comment=defconf disabled=no interface=ISP_eth1
/ip dhcp-server network
add address=192.168.1.0/24 comment=defconf dns-server=192.168.1.1 gateway=\
192.168.1.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
ipsec-policy=out,none out-interface-list=WAN
/system clock
set time-zone-name=Africa/Johannesburg
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
changed subnet to 192.168.1.x but dns is still 192.168.88.1
which ethernet port are you connected to for WAN and LAN?
My Hex when going from eth1 to eth2 using iperf3 on two connected computers can easily saturate 1Gb ethernet…
Are you sure your cables are all CAT6 or better ?
eth1 connects to WAN
eth2 is where I’m connected to the router
See no reason for it based on the config.
Using same cable that was used for testing directly against the ONT.
Cable setup as is gave one test at around 200/200 when I disabled all firewall rules (shot in the dark). However, came back down to the 90/90 results.
Going to source some different cables and test again…

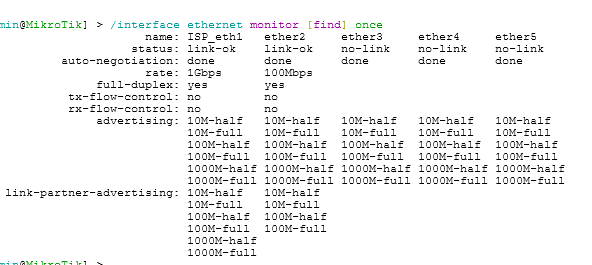

/interface ethernet monitor [find] once
And see which port doesn’t have rate = 1Gbps.
Rocket science!
You need 2 cables if hex gets in between.
Quick check is indeed as Znevna suggests. See what the ports advertise.
Anyhow, the fact you only get 70-90 makes me conclude there is somewhere a 100Mb restriction to be found.

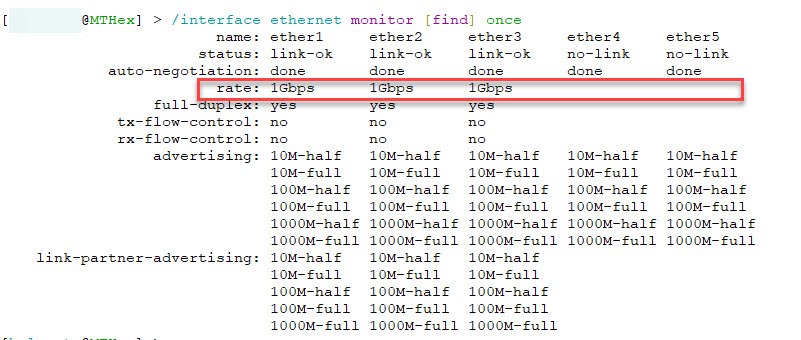

This is how it should look like:
Ok, so I guess that confirms where the issue lies - guess the second cable might be the culprit?
cool command line entry!
Switch both cables.
If the problem moves as well, it’s definitely the cable.
My advice: if it’s the cable, toss it or at least attach a clear label on it “100Mb only”.
You might encounter it again sooner or later and then you will run into the same problems (wasting time again to search why).
