Mount ACGPSA antenna on LtAP mini LTE 2024

EmanK · October 16, 2025, 6:26pm

Hi Everyone,

I might be blind, but could someone guide me to install the ACGPSA antenna on a LtAP mini LTE 2024 refresh ?

I’ve figured out to find the connector of the internal, but I would like to install the external one.

I don’t find the correct connector, the size does not seem to be the same.

Should i buy a converter between both connector sizes ?

I didn’t find any tutorial about the GPS external antenna, only the LTE ones,

Thank you,

BartoszP · October 18, 2025, 4:55pm

Specification says:

GPS Built-in MT3337V, with uUFL RF connector and active antenna support

so you need SMA->uFL adapter.

EmanK · November 20, 2025, 10:10am

Is this product the right one ?

I don’t know that much those connectors,

Thanks,

jaclaz · November 20, 2025, 12:59pm

The specs BartoszP postred say that the connector is
UFL:
https://en.wikipedia.org/wiki/Hirose_U.FL

You want a UFL to SMA pigtail, not a MMCX to SMA one.

Example, if you want to stay on Mikrotik:
https://mikrotik.com/product/acsmaufl

EmanK · November 20, 2025, 2:22pm

Thank you a lot,

rextended · November 20, 2025, 2:31pm

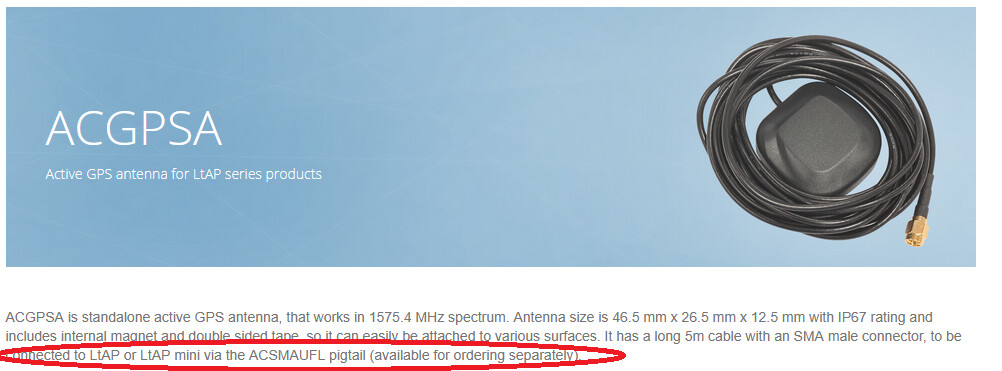

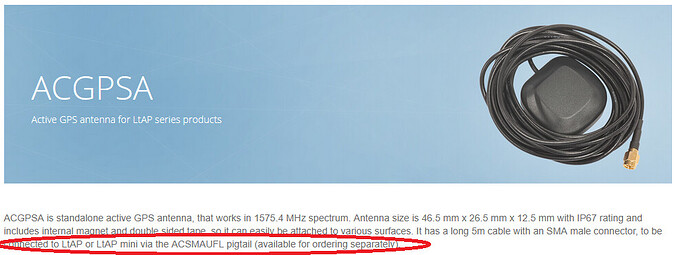

Just read the product page...
